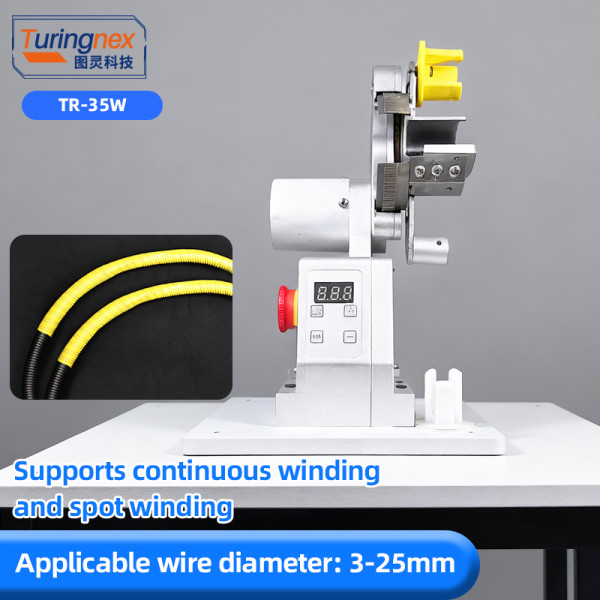

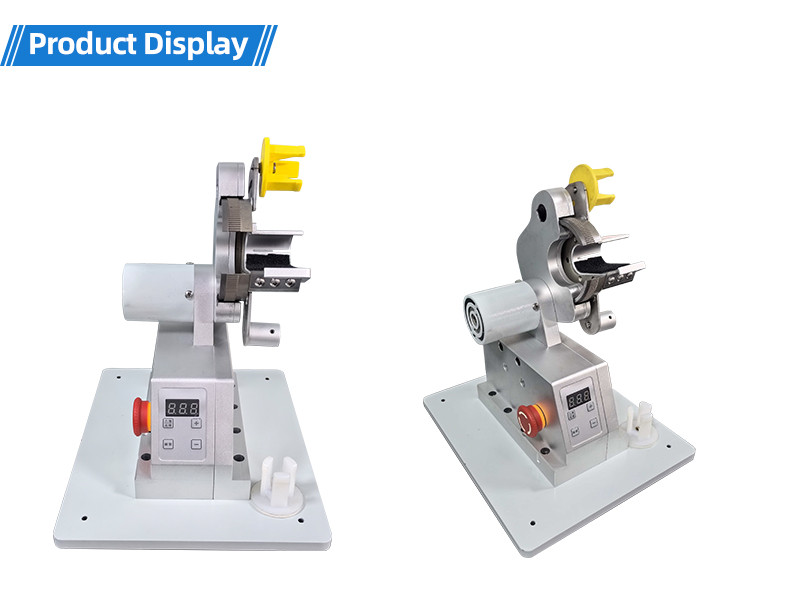

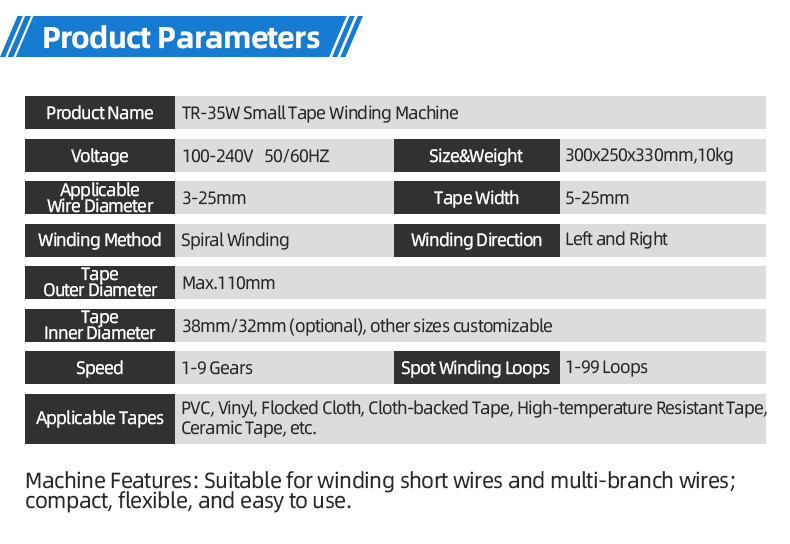

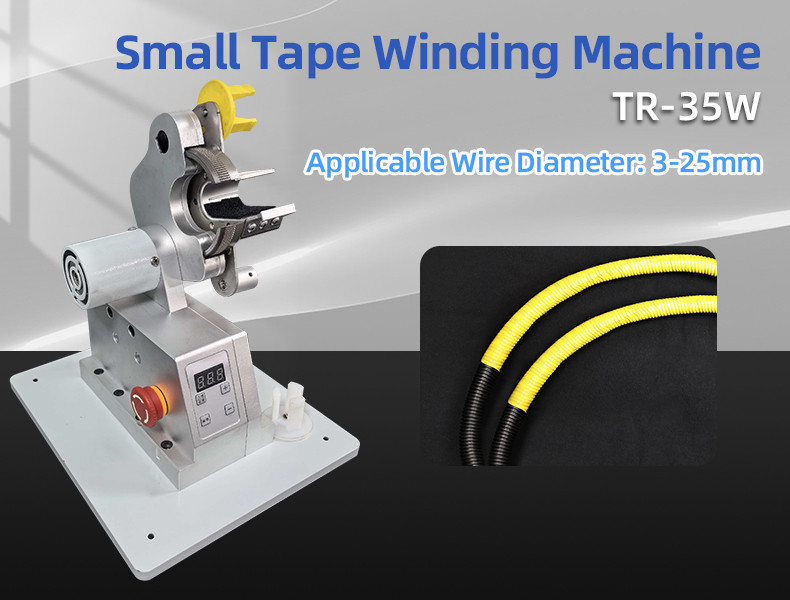

TR-35W Small Tape Winding Machine

Power Supply: 100 - 240V 50/60HZ

Dimension and Weight: 300x250x330mm, 10kg

Applicable Wire Diameter: 3 - 25mm

Tape Width: 5 - 25mm

Winding Method: Spiral Winding

Winding Direction: Left and Right

Applicable Tapes: PVC, Vinyl, Flocked Cloth, Cloth - backed Tape, High - temperature Resistant Tape, Ceramic Tape, etc.

Maximum Tape Outer Diameter: 110mm

Tape Inner Diameter: 38mm/32mm (optional), others can be customized

Speed: 1 - 9 Gears

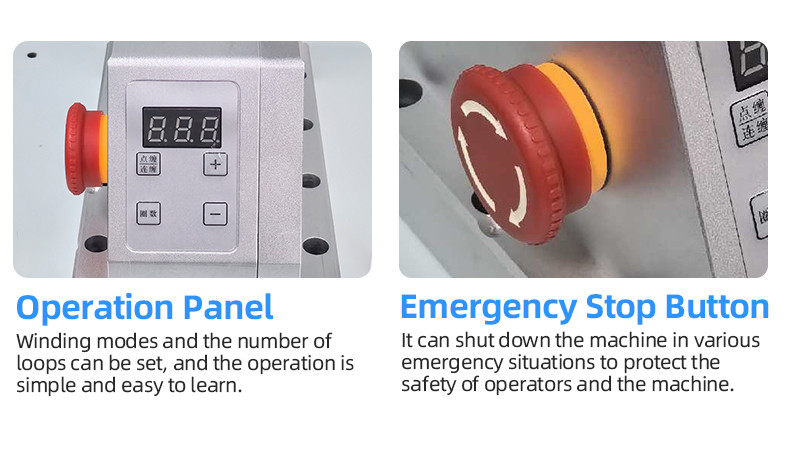

Spot Winding Loops: 1 - 99 Loops

Machine Features:

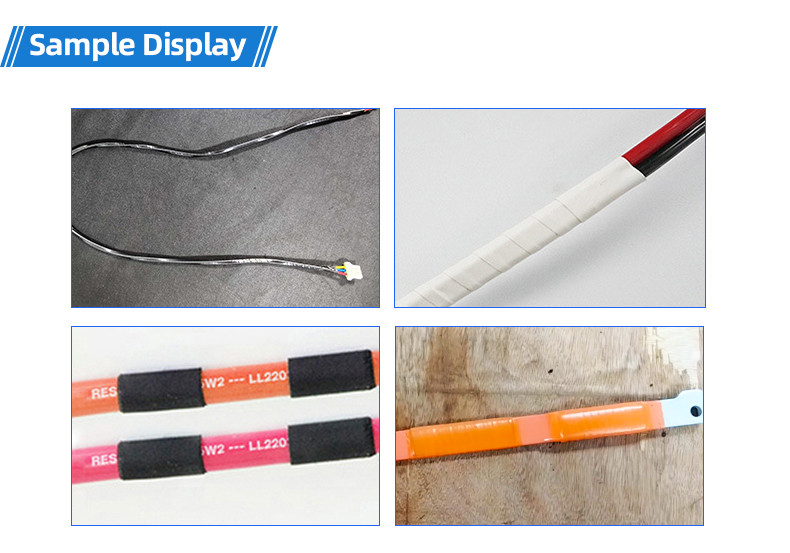

Suitable for winding short wires and multi - branch wires; the machine is compact, flexible and easy to use.
