Home / All / Tape Bunding Machine / Full tape wrapping machine / TR-850C Automatic Tape Winding Machine
TR-850C Automatic Tape Winding Machine
| Categories | Full tape wrapping machine |
|---|---|
| Trademark/Brand | Turing |
| Model | TR-850C |
| Power | AC220V/50HZ, |
| operating mode | Touch Screen |
| power supply | AC220V/DC24V |
| Warranty | 1year |
| Wire diameter | 3-10MM |
| FOB port | shenzhen ,guangzhou ,zhongshan |
| Terms of Payment | Western Union, MoneyGram, T/T |
| Download |  |
| Update Time | Nov 1,2025 |
Detail Information

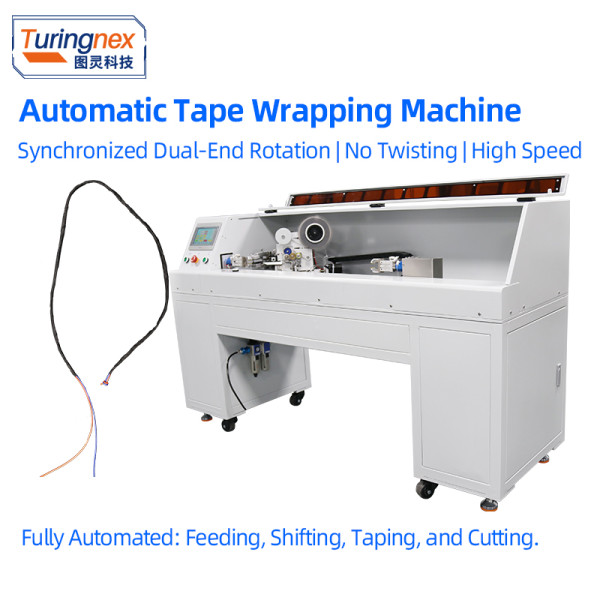

TR-850C Automatic Tape Winding Machine
Operation: Touch Screen
Effective Winding Stroke: within 1 meter
Applicable Wire Diameter: 3-10mm
Hole Size of Tape: Ф38 (other sizes Ф32, Ф76 ....) (need to be informed in advance)
Host speed (rpm): 4500 rpm adjustable
Applicable tape: PVC, cloth velvet, cloth-based tape, high-temperature tape, more suitable for mica tape, ceramic tape, acetate tape and other adhesive tape with backing paper.
Voltage: AC220V/DC24V 50/60HZ 110V Optional:
Outer diameter of the tape: ≤ 110
Medium speed of the machine: 15 seconds / 1 meter line Full winding The first section of the stay ≥ 15mm The end of the stay ≥ 10mm
Speed of the machine: 0-30 adjustable
Length, width, and height: 1830 * 600 * 1080mm
Gross weight of the machine: 300KG
Dimensions and weight of the wooden frame: 1910 * 75.0 * 1300mm, 348KG. 1300mm, 348KG
machine can be optional: plus paper collector, plus safety grating
machine features: this machine is suitable for fine line pneumatic clamping line operation is convenient, while the two rotating can reduce the stranded line automatically paste tape automatic feeding, automatic cutting tape to achieve automation to reduce manual operation to save costs.
Machine function: can point winding can full winding
