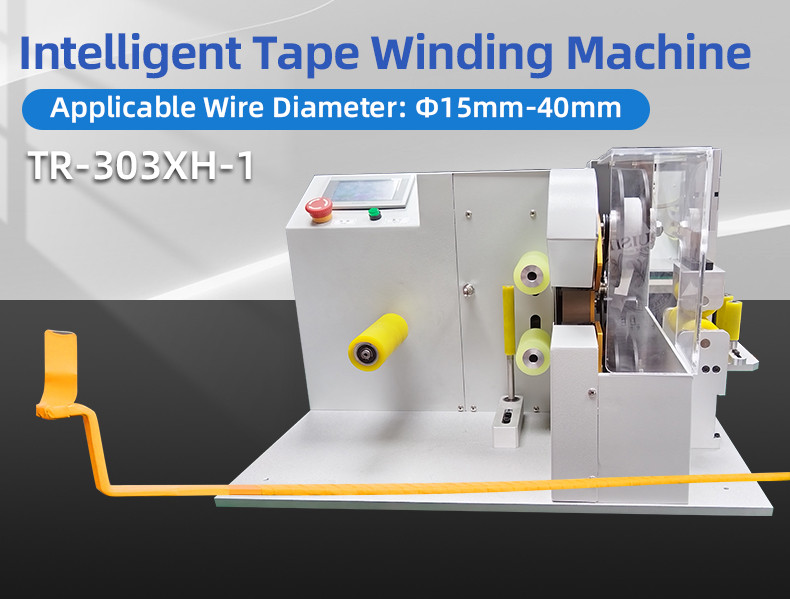

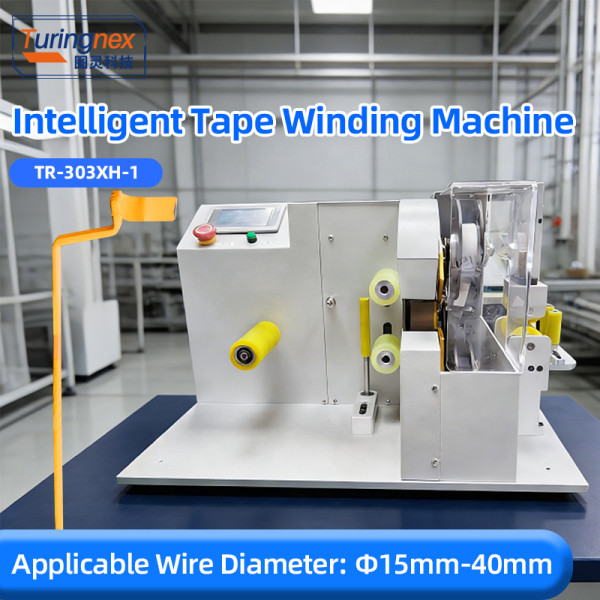

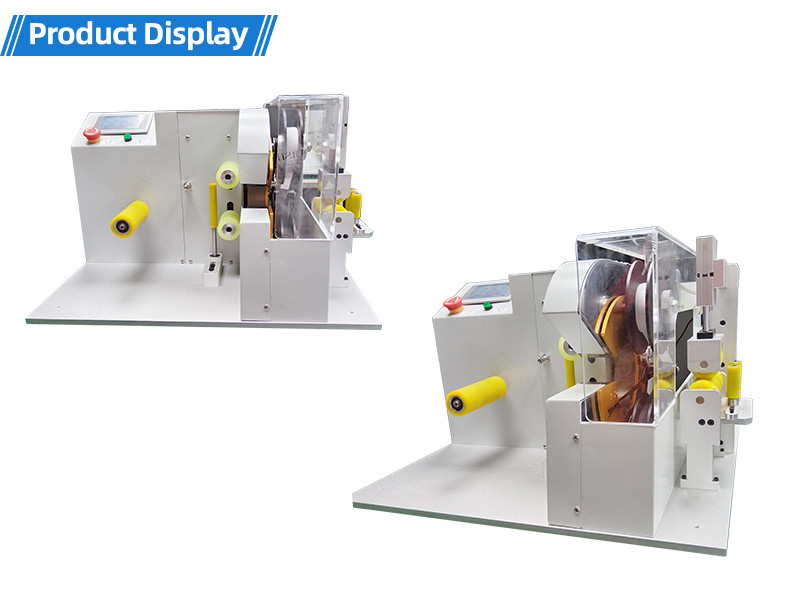

TR-303XH-1 Intelligent Tape Winding Machine

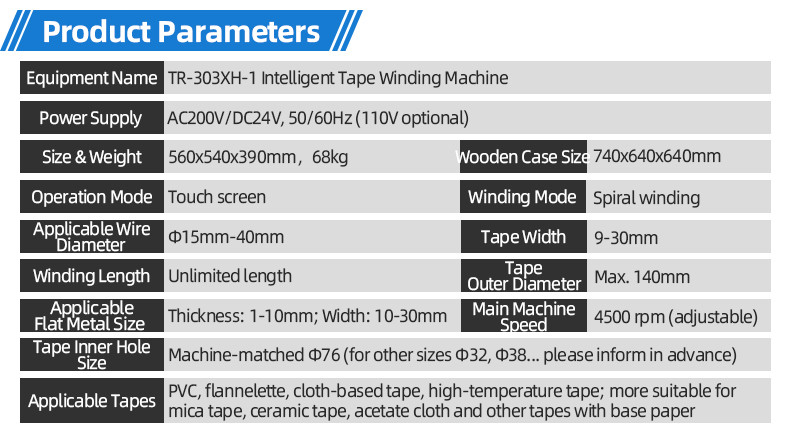

Power Supply Voltage：AC200V/DC24V, 50/60Hz (110V optional)

Dimension & Weight：560x540x390mm, 68kg

Wooden Case Dimension：740x640x640mm

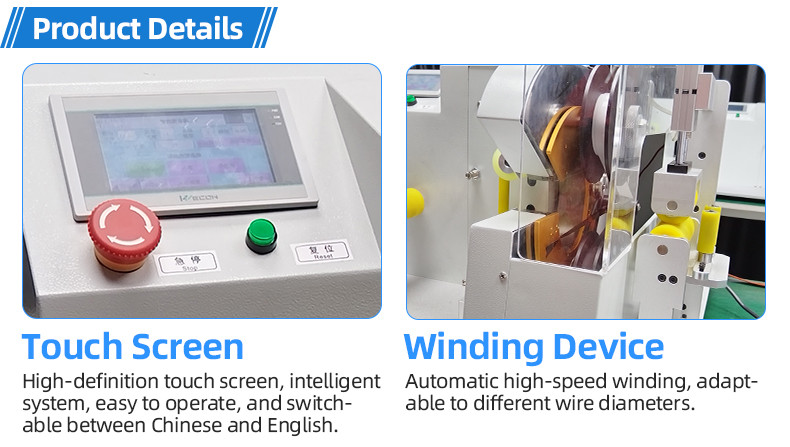

Operation Mode：Touch screen

Winding Mode：Spiral winding

Applicable Wire Diameter：Φ15mm-40mm

Tape Width：9-30mm

Winding Length：Unlimited length

Tape Outer Diameter：Max. 140mm

Applicable Flat Metal Size：Thickness: 1-10mm; Width: 10-30mm

Main Machine Speed：4500 rpm (adjustable)

Tape Inner Hole Size：Machine-matched Φ76 (for other sizes Φ32, Φ38... please inform in advance)

Applicable Tapes：PVC, flannelette, cloth-based tape, high-temperature tape; more suitable for mica tape, ceramic tape, acetate cloth and other tapes with base paper

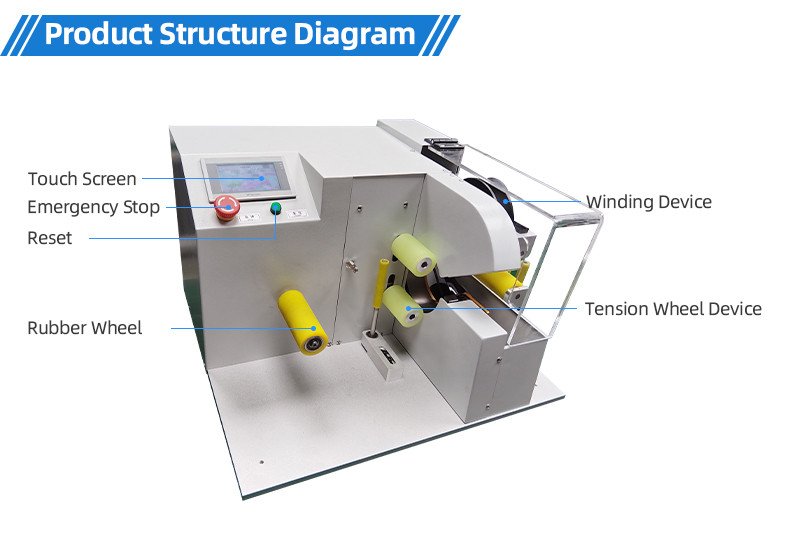

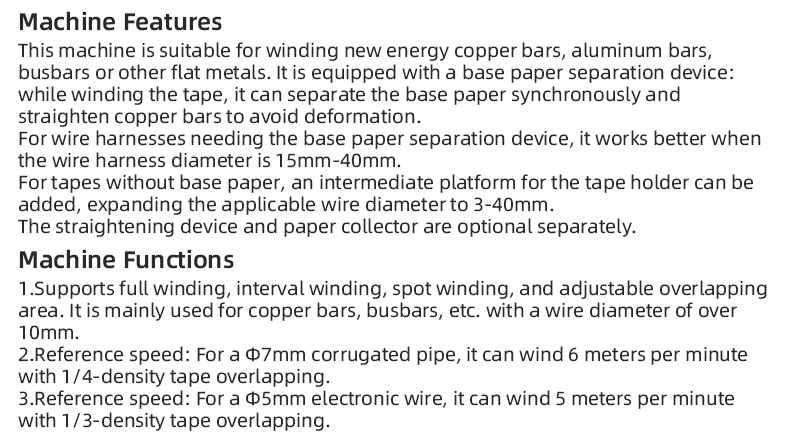

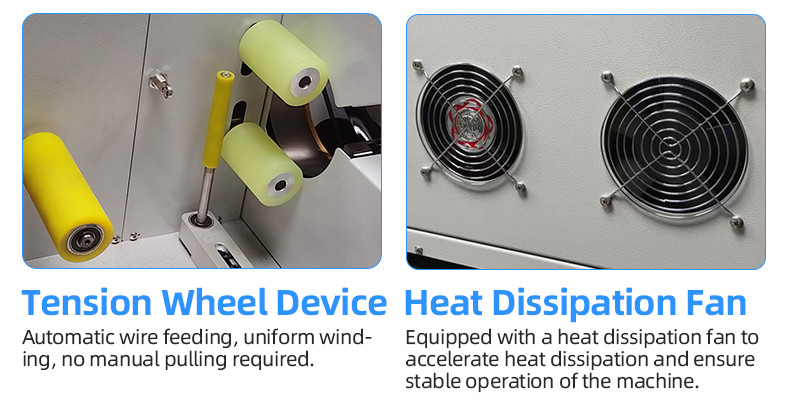

This machine is suitable for winding new energy copper bars, aluminum bars, busbars or other flat metals. It is equipped with a base paper separation device: while winding the tape, it can separate the base paper synchronously and straighten copper bars to avoid deformation.

For wire harnesses needing the base paper separation device, it works better when the wire harness diameter is 15mm-40mm.

For tapes without base paper, an intermediate platform for the tape holder can be added, expanding the applicable wire diameter to 3-40mm.

The straightening device and paper collector are optional separately.

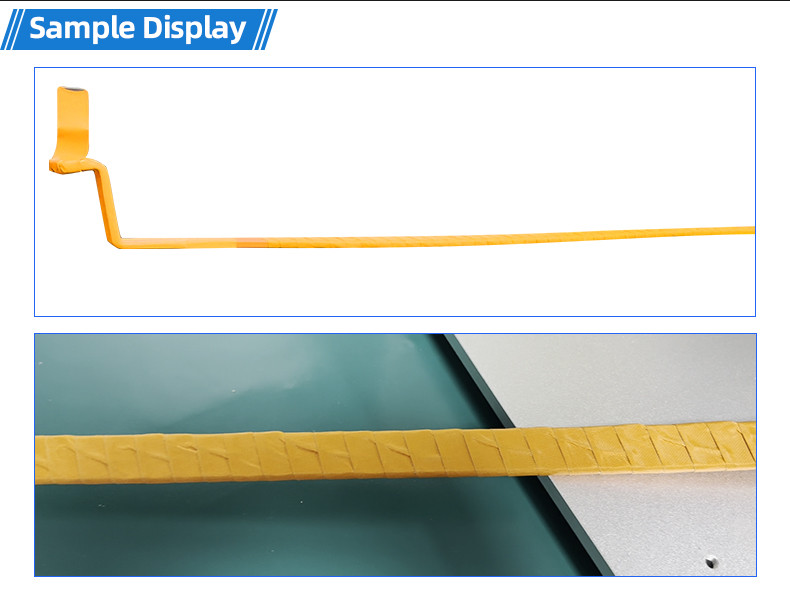

Supports full winding, interval winding, spot winding, and adjustable overlapping area. It is mainly used for copper bars, busbars, etc. with a wire diameter of over 10mm.

Reference speed: For a Φ7mm corrugated pipe, it can wind 6 meters per minute with 1/4-density tape overlapping.

Reference speed: For a Φ5mm electronic wire, it can wind 5 meters per minute with 1/3-density tape overlapping.
