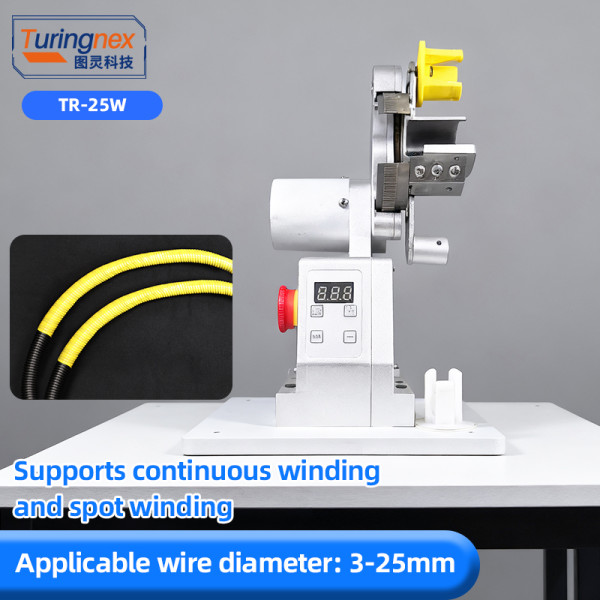

TR-25W Small Tape Winding Machine

Share
Categories	Full tape wrapping machine
Brand	Turing
Model	TR-25W
Power	AC220V/50HZ,
operating mode	Touch Screen
power supply	AC220V/DC24V
Warranty	1year
Wire diameter	Ф3mm-25mm
FOB port	shenzhen ,guangzhou ,zhongshan
Terms of Payment	Western Union, MoneyGram, T/T
Download

Contact Now

Add to Wishlist

Detail Information

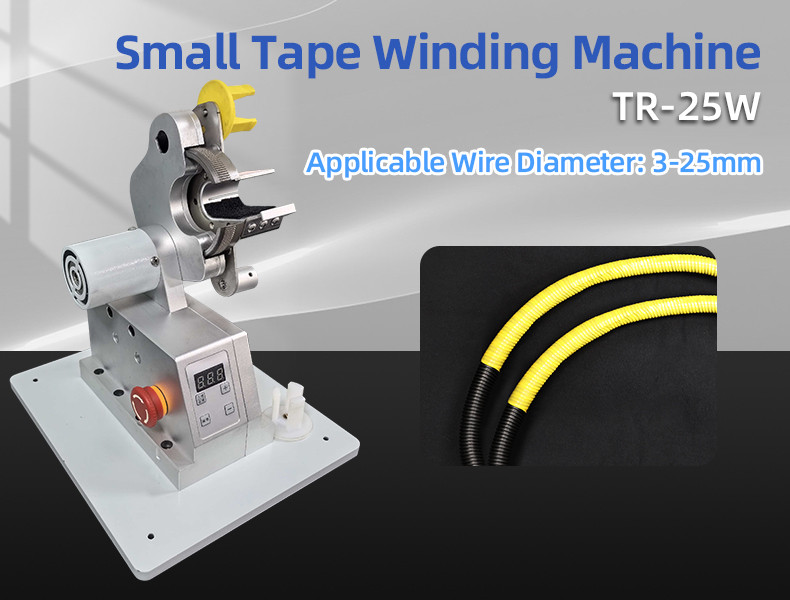

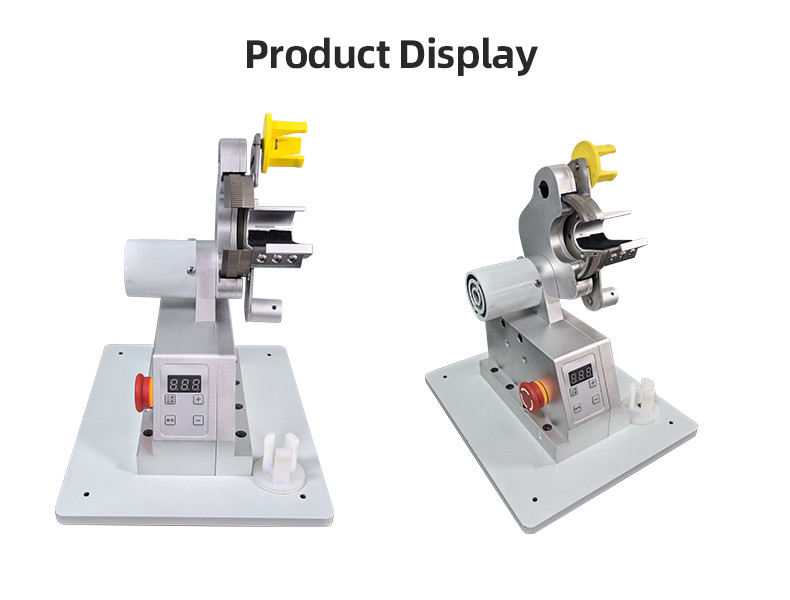

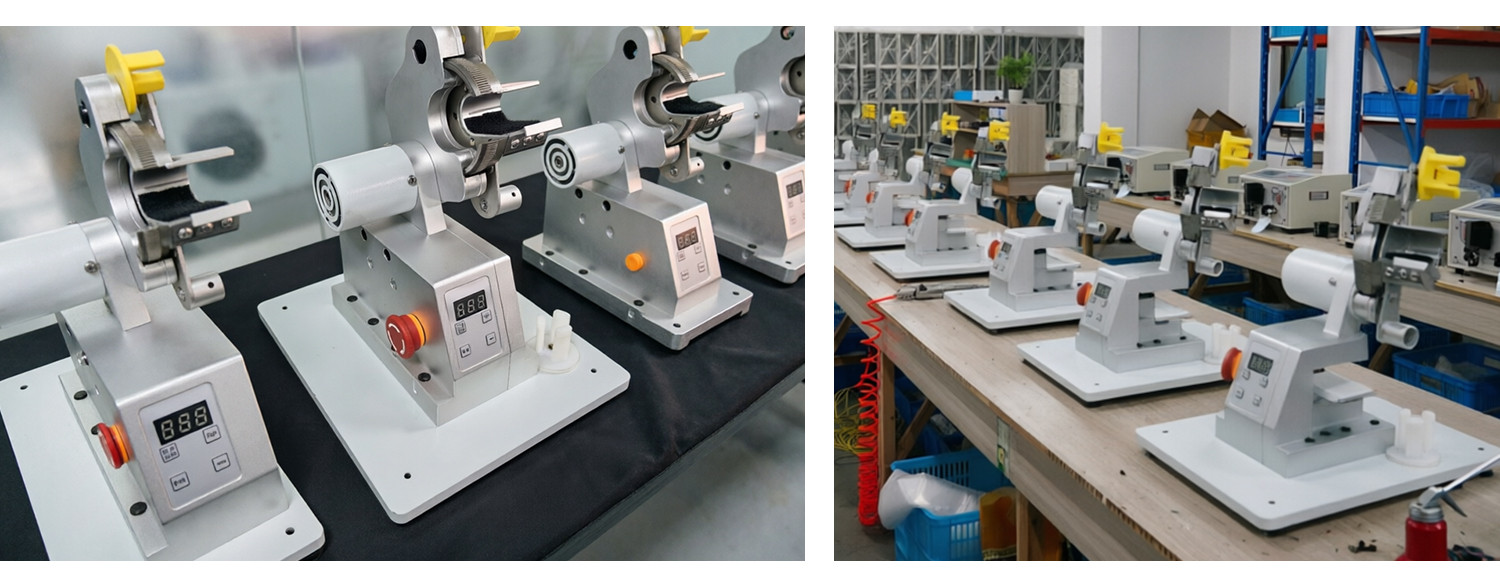

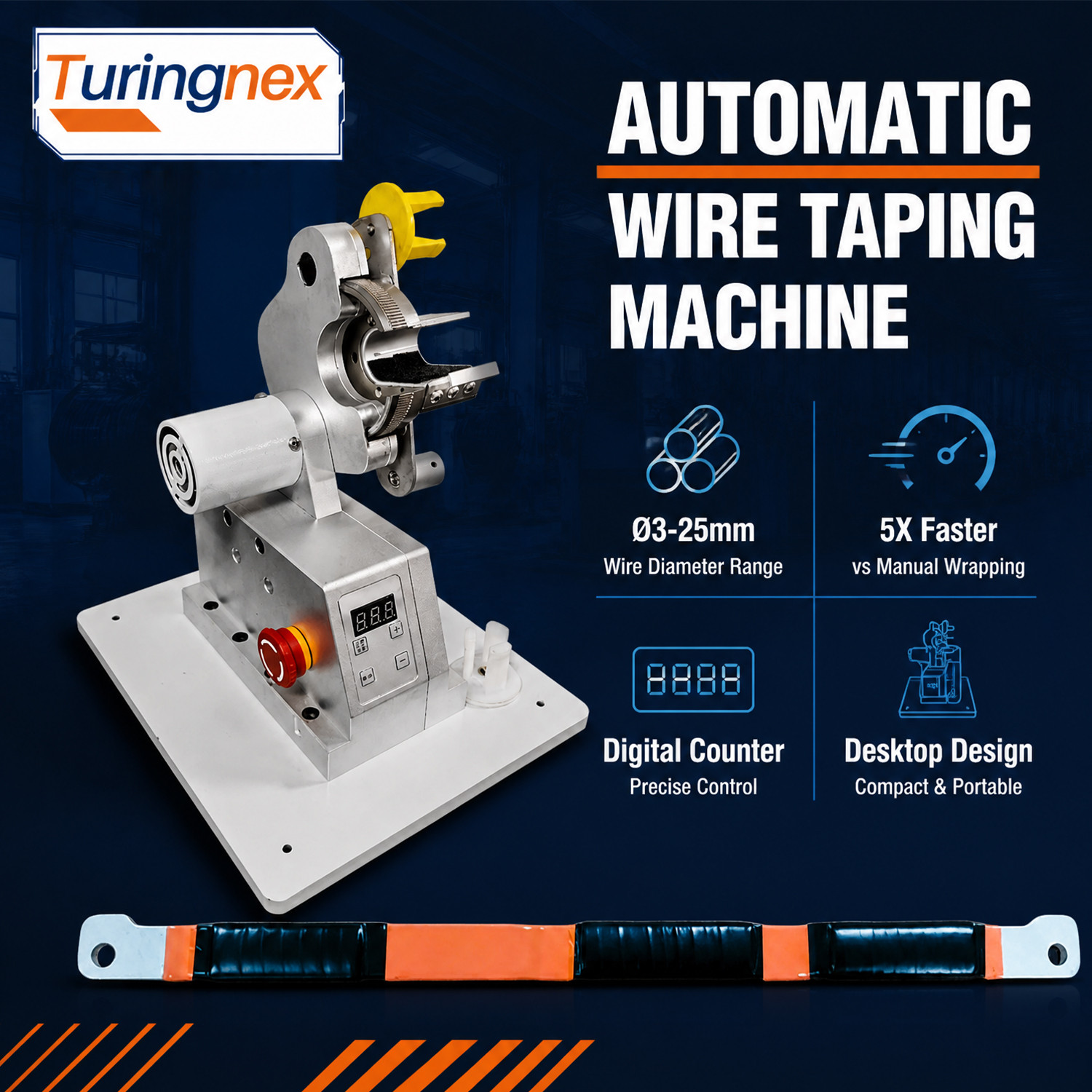

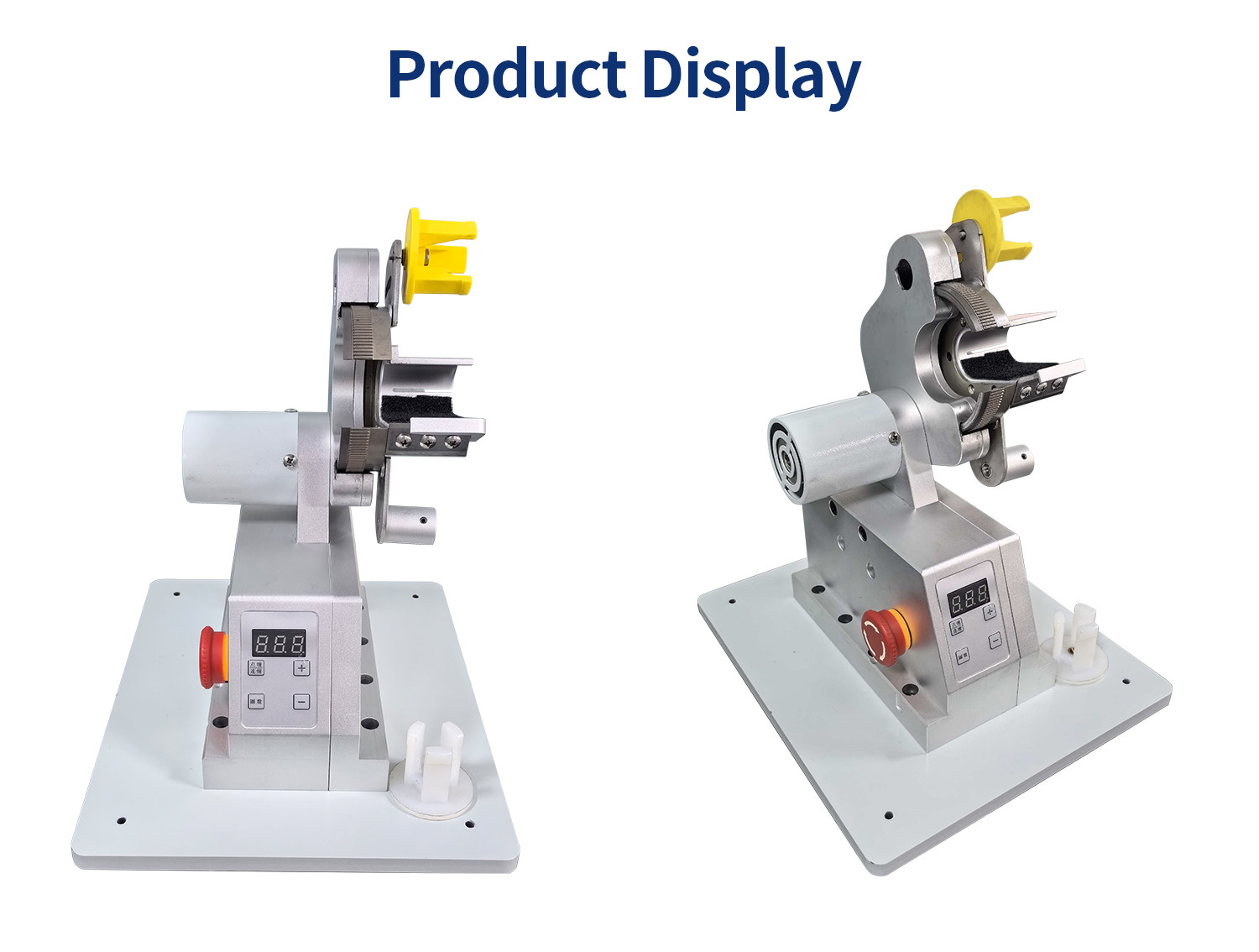

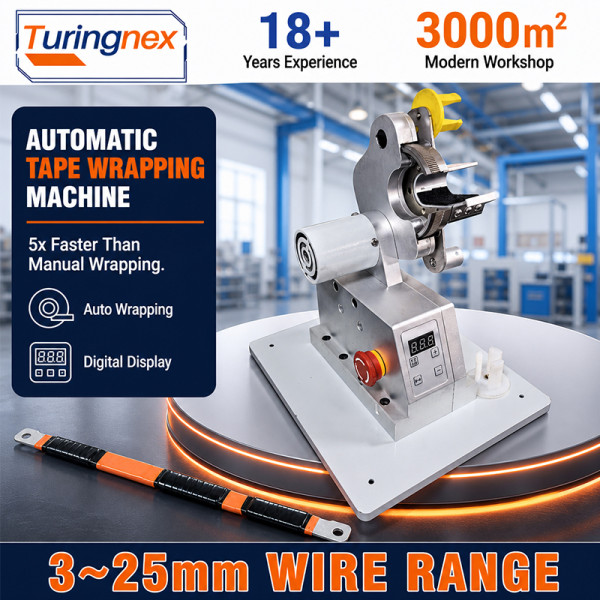

TR-25W Small Tape Winding Machine

Product Highlights

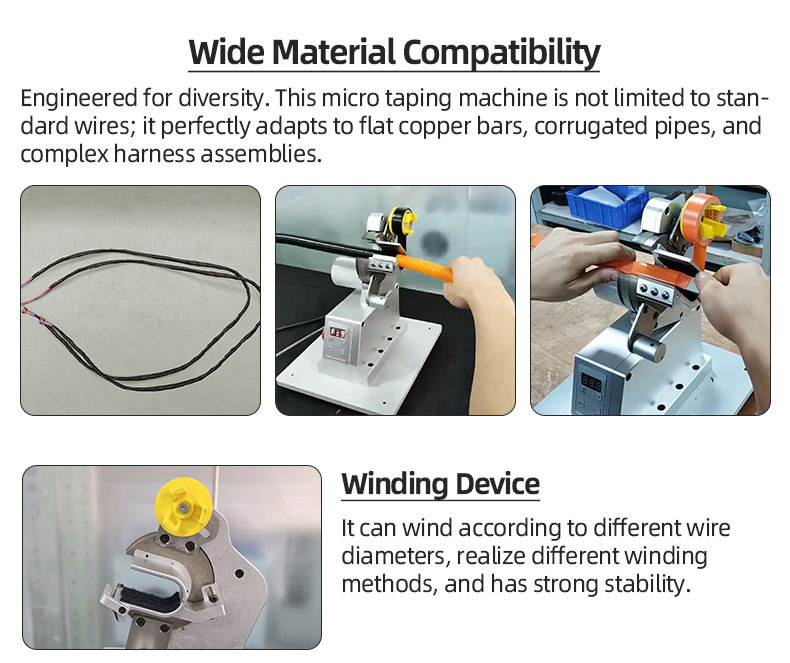

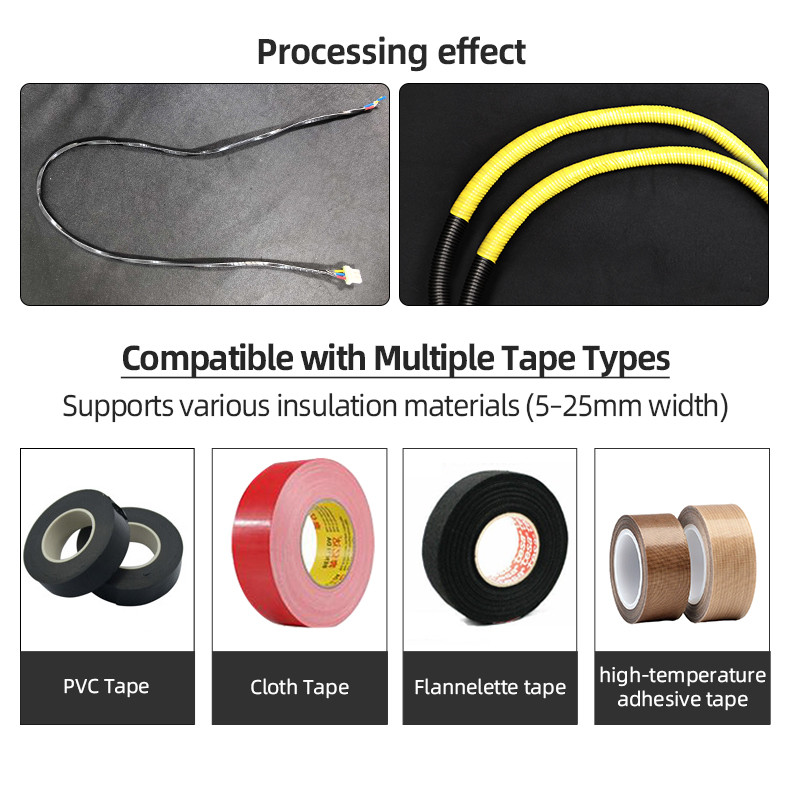

1.Wide Compatibility with Tapes and Wires

Compatible with various tapes including PVC, vinyl, flannel cloth, cloth-based tape, high-temperature tape, ceramic tape, etc. It fits wire diameters of 3–25 mm and tape widths of 5–25 mm. Custom inner diameters of tape rolls are available to meet diverse wire harness processing requirements.

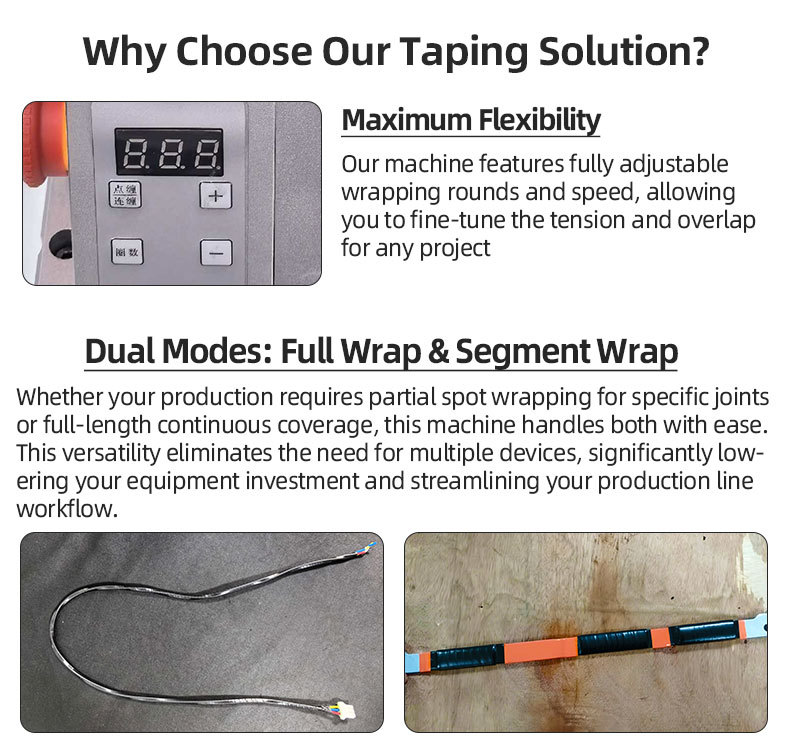

2.Adjustable Parameters for Precise Winding

9-speed adjustable winding speed (1–9 gears), programmable spot winding cycles from 1 to 99 turns, and bidirectional left/right spiral winding. Standardized winding tension and turns ensure uniform finished products.

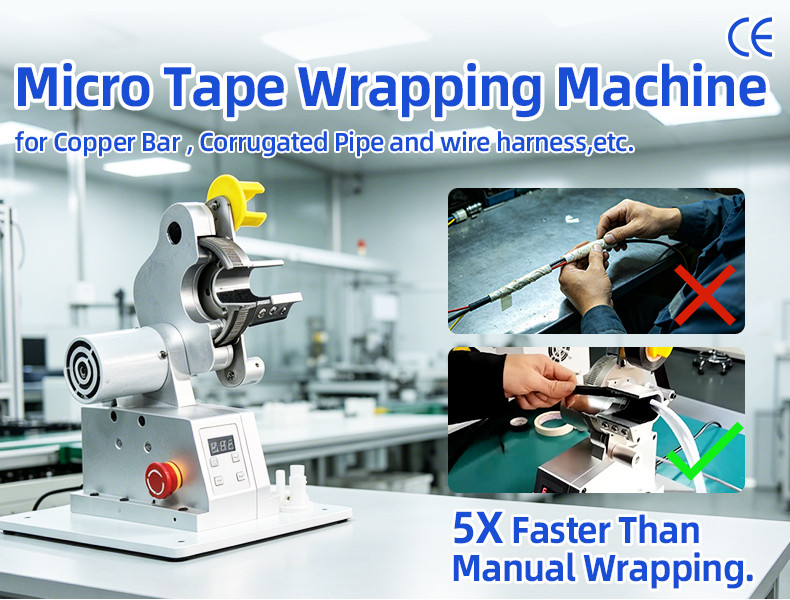

3.Specially Designed for Short & Multi-branch Wires

Optimized for winding short wires and multi-branch wire harnesses, solving the pain points of irregular and inefficient manual wrapping of complex branched cables.

4.Compact & Lightweight for Flexible Layout

Overall dimension: W300L250H330 mm, net weight only 10 kg. Small footprint saves workshop space and allows easy placement and movement on assembly workbenches.

5.Universal Wide Voltage Compatibility

Supports universal 100–240V, 50/60Hz power supply. Works directly in domestic and overseas workshops with different power grids without extra transformers.

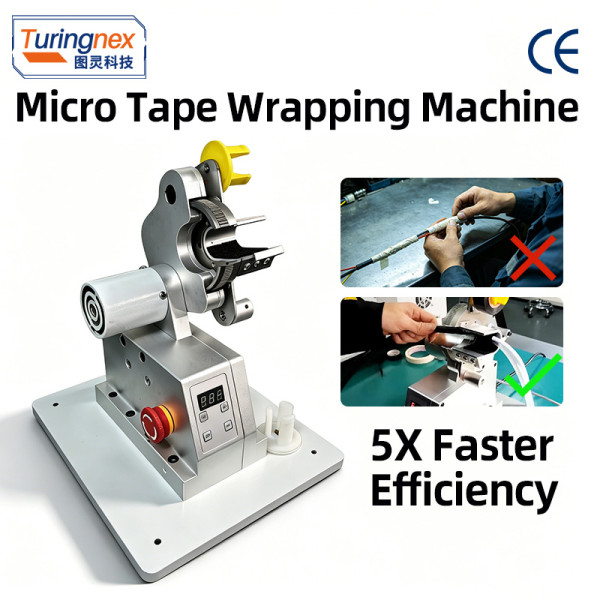

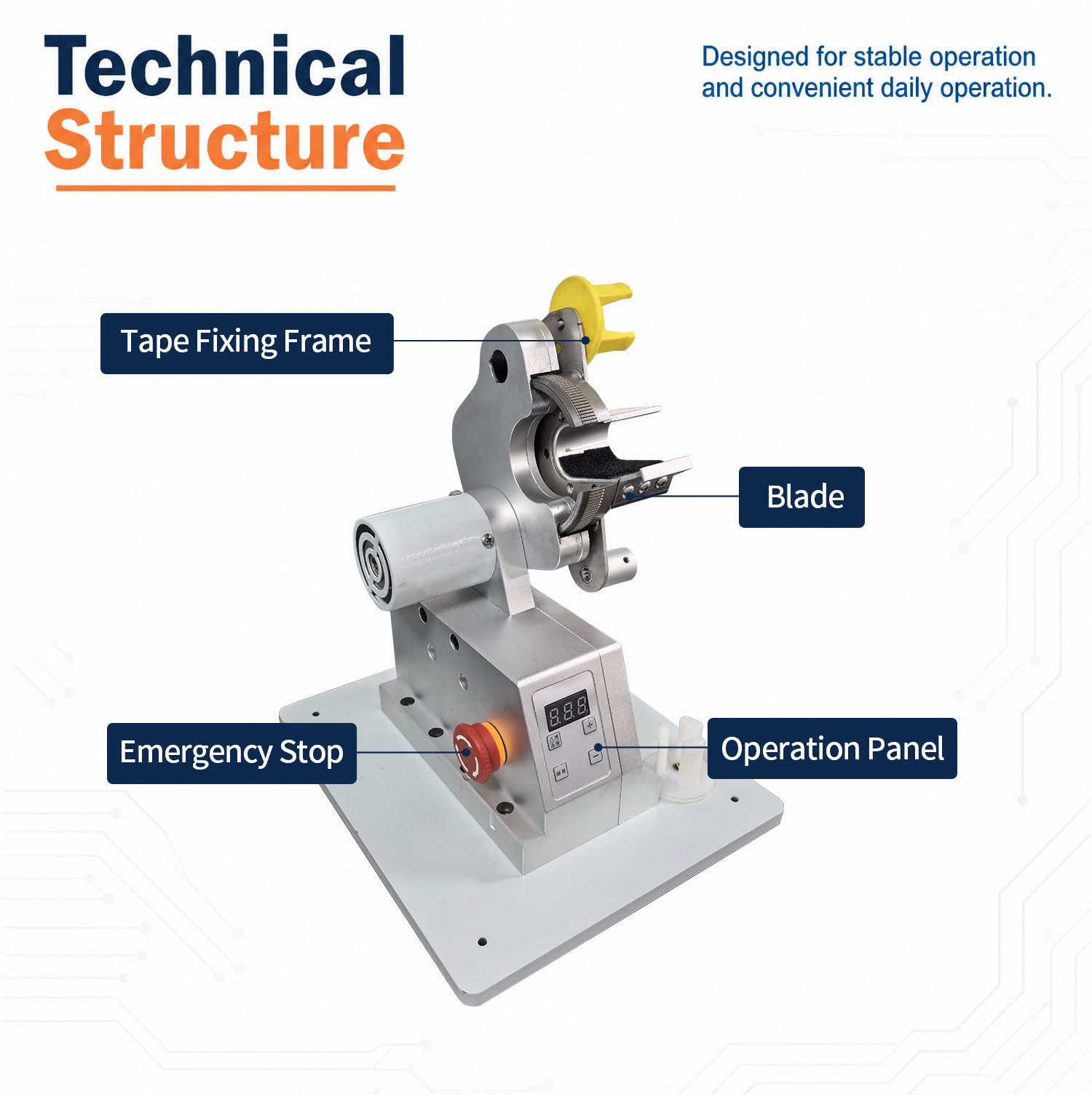

6.User-friendly & Easy Operation

Equipped with a digital display for intuitive parameter setting. Simple structure for quick setup; operators can master the machine with minimal training, replacing manual winding to boost production efficiency.

TR-388DZ Fully automatic double-head crimping enadouble-head inserting shellsingle-head threading hydrant machine

Why Choose Us?

1.Industry Expertise: 18 Years of Focus (Since 2008) with 50,000+ units delivered worldwide.No more instability. Partner with a legacy brand that understands the DNA of wire processing.

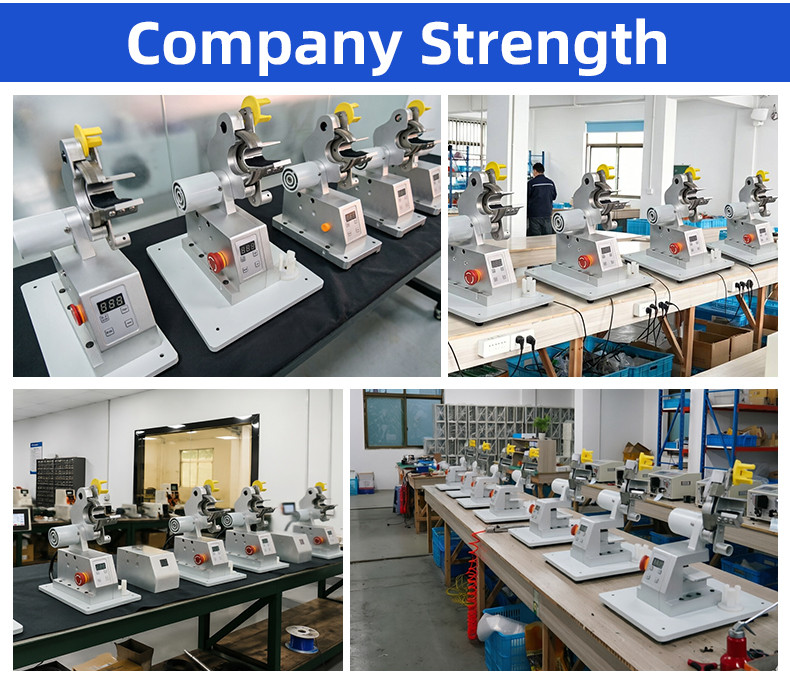

2.Production Scale: 2,500+ Units/Month capacity (500+ Auto-lines, 1000+ Semi-auto).No project delays. Massive throughput ensures we meet your tightest production deadlines.

3.Rapid R&D: 3-7 Days Prototyping for custom tooling based on your unique CAD/3D drawings.Unmatched flexibility. Rapid customization for complex, non-standard wire harness structures.

4.Global Compliance: 100% CE Certified & ISO9001:2015 quality management system.Seamless import. Our machines meet international safety standards (UL/RoHS/CE) for global markets.

5.Economic ROI: 6-Month Payback Period average ROI by replacing 4-6 manual operators. Cost efficiency. Transform your labor costs into high-margin automated productivity.

6.Global Footprint: 112 Countries Reached with 24/7 technical support in 10+ languages. Lifetime support. Reliable remote video diagnostics and lightning-fast spare parts delivery anywhere.

TR-303K Semi-automatic Single Pull Tape Wrapping Machine

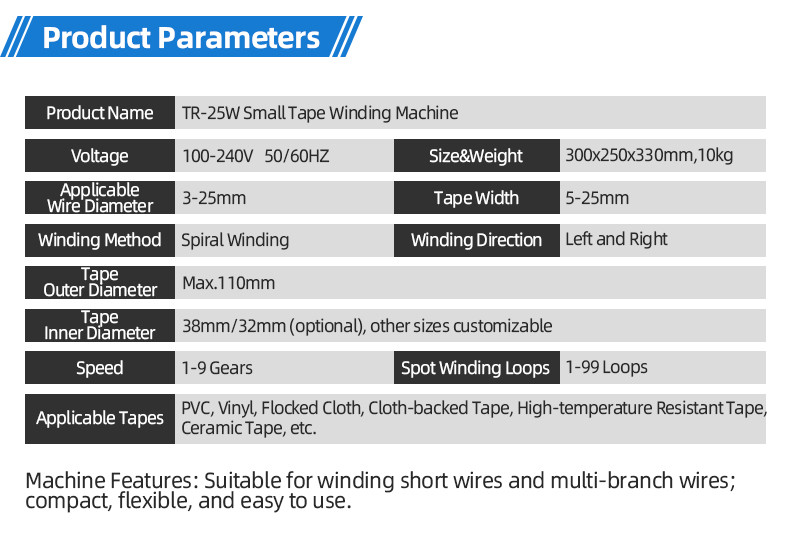

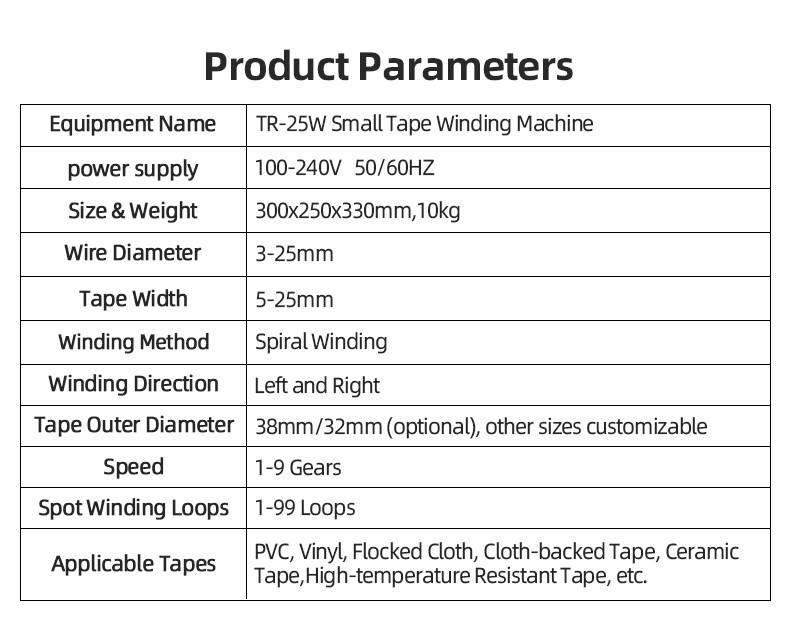

Equipment Name	TR-25W Small Tape Winding Machine
Power	100-240V 50/60HZ
Size & Weight	300x250x330mm,10kg
Wire Diameter	3-25mm
Tape Width	5-25mm
Winding Method	Spiral Winding
Winding Direction	Left and Right
Tape Inner Diameter	Max.110mm
Tape Outer Diameter	38mm/32mm (optional), other sizes customizable
Speed	1-9 Gears
Spot Winding Loops	1-99 Loops

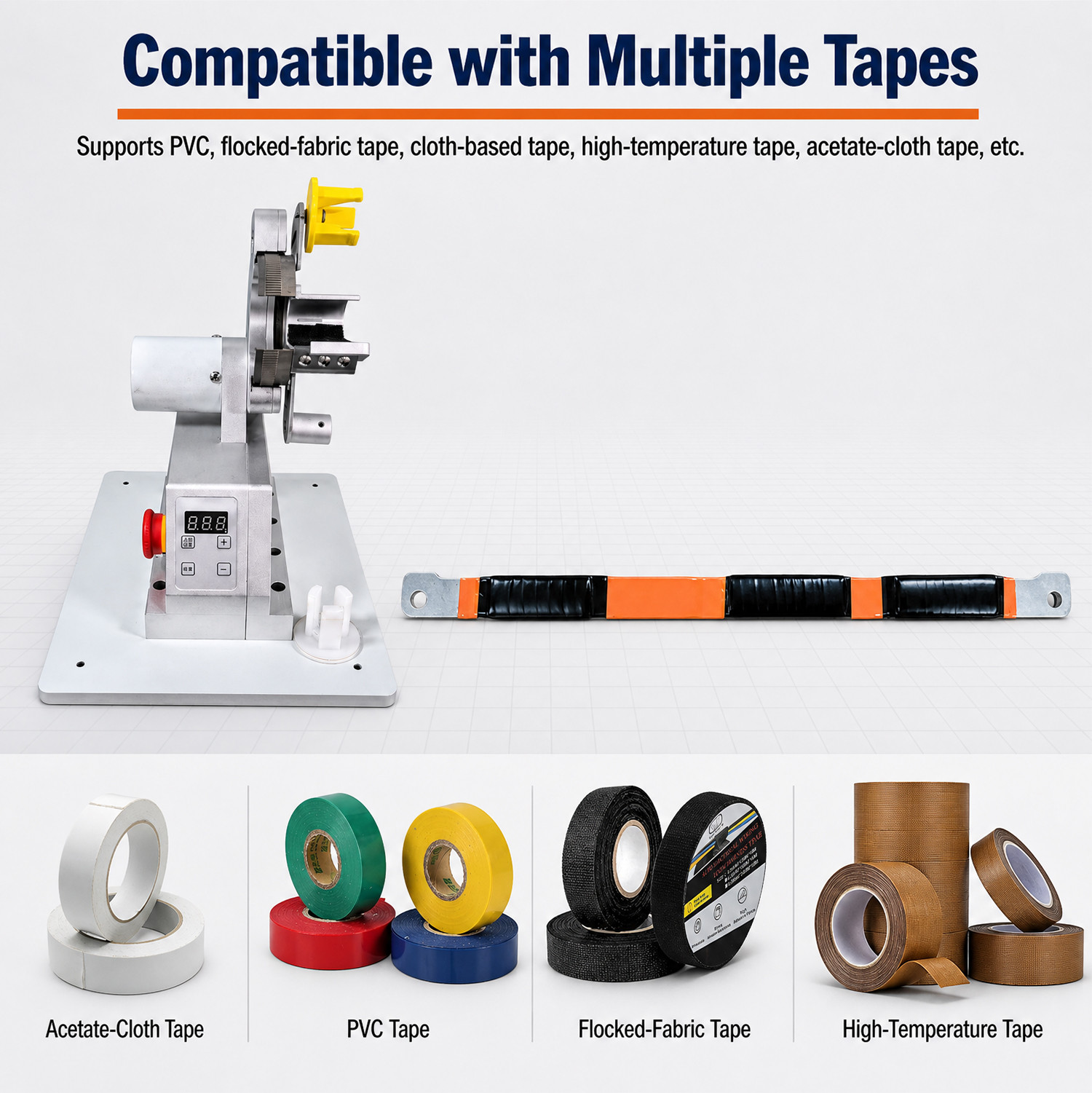

Applicable Tapes	PVC, Vinyl, Flocked Cloth, Cloth-backed Tape, Ceramic Tape,High-temperature Resistant Tape, etc.

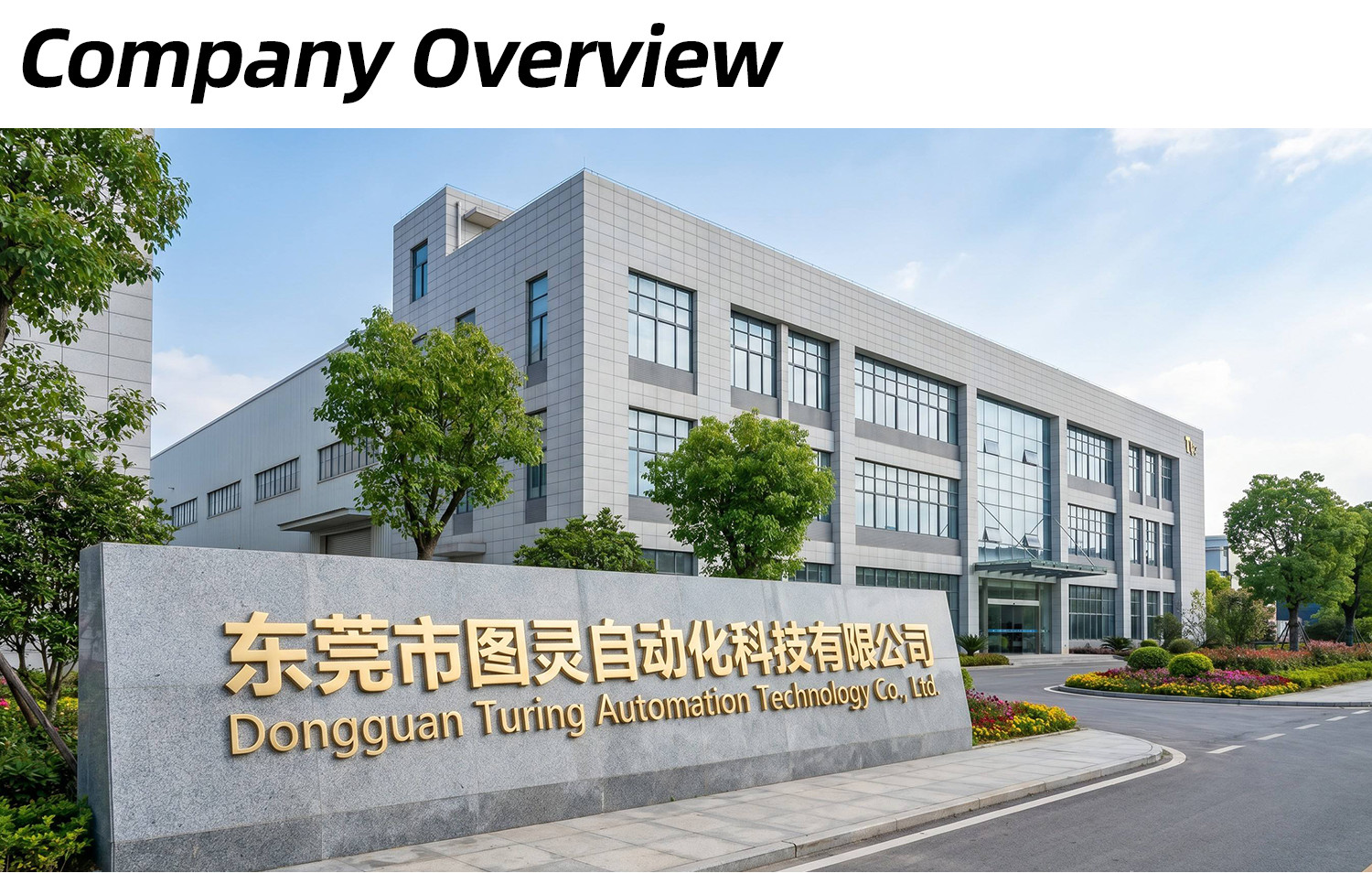

Dongguan Turing Automation Technology Co., Ltd. was established in 2008, located in Dongguan City, Guangdong Province. The company specializes in the production of: automatic terminal embossing machine, automatic terminal embossing tinning machine, ultra-quiet energy-saving terminal machine, mute copper tape machine, computerized wire cutting and stripping machine, coaxial stripping machine, automatic nylon zip tie machine, automatic winding and bundling machine, heat shrinkable tube computerized pipe cutting machine, terminal machine molds, knife molds and new energy automation wiring harness processing equipment and so on. Mainly serves in the automobile and motorcycle, electronics, home appliances, electrical and other wiring harness processing enterprises electrical. We have rich industry experience and are a reliable supplier. Our holding/co-operating factories have advanced production equipment and skilled frontline staff. Knowing that the development of our company depends on the innovation and quality of our products, we have established a quality management system that meets the requirements of the international quality management system. We constantly launch original innovations according to market and customer needs, always keep the novelty and innovation of our products, and think what our customers think and what they are anxious about. Providing customers with excellent service and meeting their needs is our eternal pursuit!
