TR-303KL Bilateral Pull Tape Wrapping Machine

Share
Categories	Full tape wrapping machine
Brand	Turing
Model	TR-303KL
Power	AC220V/50HZ,
operating mode	Touch Screen
power supply	AC220V/DC24V
Warranty	1year
Wire diameter	Ф3mm-25mm
FOB port	shenzhen ,guangzhou ,zhongshan
Terms of Payment	Western Union, MoneyGram, T/T
Download

Contact Now

Favorites

Detail Information

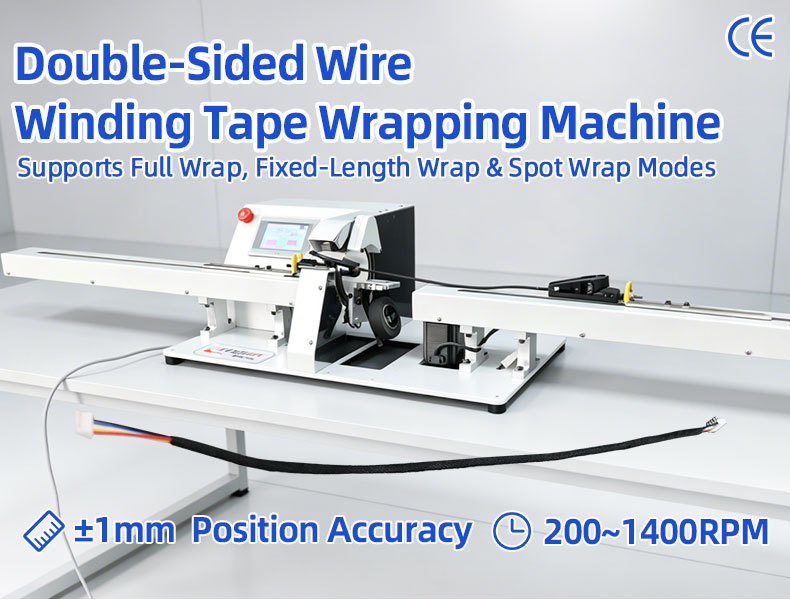

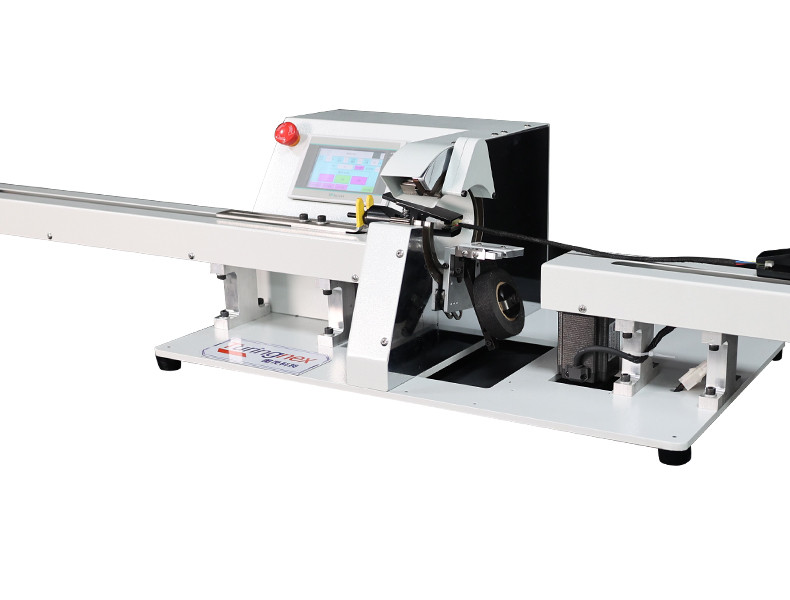

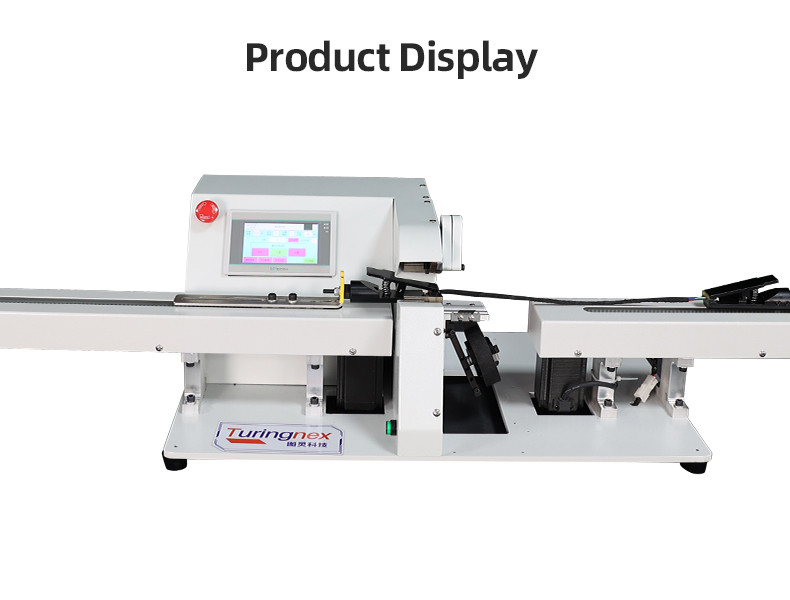

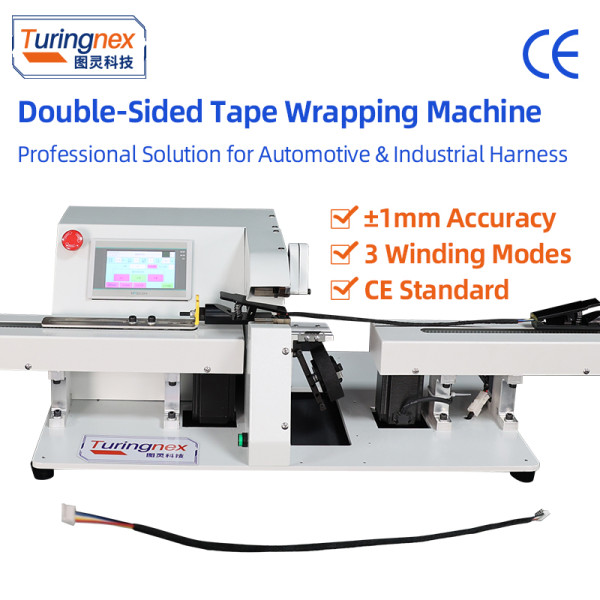

TR-303KL Bilateral Pull Tape Wrapping Machine

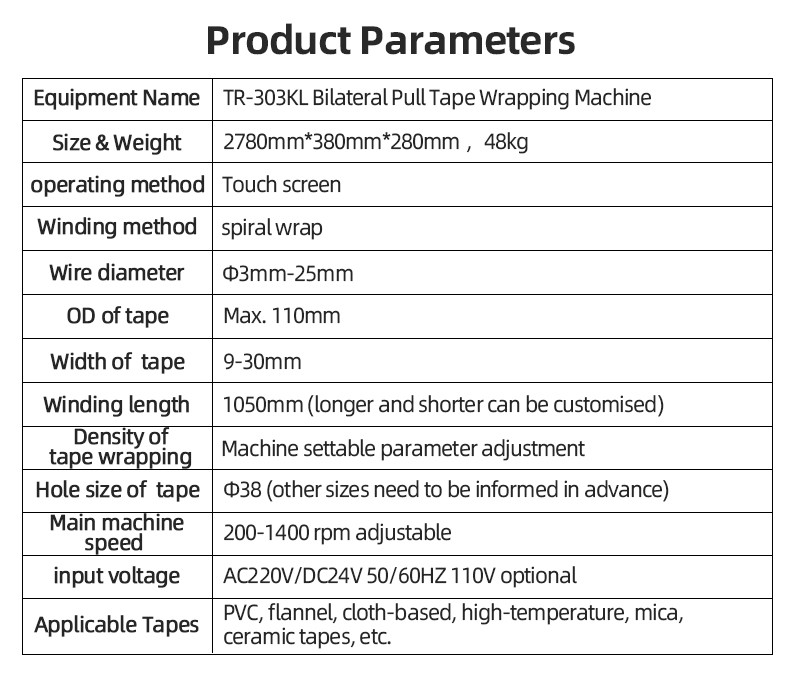

Operation mode: touch screen

Winding method: spiral winding

Applicable wire diameter: Ф3mm-25mm

Tape outer diameter: maximum 110mm

Tape width: 9-30mm

Winding length: 1050mm (longer and shorter can be customized)

Packing tape density: can be adjusted by the machine set parameters.

Hole size of the tape: machine with Ф38 (other sizes Ф32, Ф76 ....) (need to inform in advance)

Rotation speed of main machine (rpm): 200-1400 rpm adjustable

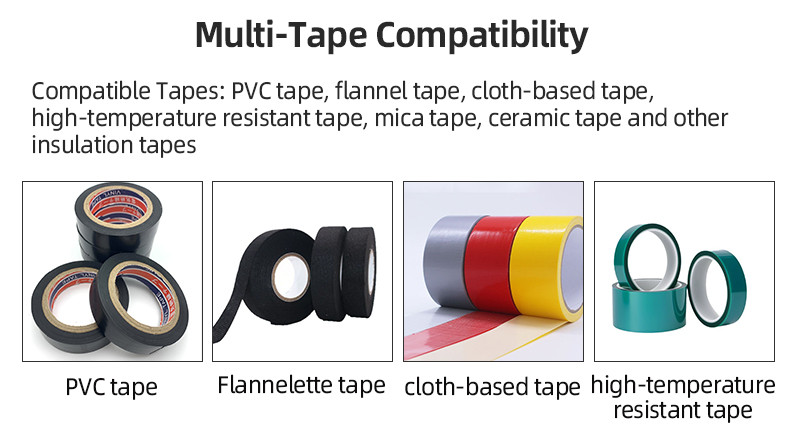

Applicable tape: PVC, cloth velvet, cloth-based tape, high temperature tape, mica tape, ceramic tape, etc.

Voltage: AC220V/DC24V 50/60HZ 110V optional

Machine size: 2780mm*380mm*280mm Net weight:48KG

Machine function:

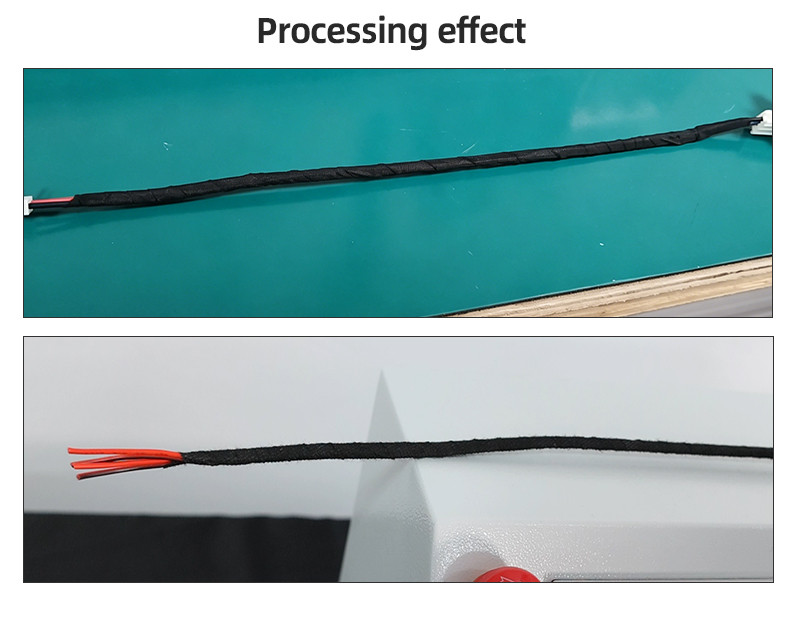

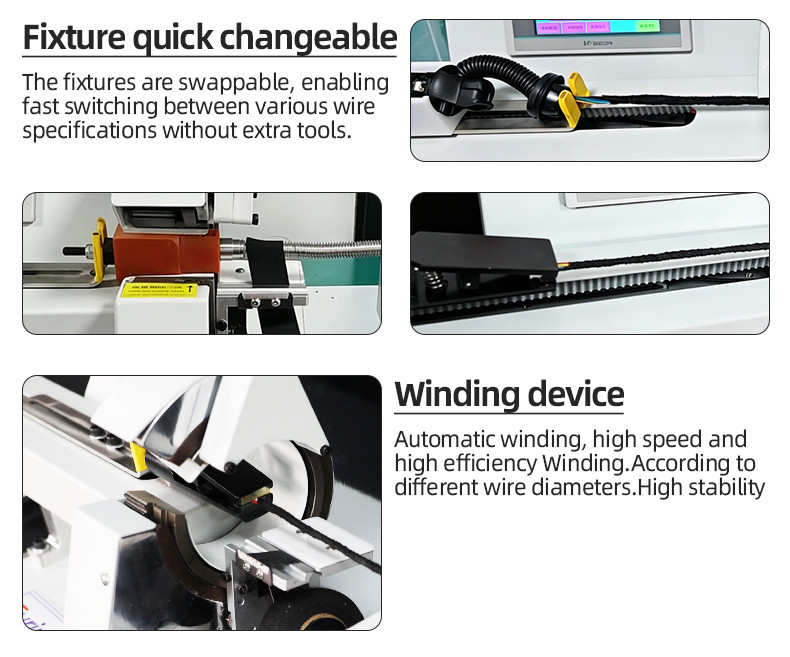

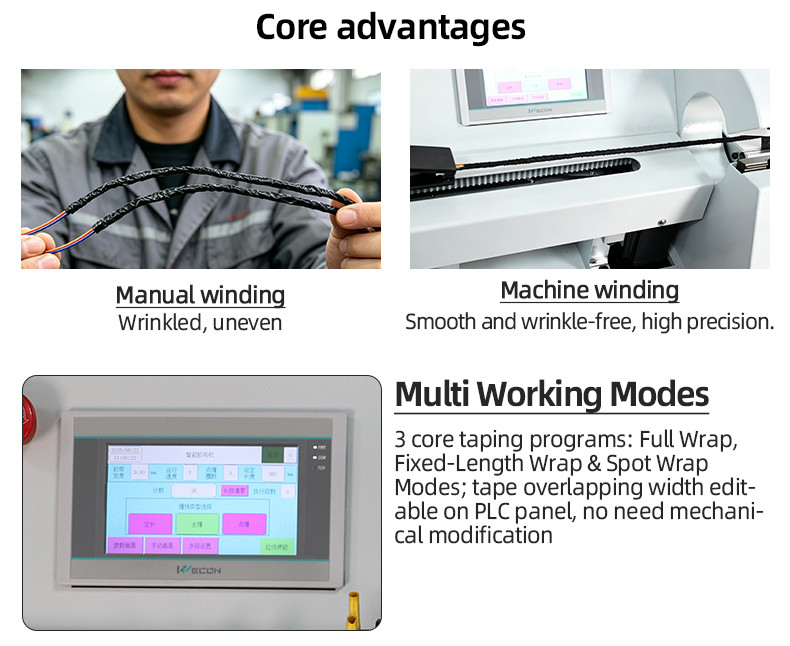

can be full winding, interval winding, point winding, overlap area adjustable. Requirements for the winding length of the tape, winding requirements stay position accuracy can be: ± 1mm.

Trial for: collection of harness, multi-branch, tape winding winding part of the winding length setting, multi-segment requires accurate stay position of the harness.

TR-303K Semi-automatic Single Pull Tape Wrapping Machine

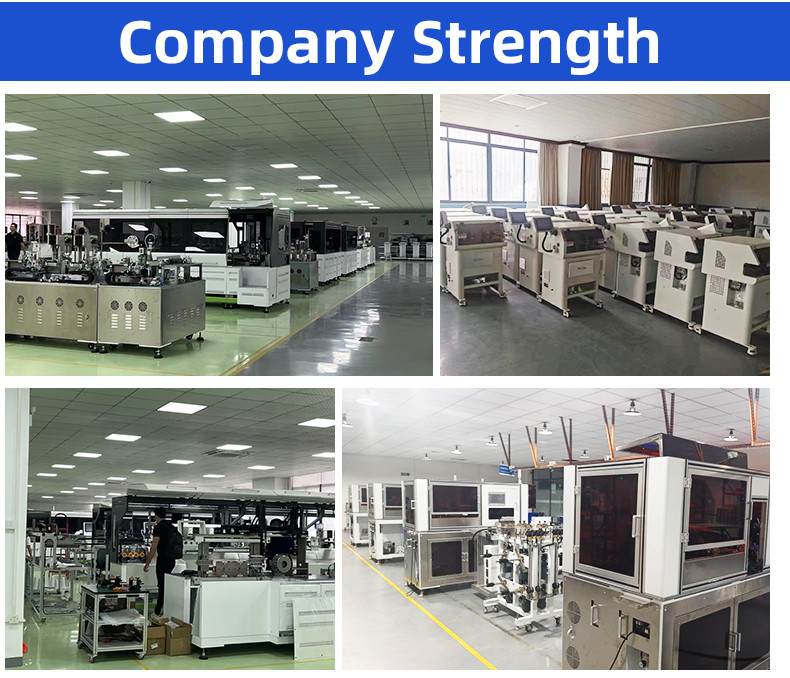

Dongguan Turing Automation Technology Co., Ltd. was founded in 2008 and is located in Dongguan City, Guangdong Province. The company specializes in the production of: fully automatic terminal crimping machines, fully automatic automatic-automatic terminal crimping and tin-plating machines, ultra-quiet energy-saving terminal machines, silent copper strip machines, computerized wire cutting and stripping machines, coaxial wire stripping machines, fully automatic nylon cable tie machines, fully automatic winding and strapping machines, computerized heat shrinkable tube cutting machines, terminal machine molds, knife molds, and new energy automatic wire harness processing equipment, etc. It mainly serves wire harness processing enterprises in the automotive, motorcycle, electronics, household appliances, electrical and other industries.

We have rich industry experience and are a trustworthy supplier. Our holding/cooperative factories are equipped with advanced production equipment and skilled front-line employees. Fully aware that the company's development depends on product innovation and quality, we have established a quality management system that meets the requirements of international quality management systems. The company continuously launches original innovations based on market and customer needs, always maintaining the novelty and innovation of products. We think what customers think and prioritize what customers need. Providing customers with excellent services and meeting their needs is our eternal pursuit!
