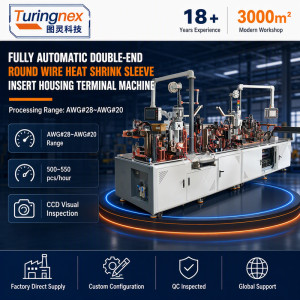

TR-M8 Auto Double-End Crimping Machine for Round Sheathed Wire with Heat Shrink Tube & Housing Insertion

Share
Categories	Plastic Shell Terminal Crimping Machine
Brand	Turing
Model	TR-M8
Power	50/60HZ 220V Single-phase
Scope of processing	AWG#28-AWG#20
Connector Housing Range	2P-10P Universal
Air Pressure	0.6-0.75Mpa (6-7KG/Cubic)
FOB port	shenzhen ,guangzhou ,zhongshan
Terms of Payment	Western Union, MoneyGram, T/T
Download

Contact Now

Add to Wishlist

Detail Information

TR-M8 Auto Double-End Crimping Machine for Round Sheathed Wire with Heat Shrink Tube & Housing Insertion

Why Choose Us?

1.Industry Expertise: 18 Years of Focus (Since 2008) with 50,000+ units delivered worldwide.No more instability. Partner with a legacy brand that understands the DNA of wire processing.

2.Production Scale: 2,500+ Units/Month capacity (500+ Auto-lines, 1000+ Semi-auto).No project delays. Massive throughput ensures we meet your tightest production deadlines.

3.Rapid R&D: 3-7 Days Prototyping for custom tooling based on your unique CAD/3D drawings.Unmatched flexibility. Rapid customization for complex, non-standard wire harness structures.

4.Global Compliance: 100% CE Certified & ISO9001:2015 quality management system.Seamless import. Our machines meet international safety standards (UL/RoHS/CE) for global markets.

5.Economic ROI: 6-Month Payback Period average ROI by replacing 4-6 manual operators. Cost efficiency. Transform your labor costs into high-margin automated productivity.

6.Global Footprint: 112 Countries Reached with 24/7 technical support in 10+ languages. Lifetime support. Reliable remote video diagnostics and lightning-fast spare parts delivery anywhere.

TR-388DZ Fully automatic double-head crimping enadouble-head inserting shellsingle-head threading hydrant machine

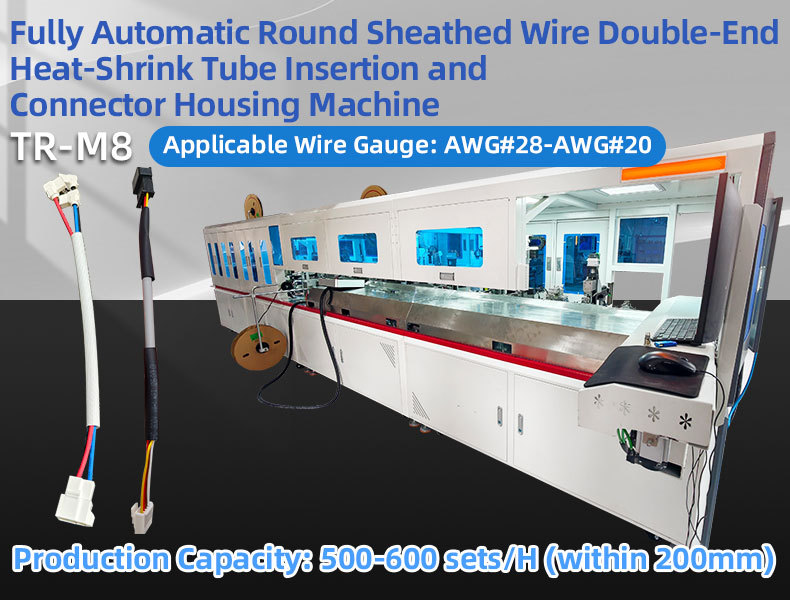

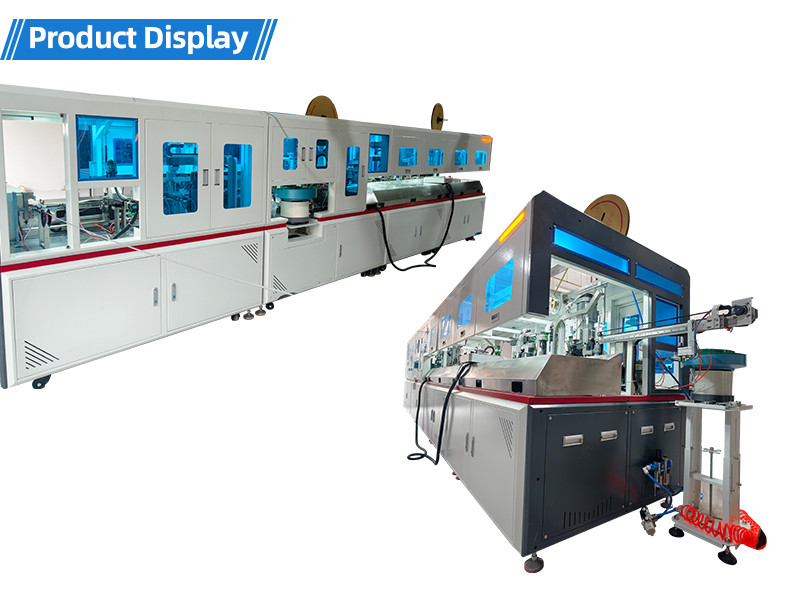

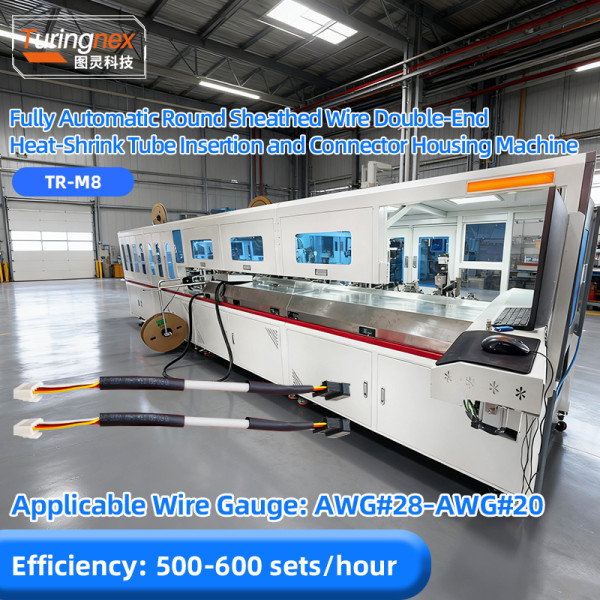

Equipment Name	TR‑M8 Fully Automatic Round Sheathed Wire Double‑End Heat‑Shrink Tube Insertion and Connector Housing Machine
Power	Single-phase 220V, 50/60Hz.
Applicable Wire Gauge	AWG#28‑AWG#20
Size	4500×2200×1800mm
Cutting Length	150mm‑1000mm
Connector Housing Range	2P‑10P Universal
O.D. Range of Heat‑Shrink Tube	O.D. 4mm‑12mm
Outer Stripping Range	28mm‑65mm
Inner Stripping Range	0.5mm‑8mm
Cutting Precision	± (0.2%*L+1) mm
Air Pressure	0.6‑0.75Mpa (6‑7KG/Cubic)
Heat‑Shrink Tube Cutting Range	20mm‑50mm

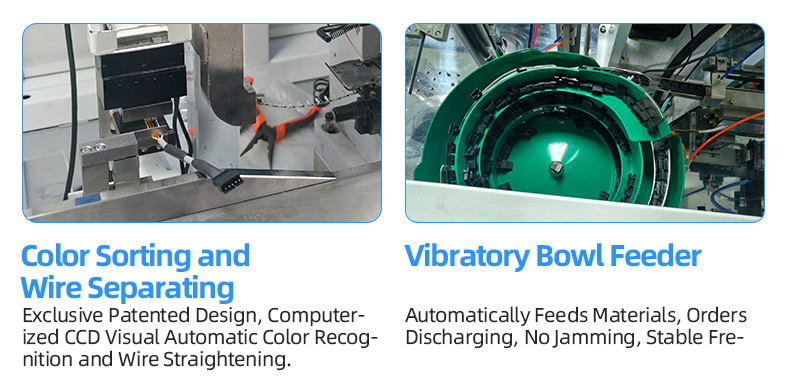

Color Recognition	Computerized CCD Visual Automatic Recognition
Detection Devices	CCD Visual Inspection, Air Pressure Detection, Wire Presence/Absence Detection, Stripping Detection, Terminal Detection, Pressure Device Detection, Connector Housing and Terminal Position Detection, Missing Terminal/Tube/Housing Detection, etc.

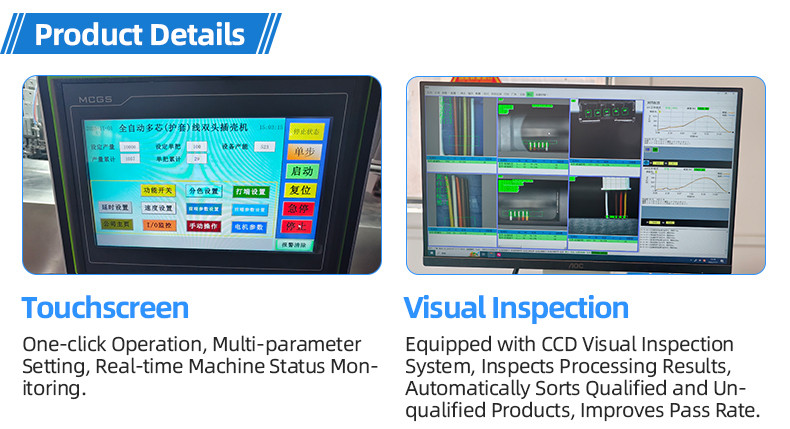

Control Method	Industrial Computer Control, Touchscreen Operation. Mitsubishi PLC Mainboard Control System
Wire Payoff System	Computerized Fully Automatic Pre‑feeding Device, Suitable for Spooled Wire, Industry‑Standard 600mm Spool Device
Production Capacity	500‑600 finished sets per hour within 200mm
