TR-850D Fully Automatic Double-head Rubber Shell Insertion, Stripping and Terminal Crimping Machine

Name: TR-850D Fully Automatic Double-head Rubber Shell Insertion, Stripping and Terminal Crimping Machine
Brand: Turing
SKU: 18534672
Rating: 4.75 (10 reviews)

Categories	Plastic Shell Terminal Crimping Machine
Trademark/Brand	Turing
Model	TR-850D
Power	AC220V/50HZ
Scope of processing	AWG32 - AWG18
Feature	Stable Performance
Warranty	1year
FOB port	shenzhen ,guangzhou ,zhongshan
Terms of Payment	Western Union, MoneyGram, T/T
Download
Update Time	Oct 20,2025

Contact Now

Favorites

Detail Information

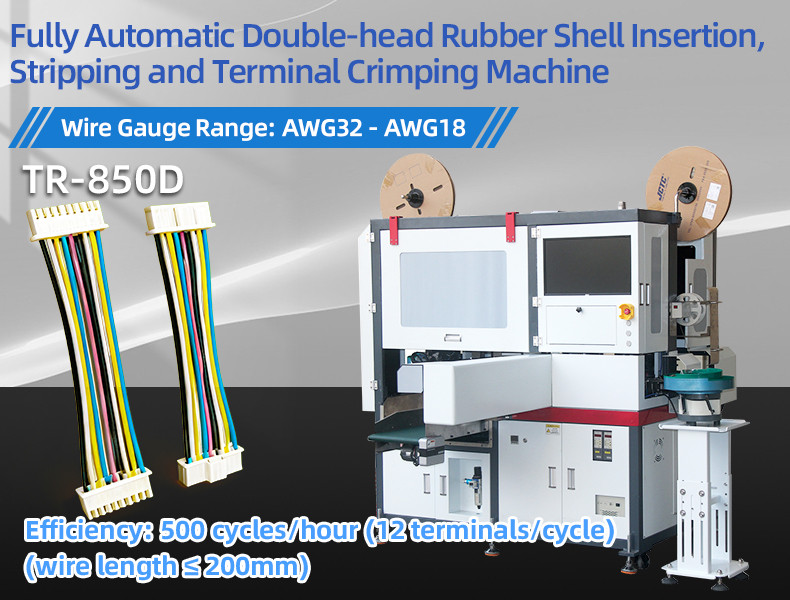

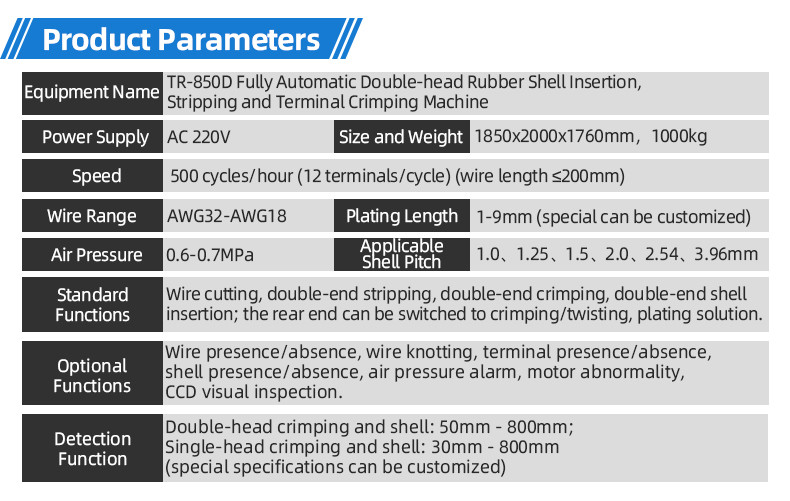

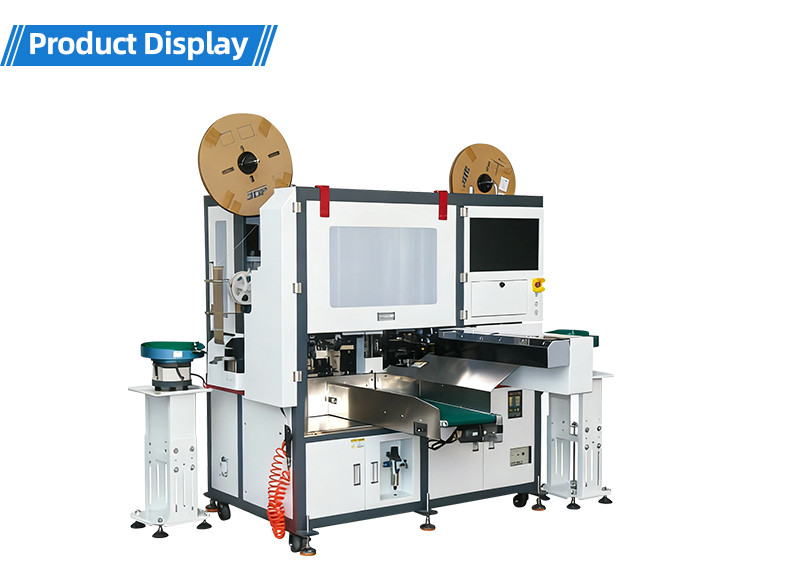

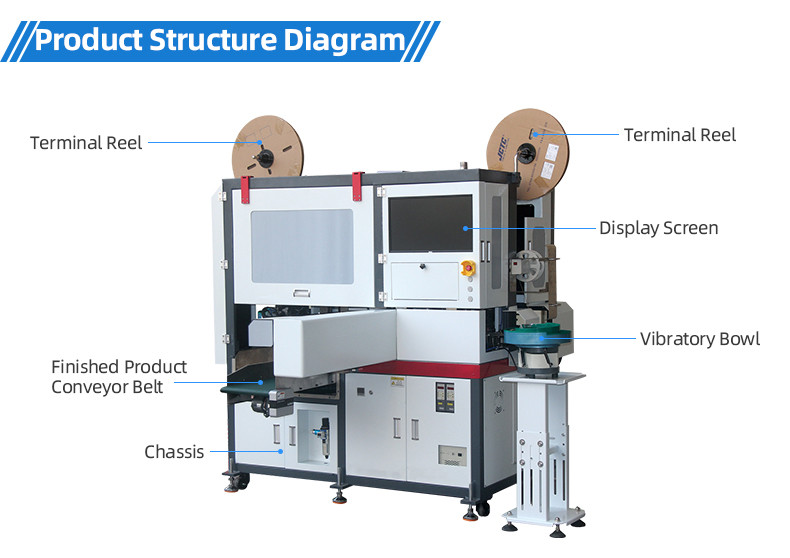

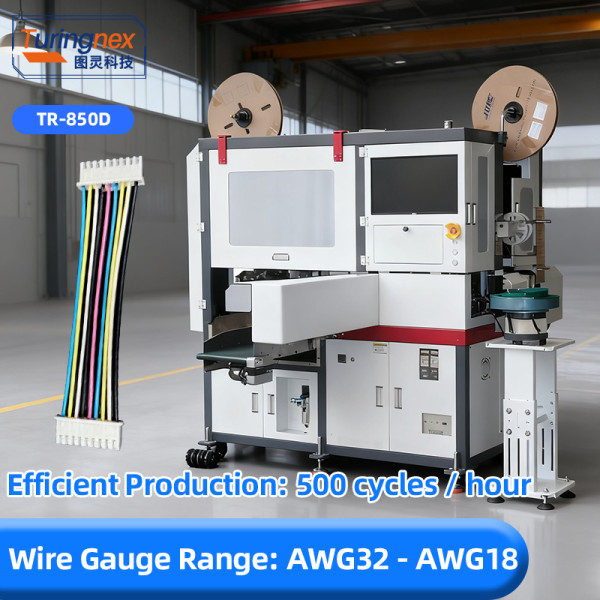

TR-850D Fully Automatic Double-head Rubber Shell Insertion, Stripping and Terminal Crimping Machine

Power Supply: AC 220V

Dimensions and Weight: 1850×2000×1760mm, 1000kg

Speed: 500 cycles/hour (12 terminals/cycle) (wire length ≤200mm)

Wire Range: AWG32 - AWG18

Plating Length: 1 - 9mm (special specifications can be customized)

Air Pressure: 0.6 - 0.7MPa

Applicable Shell Pitch: 1.0, 1.25, 1.5, 2.0, 2.54, 3.96mm

Standard Functions: Wire cutting, double-end stripping, double-end crimping, double-end shell insertion; the rear end can be switched to crimping/twisting, plating solution.

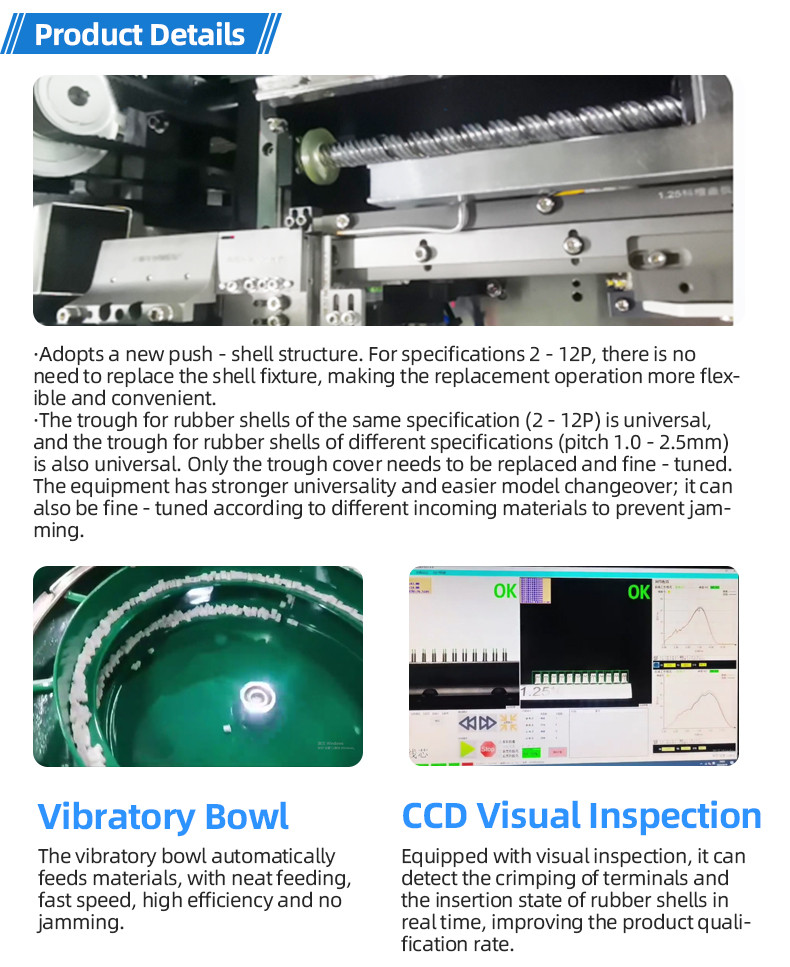

Optional Functions: Wire presence/absence, wire knotting, terminal presence/absence, shell presence/absence, air pressure alarm, motor abnormality, CCD visual inspection.

Detection Function: Double-head crimping and shell: 50mm - 800mm; Single-head crimping and shell: 30mm - 800mm (special specifications can be customized)

TR-388DZ Fully automatic double-head crimping enadouble-head inserting shellsingle-head threading hydrant machine

Dongguan Turing Automation Technology Co., Ltd. was founded in 2020 and is located in Dongguan City, Guangdong Province. The company specializes in the production of: fully automatic terminal crimping machines, fully automatic automatic-automatic terminal crimping and tin-plating machines, ultra-quiet energy-saving terminal machines, silent copper strip machines, computerized wire cutting and stripping machines, coaxial wire stripping machines, fully automatic nylon cable tie machines, fully automatic winding and strapping machines, computerized heat shrinkable tube cutting machines, terminal machine molds, knife molds, and new energy automatic wire harness processing equipment, etc. It mainly serves wire harness processing enterprises in the automotive, motorcycle, electronics, household appliances, electrical and other industries.

We have rich industry experience and are a trustworthy supplier. Our holding/cooperative factories are equipped with advanced production equipment and skilled front-line employees. Fully aware that the company's development depends on product innovation and quality, we have established a quality management system that meets the requirements of international quality management systems. The company continuously launches original innovations based on market and customer needs, always maintaining the novelty and innovation of products. We think what customers think and prioritize what customers need. Providing customers with excellent services and meeting their needs is our eternal pursuit!
