TR-M9 Fully Automatic Round Sheathed Wire Double-End Heat-Shrink Tube Insertion and Connector Housing Machine
| Categories | Plastic Shell Terminal Crimping Machine |
|---|---|
| Trademark/Brand | Turing |
| Model | TR-M9 |
| Power | 50/60HZ 220V Single-phase |
| Scope of processing | AWG#28-AWG#20 |
| Connector Housing Range | 2P-10P Universal |
| Air Pressure | 0.6-0.75Mpa (6-7KG/Cubic) |
| FOB port | shenzhen ,guangzhou ,zhongshan |
| Terms of Payment | Western Union, MoneyGram, T/T |
| Download |  |
| Update Time | Nov 7,2025 |
Detail Information

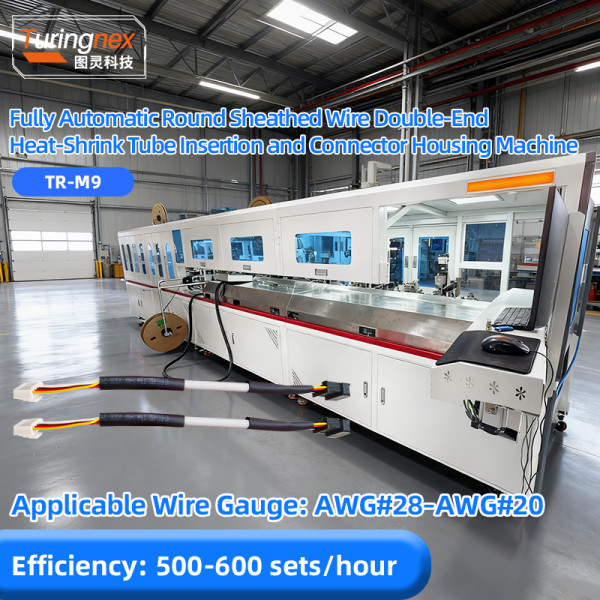

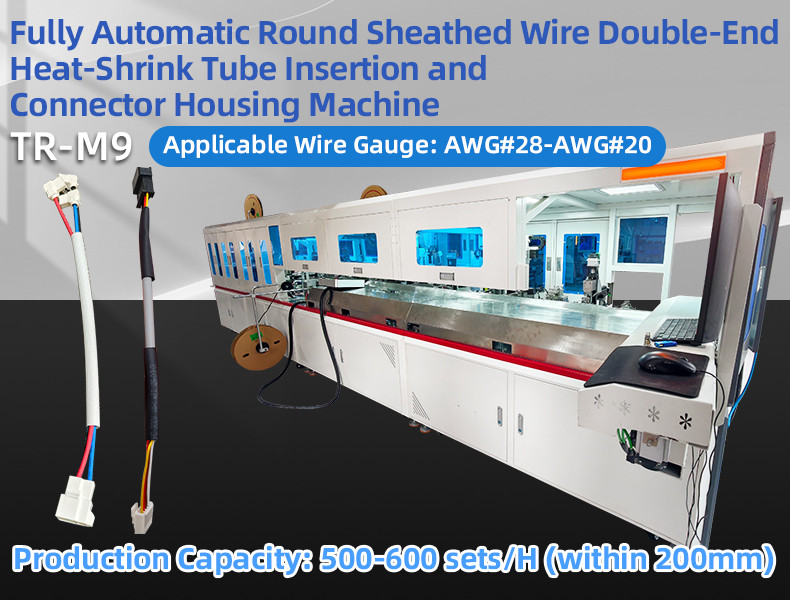

TR-M9 Fully Automatic Round Sheathed Wire Double-End Heat-Shrink Tube Insertion and Connector Housing Machine

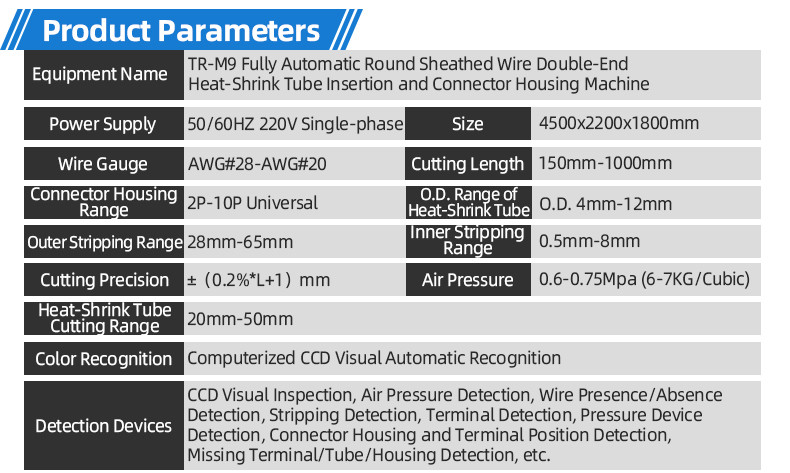

Power Supply：50/60HZ 220V Single-phase
Dimensions：4500×2200×1800mm
Applicable Wire Gauge：AWG#28-AWG#20
Cutting Length：150mm-1000mm
Connector Housing Range：2P-10P Universal
Outer Diameter Range of Heat-Shrink Tube：Outer Diameter 4mm-12mm
Outer Sheath Stripping Range：28mm-65mm
Inner Insulation Stripping Range：0.5mm-8mm
Cutting Precision：±(0.2%*L+1) mm
Air Pressure：0.6-0.75Mpa (6-7KG/Cubic)
Heat-Shrink Tube Cutting Range：20mm-50mm

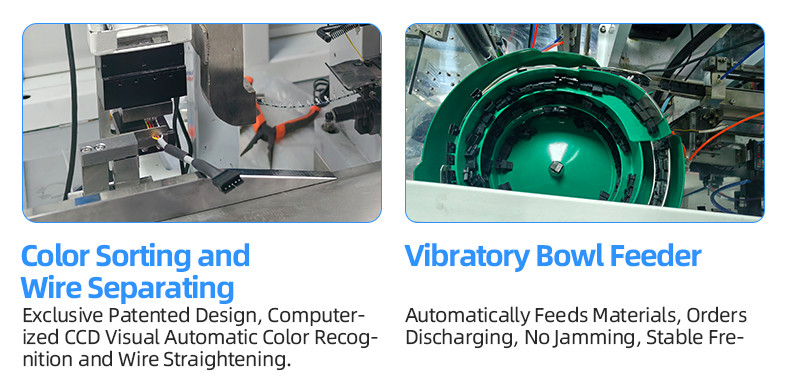

Color Recognition：Computerized CCD Visual Automatic Recognition
Detection Devices：CCD Visual Inspection, Air Pressure Detection, Wire Presence/Absence Detection, Stripping Detection, Terminal Detection, Pressure Device Detection, Connector Housing and Terminal Position Detection, Missing Terminal/Tube/Housing Detection, etc.

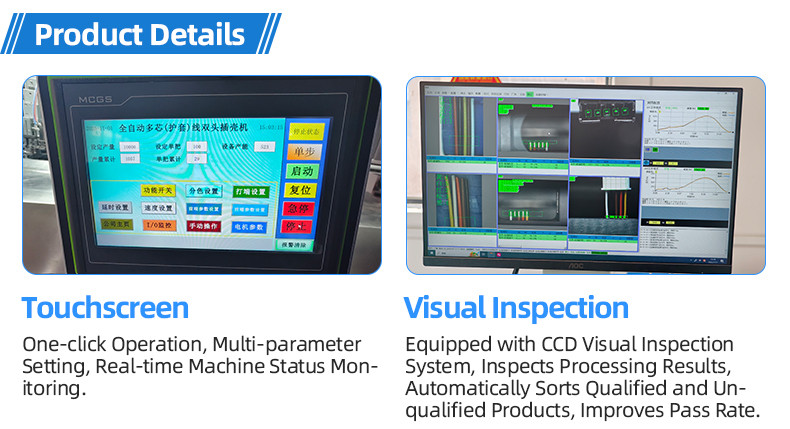

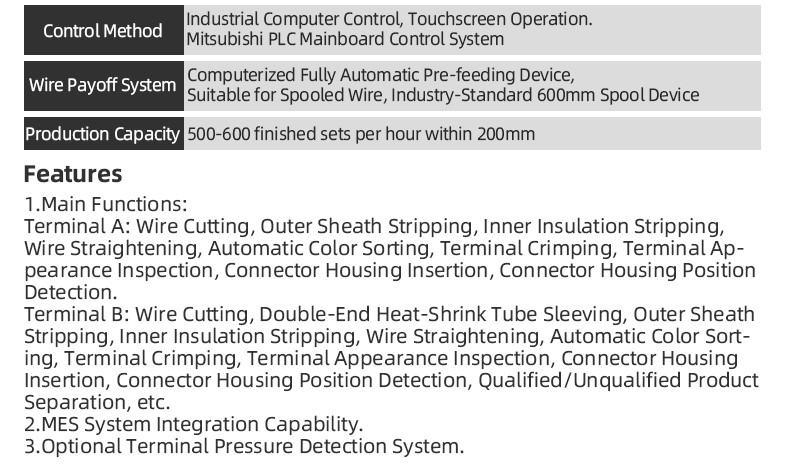

Control Method：Industrial Computer Control, Touchscreen Operation. Mitsubishi PLC Mainboard Control System
Wire Payoff System：Computerized Fully Automatic Pre-feeding Device, Suitable for Spooled Wire, Industry-Standard 600mm Spool Device
Production Capacity：500-600 finished sets per hour within 200mm
Features
1.Main Functions:Terminal A: Wire Cutting, Outer Sheath Stripping, Inner Insulation Stripping, Wire Straightening, Automatic Color Sorting, Terminal Crimping, Terminal Appearance Inspection, Connector Housing Insertion, Connector Housing Position Detection.
Terminal B: Wire Cutting, Double-End Heat-Shrink Tube Sleeving, Outer Sheath Stripping, Inner Insulation Stripping, Wire Straightening, Automatic Color Sorting, Terminal Crimping, Terminal Appearance Inspection, Connector Housing Insertion, Connector Housing Position Detection, Qualified/Unqualified Product Separation, etc.
2.MES System Integration Capability.
3.Optional Terminal Pressure Detection System.
Dongguan Turing Automation Technology Co., Ltd. was founded in 2020 and is located in Dongguan City, Guangdong Province. The company specializes in the production of: fully automatic terminal crimping machines, fully automatic automatic-automatic terminal crimping and tin-plating machines, ultra-quiet energy-saving terminal machines, silent copper strip machines, computerized wire cutting and stripping machines, coaxial wire stripping machines, fully automatic nylon cable tie machines, fully automatic winding and strapping machines, computerized heat shrinkable tube cutting machines, terminal machine molds, knife molds, and new energy automatic wire harness processing equipment, etc. It mainly serves wire harness processing enterprises in the automotive, motorcycle, electronics, household appliances, electrical and other industries.
We have rich industry experience and are a trustworthy supplier. Our holding/cooperative factories are equipped with advanced production equipment and skilled front-line employees. Fully aware that the company's development depends on product innovation and quality, we have established a quality management system that meets the requirements of international quality management systems. The company continuously launches original innovations based on market and customer needs, always maintaining the novelty and innovation of products. We think what customers think and prioritize what customers need. Providing customers with excellent services and meeting their needs is our eternal pursuit!
