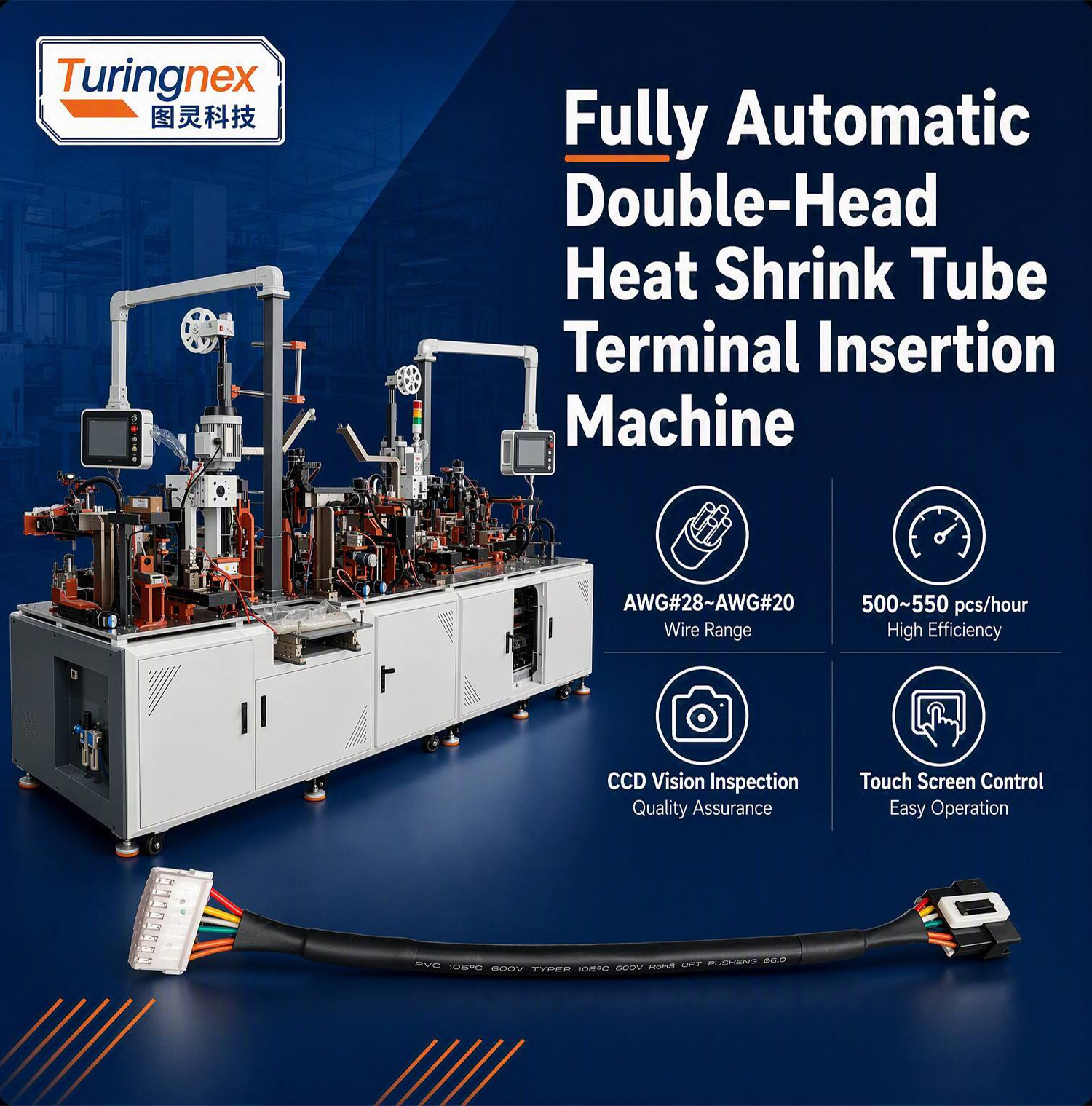

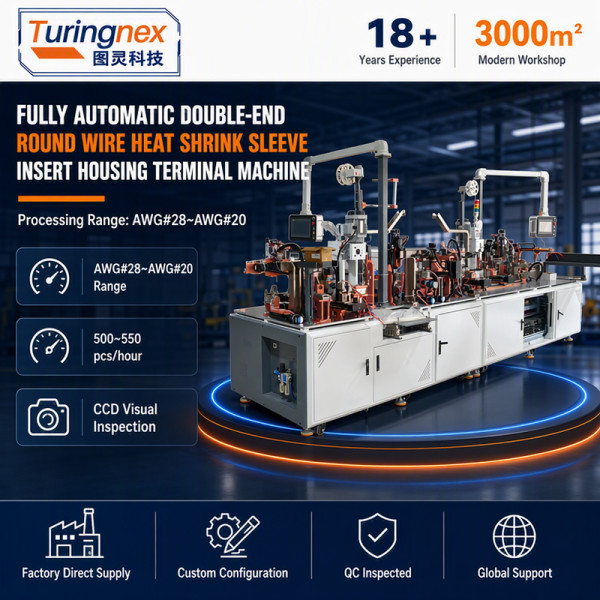

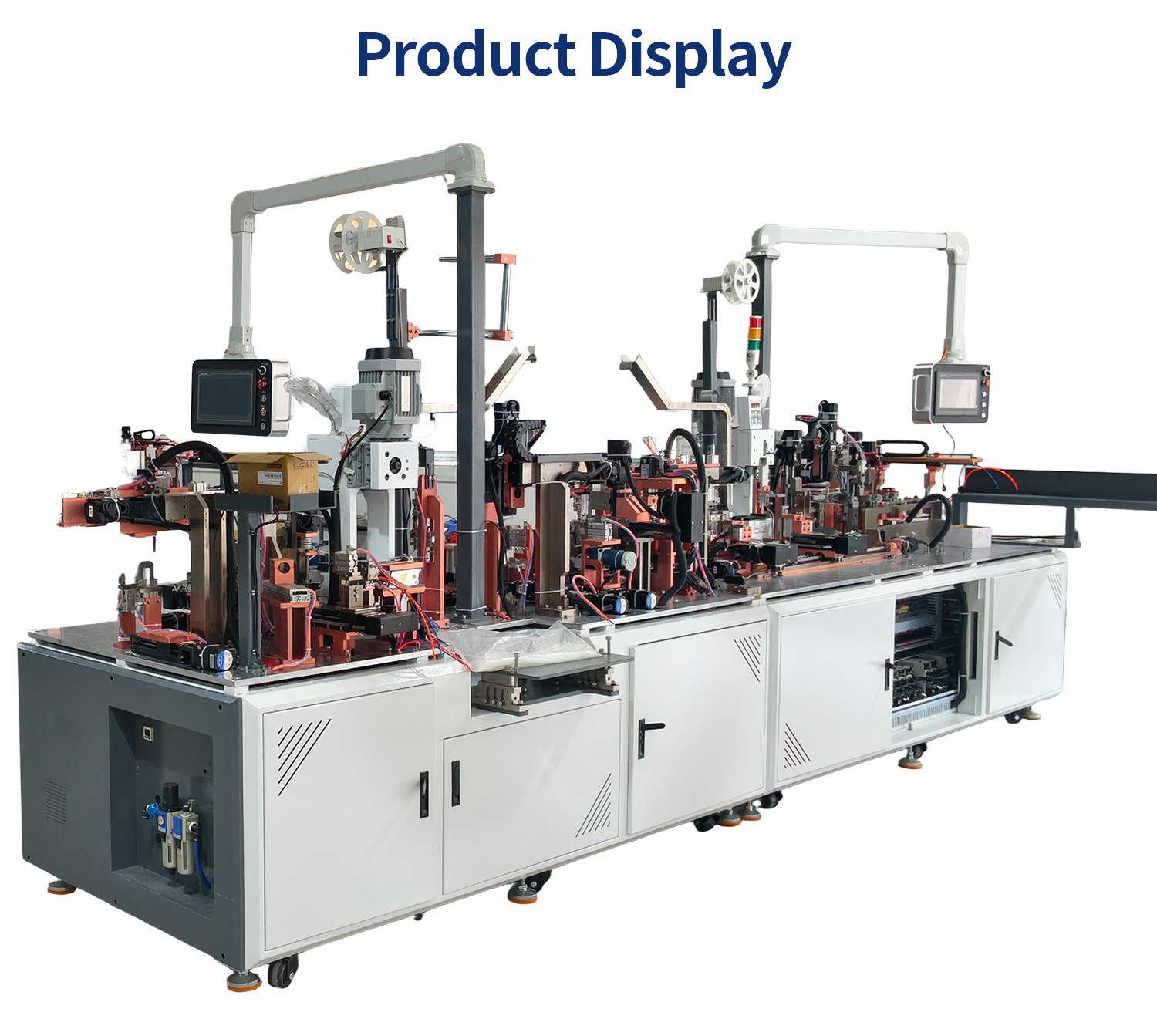

TR-M9 Auto Double-End Crimping Machine for Round Sheathed Wire with Heat Shrink Tube & Housing Insertion

Share
Categories	Plastic Shell Terminal Crimping Machine
Brand	Turing
Model	TR-M9
Power	50/60HZ 220V Single-phase
Scope of processing	AWG#28-AWG#20
Connector Housing Range	2P-10P Universal
Air Pressure	0.6-0.75Mpa (6-7KG/Cubic)
FOB port	shenzhen ,guangzhou ,zhongshan
Terms of Payment	Western Union, MoneyGram, T/T
Download

Contact Now

Add to Wishlist

Detail Information

TR-M9 Auto Double-End Crimping Machine for Round Sheathed Wire with Heat Shrink Tube & Housing Insertion

Product Highlights

1.One-stop full-process automation, equivalent to 5 workers

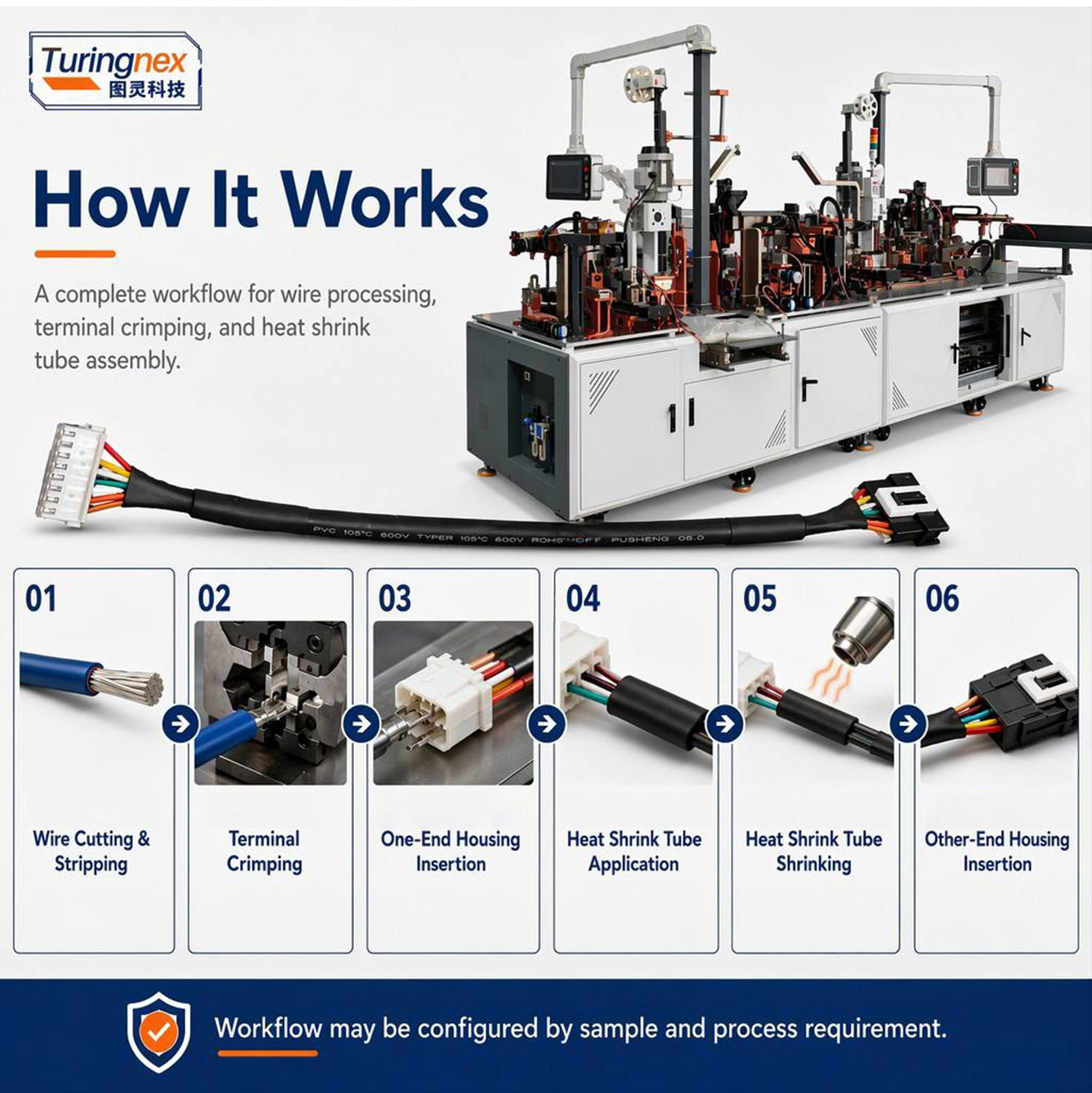

Dual-end synchronous processing (End A & End B) integrates all procedures: wire cutting, double-layer stripping, core sorting, terminal crimping, CCD inspection, connector housing insertion, heat shrink tube sleeving and thermal baking. Zero manual operation required, greatly cutting labor costs.

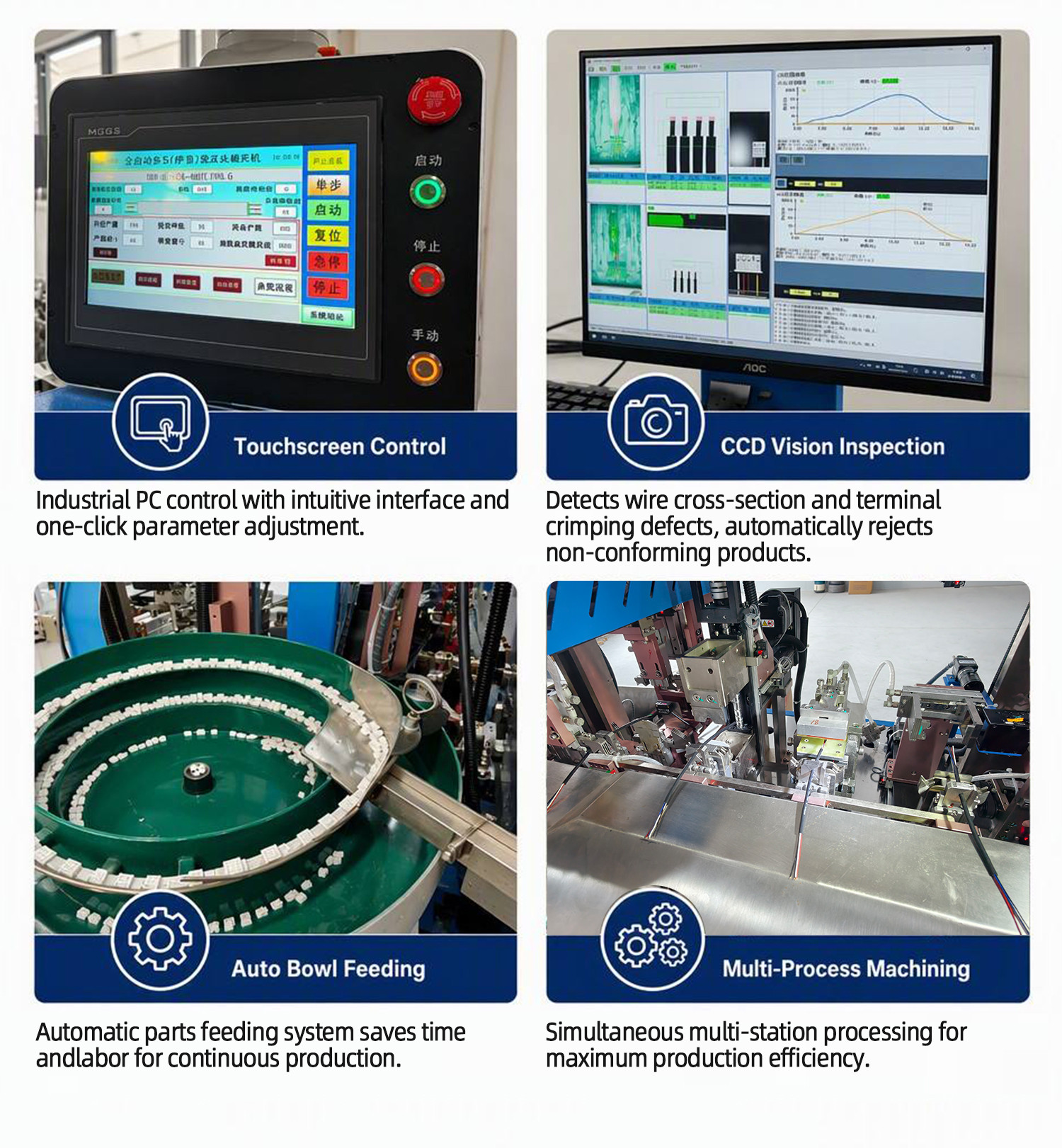

2.Multi-dimensional full CCD visual inspection with automatic defective sorting

Equipped with dual-channel Hikvision CCD vision system, it detects core color errors, stripping defects, terminal appearance flaws, housing seating position, missing terminals/tubes/housings, combined with air pressure and crimp force monitoring systems. Defective products are automatically separated, with qualified yield controlled at 3‰.

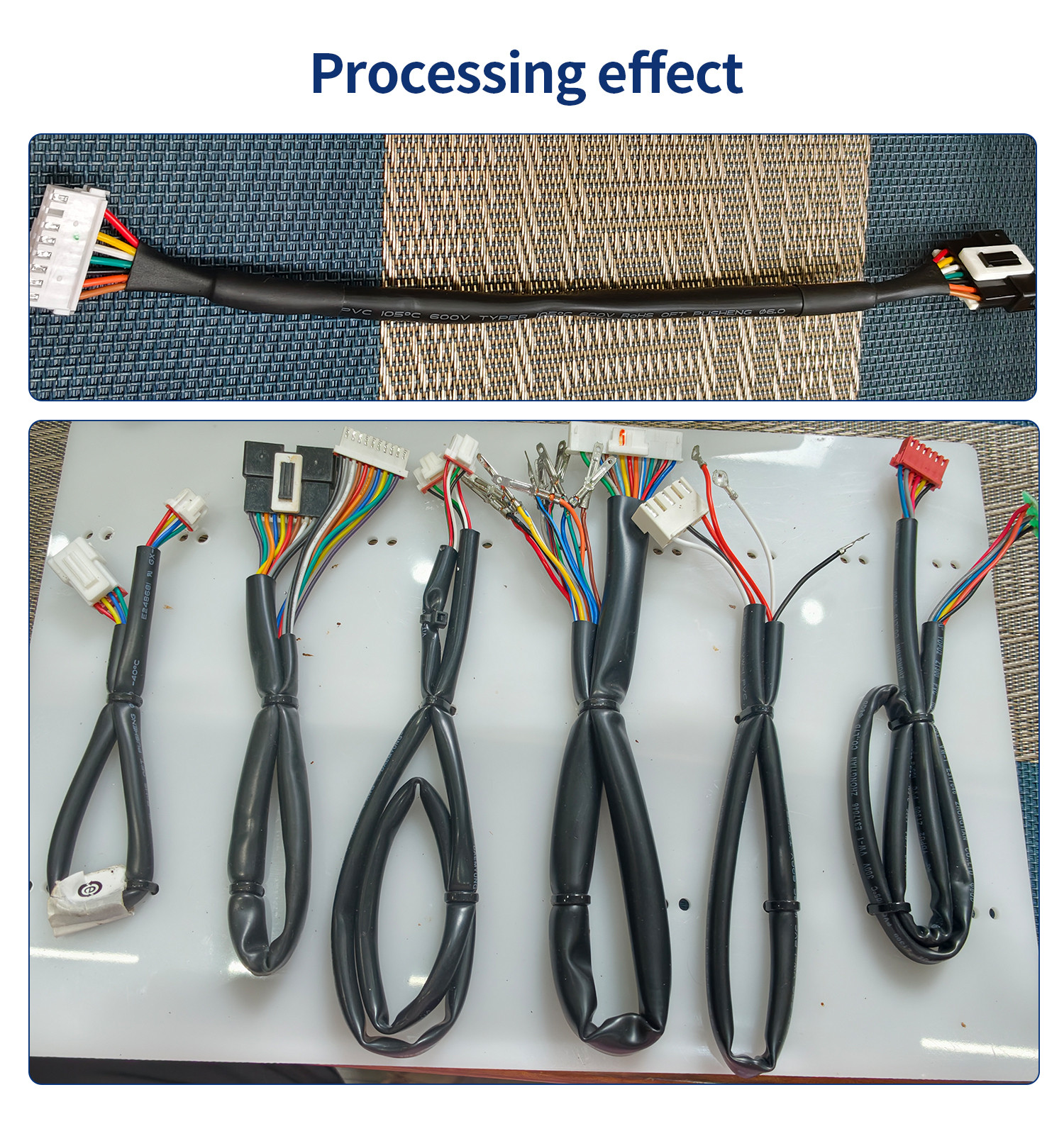

3.Wide compatibility for diversified wire harness orders

Compatible with AWG28#~AWG20# wires, 2P–10P universal connector housings, heat shrink tubes with outer diameter 4–12mm. Wire cutting length ranges from 130mm to 1500mm with adjustable stripping dimensions; custom non-standard machines available based on customer samples.

4.High stable output & outstanding cutting precision

Production capacity reaches 500–550 finished sets per hour for wires under 1000mm. Cutting tolerance: ±(0.2%*L+1)mm. Fitted with Huizhong crimp force monitor and 2-ton crimping main unit for stable crimp quality.

5.Top-tier brand core components for long service life & reliability

Standard configuration includes Inovance servo motors, Weinview touch screen, AirTAC cylinders, Festo solenoid valves, Hikvision CCD cameras, Yankong closed-loop motors and other premium parts. Controlled by industrial PC with user-friendly touch screen; MIS data interface optional.

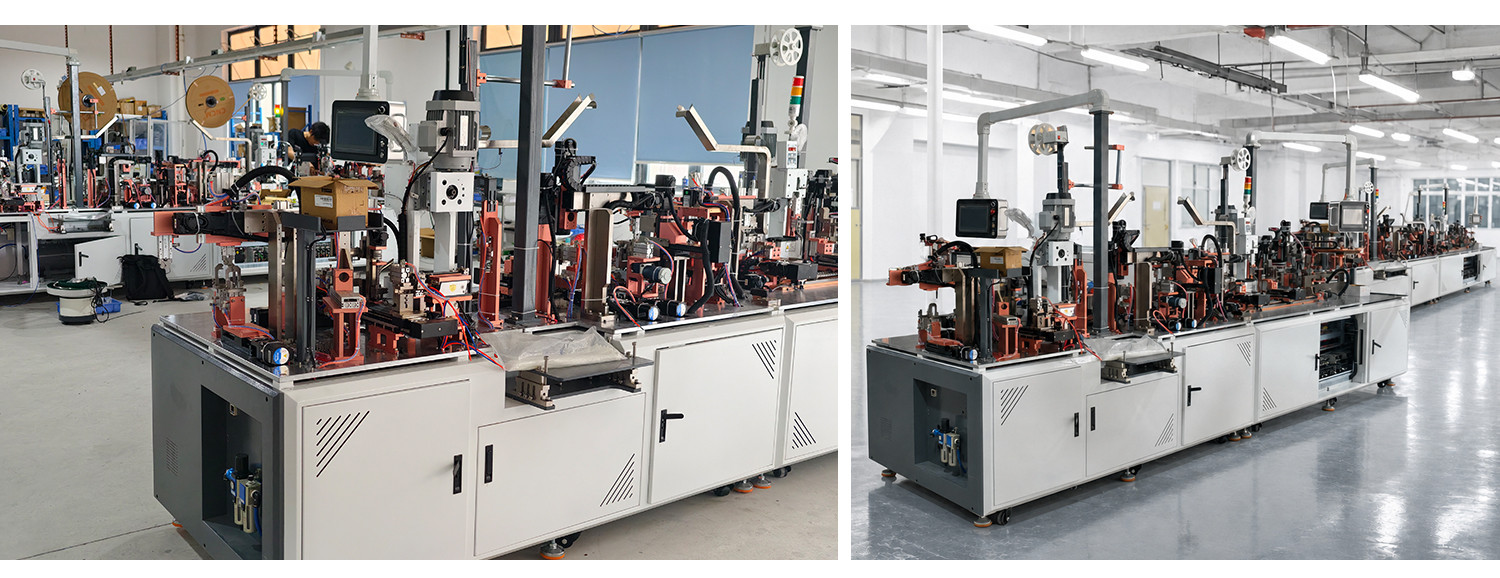

TR-388DZ Fully automatic double-head crimping enadouble-head inserting shellsingle-head threading hydrant machine

Why Choose Us?

1.Industry Expertise: 18 Years of Focus (Since 2008) with 50,000+ units delivered worldwide.No more instability. Partner with a legacy brand that understands the DNA of wire processing.

2.Production Scale: 2,500+ Units/Month capacity (500+ Auto-lines, 1000+ Semi-auto).No project delays. Massive throughput ensures we meet your tightest production deadlines.

3.Rapid R&D: 3-7 Days Prototyping for custom tooling based on your unique CAD/3D drawings.Unmatched flexibility. Rapid customization for complex, non-standard wire harness structures.

4.Global Compliance: 100% CE Certified & ISO9001:2015 quality management system.Seamless import. Our machines meet international safety standards (UL/RoHS/CE) for global markets.

5.Economic ROI: 6-Month Payback Period average ROI by replacing 4-6 manual operators. Cost efficiency. Transform your labor costs into high-margin automated productivity.

6.Global Footprint: 112 Countries Reached with 24/7 technical support in 10+ languages. Lifetime support. Reliable remote video diagnostics and lightning-fast spare parts delivery anywhere.

Equipment Name	TR-M9 Auto Double-End Crimping Machine for Round Sheathed Wire with Heat Shrink Tube & Housing Insertion
Power	Single-phase 220V, 50/60Hz.
Applicable Wire Gauge	AWG28# – AWG20# (subject to actual wire dimensions)
Production Capacity	500–550 finished sets per hour for wires ≤1000mm long
Cutting Accuracy	±(0.2%*L + 1) mm
Working Air Pressure	0.6–0.75MPa (6–7 kg/cm²)
Cutting Length	130mm–1500mm (extended length customizable).
Inner Core Insulation Stripping Length	0.5mm–8mm
Outer Sheath Stripping Length	25mm–60mm
Heat Shrink Tube Outer Diameter Range	4mm–12mm
Control Mode	Industrial PC control with touchscreen operation
Compatible Connector Housings	Universal for 2P–10P
MIS System	Optional upgrade (reserved MIS interface)
Terminal Crimping Capacity	2 tons
Heat Shrink Tube Cutting Length	20mm–55mm
Color Recognition	Automatic arbitrary wire core color identification via computer CCD vision
Inspection Devices	CCD visual inspection, air pressure detection, wire presence detection, stripping quality inspection, terminal inspection, crimp force monitoring, connector housing & terminal seating check; also detects missing terminals, missing tubes and missing housings
Main Functions	End A: Wire cutting, outer sheath stripping, inner core insulation stripping, wire straightening, automatic core color sorting, terminal crimping, terminal visual inspection, connector housing insertion, housing seating detection. End B: Wire cutting, double-end heat shrink tube sleeving, outer sheath stripping, inner core insulation stripping, wire straightening, automatic core color sorting, terminal crimping, terminal visual inspection, connector housing insertion, housing seating detection, heat shrink tube heat shrinking.

Dongguan Turing Automation Technology Co., Ltd. was established in 2008, located in Dongguan City, Guangdong Province. The company specializes in the production of: automatic terminal embossing machine, automatic terminal embossing tinning machine, ultra-quiet energy-saving terminal machine, mute copper tape machine, computerized wire cutting and stripping machine, coaxial stripping machine, automatic nylon zip tie machine, automatic winding and bundling machine, heat shrinkable tube computerized pipe cutting machine, terminal machine molds, knife molds and new energy automation wiring harness processing equipment and so on. Mainly serves in the automobile and motorcycle, electronics, home appliances, electrical and other wiring harness processing enterprises electrical. We have rich industry experience and are a reliable supplier. Our holding/co-operating factories have advanced production equipment and skilled frontline staff. Knowing that the development of our company depends on the innovation and quality of our products, we have established a quality management system that meets the requirements of the international quality management system. We constantly launch original innovations according to market and customer needs, always keep the novelty and innovation of our products, and think what our customers think and what they are anxious about. Providing customers with excellent service and meeting their needs is our eternal pursuit!
