TR-HY05 Fully Automatic Three-in-One Terminal Crimping Machine

Share
Categories	Fully Automatic Terminal Crimping Machine
Brand	Turing
Model	TR-HY05
Power	AC220V, 2.5kW
Functions	Wire feeding, cutting, stripping,
Air Pressure:	0.4~0.6MPa
Warranty	1year
Control	Servo and Step motor
FOB port	shenzhen ,guangzhou ,zhongshan
Terms of Payment	Western Union, MoneyGram, T/T
Download

Contact Now

Favorites

Detail Information

TR-HY05 Fully Automatic Three-in-One Terminal Crimping Machine

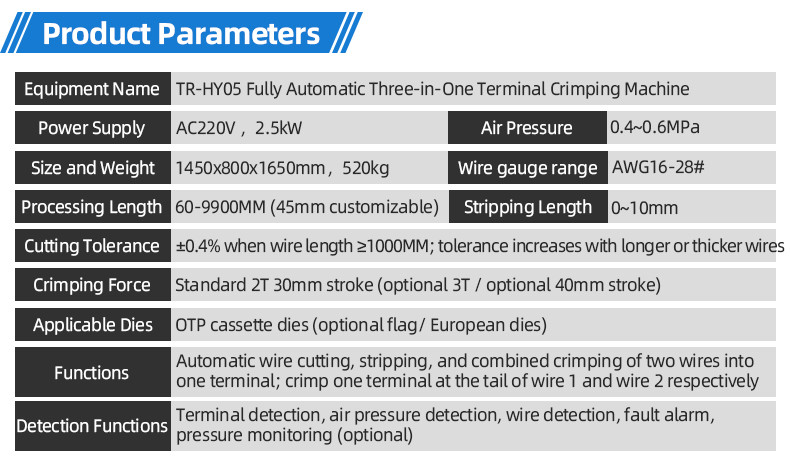

Equipment Name: TR-HY05 Fully Automatic Three-in-One Terminal Crimping Machine

Power Supply: AC220V, 2.5kW

Air Pressure: 0.4~0.6MPa

Processing Length: 60-9900mm (45mm customizable)

Cutting Tolerance: ±0.4% when wire length ≥1000mm; tolerance increases with longer or thicker wires

Crimping Force: Standard 2T 30mm stroke (optional 3T / optional 40mm stroke)

Applicable Dies: OTP cassette dies (optional flag / European dies)

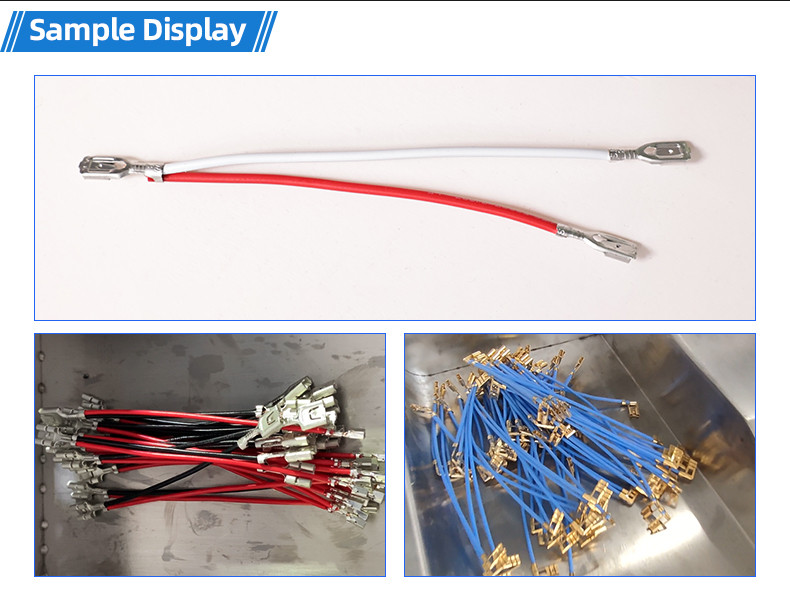

Functions: Automatic wire cutting, stripping, and combined crimping of two wires into one terminal; crimp one terminal at the tail of wire 1 and wire 2 respectively

Detection Functions: Terminal detection, air pressure detection, wire detection, fault alarm, pressure monitoring (optional)

Dimensions and Weight: 1450x800x1650mm, 520kg

Wire Gauge: AWG16-28#

Stripping Length: 0~10mm

Dongguan Turing Automation Technology Co., Ltd. was founded in 2020 and is located in Dongguan City, Guangdong Province. The company specializes in the production of: fully automatic terminal crimping machines, fully automatic automatic-automatic terminal crimping and tin-plating machines, ultra-quiet energy-saving terminal machines, silent copper strip machines, computerized wire cutting and stripping machines, coaxial wire stripping machines, fully automatic nylon cable tie machines, fully automatic winding and strapping machines, computerized heat shrinkable tube cutting machines, terminal machine molds, knife molds, and new energy automatic wire harness processing equipment, etc. It mainly serves wire harness processing enterprises in the automotive, motorcycle, electronics, household appliances, electrical and other industries.

We have rich industry experience and are a trustworthy supplier. Our holding/cooperative factories are equipped with advanced production equipment and skilled front-line employees. Fully aware that the company's development depends on product innovation and quality, we have established a quality management system that meets the requirements of international quality management systems. The company continuously launches original innovations based on market and customer needs, always maintaining the novelty and innovation of products. We think what customers think and prioritize what customers need. Providing customers with excellent services and meeting their needs is our eternal pursuit!
