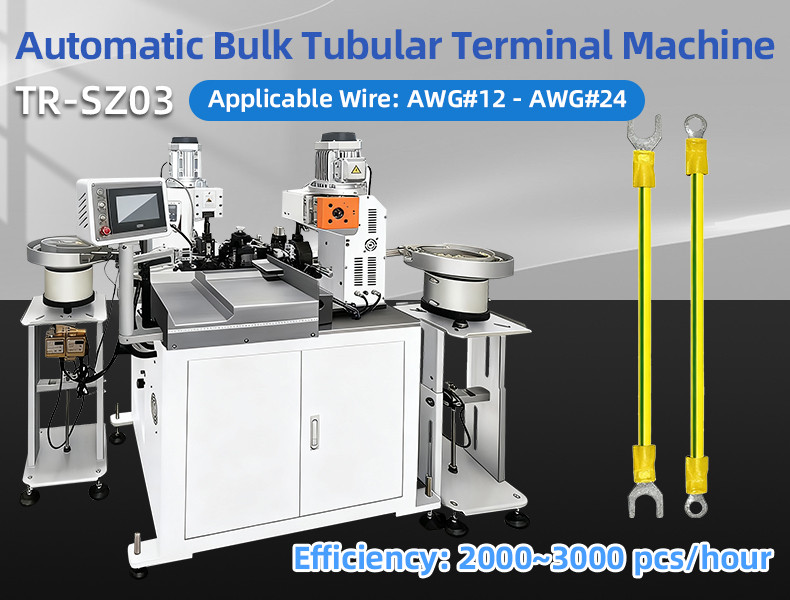

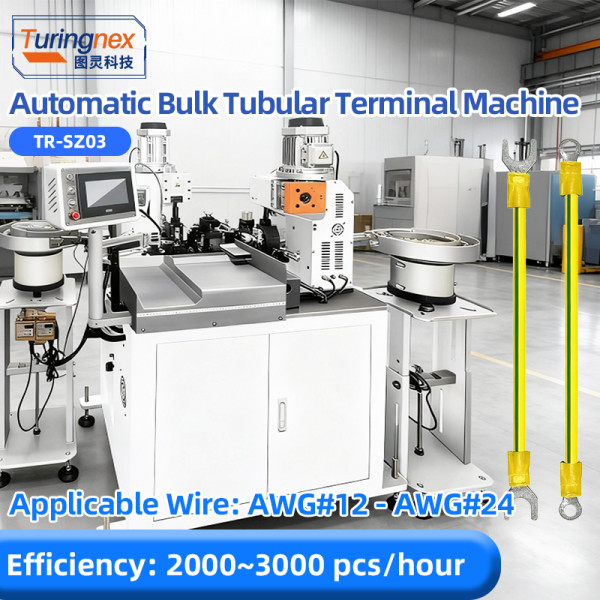

TR-SZ03 Automatic Bulk Tubular Terminal Machine

Name: TR-SZ03 Automatic Bulk Tubular Terminal Machine
Brand: Turing
SKU: 18538335
Rating: 4.75 (10 reviews)

Categories	Fully Automatic Terminal Crimping Machine
Trademark/Brand	Turing
Model	TR-SZ03
Power	3-phase 220V±10% (50/60Hz)
Dimensions & Weight:	2000x1100x1600mm, 580kg
Applicable Wire Gauge	AWG#12 ~ AWG#24
Crimping Capacity	2T
Contact	Coco : +86 18666170785
FOB port	shenzhen ,guangzhou ,zhongshan
Terms of Payment	Western Union, MoneyGram, T/T
Download
Update Time	Nov 10,2025

Contact Now

Favorites

Detail Information

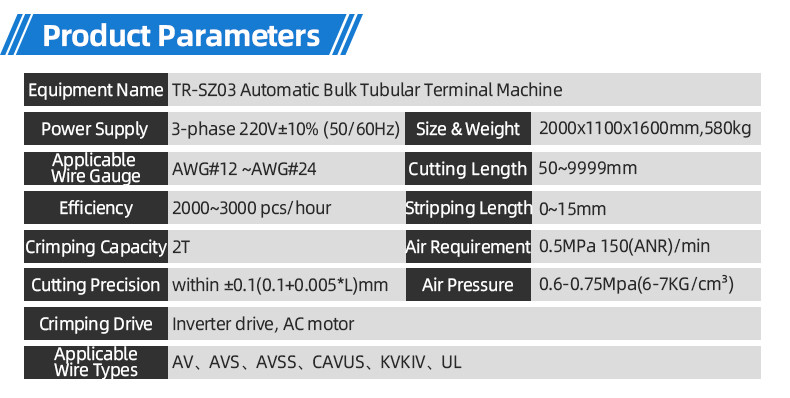

TR-SZ03 Automatic Bulk Tubular Terminal Machine

Power Supply 3-phase 220V±10% (50/60Hz)

Dimension & Weight 2000x1100x1600mm, 580kg

Applicable Wire Gauge AWG#12 ~ AWG#24

Cutting Length 50~9999mm

Efficiency 2000~3000 pcs/hour

Stripping Length 0~15mm

Crimping Capacity 2T

Air Requirement 0.5MPa 150(ANR)/min

Cutting Precision within ±0.1(0.1+0.005*L)mm

Air Pressure 0.6-0.75Mpa(6-7KG/cm³)

Crimping Drive Inverter drive, AC motor

Display Language Chinese

Applicable Wire Types AV、AVS、AVSS、CAVUS、KVKIV、UL

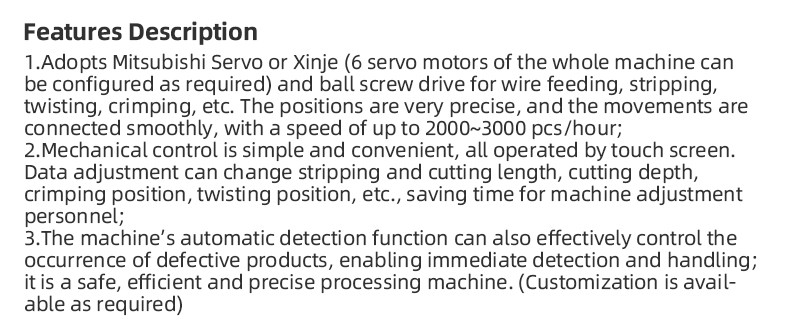

Feature Description

1.Adopts Mitsubishi Servo or Xinje (6 servo motors of the whole machine can be configured as required) and ball screw drive for wire feeding, stripping, twisting, crimping, etc. The positions are very precise, and the movements are connected smoothly, with a speed of up to 2000~3000 pcs/hour;

2.Mechanical control is simple and convenient, all operated by touch screen. Data adjustment can change stripping and cutting length, cutting depth, crimping position, twisting position, etc., saving time for machine adjustment personnel;

3.The machine’s automatic detection function can also effectively control the occurrence of defective products, enabling immediate detection and handling; it is a safe, efficient and precise processing machine. (Customization is available as required)
