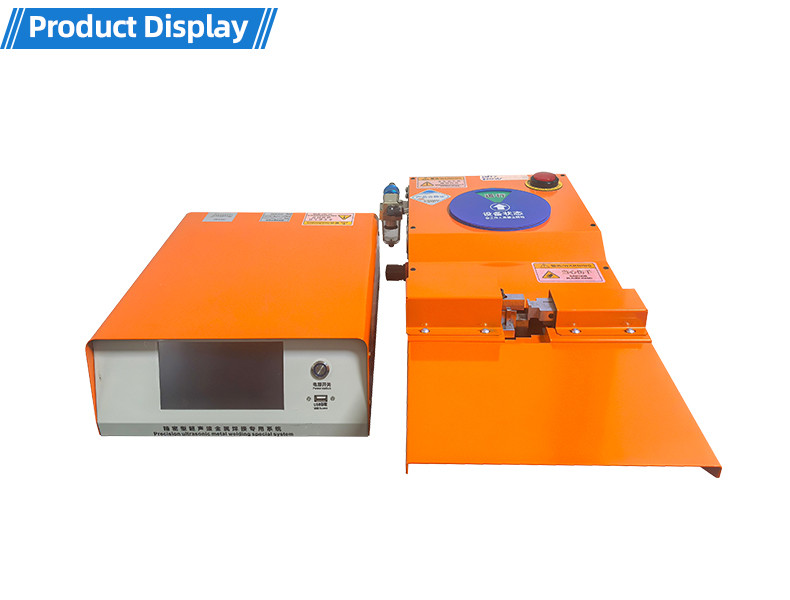

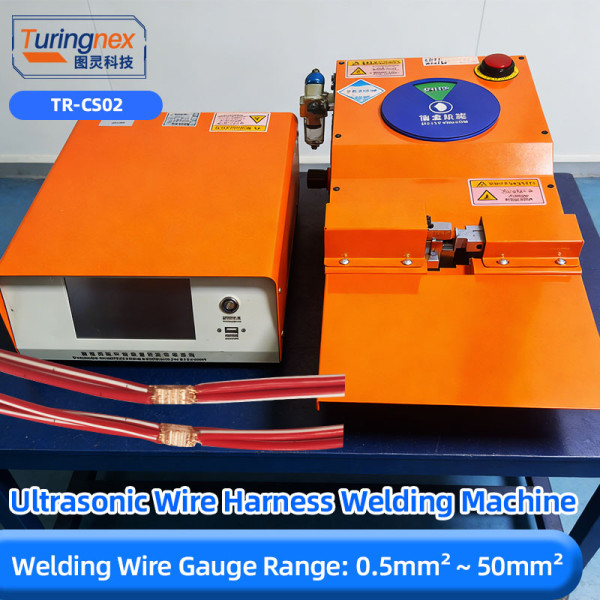

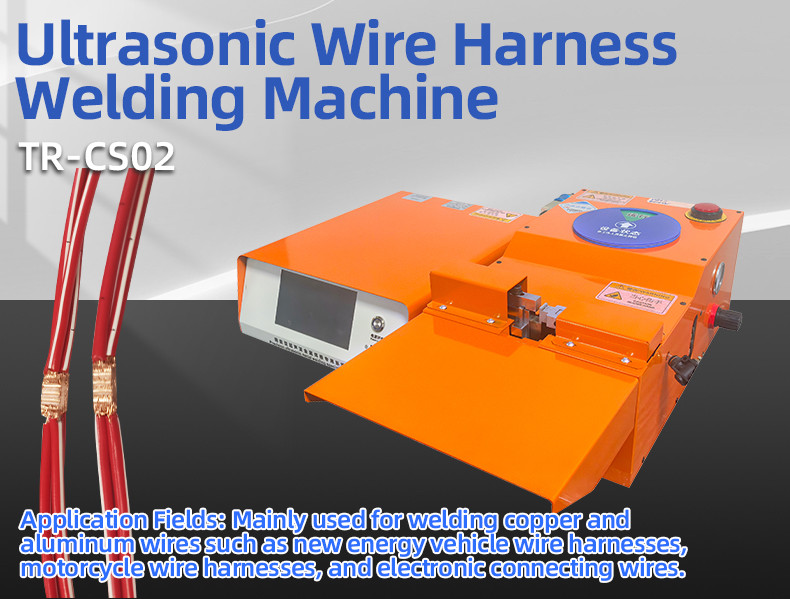

TR-CS02 Ultrasonic Wire Harness Welding Machine

Share
Categories	Welding Machine
Brand	Turing
Model	TR-CS02
Power	AC220V 50/60Hz
Application	Wire Harness Welding Machine
Ultrasonic Power	2kW~6kW
Ultrasonic Frequency	20kHz
FOB port	shenzhen ,guangzhou ,zhongshan
Terms of Payment	Western Union, MoneyGram, T/T

Detail Information

TR-CS02 Ultrasonic Wire Harness Welding Machine

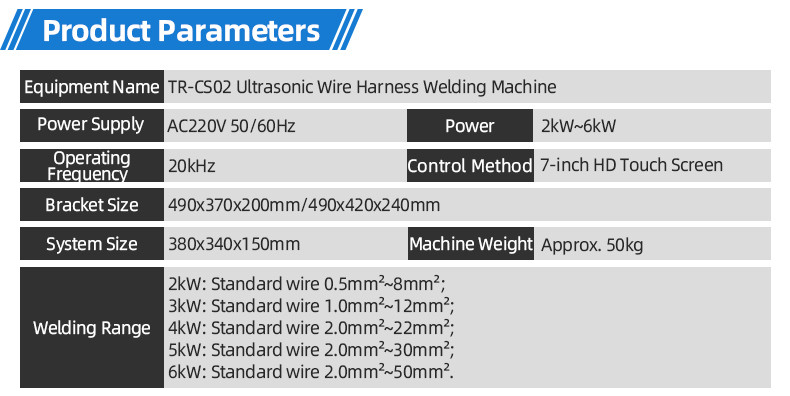

Equipment Name：TR-CS02 Ultrasonic Wire Harness Welding Machine

Power Supply Voltage：AC220V 50/60Hz

Power：2kW~6kW

Operating Frequency：20kHz

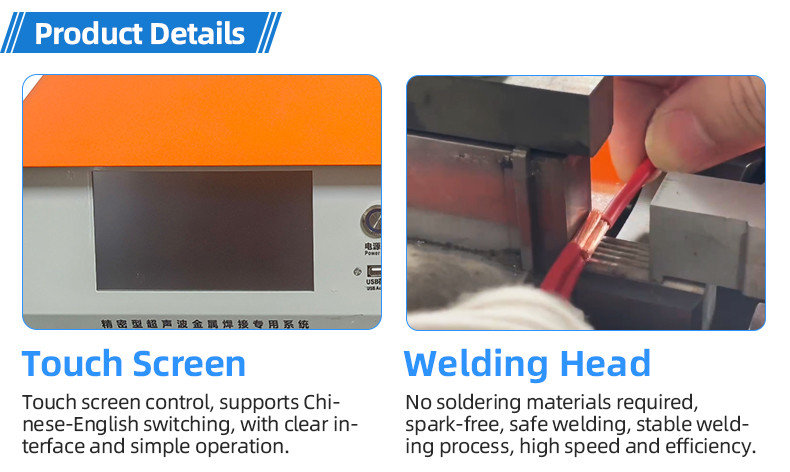

Control Method：7-inch High-Definition Touch Screen

Bracket Dimensions：490x370x200mm / 490x420x240mm

System Dimensions：380x340x150mm

Machine Weight：Approx. 50kg

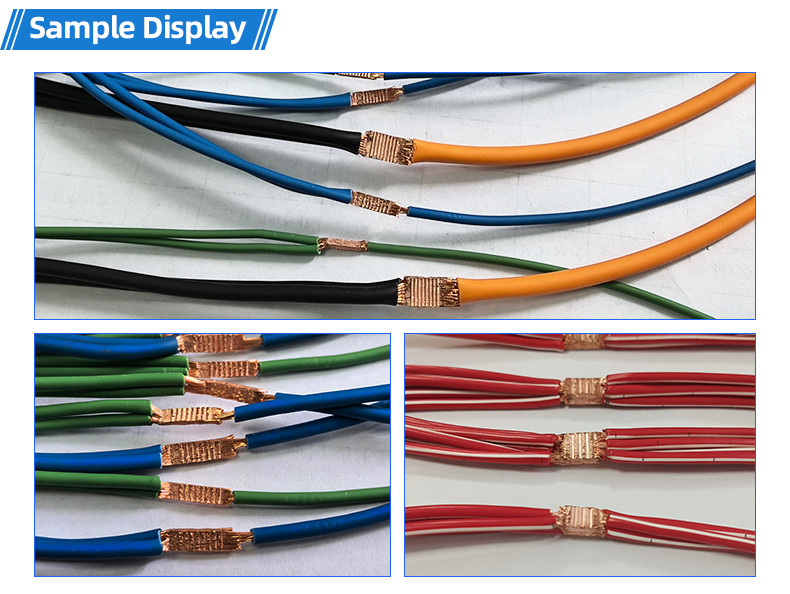

Welding Range：

2kW: Standard wire 0.5mm²~8mm²;

3kW: Standard wire 1.0mm²~12mm²;

4kW: Standard wire 2.0mm²~22mm²;

5kW: Standard wire 2.0mm²~30mm²;

6kW: Standard wire 2.0mm²~50mm²。

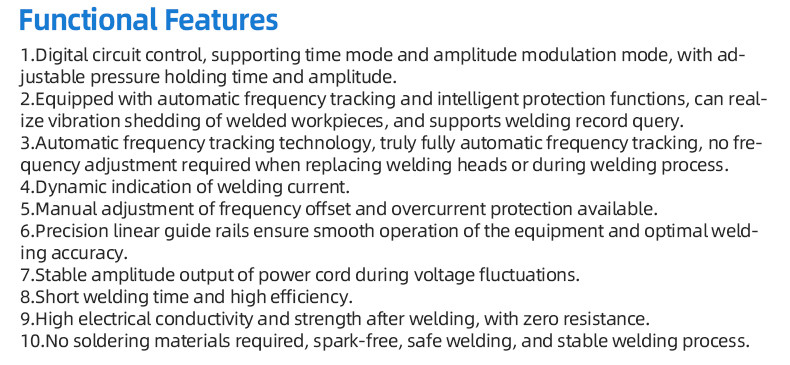

Functional Features

1.Digital circuit control, supporting time mode and amplitude modulation mode, with adjustable pressure holding time and amplitude.

2.Equipped with automatic frequency tracking and intelligent protection functions, can realize vibration shedding of welded workpieces, and supports welding record query.

3.Automatic frequency tracking technology, truly fully automatic frequency tracking, no frequency adjustment required when replacing welding heads or during welding process.

4.Dynamic indication of welding current.

5.Manual adjustment of frequency offset and overcurrent protection available.

6.Precision linear guide rails ensure smooth operation of the equipment and optimal welding accuracy.

7.Stable amplitude output of power cord during voltage fluctuations.

8.Short welding time and high efficiency.

9.High electrical conductivity and strength after welding, with zero resistance.

10.No soldering materials required, spark-free, safe welding, and stable welding process.
