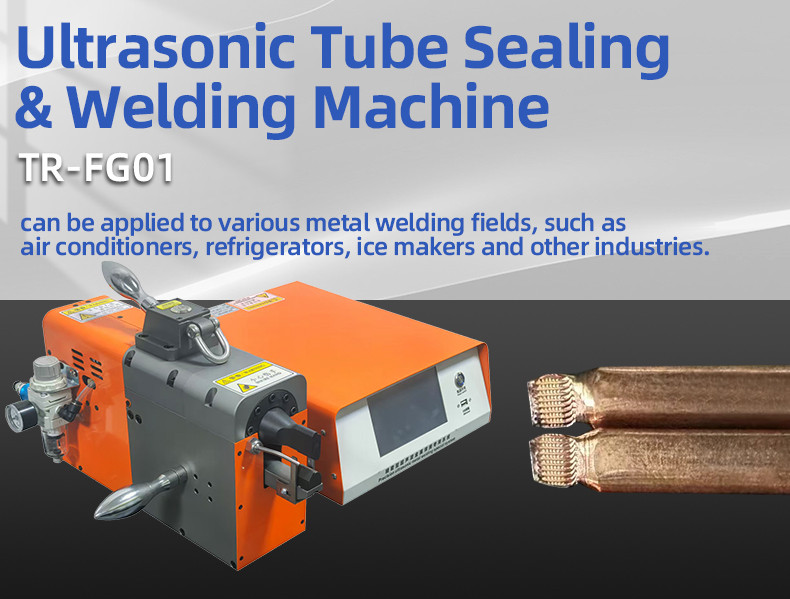

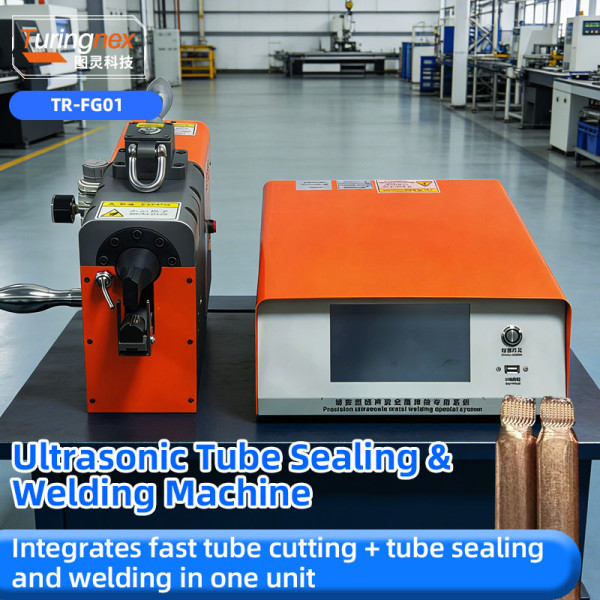

TR-FG01 Ultrasonic Tube Sealing & Welding Machine

Name: TR-FG01 Ultrasonic Tube Sealing & Welding Machine
Brand: Turing
SKU: 18552081
Rating: 4.75 (10 reviews)

Share
Categories	Welding Machine
Brand	Turing
Model	TR-FG01
Power	200V, 50/60Hz
Application	Metal Welding Machine
Ultrasonic Power	6000W
Ultrasonic Frequency	20kHz
FOB port	shenzhen ,guangzhou ,zhongshan
Terms of Payment	Western Union, MoneyGram, T/T

Contact Now

Favorites

Detail Information

TR-FG01 Ultrasonic Tube Sealing & Welding Machine

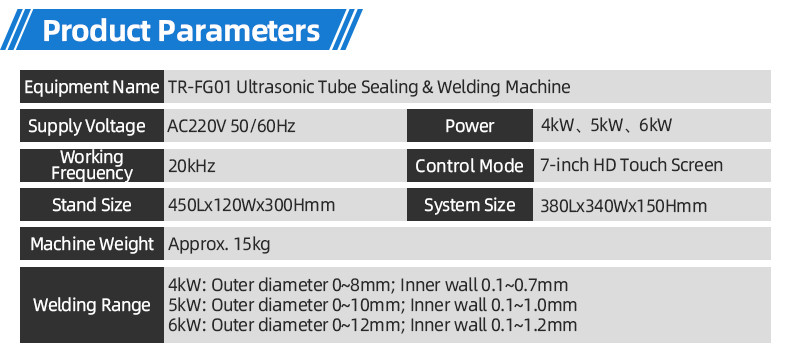

Equipment Name：TR-FG01 Ultrasonic Tube Sealing & Welding Machine

Power Supply Voltage：AC220V 50/60Hz

Power：4kW, 5kW, 6kW

Working Frequency：20kHz

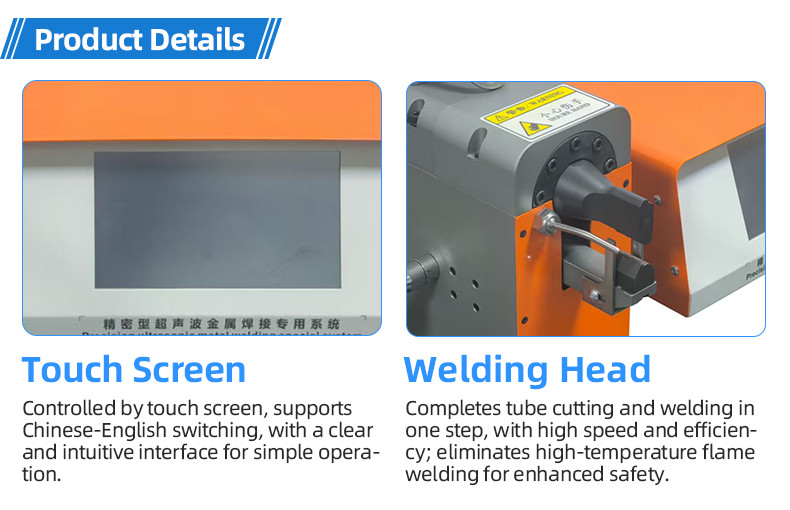

Control Mode：7-inch HD Touch Screen

Stand Size：450(L)×120(W)×300(H)mm

System Size：380(L)×340(W)×150(H)mm

Machine Weight：Approx. 15kg

Welding Range：

4kW: Outer diameter 0~8mm; Inner wall 0.1~0.7mm

5kW: Outer diameter 0~10mm; Inner wall 0.1~1.0mm

6kW: Outer diameter 0~12mm; Inner wall 0.1~1.2mm

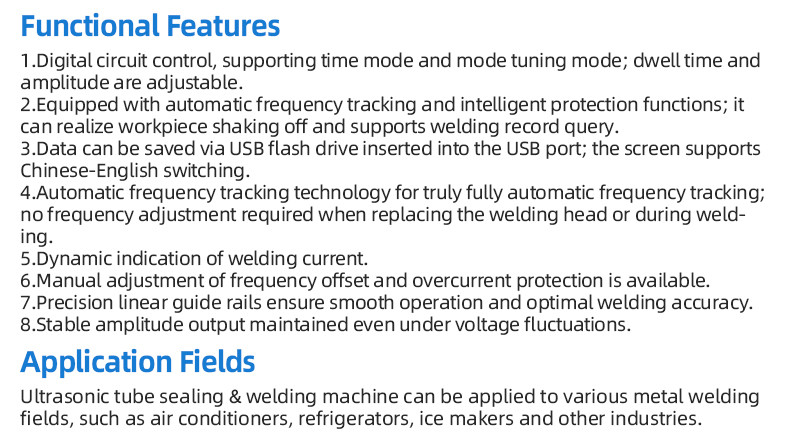

Functional Features

1.Digital circuit control, supporting time mode and mode tuning mode; dwell time and amplitude are adjustable.

2.Equipped with automatic frequency tracking and intelligent protection functions; it can realize workpiece shaking off and supports welding record query.

3.Data can be saved via USB flash drive inserted into the USB port; the screen supports Chinese-English switching.

4.Automatic frequency tracking technology for truly fully automatic frequency tracking; no frequency adjustment required when replacing the welding head or during welding.

5.Dynamic indication of welding current.

6.Manual adjustment of frequency offset and overcurrent protection is available.

7.Precision linear guide rails ensure smooth operation and optimal welding accuracy.

8.Stable amplitude output maintained even under voltage fluctuations.

Application Fields

Ultrasonic tube sealing & welding machine can be applied to various metal welding fields, such as air conditioners, refrigerators, ice makers and other industries.
