TR-2080 Ultrasonic Metal Welding Machine
Detail Information

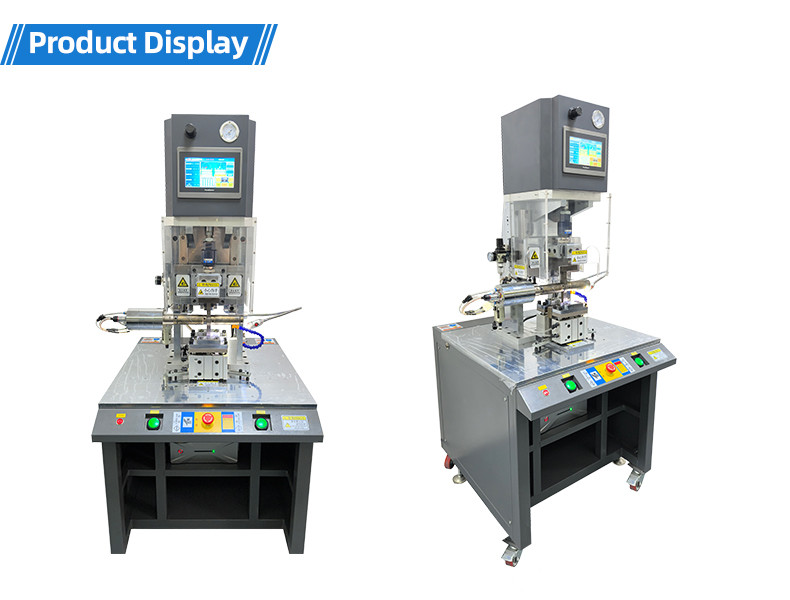

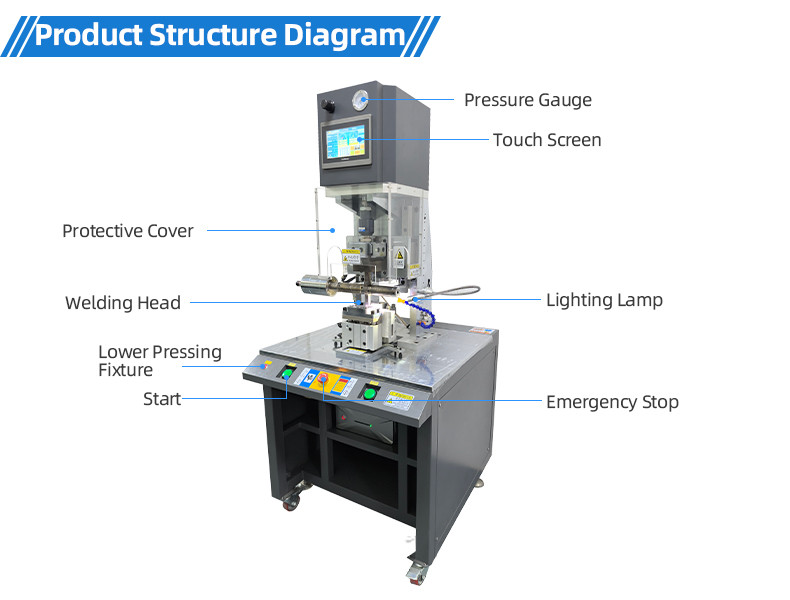

TR-2080 Ultrasonic Metal Welding Machine

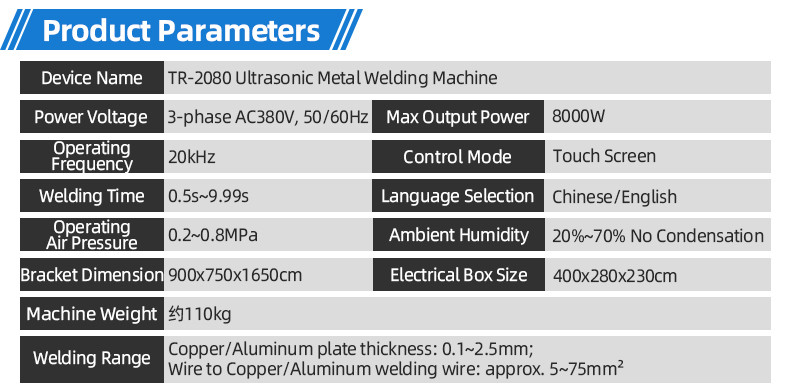

Device Name：TR-2080 Ultrasonic Metal Welding Machine
Max Output Power：8000W
Power Voltage：3-phase AC380V, 50/60Hz
Control Mode：Touch Screen
Operating Frequency：20kHz
Language Selection：Chinese/English
Welding Time：0.5s~9.99s
Ambient Humidity：20%~70% Non-condensing
Operating Air Pressure：0.2~0.8MPa
Electrical Box Dimensions：400×280×230cm
Stand Dimensions：900x750x1650cm
Machine Weight：Approx. 110kg

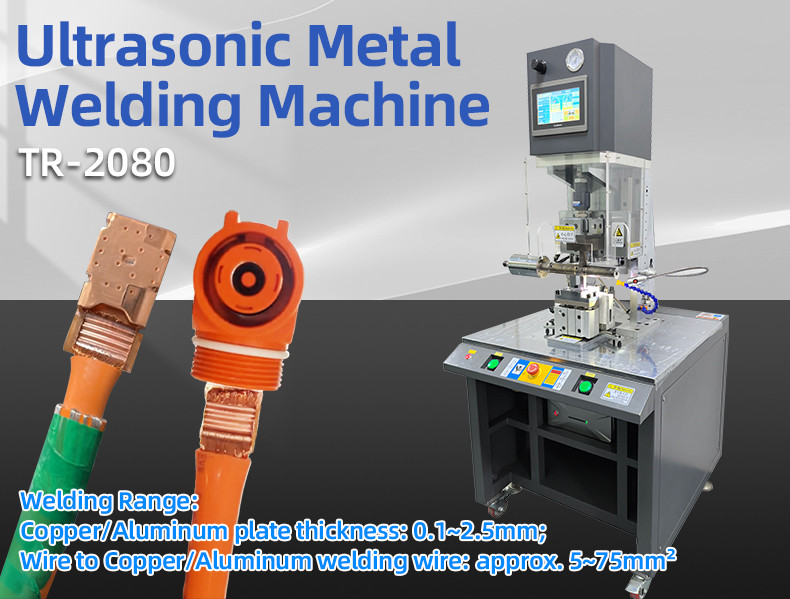

Welding Range：Copper/Aluminum plate thickness: 0.1~2.5mm;
Wire to Copper/Aluminum welding wire: approx. 5~75mm²

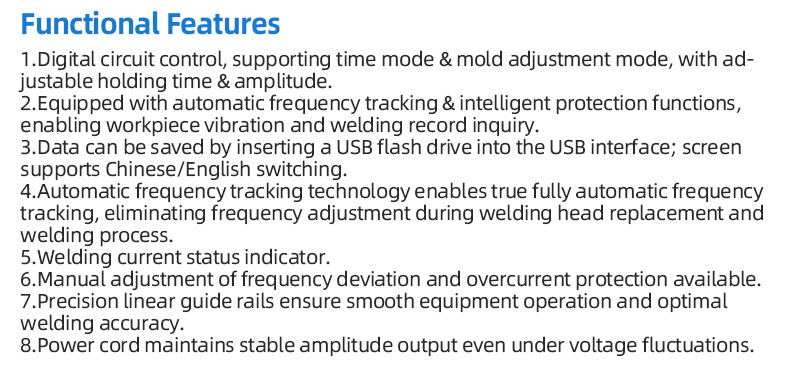

Functional Features
1.Digital circuit control, supporting time mode & mold adjustment mode, with adjustable holding time & amplitude.
2.Equipped with automatic frequency tracking & intelligent protection functions, enabling workpiece vibration and welding record inquiry.
3.Data can be saved by inserting a USB flash drive into the USB interface; screen supports Chinese/English switching.
4.Automatic frequency tracking technology enables true fully automatic frequency tracking, eliminating frequency adjustment during welding head replacement and welding process.
5.Welding current status indicator.
6.Manual adjustment of frequency deviation and overcurrent protection available.
7.Precision linear guide rails ensure smooth equipment operation and optimal welding accuracy.
8.Power cord maintains stable amplitude output even under voltage fluctuations.

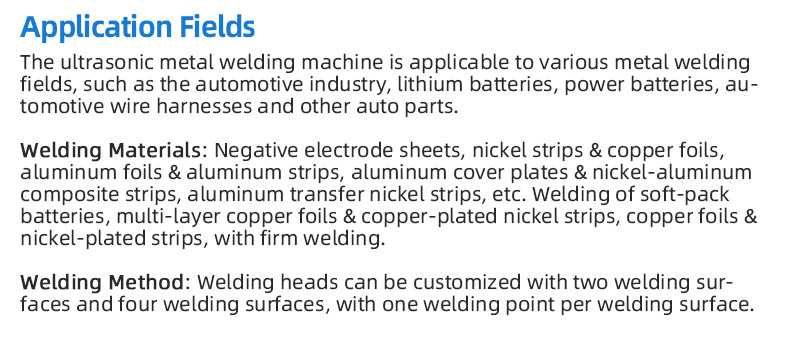

Application Fields
The ultrasonic metal welding machine is applicable to various metal welding fields, such as the automotive industry, lithium batteries, power batteries, automotive wire harnesses and other auto parts.
Welding Materials: Negative electrode sheets, nickel strips & copper foils, aluminum foils & aluminum strips, aluminum cover plates & nickel-aluminum composite strips, aluminum transfer nickel strips, etc. Welding of soft-pack batteries, multi-layer copper foils & copper-plated nickel strips, copper foils & nickel-plated strips, with firm welding.

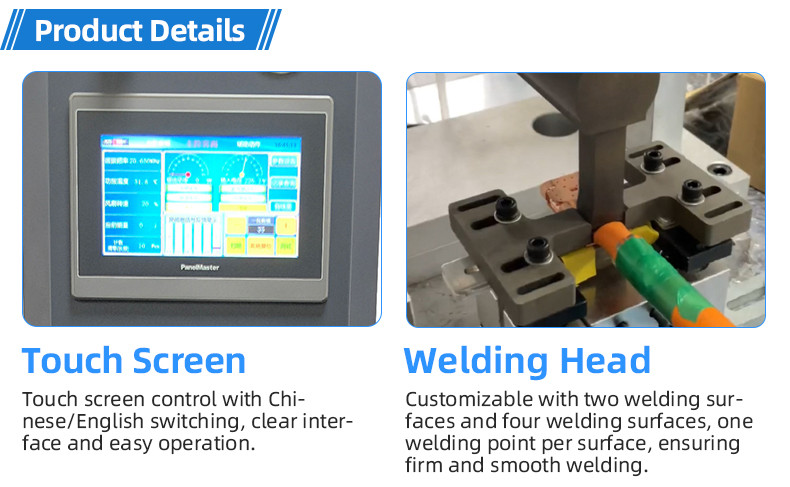

Welding Method: Welding heads can be customized with two welding surfaces and four welding surfaces, with one welding point per welding surface.
