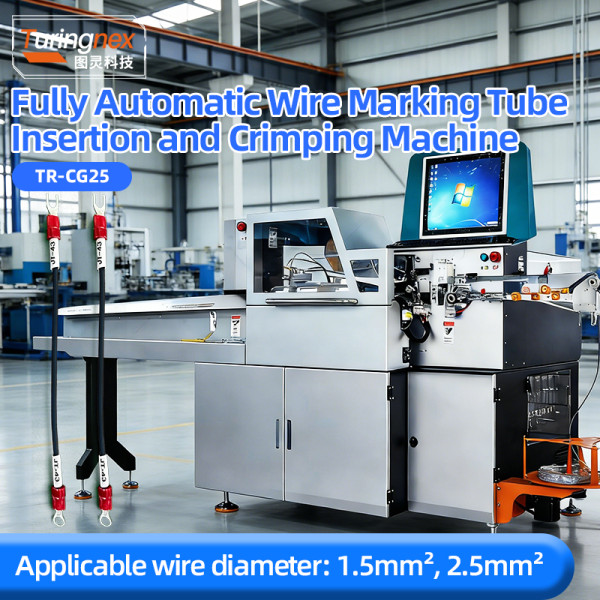

TR-CG25 Fully Automatic Wire Marking Tube Insertion and Terminal Crimping Machine

Name: TR-CG25 Fully Automatic Wire Marking Tube Insertion and Terminal Crimping Machine
Brand: Turing
SKU: 18546809
Rating: 4.75 (10 reviews)

Share
Categories	Inserting Tube Terminal Crimping Machine
Trademark/Brand	Turing
Model	TR-CG25
Power	AC220V 50/60Hz 20A
Application	wire cutting, stripping, terminal crimping
Cutting Length	180~20000mm (customizable)
Contact	Coco : +86 18666170785
FOB port	shenzhen ,guangzhou ,zhongshan
Terms of Payment	Western Union, MoneyGram, T/T
Download
Update Time	Jan 19,2026

Contact Now

Favorites

Detail Information

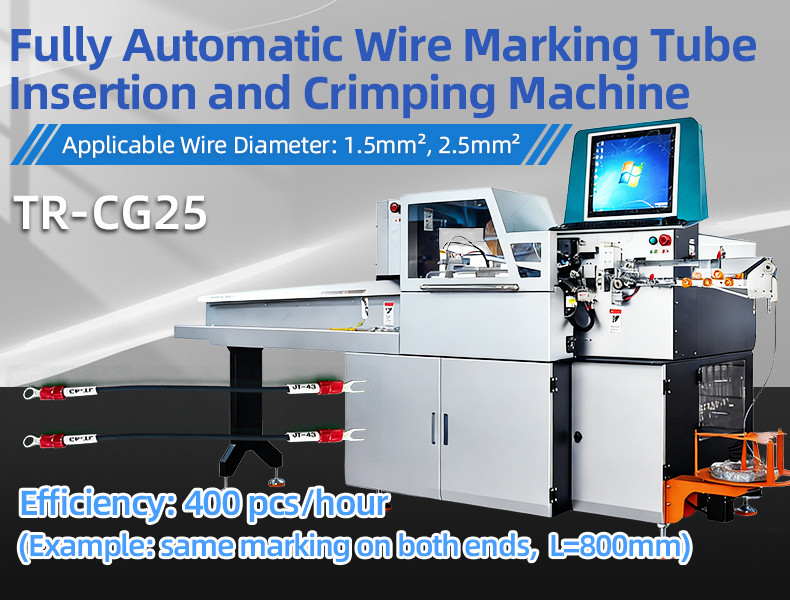

TR-CG25 Fully Automatic Wire Marking Tube Insertion and Terminal Crimping Machine

Power Supply：AC220V/50Hz, 1kW

Marking Tube Length：20mm or 30mm (customizable)

Software Compatibility：Windows 7, Windows 10, Excel

Control Method：19.5-inch all-in-one computer, controlled by PC software

Input Method：Direct input via PC software or Excel import

Wire Range：①1.5mm², 2.5mm² national standard BVR insulated wires (plastic insulation diameter ±0.1mm)

②0.75, 1.0, 4.0mm² (customizable)

Wire Cutting Length：180~20000mm (customizable)

Cooling Method：Forced air cooling

Remarks：Protection and detection functions for wire shortage, no air pressure, marking tube shortage, no ribbon, and failed tube picking/insertion

Equipment Features

1.The length of each wire and characters on the marking tube can be customized; the tube can also be printed in both positive and reverse directions.

2.Just fill in the processing parameters of wires in an Excel table and import it into the system.

3.Maximum processing length up to 10 meters, supports remote operation.

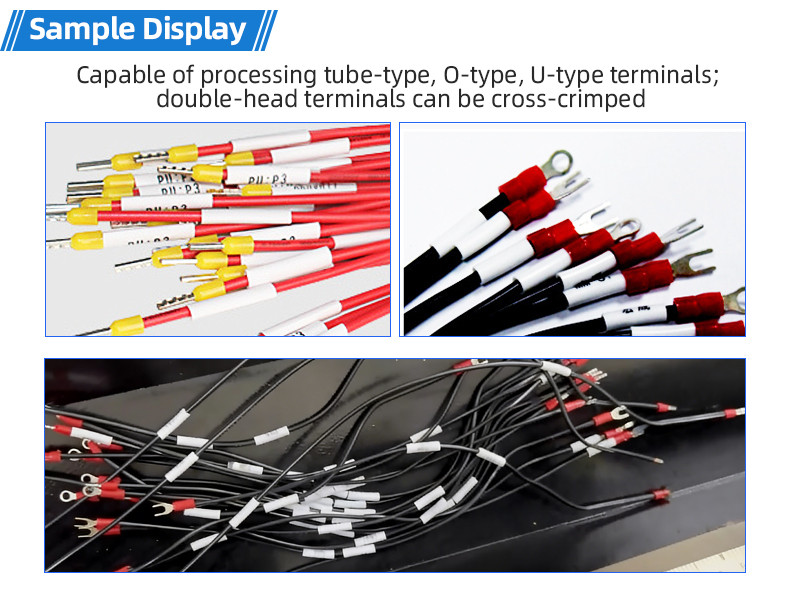

4.Capable of processing tube-type, O-type, U-type terminals; double-head terminals can be cross-crimped.
