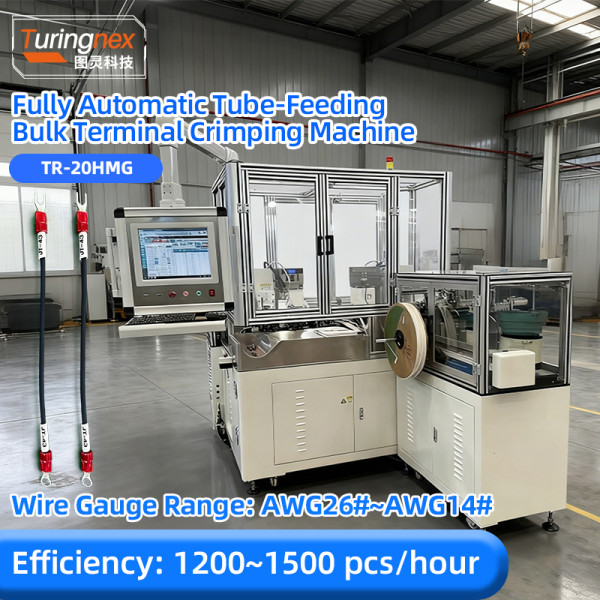

TR-20HMG Automatic Tube-Feeding Bulk Terminal Crimping Machine
| Share | |
|---|---|
| Categories | Inserting Tube Terminal Crimping Machine |
| Trademark/Brand | Turing |
| Model | TR-20HMG |
| Power | AC220V 50/60Hz 20A |
| Application | wire cutting, stripping, terminal crimping |
| Stripping Length | 1.5~15mm |
| Working Air Pressure | 0.5~0.65MPa (clean dry air) |
| Contact | Coco : +86 18666170785 |
| FOB port | shenzhen ,guangzhou ,zhongshan |
| Terms of Payment | Western Union, MoneyGram, T/T |
| Download |  |
| Update Time | Dec 8,2025 |
Detail Information
TR-20HMG Automatic Tube-Feeding Bulk Terminal Crimping Machine
Power Rating：AC220V 800W
Dimensions & Weight：1300x1050x1550mm, 580kg
Display：Chinese-English LCD Display
Air Pressure：0.5~0.65MPa (clean dry air)
Press Capacity：2000kg
Production Capacity：1200~1500 pcs/hour
Wire Feeding：Method Drum Feeding
Wire Gauge Range：AWG26#~AWG14#
Pressure Detection：Optional
CCD Visual Inspection：Optional
Cutting Accuracy：Tolerance 1mm + Cutting Accuracy * 0.2%
Stripping Length：1.5~15mm
Operation Mode：Single-step, Single-cycle, Automatic
Operating Condition：0~50°C
Functions：Wire Cutting, Stripping, Twisting, Tube Feeding, Terminal Crimping, Wire Marker Printing
Terminals：Ferrule Terminals, Y-type/O-type Terminals, Bulk Terminals
Cutting Length：90mm~999999mm (minimum remaining 70mm), Tube Length: 15mm
Detection Equipment：Wire Presence Detection, Fiber Optic Detection, Low Air Pressure Detection

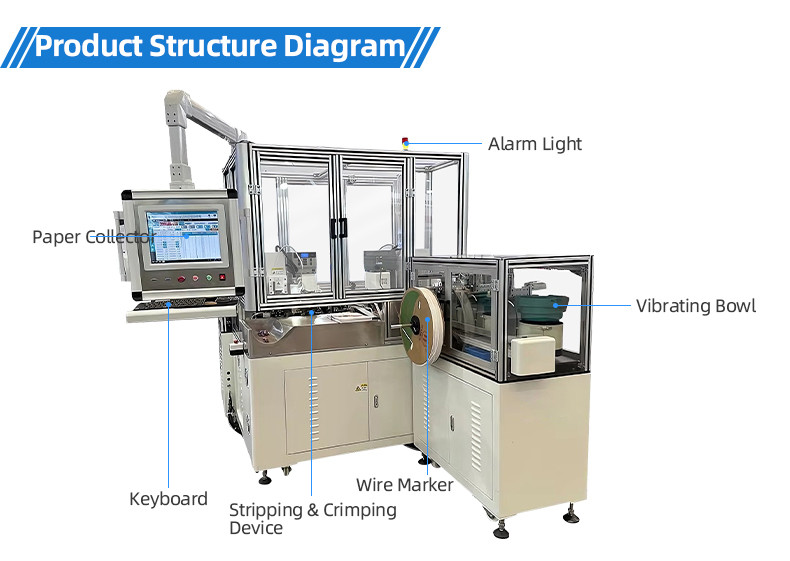

Machine Features
1.This machine enables continuous automatic processing of wire cutting, stripping, twisting, double-end tube feeding, and single-end tube feeding.
2.Applicable to AWG26#~AWG14# wires, it adopts a modular design. The wire feeding device, crimping device, tool rest device, tube feeding equipment, heating tube device, and wire take-up device can be quickly disassembled individually for convenient and fast maintenance.
3.You can adjust stripping length, cutting length, tube feeding speed, time, and terminal crimping speed via the touch screen.
4.Equipped with fiber optic induction detection to check the presence of wires and terminal crimping, which improves product yield.
Dongguan Turing Automation Technology Co., Ltd. was founded in 2020 and is located in Dongguan City, Guangdong Province. The company specializes in the production of: fully automatic terminal crimping machines, fully automatic automatic-automatic terminal crimping and tin-plating machines, ultra-quiet energy-saving terminal machines, silent copper strip machines, computerized wire cutting and stripping machines, coaxial wire stripping machines, fully automatic nylon cable tie machines, fully automatic winding and strapping machines, computerized heat shrinkable tube cutting machines, terminal machine molds, knife molds, and new energy automatic wire harness processing equipment, etc. It mainly serves wire harness processing enterprises in the automotive, motorcycle, electronics, household appliances, electrical and other industries.
We have rich industry experience and are a trustworthy supplier. Our holding/cooperative factories are equipped with advanced production equipment and skilled front-line employees. Fully aware that the company's development depends on product innovation and quality, we have established a quality management system that meets the requirements of international quality management systems. The company continuously launches original innovations based on market and customer needs, always maintaining the novelty and innovation of products. We think what customers think and prioritize what customers need. Providing customers with excellent services and meeting their needs is our eternal pursuit!
