TR-HT01 Full-Automatic Double-Head Heat Shrink Tubing & Sleeve Terminal Crimping Machine

Name: TR-HT01 Full-Automatic Double-Head Heat Shrink Tubing & Sleeve Terminal Crimping Machine
Brand: Turing
SKU: 18538559
Rating: 4.75 (10 reviews)

Categories	Inserting Tube Terminal Crimping Machine
Trademark/Brand	Turing
Model	TR-HT01
Power	220V 50/60Hz, 2kW
Application	wire cutting, stripping, terminal crimping
Stripping Length	1mm~7mm
Working Air Pressure:	0.6MPa(clean filtered air source)
Contact	Coco : +86 18666170785
FOB port	shenzhen ,guangzhou ,zhongshan
Terms of Payment	Western Union, MoneyGram, T/T
Download
Update Time	Nov 12,2025

Contact Now

Favorites

Detail Information

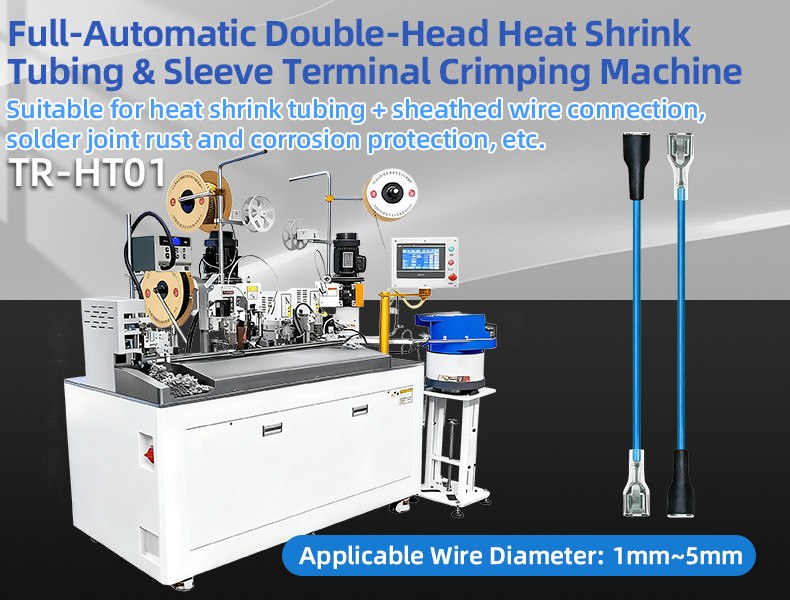

TR-HT01 Full-Automatic Double-Head Heat Shrink Tubing & Sleeve Terminal Crimping Machine

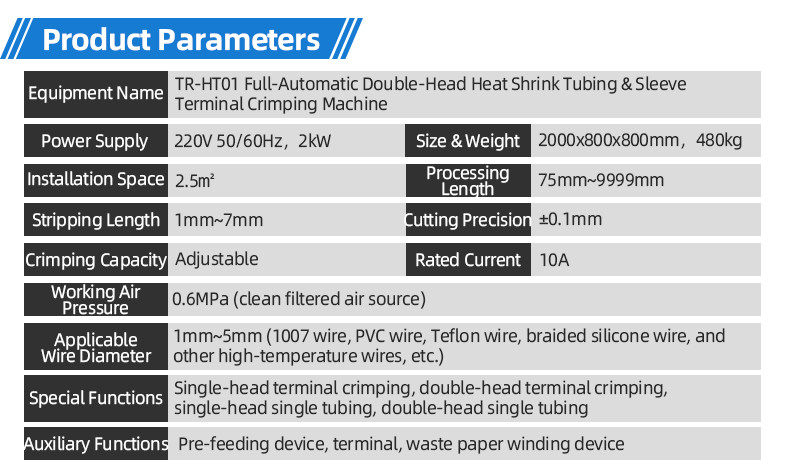

Power Supply: 220V 50/60Hz, 2kW

Dimensions & Weight: 2000x800x800mm, 480kg

Working Air Pressure: 0.6MPa (clean filtered air source)

Processing Length: 75mm~9999mm

Stripping Length: 1mm~7mm

Cutting Precision: ±0.1mm

Crimping Capacity: Adjustable

Rated Current: 10A

Installation Space: 2.5㎡

Applicable Wire Diameter: 1mm~5mm (1007 wire, PVC wire, Teflon wire, braided silicone wire, and other high-temperature wires, etc.)

Special Functions: Single-head terminal crimping, double-head terminal crimping, single-head single tubing, double-head single tubing

Auxiliary Functions: Pre-feeding device, terminal, waste paper winding device

TR-388DZ Fully automatic double-head crimping enadouble-head inserting shellsingle-head threading hydrant machine
