TR - GD06 High - Speed Full - Servo Double - Head Terminal Machine

Categories	Fully Automatic Terminal Crimping Machine
Trademark/Brand	Turing
Model	TR-GD06
Power	AC220V/50HZ,
Application	terminal crimping machine
Feature	Stable Performance
Warranty	1year
Contact	Coco:+8618666170785
FOB port	shenzhen ,guangzhou ,zhongshan
Terms of Payment	Western Union, MoneyGram, T/T
Download
Update Time	Oct 8,2025

Contact Now

Favorites

Detail Information

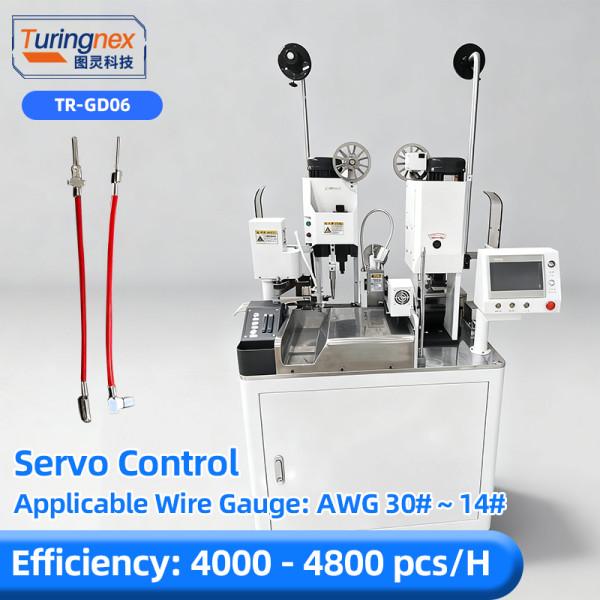

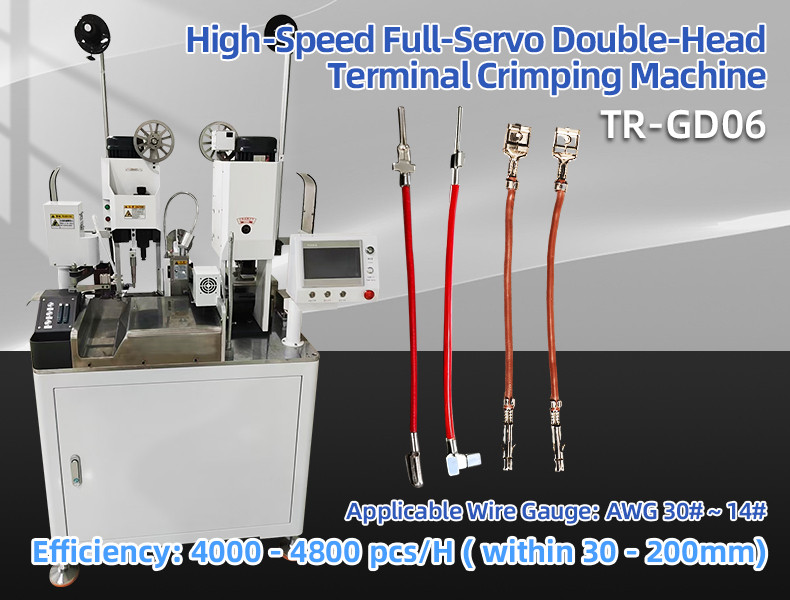

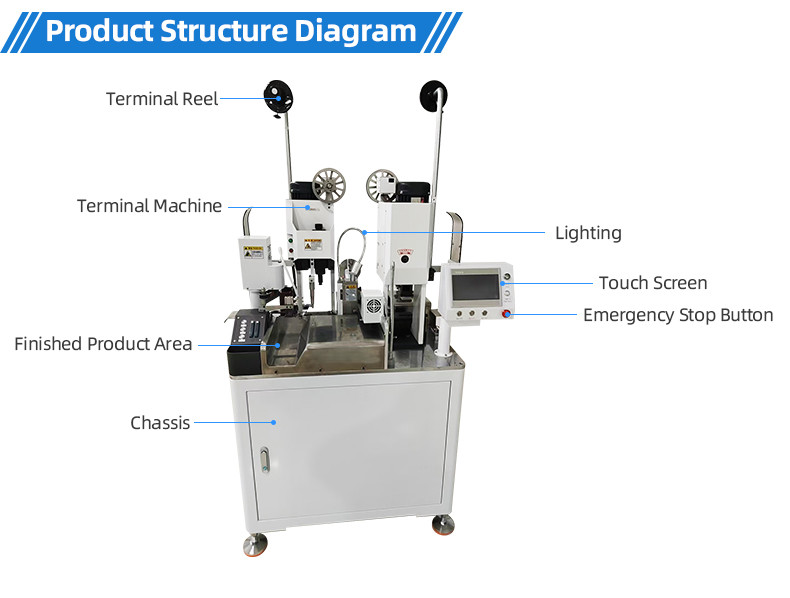

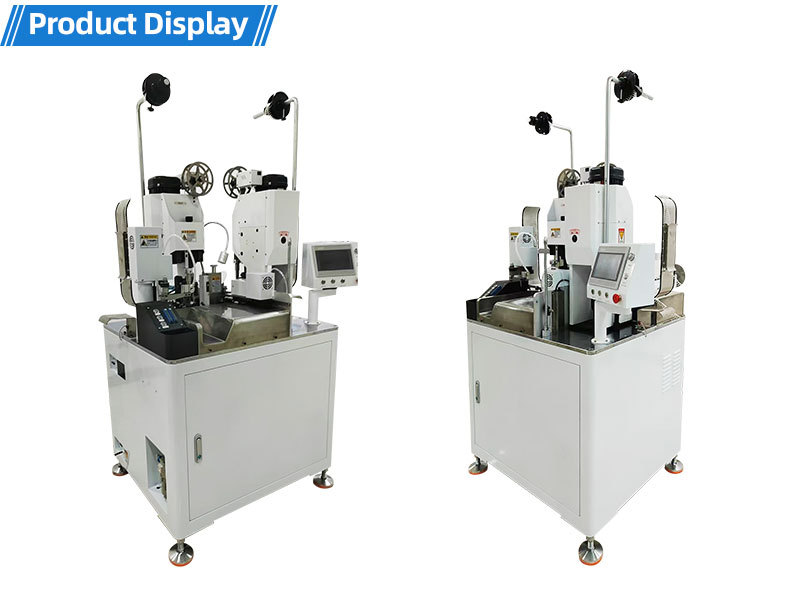

TR - GD06 High - Speed Full - Servo Double - Head Terminal Machine

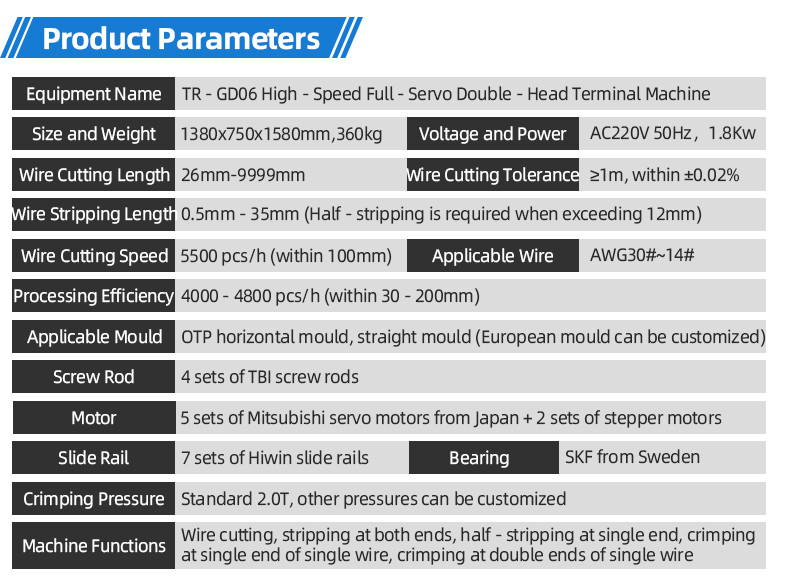

Dimension and Weight: 1380x750x1580mm, 360kg;

Voltage and Power: AC220V 50Hz, 1.8Kw

Wire Cutting Length: 26mm - 9999mm

Wire Cutting Tolerance: ≥1m, within ±0.02%

Wire Stripping Length: 0.5mm - 35mm (Half - stripping is required when exceeding 12mm)

Wire Cutting Speed: 5500 pieces/h (within 100mm)

Applicable Wire: AWG30# - 14#

Processing Efficiency: 4000 - 4800 pieces/h (within 30 - 200mm)

Applicable Mould: OTP horizontal mould, straight mould (European - style mould can be customized)

Crimping Pressure: Standard 2.0T, other pressures can be customized

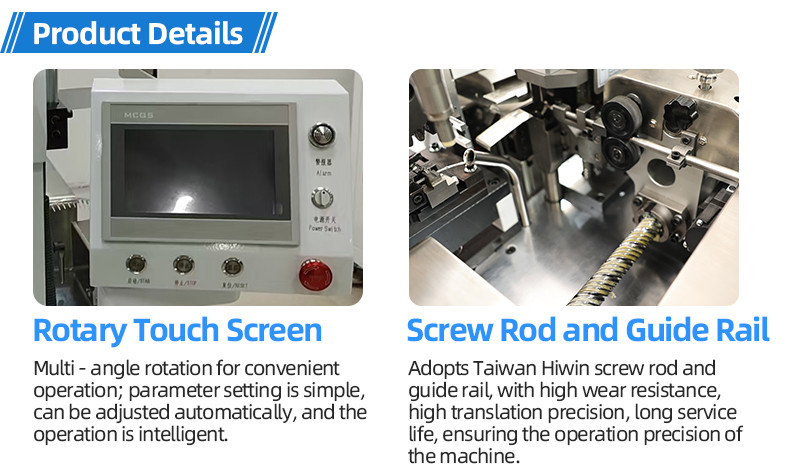

Screw Rod: 4 sets of TBI screw rods

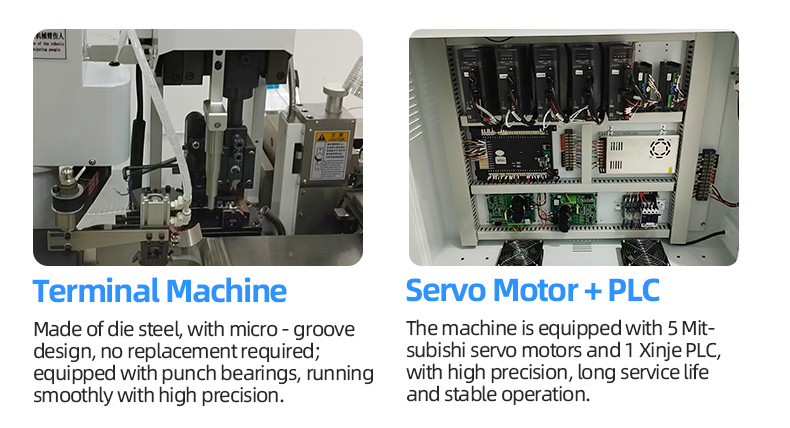

Motor: 5 sets of Mitsubishi servo motors from Japan + 2 sets of stepper motors

Slide Rail: 7 sets of Hiwin slide rails

Bearing: SKF from SwedenCrimping

Pressure: Standard 2.0T, other pressures can be customized

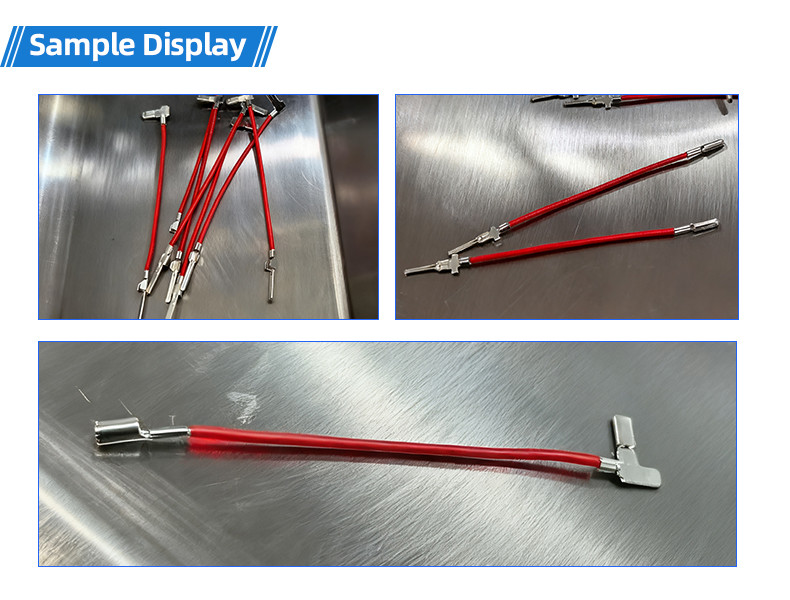

Machine Functions: Wire cutting, stripping at both ends, half - stripping at single end, crimping at single end of single wire, crimping at double ends of single wire
