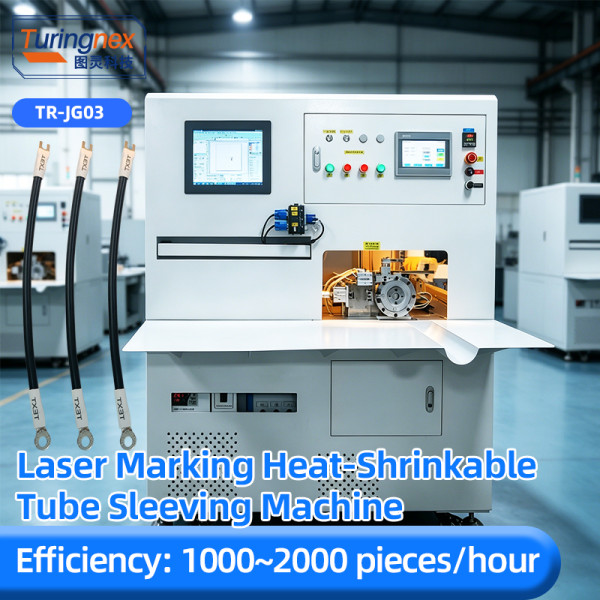

TR-JG03 Laser Marking Heat-Shrinkable Tube Sleeving Machine

Share
Categories	Inserting Heat Shrink Tube Baking Machine
Brand	Turing
Model	TR-JG03
Power	AC220V/50HZ,
Application	heat shrinkable tube baking machine
Feature	Stable Performance
Warranty	1year
Contact	Coco 0086-18666170785
FOB port	shenzhen ,guangzhou ,zhongshan
Terms of Payment	Western Union, MoneyGram, T/T
Download

Contact Now

Favorites

Detail Information

TR-JG03 Laser Marking Heat-Shrinkable Tube Sleeving Machine

Equipment Name: TR-JG03 Laser Marking Heat-Shrinkable Tube Sleeving Machine

Voltage & Power: AC220V 50/60Hz, 2500w

Size & Weight: 900x1020x1480mm, 200kg

Application Scope: Heat-shrinkable tube laser marking

Operation Mode: Passive

Compatible Tube Range: φ1.0-φ6.5 standard round tubes, φ7.0-φ20 flat tubes

Heat-shrinkable Tube Length: Round tubes: 5mm-200mm; Flat tubes: 12mm-100mm (optional fixture required)

Baking Temperature: 0℃-500℃ (adjustable via temperature controller)

Air Pressure Requirement: 0.5/0.65MPa

Operating Temperature: 0℃-50℃

Storage Temperature: -20℃-60℃

Cycle Time: 2.5 seconds

Anti-Interference Capability: Interference Voltage: 1500Vp-p; Pulse Period: 1μs; Duration: 1 minute

Air Requirement: No corrosive gases

Cooling Method: Forced water cooling

Operating Humidity: 10%RH-90%RH (non-condensing)

Product Description

1.Industrial automation PLC, controlled by all-in-one desktop computer and upper computer software, easy to operate, stable performance and high efficiency.

2.Automatic marking of heat-shrinkable tube labels via upper computer software with freely customizable characters; supports different label printing for 2-core wires. The heat-shrinkable tube is automatically fed and cut, with baking length freely adjustable via the fixture and baking position adjustable via the positioning device.

3.Output: 1000-2000 pcs per hour (depending on manual loading speed).

Product Features

1.Standard with robotic arm auto wire pick-up device (applicable to standard wires only, excluding special wires).

2.Adopts UV light source printing technology, with clear, waterproof and oil-proof printed texts. Built-in memory function, supports Excel file import, serial number printing and combined document printing.

3.Laser marking requires no consumables, and works with various colored heat-shrinkable tubes (white, red, blue, etc.) to meet diverse process requirements. When the laser is off, it can process standard black heat-shrinkable tubes, compatible with all functions and fixtures of standard models.

4.Digital temperature adjustment and abnormal heating device monitoring. The heating device automatically protects when air pressure is too low, extending service life.

5.One-click system recovery to prevent parameter adjustment errors by operators.
