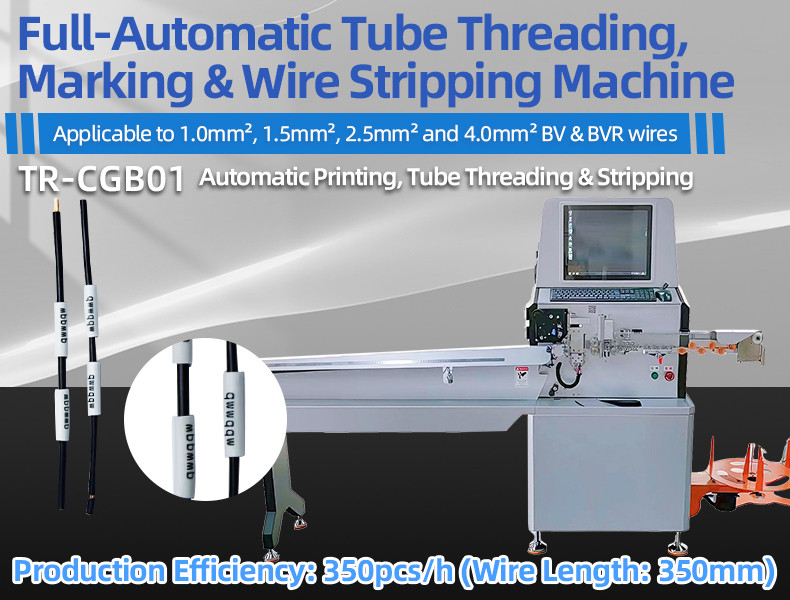

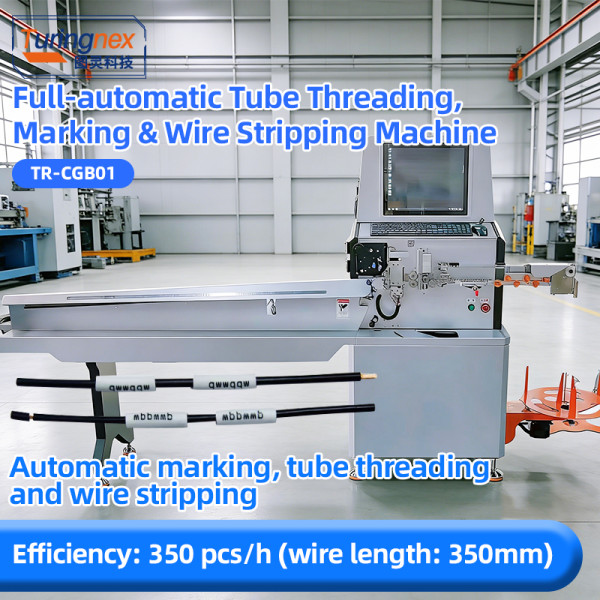

TR-CGB01 Full-Automatic Tube Threading, Marking & Wire Stripping Machine

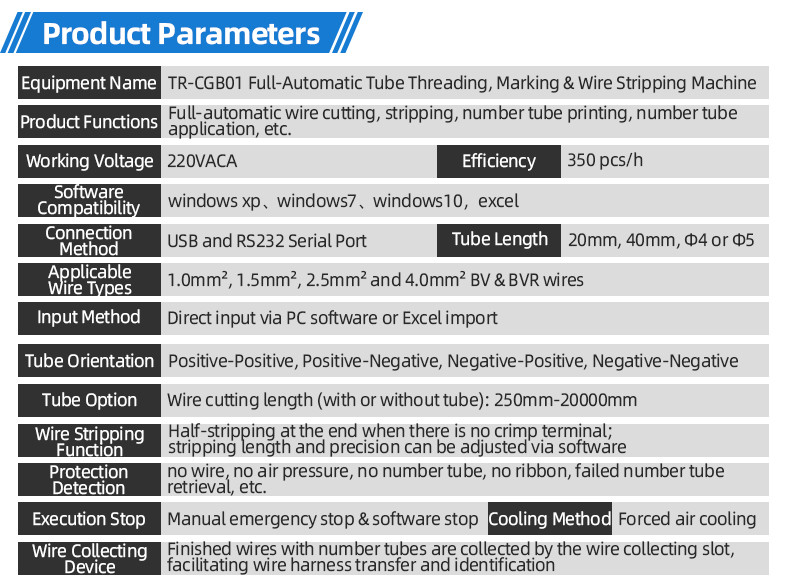

Product Functions: Full-automatic wire cutting, wire stripping, number tube printing, number tube application, etc.

Working Voltage: 220VACA

Software Compatibility: Windows XP, Windows 7, Windows 10, Excel

Connection Method: USB and RS232 Serial Port

Input Method: Direct input via PC software or Excel import

Applicable Wire Types: 1.0mm², 1.5mm², 2.5mm² and 4.0mm² BV & BVR wires

Tube Length: 20mm, 40mm, Φ4 or Φ5

Tube Orientation: Positive-Positive, Positive-Negative, Negative-Positive, Negative-Negative

Tube Option: Wire cutting length (with or without tube): 250mm-20000mm

Wire Stripping Function: Half-stripping at the end when there is no crimp terminal; stripping length and precision can be adjusted via software

Protection & Detection: Protection and detection functions for no wire, no air pressure, no number tube, no ribbon, failed number tube retrieval, etc.

Execution Stop: Manual emergency stop and software stop functions are available

Wire Collecting Device: Finished wires with number tubes are collected by the wire collecting slot, facilitating wire harness transfer and identification

Wire Stripping Speed: 350 pcs/h (taking 350mm as an example)

Cooling Method: Forced air cooling

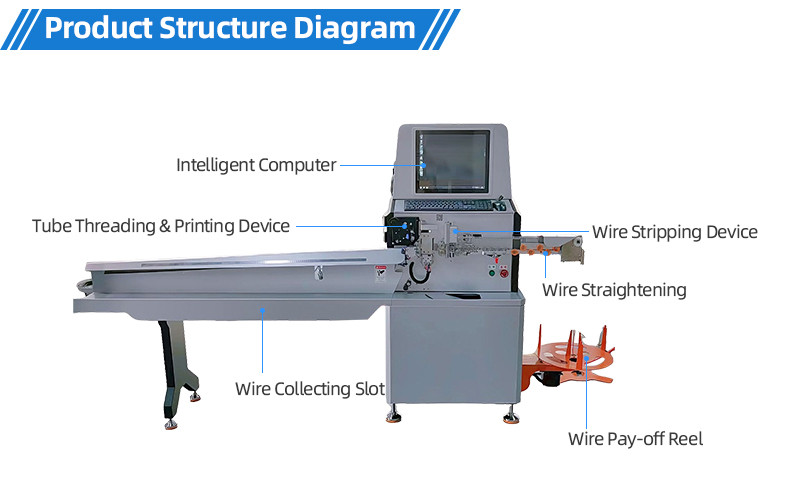

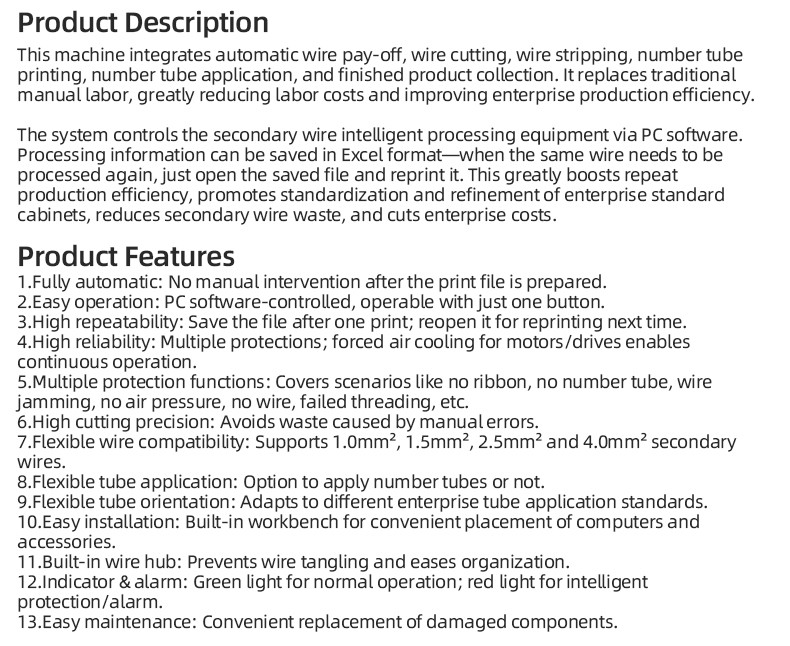

The secondary wire intelligent wire stripping machine integrates automatic wire pay-off, wire cutting, wire stripping, number tube printing, number tube application, and finished product collection. It replaces traditional manual labor, greatly reducing labor costs and improving the production efficiency of enterprises.

The secondary wire intelligent wire stripping system controls the secondary wire intelligent wire stripping equipment via PC software. Wire stripping information can be saved in Excel file format. When the same wire information needs to be processed again, simply open the saved file and reprint it—this greatly improves the efficiency of repeated production, promotes the standardization and refinement of enterprise standard cabinets, reduces secondary wire waste, and lowers enterprise costs.

1.Fully automatic: No manual intervention required after the print file is prepared.

2.Easy operation: Controlled by PC software, operable with just one button.

3.High repeatability: Save the file after one print, and reopen it for reprinting next time.

4.High reliability: Multiple protections; forced air cooling for motors and drives allows continuous equipment operation.

5.Multiple protection functions: For scenarios like no ribbon, no number tube, wire jamming, no air pressure, no wire, failed wire threading, etc.

6.High wire cutting precision: Avoids waste caused by manual errors.

7.Flexible wire type compatibility: Supports 1.0mm², 1.5mm², 2.5mm² and 4.0mm² secondary wires.

8.Flexible tube application: Option to apply number tubes or not.

9.Flexible number tube orientation: Adapts to different enterprise tube application specifications.

10.Easy installation: Built-in operating platform for convenient placement of computers and accessories.

11.Built-in finished wire hub: Prevents wire tangling and facilitates organization.

12.Indicator & alarm functions: Green light for normal operation; red light for intelligent protection and alarm.

13.Easy maintenance: Convenient replacement of damaged components.
