TR-8030YJP 30mm² Computer‑Controlled Wire Stripping Machine with Marking Function

Share
Categories	Fully‑automatic welding & housing‑inserting machine
Brand	Turing
Model	TR-8030YJP
Stripping range	1-30 sq. ft.
Catheter Diameter	Φ 16
Cutting length	1mm-99999.99mm
Production Capacity	500 pcs/hour
FOB port	shenzhen ,guangzhou ,zhongshan
Terms of Payment	Western Union, MoneyGram, T/T

Contact Now

Add to Wishlist

Detail Information

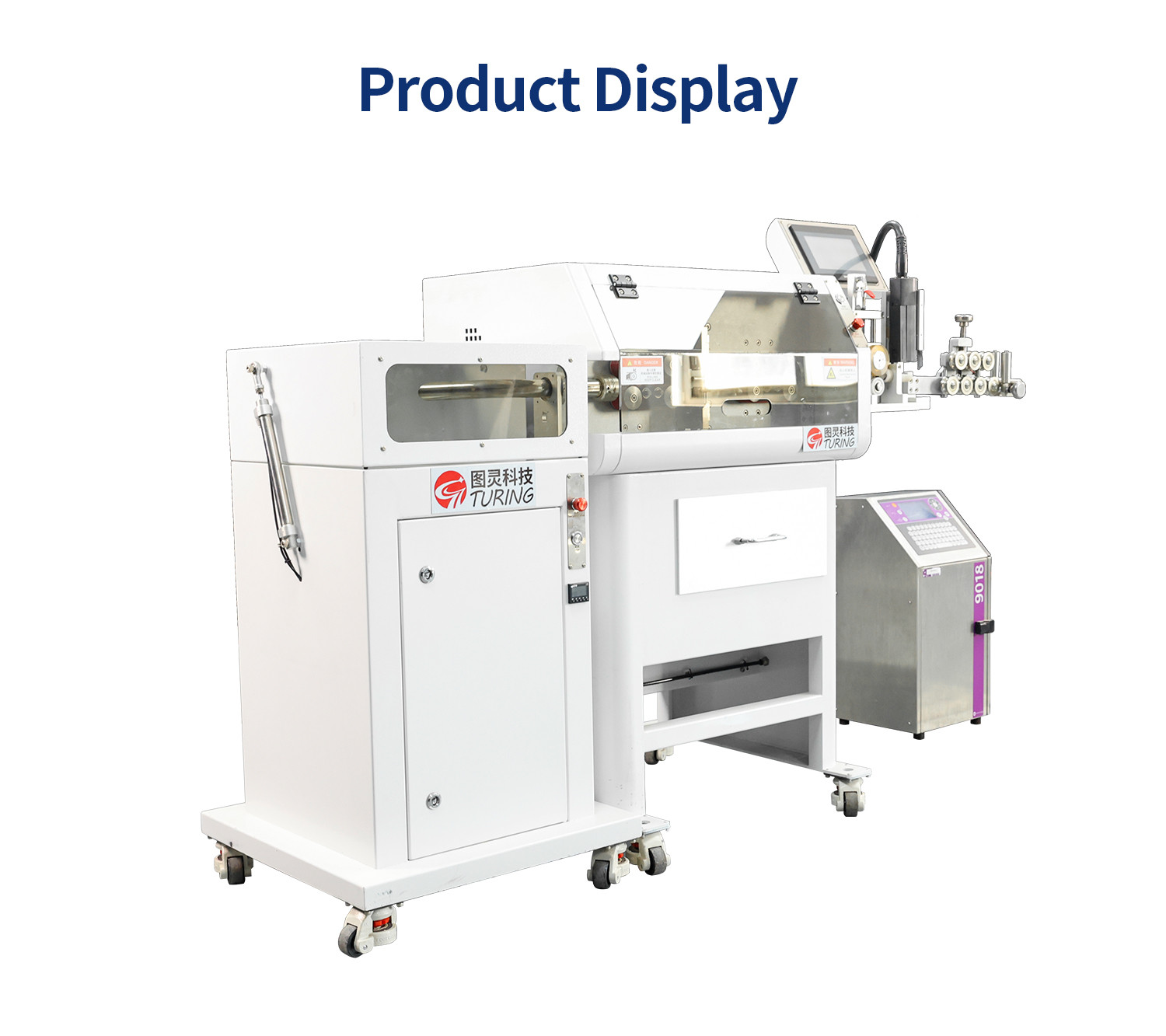

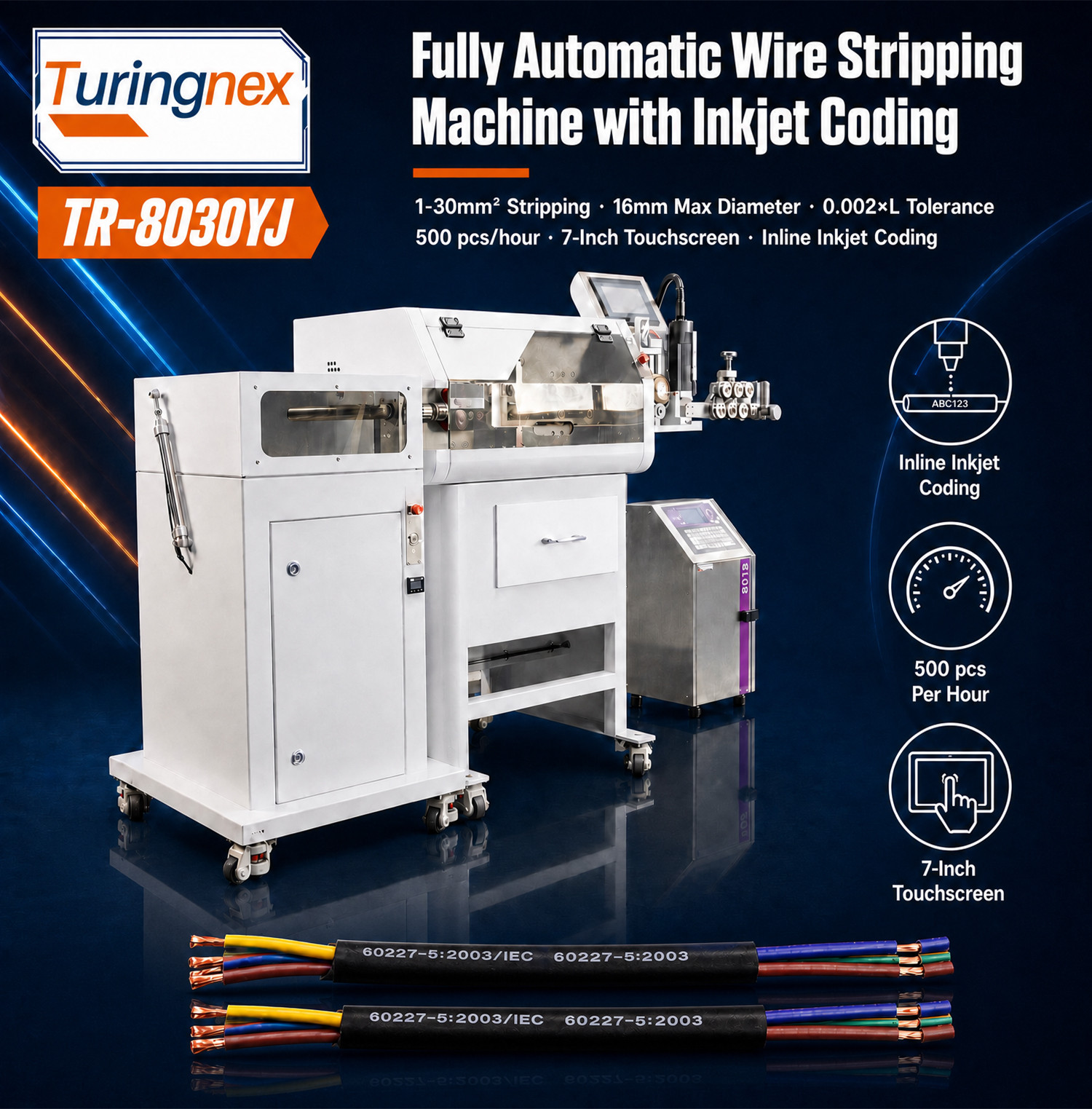

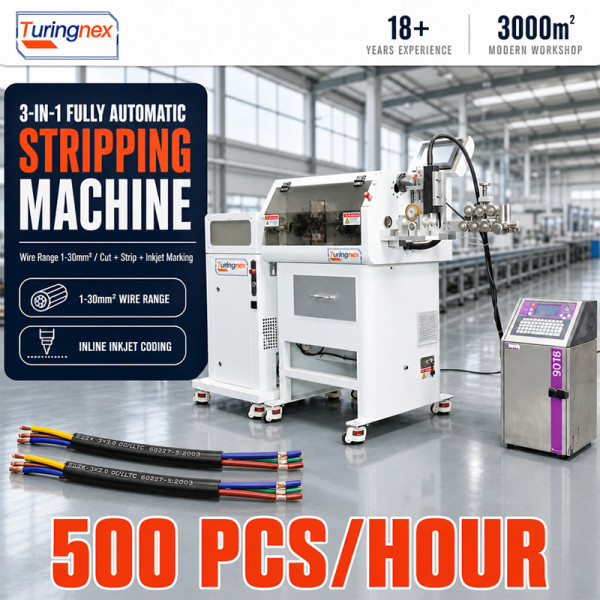

TR-8030YJP 30mm² Computer‑Controlled Wire Stripping Machine with Marking Function

Product Highlights

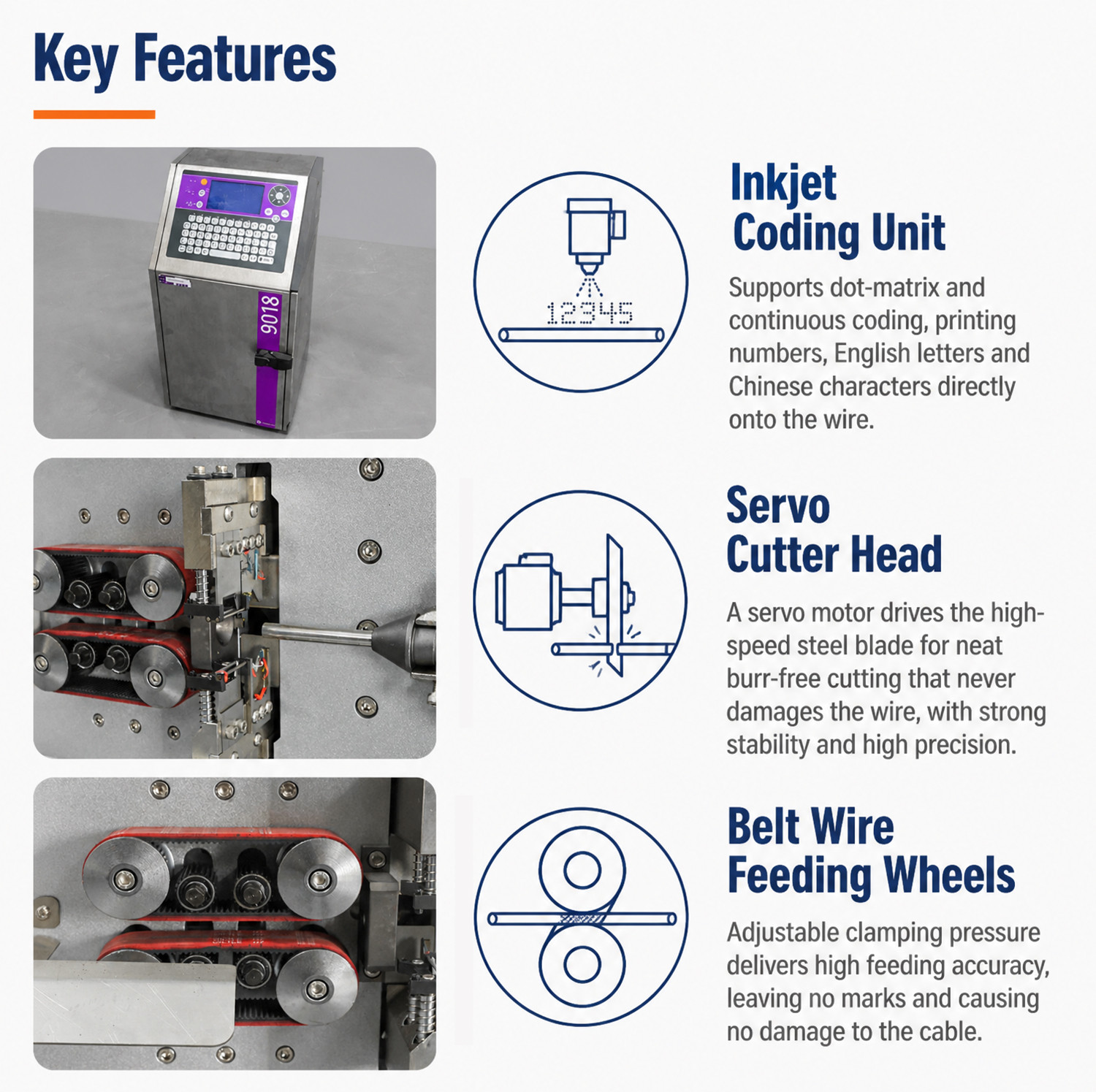

1.All‑in‑one design with integrated marking function

Built‑in marking supports spot and continuous printing for numbers, letters and Chinese characters. Cable marking is finished during processing, eliminating separate post‑marking procedures.

2.Wide processing range

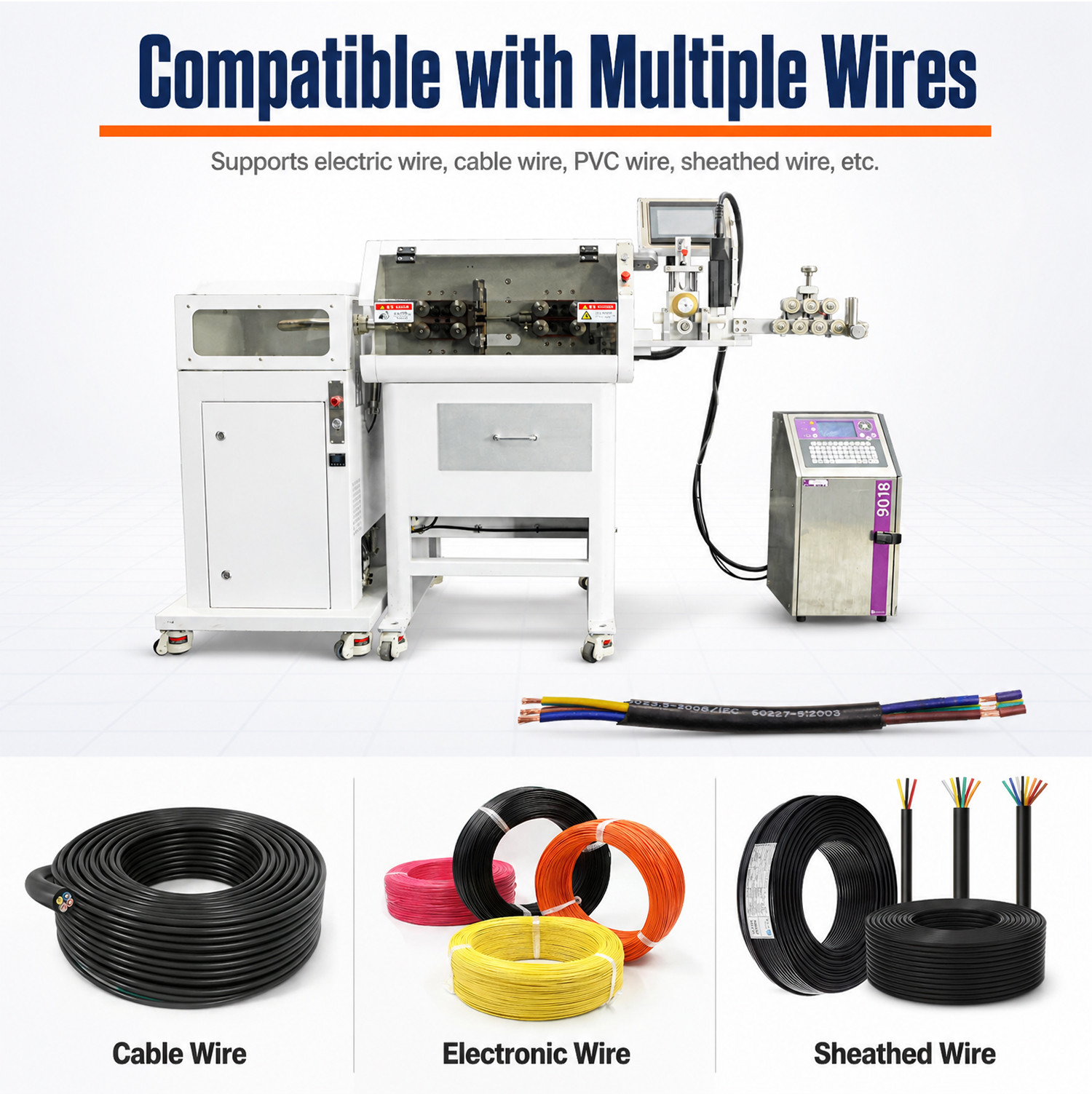

Compatible with wires & cables of 1‑30mm², maximum wire passing diameter Φ16. Processes wires, cables, PVC and other cables; custom service available for special cables.

3.High‑precision & flexible dimension setting

Cutting tolerance within 0.002*L; cutting length ranges from 1mm to 99999.99mm. Adjustable full‑strip and half‑strip lengths for both front and rear ends to meet diverse stripping requirements.

4.Belt‑driven wire feeding without cable damage

Belt‑type wire feeding leaves no indentations or scratches on cables and protects cable surface integrity.

5.High‑quality core components

Equipped with imported high‑speed steel cutters, together with well‑known brand parts including HIWIN linear guides, FESTO solenoid valves and DELTA switching power supplies for stable and durable operation.

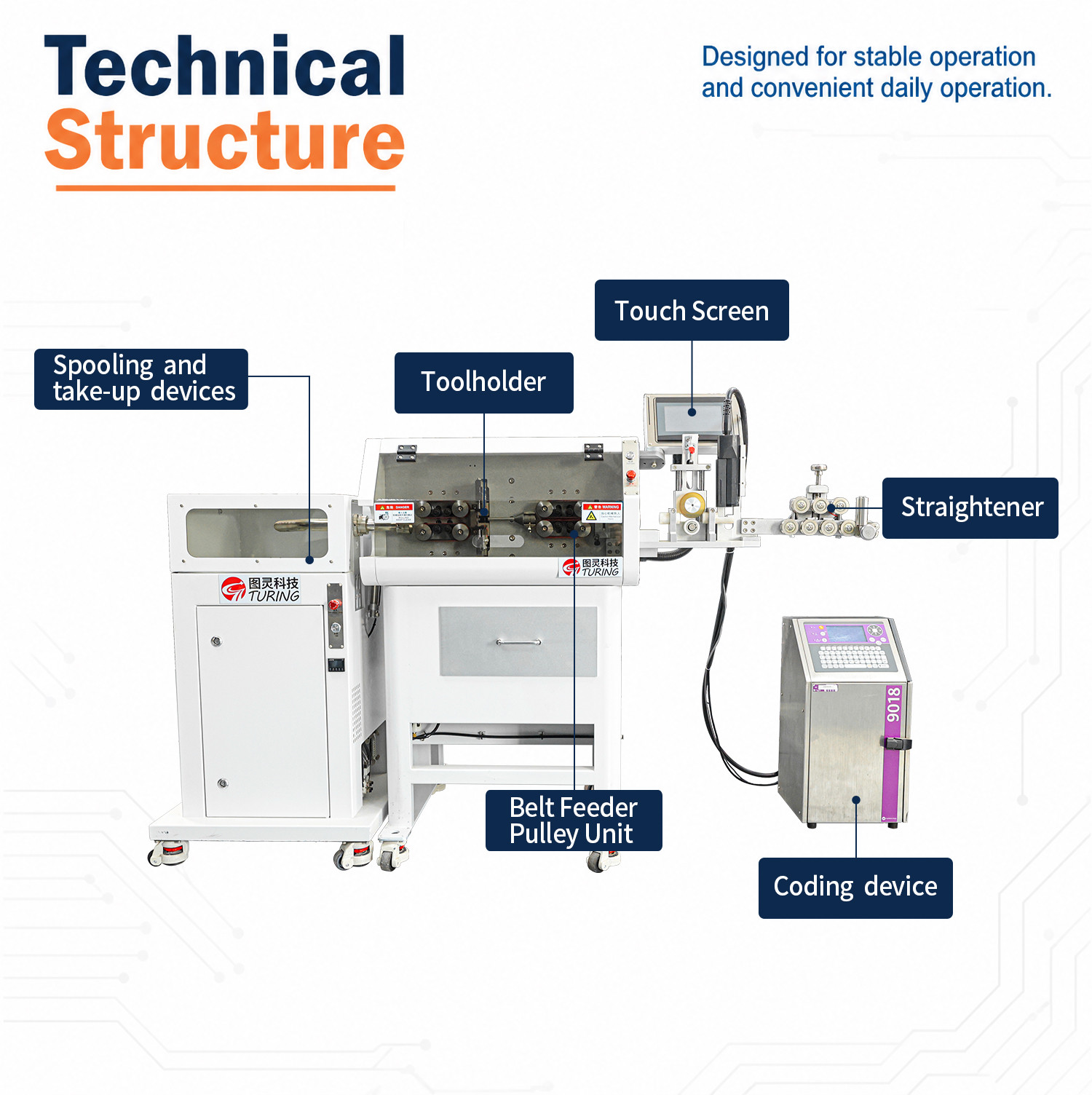

6.Servo & stepper motor drive system

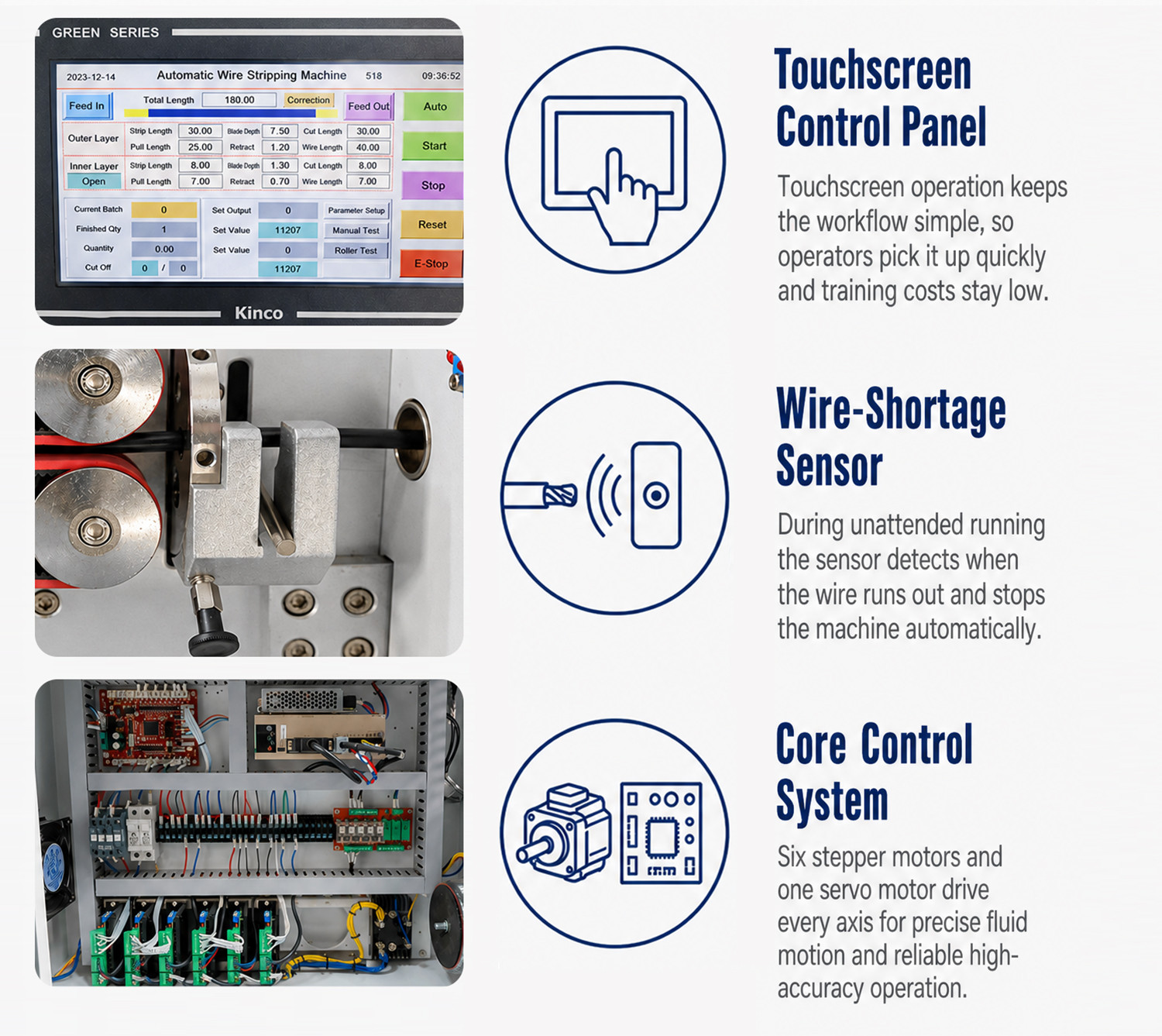

Adopts silent hybrid stepper motors and servo tool post, with a 7‑inch true‑color touch screen for easy operation. Productivity reaches up to 500PCS per hour.

TR-388DZ Fully automatic double-head crimping enadouble-head inserting shellsingle-head threading hydrant machine

Why Choose Us?

1.Industry Expertise: 18 Years of Focus (Since 2008) with 50,000+ units delivered worldwide.No more instability. Partner with a legacy brand that understands the DNA of wire processing.

2.Production Scale: 2,500+ Units/Month capacity (500+ Auto-lines, 1000+ Semi-auto).No project delays. Massive throughput ensures we meet your tightest production deadlines.

3.Rapid R&D: 3-7 Days Prototyping for custom tooling based on your unique CAD/3D drawings.Unmatched flexibility. Rapid customization for complex, non-standard wire harness structures.

4.Global Compliance: 100% CE Certified & ISO9001:2015 quality management system.Seamless import. Our machines meet international safety standards (UL/RoHS/CE) for global markets.

5.Economic ROI: 6-Month Payback Period average ROI by replacing 4-6 manual operators. Cost efficiency. Transform your labor costs into high-margin automated productivity.

6.Global Footprint: 112 Countries Reached with 24/7 technical support in 10+ languages. Lifetime support. Reliable remote video diagnostics and lightning-fast spare parts delivery anywhere.

Equipment Name	TR-8030YJP 30mm² Computer‑Controlled Wire Stripping Machine with Marking Function

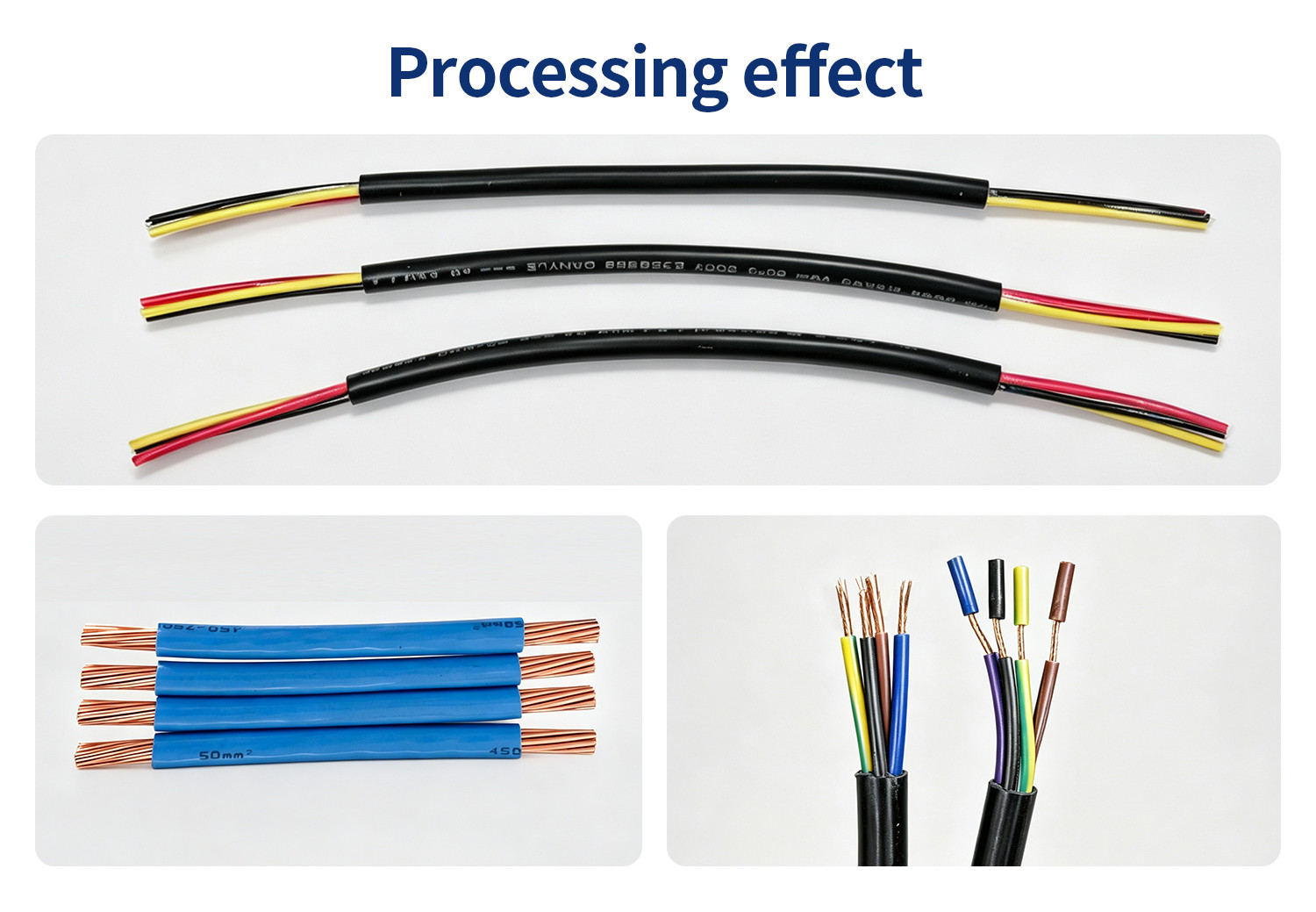

Applicable wires	New energy cable, automobile power distribution box large square cable, BV/BVR/PVC wire, etc.
Functionality	Wire, cable, fully automatic cutting and stripping with coding device
Strip length	Front end full strip 1-200mm, front end half strip 1-500mm Rear end full strip 1-80mm, Rear end half strip 1-200mm
Catheter Diameter	Φ 16
Cutting length	1mm-99999.99mm
Stripping range	1-30 sq. ft.
Production capacity	500 pcs/hour depending on the length and size of the wire.
Cutting Tolerance	Support spot spraying, continuous spraying, can spray numbers, English, Chinese characters, etc.
Cutting tool materials	High quality imported high speed steel
Driving method	silent hybrid stepper motor, servo tool holder
Wire feeding method	Belt feeding, no embossed marks and scratches on the cable
