TR-FSS01 Fully Automatic Single-Head Multi-Hole Waterproof Plug Terminal Crimping Machine

Share
Categories	Inserting Waterproof Plug Terminal Crimping Machine
Brand	Turing
Model	TR-FSS01
Power	AC220V/50HZ,
Feature	Stable Performance
Warranty	1year
Contact	Coco 0086-18666170785
Function	inserting waterproof plug terminal machine
FOB port	shenzhen ,guangzhou ,zhongshan
Terms of Payment	Western Union, MoneyGram, T/T
Download

Contact Now

Add to Wishlist

Detail Information

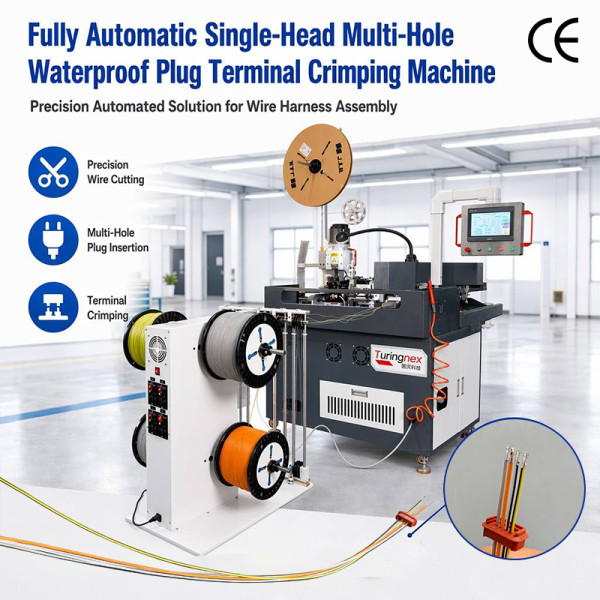

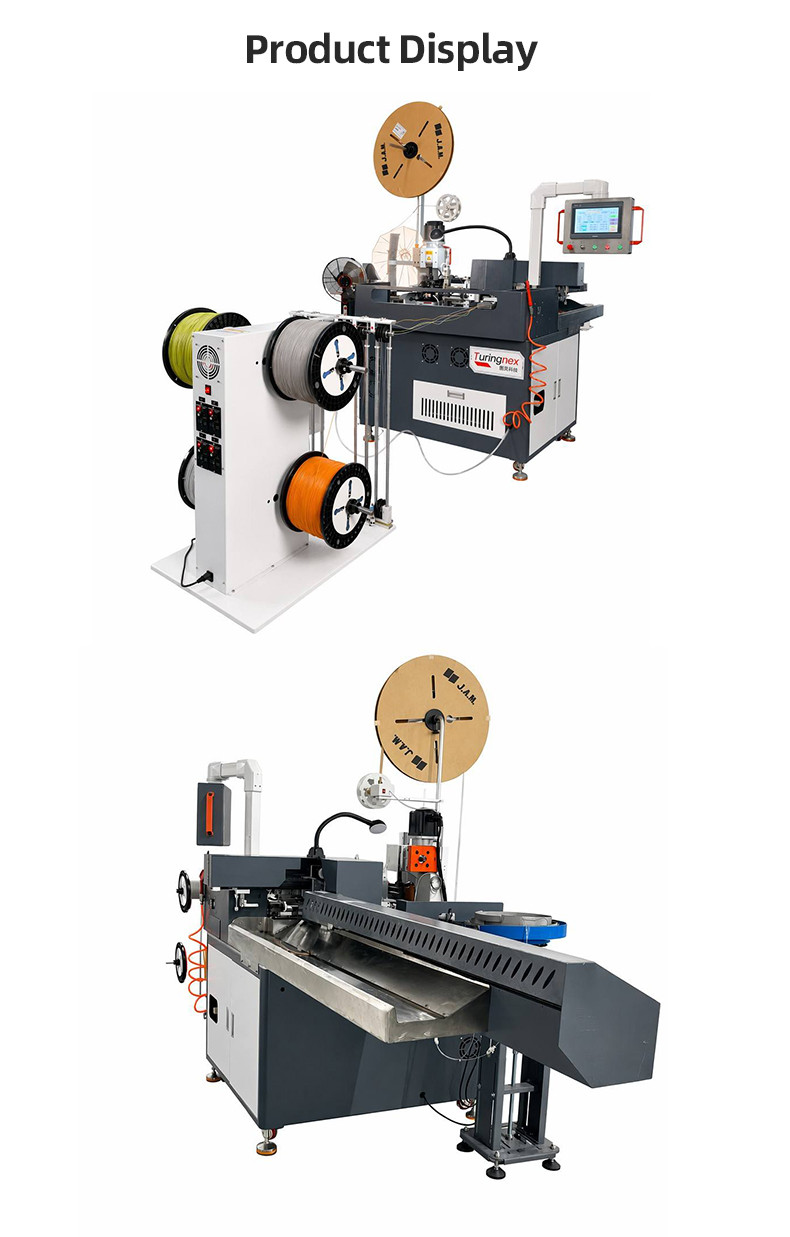

TR-FSS01 Fully Automatic Single-Head Multi-Hole Waterproof Plug Terminal Crimping Machine

Product Highlights

1. Four-in-One Highly Integrated Automation, Reduces Labor Costs

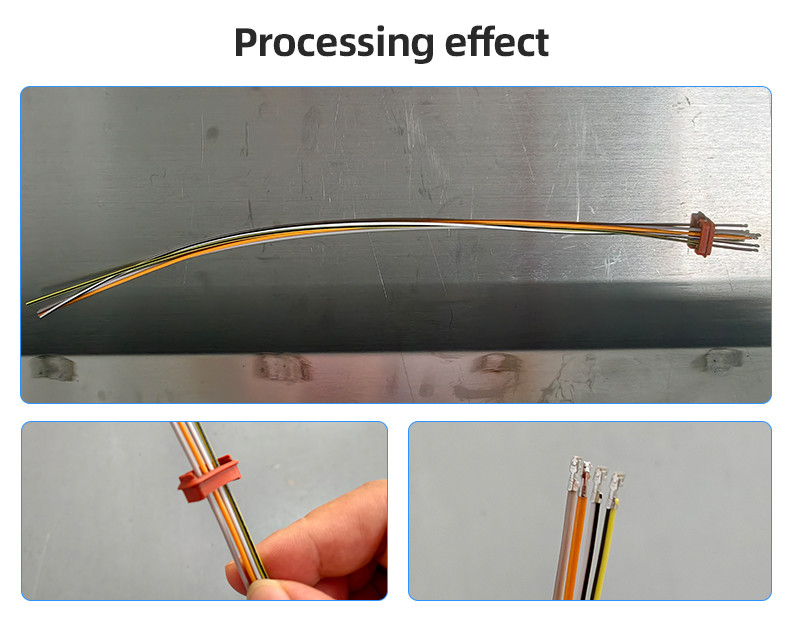

The machine integrates wire cutting, multi-hole waterproof seal insertion, terminal crimping and wire tinning in one unit. It cuts labor management expenditure and delivers a higher production first-pass yield rate.

2. Premium Global & Domestic Top-Tier Brand Components for Superior Equipment Stability

Fitted with Leadshine servo motors and AirTAC pneumatic components. Brand-name spare parts translate to low failure rates, extended service life, and easily accessible replacement consumables worldwide, bringing full purchasing confidence to customers.

3. Ultra-High Cutting & Crimping Precision Ensures Zero Defect Finished Products

Length tolerance within 500mm is only ±(0.5mm+0.2%L); equipped with a 3-ton cast-iron ultra-quiet terminal crimping machine. Precise displacement control and stable pressure output guarantee wire harnesses meet continuity performance and pull force test standards.

4. Intelligent Constant Tension Wire Feeding System Prevents Wire Stretching Damage

The main unit is built with a synchronous wire feeder under pull-back mode to maintain constant wire tension. It is particularly critical for processing ultra-fine wires or high-spec electronic wires, effectively lowering the reject rate.

5. Minimalist Operation & Strong Compatibility for Faster Product Changeover & Machine Commissioning

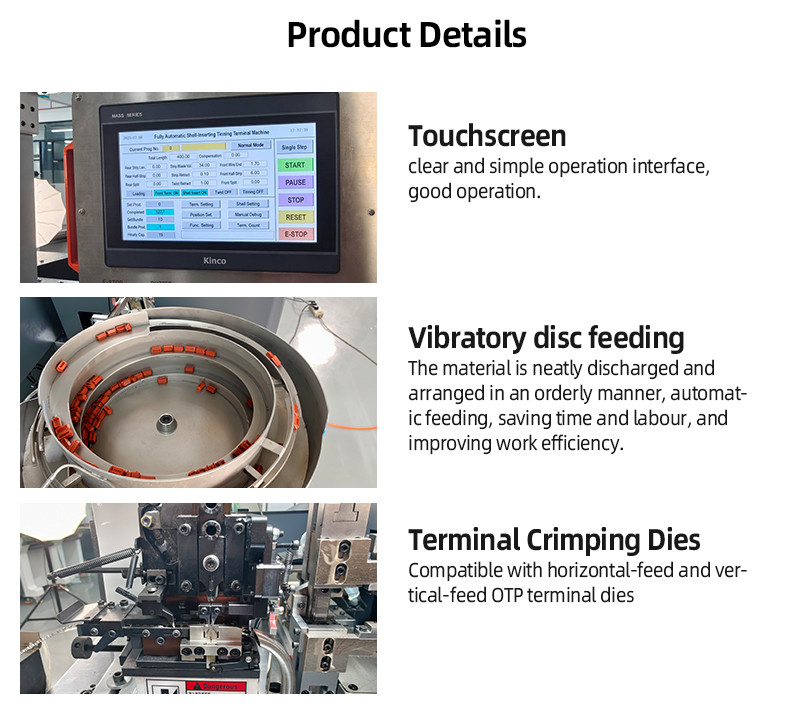

Parameters are set via touchscreen, compatible with horizontal/vertical feed OTP dies. It shortens operator training cycles, enables seamless compatibility with customers’ existing die assets, and greatly reduces debugging time during product model switching.

TR-388DZ Fully automatic double-head crimping enadouble-head inserting shellsingle-head threading hydrant machine

Why Choose Us?

1.Industry Expertise: 18 Years of Focus (Since 2008) with 50,000+ units delivered worldwide.No more instability. Partner with a legacy brand that understands the DNA of wire processing.

2.Production Scale: 2,500+ Units/Month capacity (500+ Auto-lines, 1000+ Semi-auto).No project delays. Massive throughput ensures we meet your tightest production deadlines.

3.Rapid R&D: 3-7 Days Prototyping for custom tooling based on your unique CAD/3D drawings.Unmatched flexibility. Rapid customization for complex, non-standard wire harness structures.

4.Global Compliance: 100% CE Certified & ISO9001:2015 quality management system.Seamless import. Our machines meet international safety standards (UL/RoHS/CE) for global markets.

5.Economic ROI: 6-Month Payback Period average ROI by replacing 4-6 manual operators. Cost efficiency. Transform your labor costs into high-margin automated productivity.

6.Global Footprint: 112 Countries Reached with 24/7 technical support in 10+ languages. Lifetime support. Reliable remote video diagnostics and lightning-fast spare parts delivery anywhere.

Equipment Name	TR-FSS01 Fully Automatic Single-Head Multi-Hole Waterproof Plug Terminal Crimping Machine
Power Supply	AC 220V
Processing Range	Determined by the aperture of waterproof plugs
Efficiency	400PCS/H
Stripping Length	Wire tip: 0–10mm; wire tail: 0–13mm
Crimping Capacity	Standard 3 Ton (Cast iron ultra-silent clutch 3.0T terminal crimping machine)
Compressed Air	Clean dry compressed air, 6 kgf/cm²
Cutting Accuracy	±(0.5mm + 0.2% of set length) for length ＜ 500mm ±(1mm + 0.2% of set length) for length ＞ 1000mm
Machine Functions	Wire cutting, multi-hole waterproof plug insertion, terminal crimping
