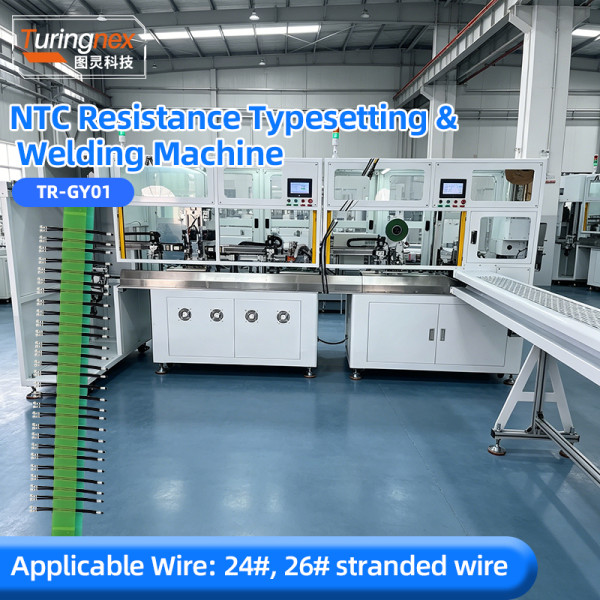

TR-GY01 NTC Resistance Typesetting & Welding Machine

Share
Categories	Fully Automatic Terminal Crimping Machine
Brand	Turing
Model	TR-GY01
Power	AC220V 50/60Hz 20A
Application	wire cutting, stripping, terminal crimping,Tin Dipping, Typesetting
Compressed Air	0.5-0.7 MPa
Contact	Coco : +86 18666170785
FOB port	shenzhen ,guangzhou ,zhongshan
Terms of Payment	Western Union, MoneyGram, T/T
Download

Contact Now

Favorites

Detail Information

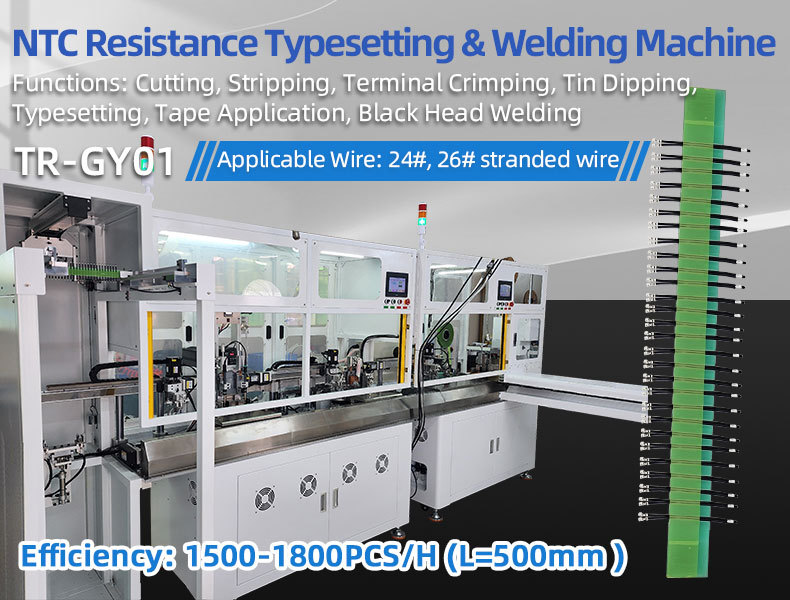

TR-GY01 NTC Resistance Typesetting & Welding Machine

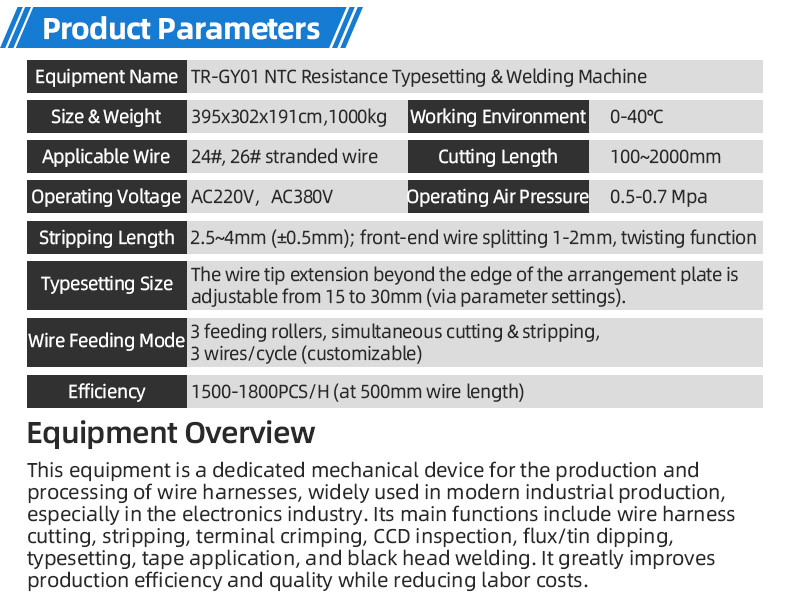

Equipment Name：TR-GY01 NTC Resistance Typesetting & Welding Machine

Dimensions & Weight：395x302x191cm, 1000kg

Working Environment：0-40℃

Applicable Wire：24#, 26# stranded wire

Cutting Length：100~2000mm

Operating Voltage：AC220V / AC380V

Operating Air Pressure：0.5-0.7 MPa

Stripping Length：2.5~4mm (±0.5mm); front-end wire splitting 1-2mm, twisting function (optional)

Typesetting Size：The wire tip extension beyond the edge of the arrangement plate is adjustable from 15 to 30mm (via parameter settings).

Wire Feeding Mode：3 feeding rollers, simultaneous cutting & stripping, 3 wires per cycle (customizable)

Production Efficiency：1500-1800PCS/H (at 500mm wire length)

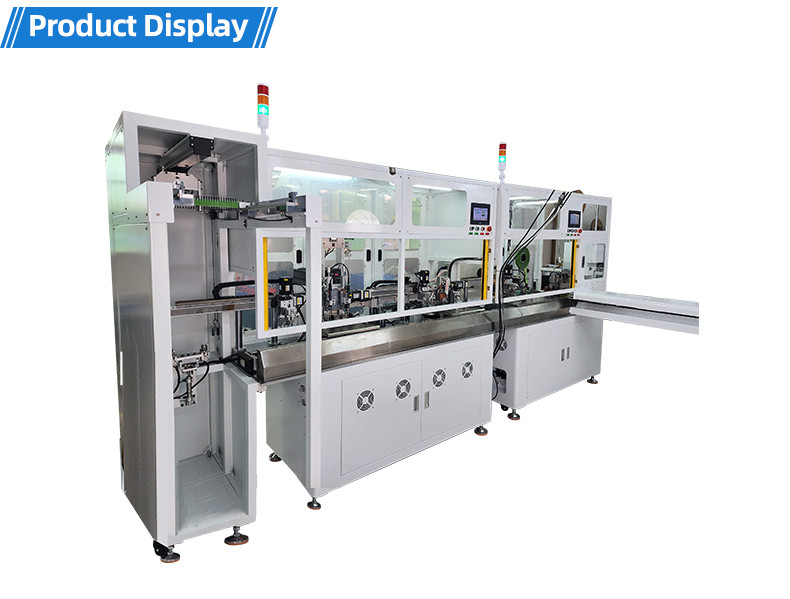

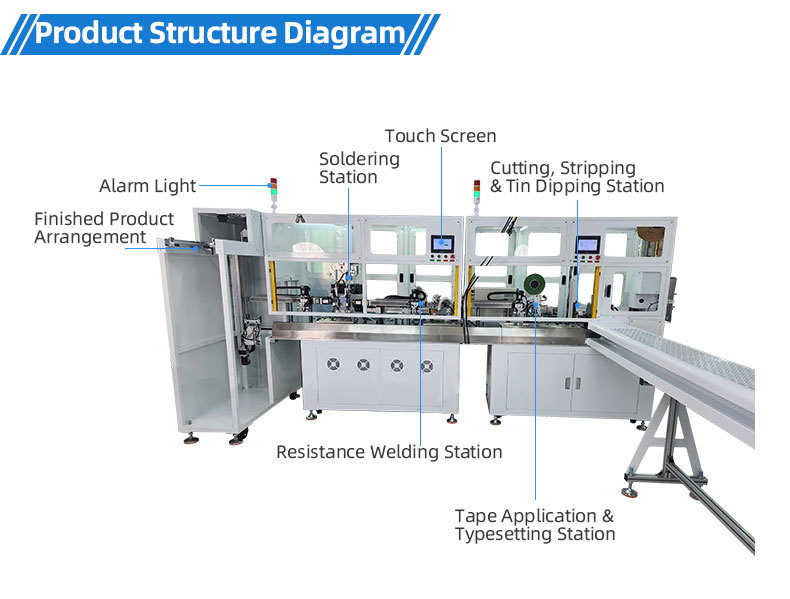

Equipment Overview

This equipment is a dedicated mechanical device for the production and processing of wire harnesses, widely used in modern industrial production, especially in the electronics industry. Its main functions include wire harness cutting, stripping, terminal crimping, CCD inspection, flux/tin dipping, typesetting, tape application, and black head welding. It greatly improves production efficiency and quality while reducing labor costs.

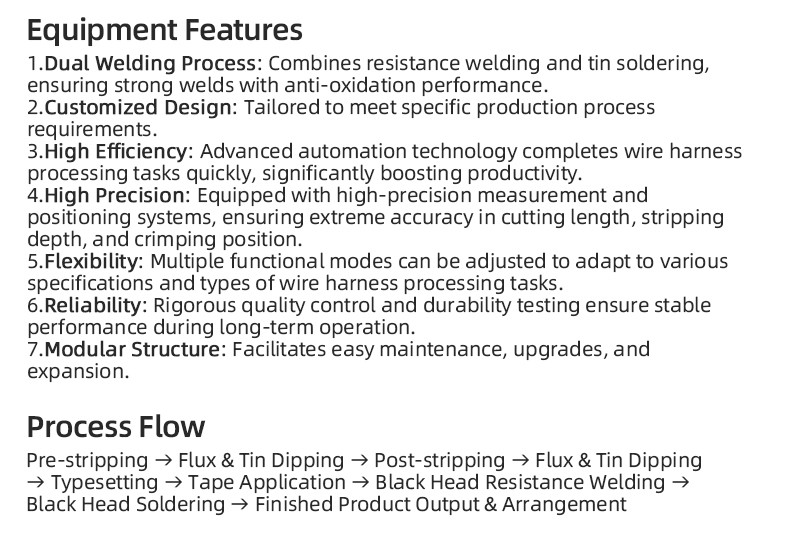

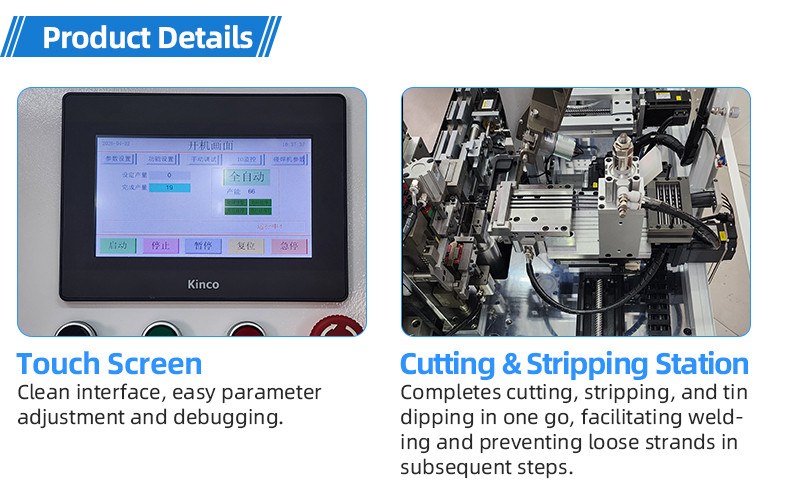

Equipment Features

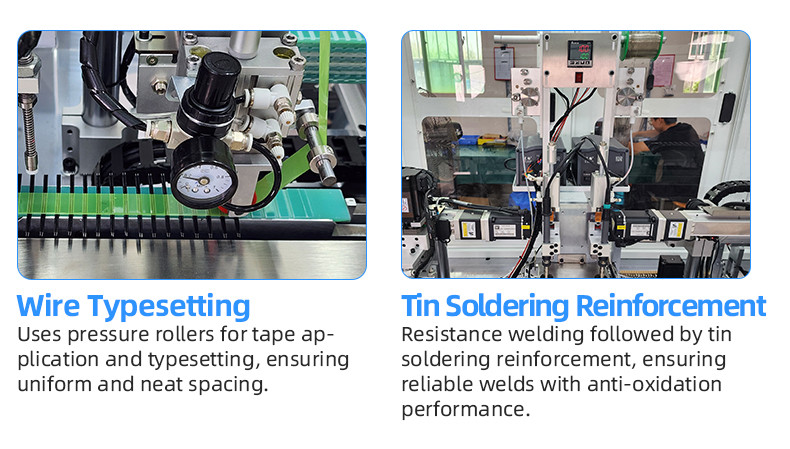

1.Dual Welding Process: Combines resistance welding and tin soldering, ensuring strong welds with anti-oxidation performance.

2.Customized Design: Tailored to meet specific production process requirements.

3.High Efficiency: Advanced automation technology completes wire harness processing tasks quickly, significantly boosting productivity.

4.High Precision: Equipped with high-precision measurement and positioning systems, ensuring extreme accuracy in cutting length, stripping depth, and crimping position.

5.Flexibility: Multiple functional modes can be adjusted to adapt to various specifications and types of wire harness processing tasks.

6.Reliability: Rigorous quality control and durability testing ensure stable performance during long-term operation.

7.Modular Structure: Facilitates easy maintenance, upgrades, and expansion.

8.Safety: Equipped with multiple safety protection mechanisms, complying with industry safety standards.

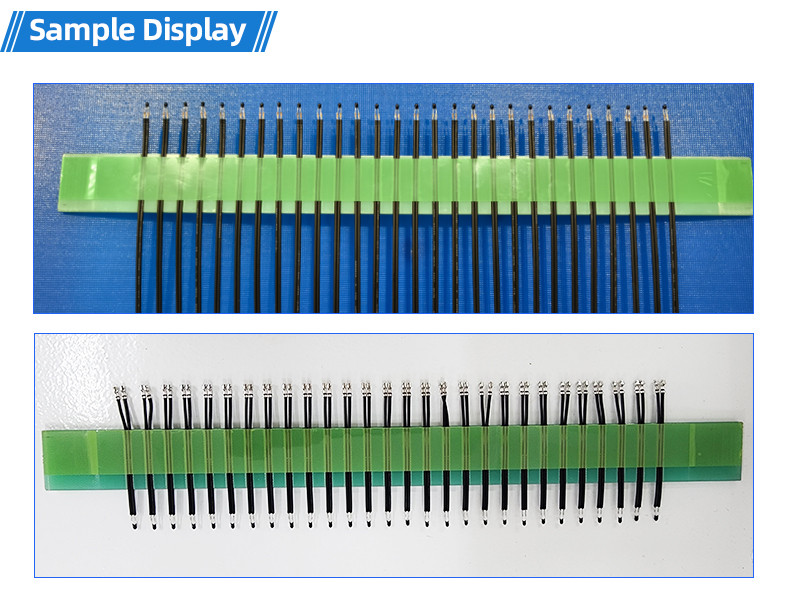

Process Flow

Pre-stripping → Flux & Tin Dipping → Post-stripping → Flux & Tin Dipping → Typesetting → Tape Application → Black Head Resistance Welding → Black Head Soldering → Finished Product Output & Arrangement
