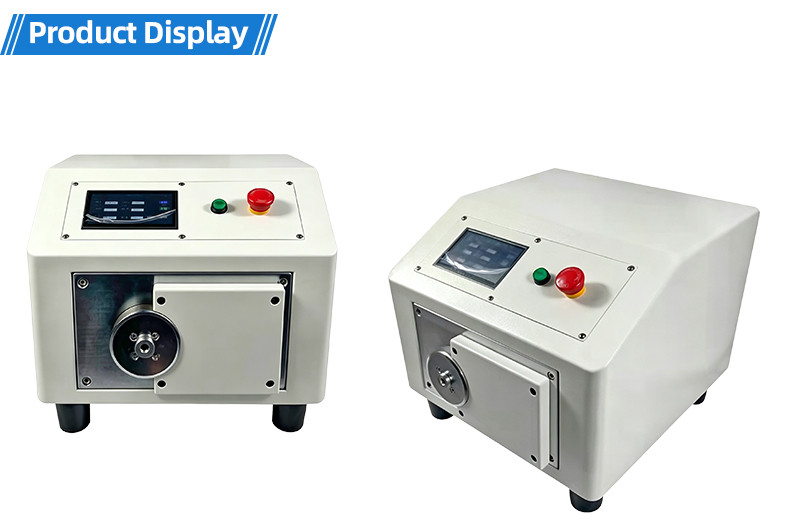

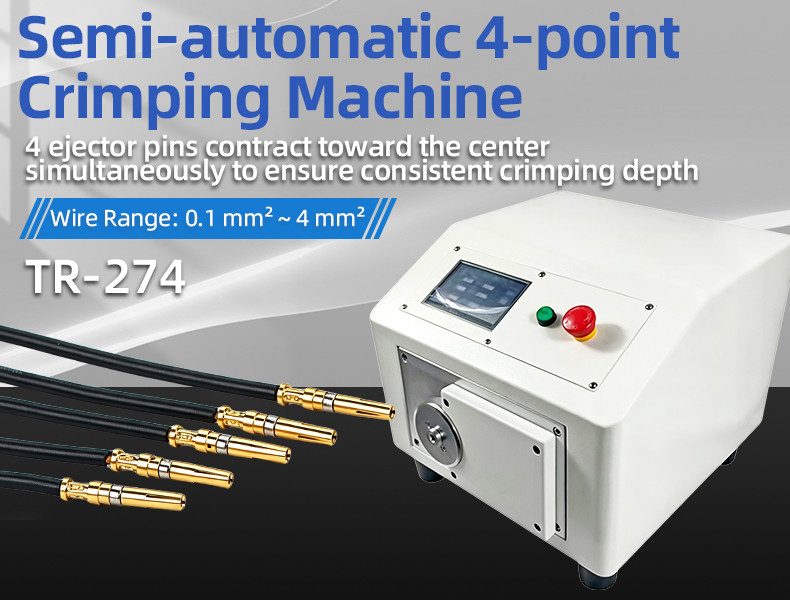

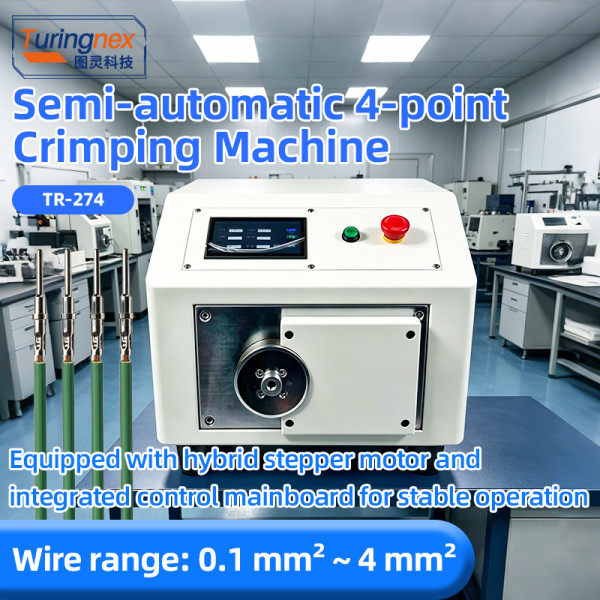

TR-274 Semi-automatic Four-point Crimping Machine

Share
Categories	Semi-automatic Bulk Terminal Crimping Machine
Brand	Turing
Model	TR-274
Power	AC220V/50HZ,
Application	semi-automatic bulk terminal machine
Feature	Stable Performance
Warranty	1year
FOB port	shenzhen ,guangzhou ,zhongshan
Terms of Payment	Western Union, MoneyGram, T/T
Download

Contact Now

Favorites

Detail Information

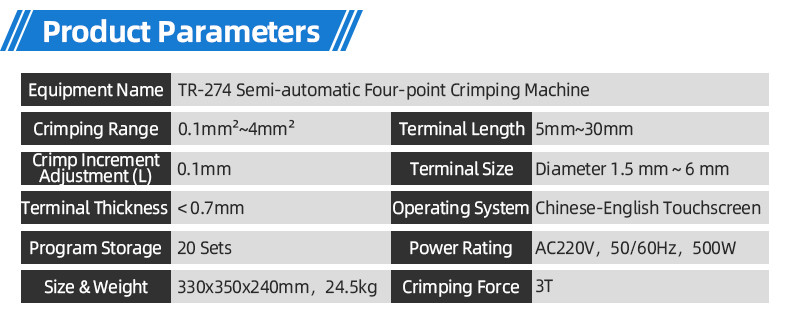

TR-274 Semi-automatic Four-point Crimping Machine

Equipment Name：TR-274 Semi-automatic Four-point Crimping Machine

Crimping Range：0.1 mm² ~ 4 mm²

Terminal Length：5 mm ~ 30 mm

Crimp Increment Adjustment (L)：0.1 mm

Terminal Size：Diameter 1.5 mm ~ 6 mm

Terminal Thickness：< 0.7 mm

Operating System：Chinese-English Touchscreen

Program Storage：20 Sets

Power Rating：AC220V, 50/60Hz, 500W

Dimensions & Weight：330 x 350 x 240 mm, 24.5 kg

Crimping Force：3 Tons

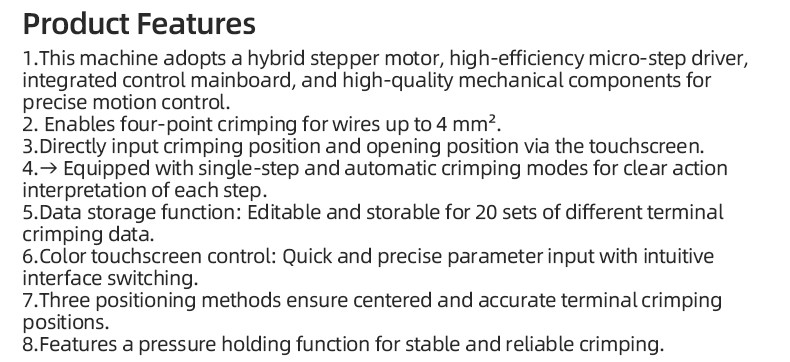

Product Features

1.This machine adopts a hybrid stepper motor, high-efficiency micro-step driver, integrated control mainboard, and high-quality mechanical components, ensuring precise motion control.

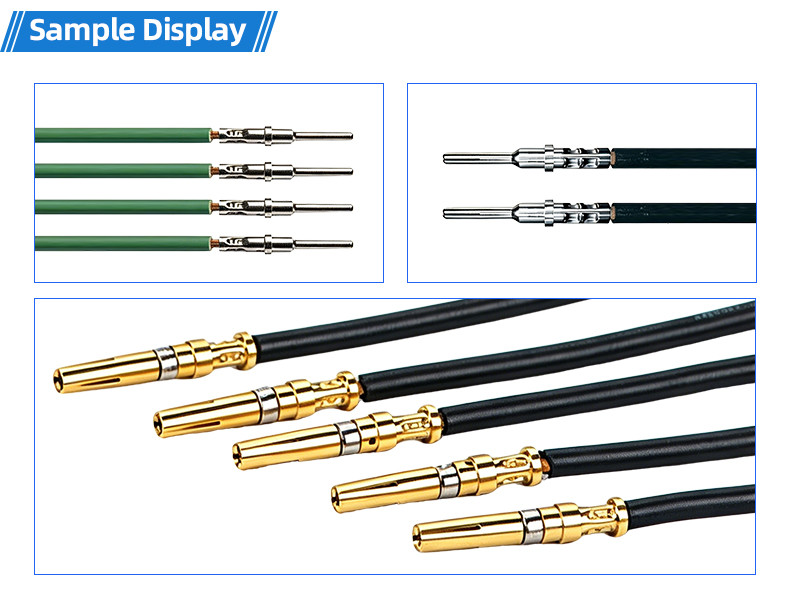

2.It supports four-point crimping for wires up to 4 mm².

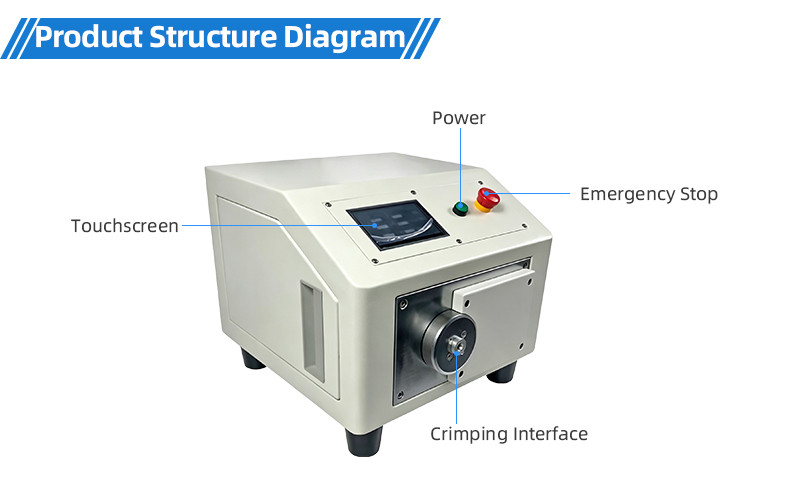

3.The crimping position and opening position can be directly input via the touchscreen.

4.Equipped with both single-step and automatic crimping modes, with clear step-by-step operation display.

5.Data storage function: 20 sets of different terminal crimping data can be edited and saved.

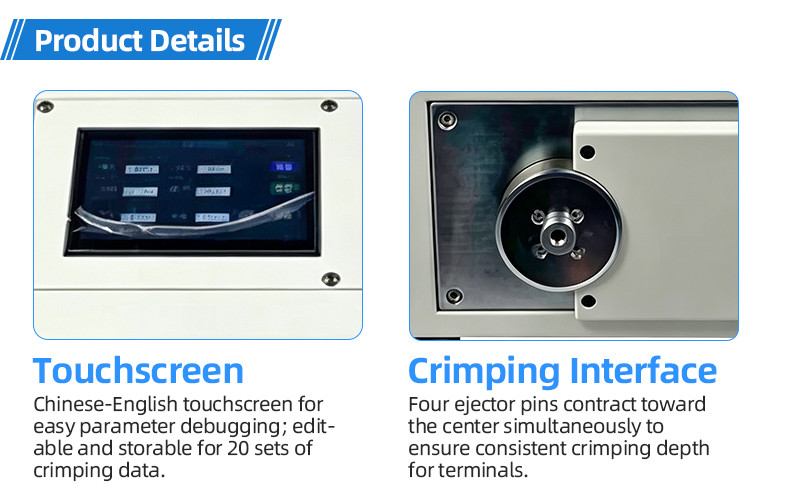

6.Color touchscreen operation for fast and accurate parameter input, with intuitive interface switching.

7.Three positioning methods to ensure centered and accurate terminal crimping.

8.Pressure holding function for more stable and reliable crimping results.
