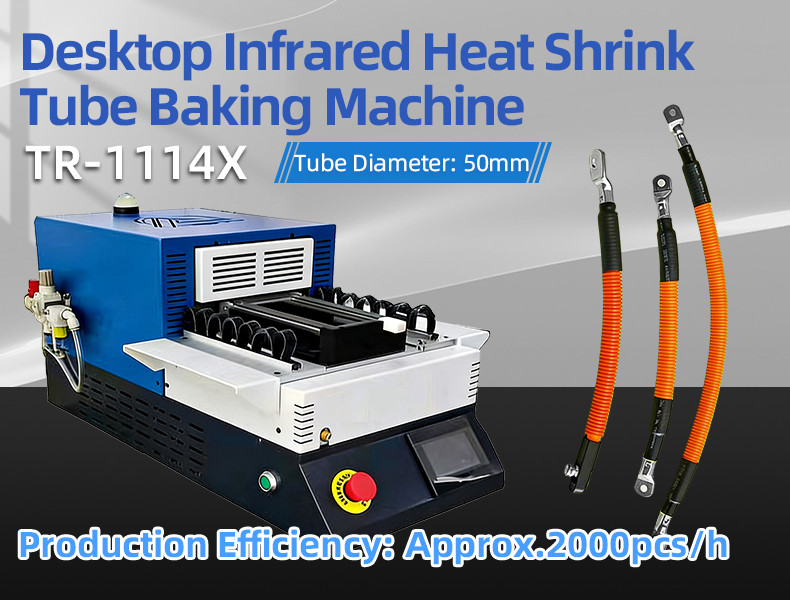

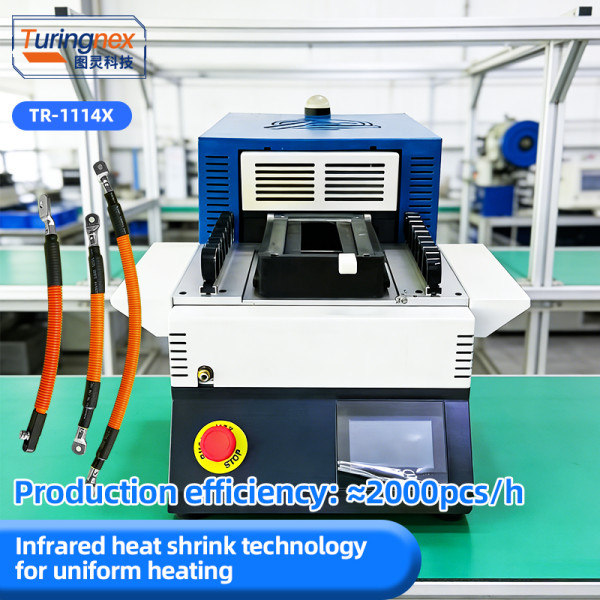

TR-1114X Desktop Infrared Heat Shrink Tube Baking Machine

Name: TR-1114X Desktop Infrared Heat Shrink Tube Baking Machine
Brand: Turing
SKU: 18546186
Rating: 4.75 (10 reviews)

Share
Categories	Heat Shrink Baking Machine
Trademark/Brand	Turing
Model	TR-1114X
Power	AC220V/50HZ,
Application	Semi-automatic Heat Shrink Tube Baking Machine
Feature	Stable Performance
Warranty	1year
Contact	Coco 0086-18666170785
FOB port	shenzhen ,guangzhou ,zhongshan
Terms of Payment	Western Union, MoneyGram, T/T
Update Time	Jan 10,2026

Contact Now

Favorites

Detail Information

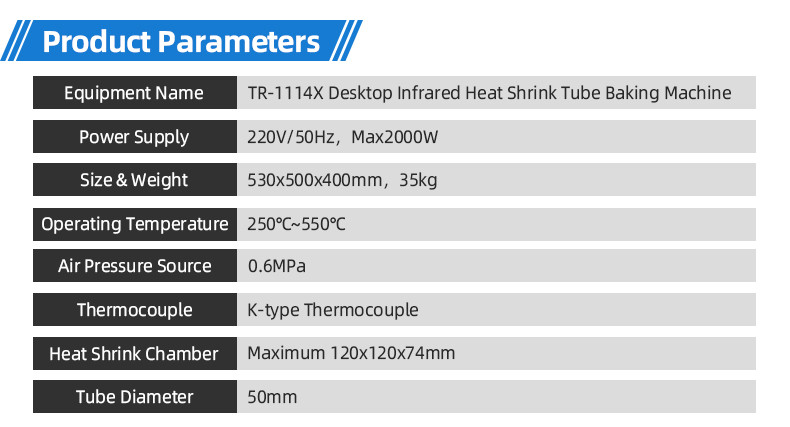

TR-1114X Desktop Infrared Heat Shrink Tube Baking Machine

Power Supply: 220V/50Hz, Max2000W

Dimensions & Weight: 530x500x400mm, 35kg

Operating Temperature: 250℃~550℃

Air Pressure Source: 0.6MPa

Thermocouple: K-type Thermocouple

Heat Shrink Chamber: Maximum 120x120x74mm

Tube Diameter: 50mm

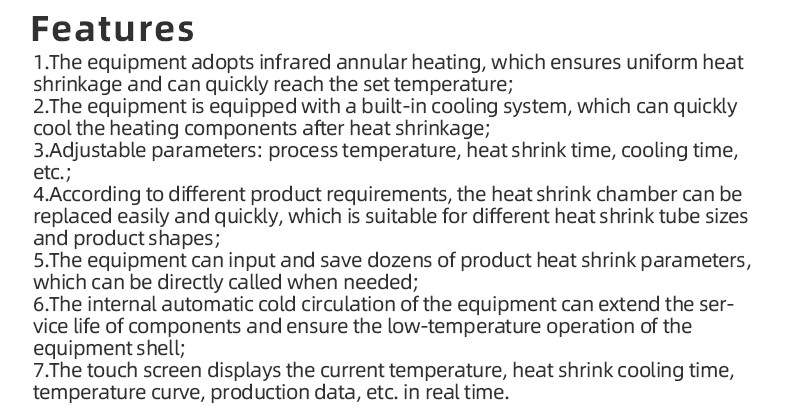

Features

1.The equipment adopts infrared annular heating, which ensures uniform heat shrinkage and can quickly reach the set temperature;

2.The equipment is equipped with a built-in cooling system, which can quickly cool the heating components after heat shrinkage;

3.Adjustable parameters: process temperature, heat shrink time, cooling time, etc.;

4.According to different product requirements, the heat shrink chamber can be replaced easily and quickly, which is suitable for different heat shrink tube sizes and product shapes;

5.The equipment can input and save dozens of product heat shrink parameters, which can be directly called when needed;

6.The internal automatic cold circulation of the equipment can extend the service life of components and ensure the low-temperature operation of the equipment shell;

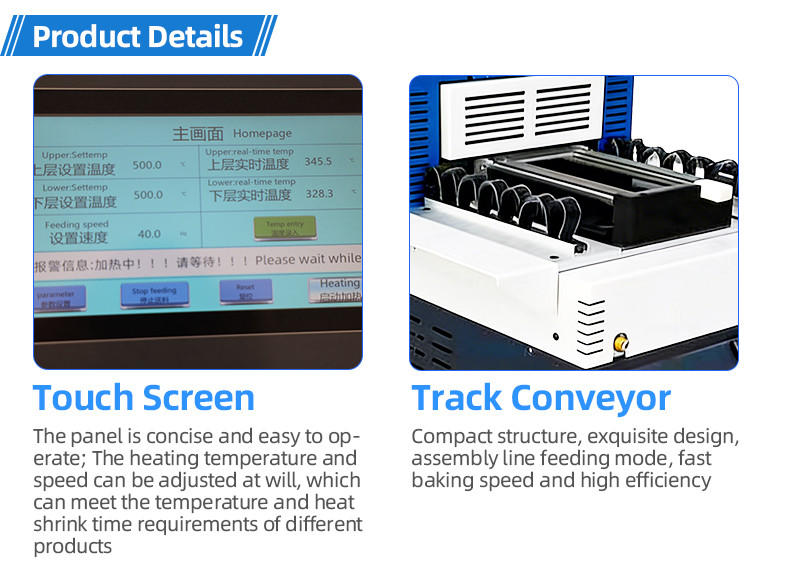

7.The touch screen displays the current temperature, heat shrink cooling time, temperature curve, production data, etc. in real time.
