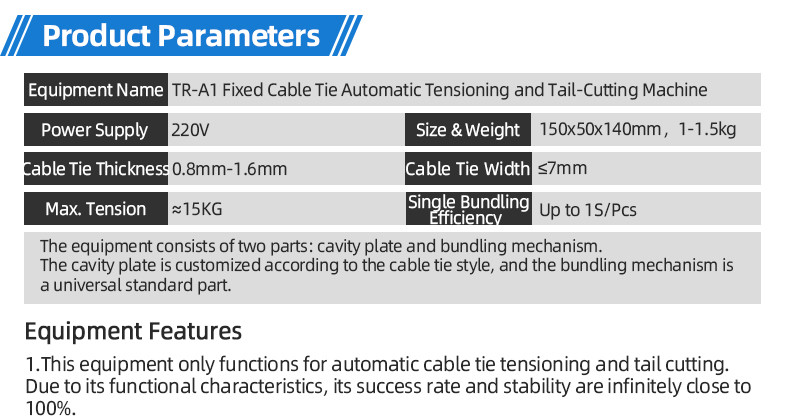

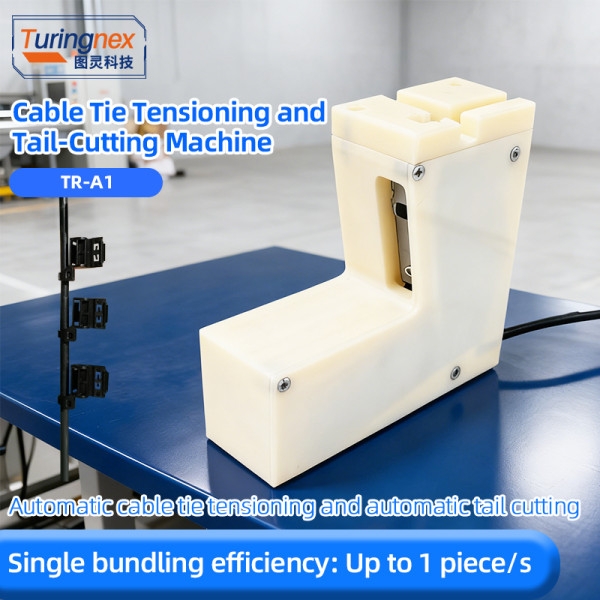

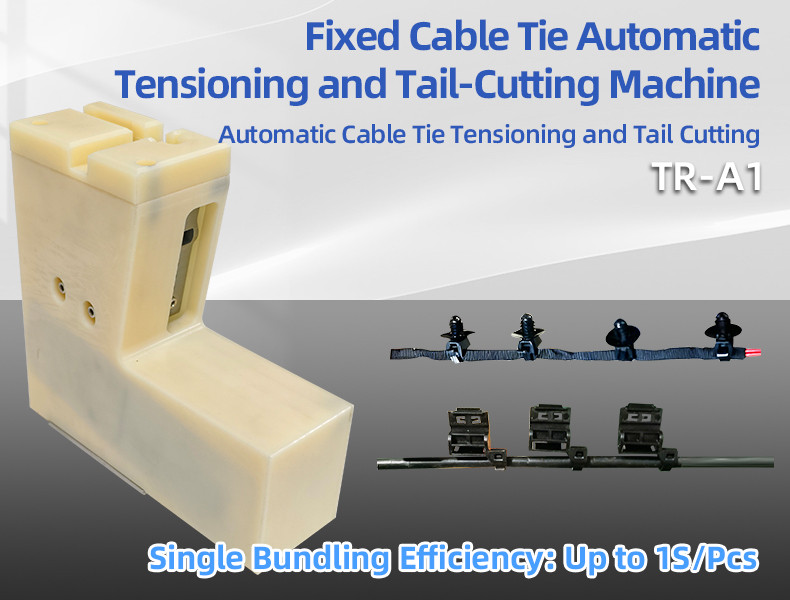

TR-A1 Fixed Cable Tie Automatic Tensioning and Tail-Cutting Machine

Power Supply：220V

Dimension & Weight：150x50x140mm, 1-1.5kg

Cable Tie Thickness：0.8mm-1.6mm

Cable Tie Width：≤7mm

Maximum Tension：≈15KG

Single Bundling Efficiency：Up to 1S/Pcs

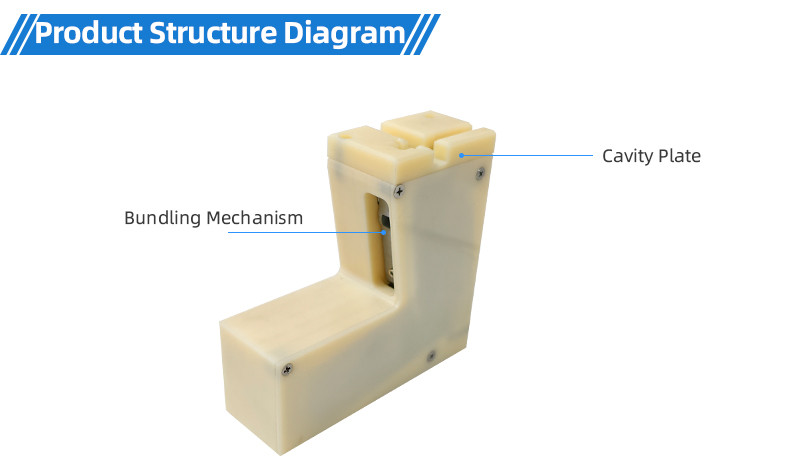

The equipment consists of two parts: cavity plate and bundling mechanism. The cavity plate is customized according to the cable tie style, and the bundling mechanism is a universal standard part.

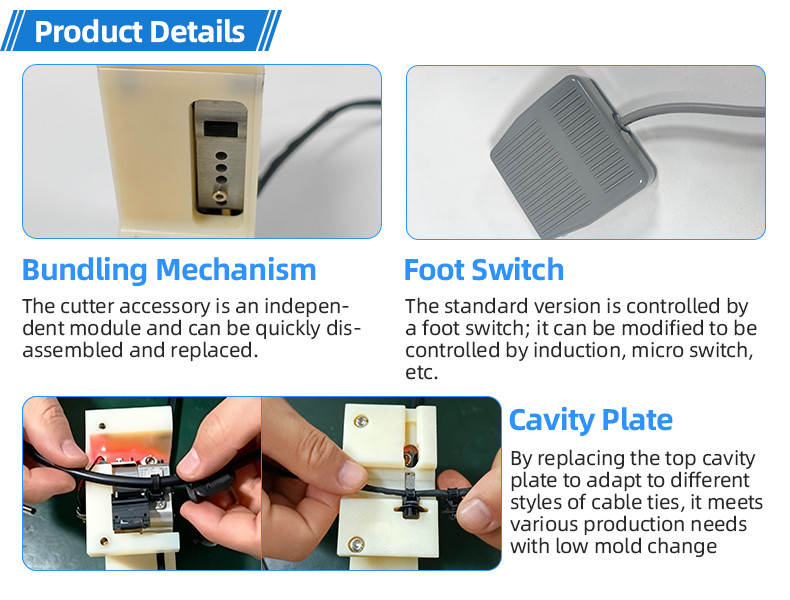

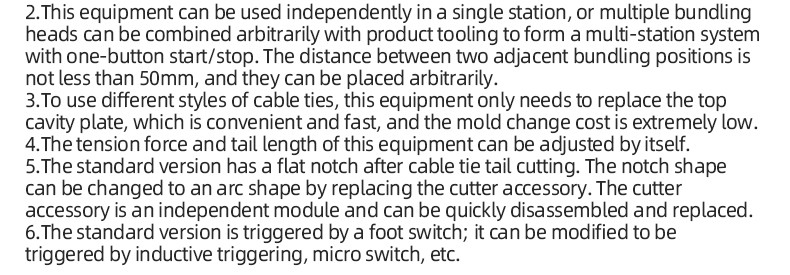

1.This equipment only functions for automatic cable tie tensioning and tail cutting. Due to its functional characteristics, its success rate and stability are infinitely close to 100%. 2.This equipment can be used independently in a single station, or multiple bundling heads can be combined arbitrarily with product tooling to form a multi-station system with one-button start/stop. The distance between two adjacent bundling positions is not less than 50mm, and they can be placed arbitrarily. 3.To use different styles of cable ties, this equipment only needs to replace the top cavity plate, which is convenient and fast, and the mold change cost is extremely low. 4.The tension force and tail length of this equipment can be adjusted by itself. 5.The standard version has a flat notch after cable tie tail cutting. The notch shape can be changed to an arc shape by replacing the cutter accessory. The cutter accessory is an independent module and can be quickly disassembled and replaced. 6.The standard version is triggered by a foot switch; it can be modified to be triggered by inductive triggering, micro switch, etc.
