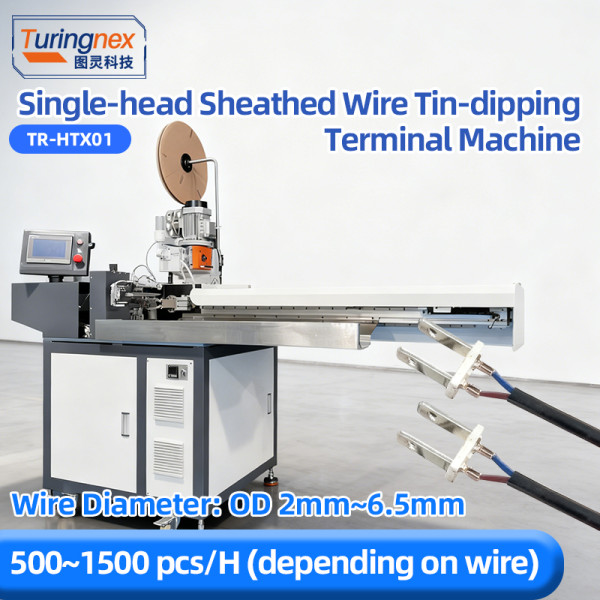

TR-HTX01 Single-head Sheathed Wire Tin-dipping Terminal Machine

Name: TR-HTX01 Single-head Sheathed Wire Tin-dipping Terminal Machine
Brand: Turing
SKU: 18539150
Rating: 4.75 (10 reviews)

Categories	Dipping Tin Terminal Crimping Machine
Trademark/Brand	Turing
Model	TR-HTX01
Power	AC220V/50HZ,
Application	sheathed wire stripping end tin dipping mac
Feature	Stable Performance
Warranty	1year
Control	Servo and Step motor
FOB port	shenzhen ,guangzhou ,zhongshan
Terms of Payment	Western Union, MoneyGram, T/T
Download
Update Time	Nov 15,2025

Contact Now

Favorites

Detail Information

TR-HTX01 Single-head Sheathed Wire Tin-dipping Terminal Machine

Power Supply：AC 220V 50Hz

Dimensions & Weight：2300x900x1500mm, 450kg

Main Functions：Wire cutting, double-end stripping, single-end crimping, single-end twisting and tinning

Equipment Capacity：500 cycles/hour; within OD5.0 (2-4 cores) 1500pcs/h; within OD5-5.5 (5-7 cores) 1000pcs/h; within OD5.5-6.5 (7-10 cores) 500pcs/h

Front Stripping Length：10-45mm (extendable for customization)

Front Core Stripping Length：1-15mm

Rear Sheath Stripping Length：10-100mm

Rear Core Stripping Length：1-15mm

Wire Cutting Length：80-100mm (extendable for customization)

Wire Diameter Range：OD2mm-6mm

Air Pressure：0.5-0.7MPa

Air Pressure Monitoring：Air pressure detection and alarm

Motor 6 sets of Leadshine：servo motors

Pneumatic Components：14 sets of Airtac

Solenoid Valve Domestic：12-position solenoid valve

Screw/Rail：1 set of Fulei screw / 3 pieces of Fulei rails

Module kk：2 sets of Fulei

Belt：Gates (USA)

Bearing：NSK (Japan)

Blade：High-speed steel
