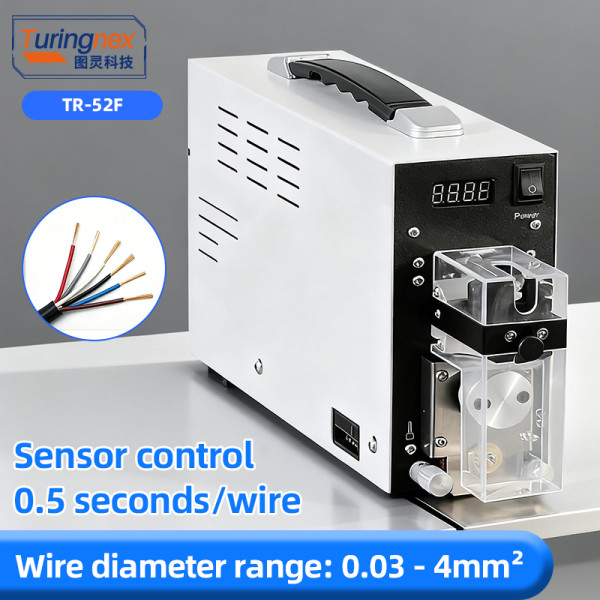

TR-52F Pure Electric Inductive Wire Stripper

Categories	Electric wire stripping machine
Brand	Turing
Model	TR-52F
Power	AC220V/50HZ,
Feature	Stable Performance
Warranty	1year
Contact	CoCo 0086-18666170785
FOB port	shenzhen ,guangzhou ,zhongshan
Terms of Payment	Western Union, MoneyGram, T/T
Update Time	Sep 17,2025

Contact Now

Favorites

Detail Information

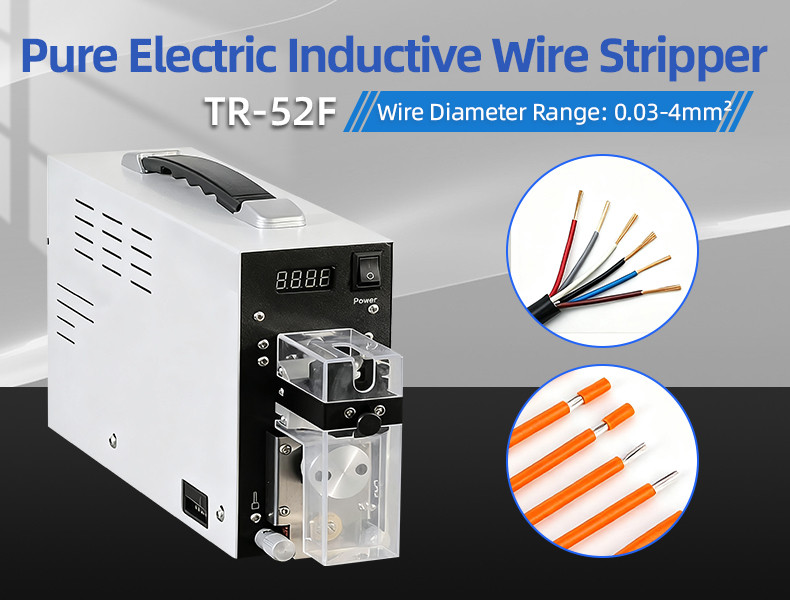

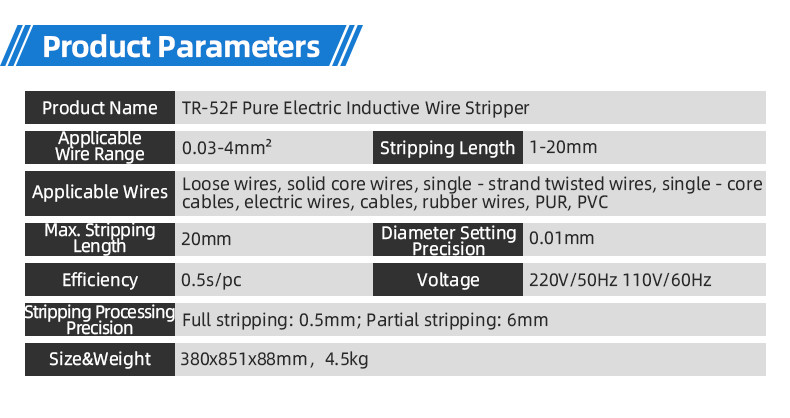

TR-52F Pure Electric Inductive Wire Stripper

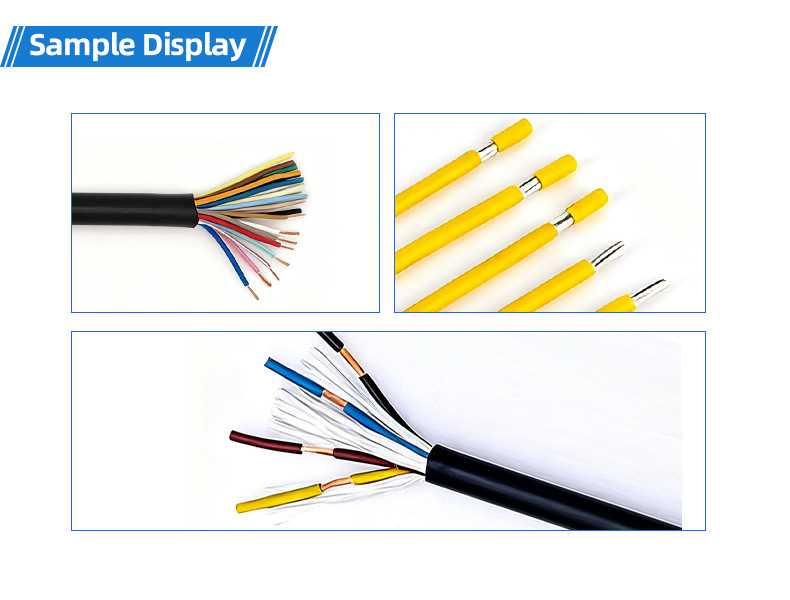

Applicable Wires: Loose wires, solid core wires, single - strand twisted wires, single - core cables, electric wires, cables, rubber wires, PUR, PVC

Maximum Stripping Length: 20mm

Diameter Setting Precision: 0.01mm

Processing Time: 0.5s/pc

Voltage: 220V/50Hz 110V/60Hz

Cable Cross - section: 0.03 - 4.0mm²

Stripping Processing Precision: Full stripping: 0.5mm; Partial stripping: 6mm

Overall Dimensions: 380x851x88mm

Net Weight: 4.5kg

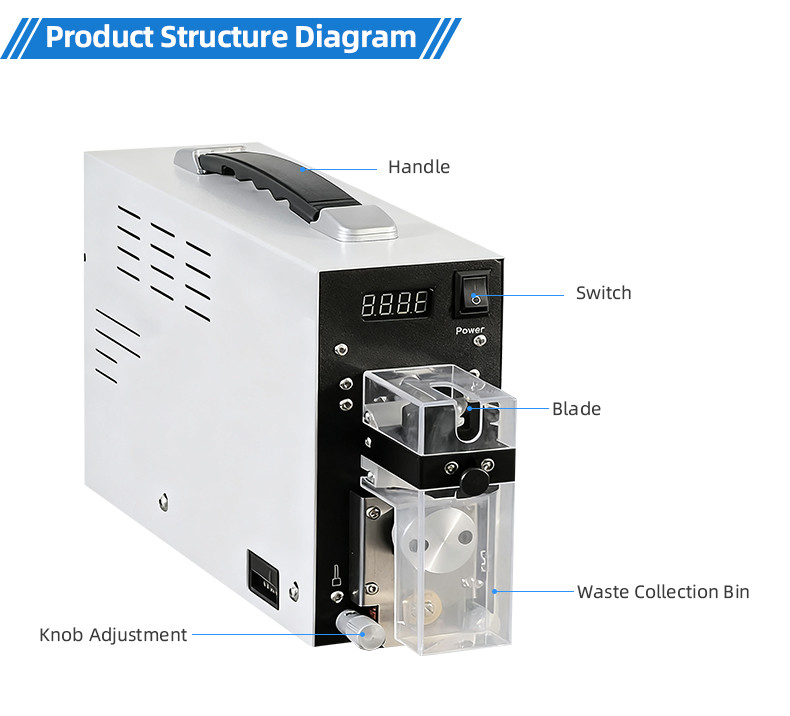

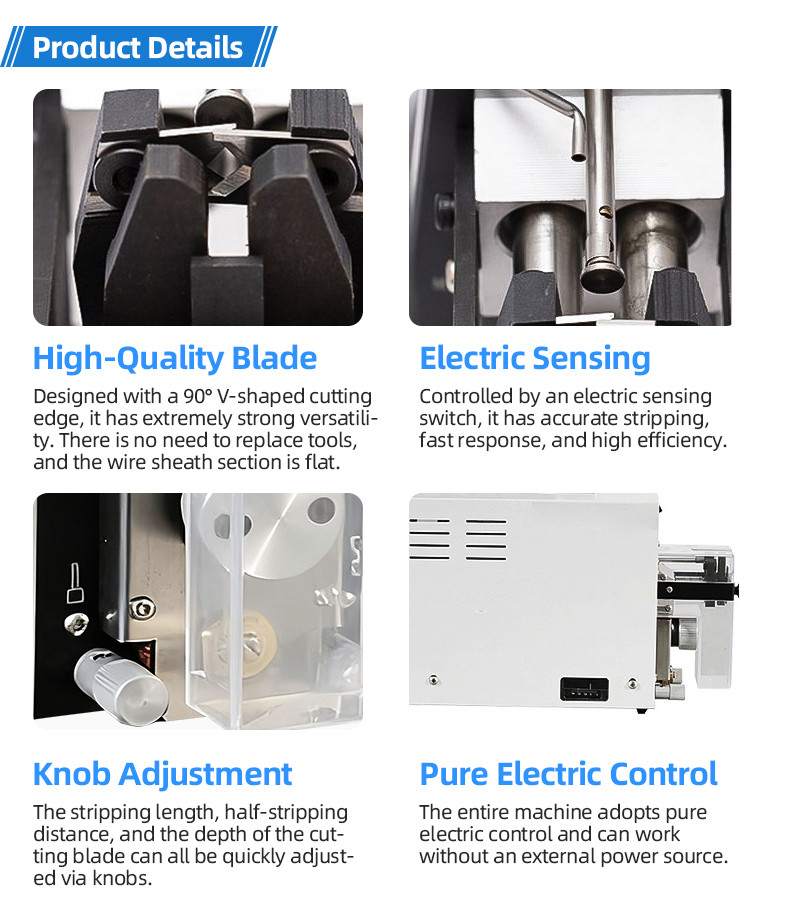

Product Features

- **High Precision**

Controlled by sensors, no foot switch required. It strips wire ends accurately with high efficiency.

- **High Quality**

Adopting a 90° V-shaped blade design, it has extremely strong versatility. There is no need to replace the blade when processing different wires.

- **High Functionality**

It can work once powered on without the need for air connection.

- **Wide Range of Applications**

Applicable wires: loose wires, solid-core wires, single-strand twisted wires, single-core cables, electric wires, cables, rubber wires, PUR, PVC.

- **Easy to Operate**

The stripping length, cutting depth, half-stripping and full-stripping can all be adjusted by a graduated knob without tool assistance, which is simple and fast.
