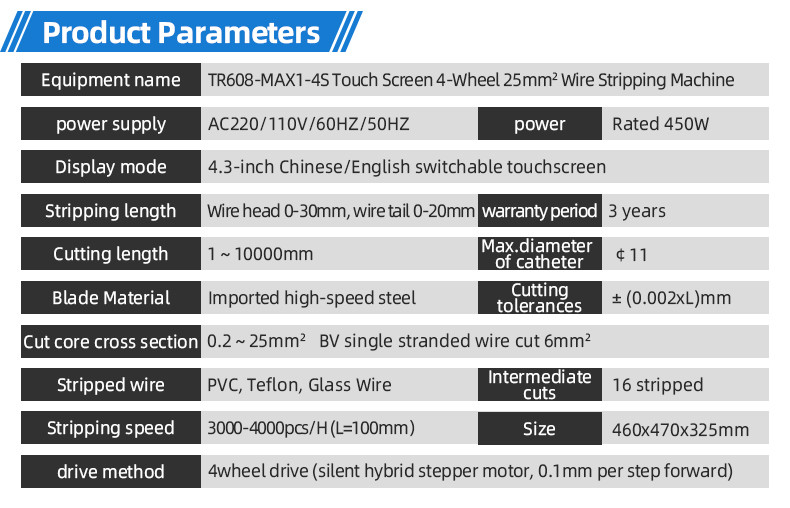

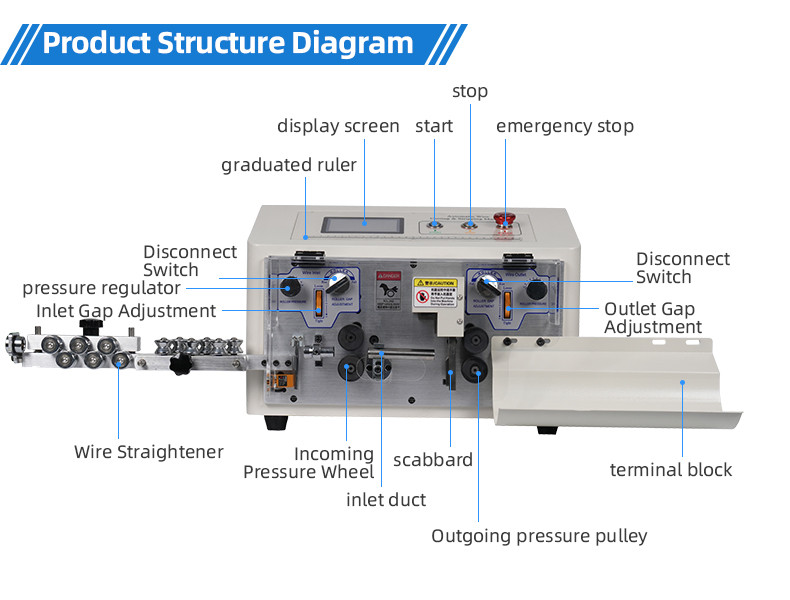

TR608-MAX1-4S Touch Screen 4-Wheel 25mm² Wire Stripping Machine

Dimensions: 460×470×325mm

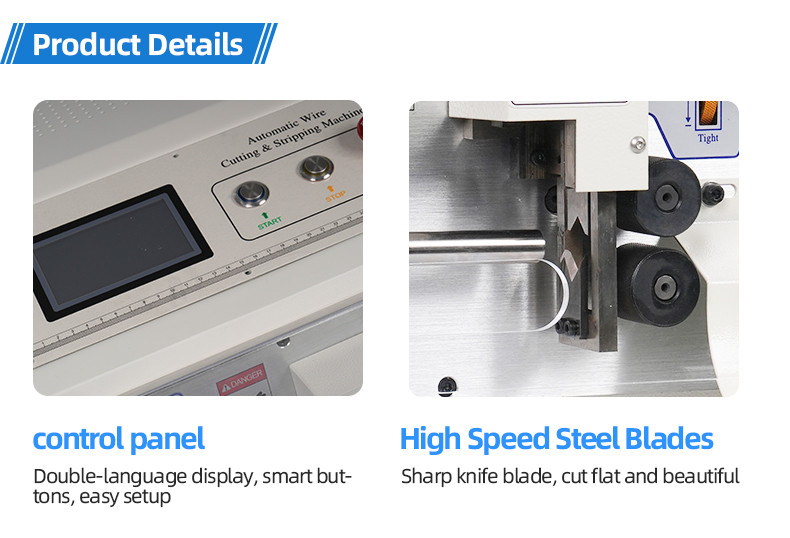

Display Method: 4.3-inch Touchscreen with Chinese/English Switching

Cutting Length: 1~10000mm

Cutting Tolerance: ±(0.002×L) mm (Note: The original character "土" is a typo, and the correct symbol is "±", representing plus-minus tolerance)

Applicable Wire Types for Stripping: PVC wires, Teflon (PTFE) wires, fiberglass wires

Wire Stripping Speed: 3000-4000 pieces/hour (when wire length L=100mm)

Power Supply: AC 220/110V 50/60Hz, Rated Power 450W

Stripping Length: 0-30mm (wire head), 0-20mm (wire tail)

Maximum Conduit Diameter: ￠11mm (Note: The original specification lacks a unit; "mm" is the common unit for such equipment)

Cutting Wire Core Cross-Section: 0.2~25mm²; single-strand BV wire (PVC-insulated copper wire) can be cut up to 6mm²

Middle Stripping: Supports 16 stripping positions

Drive Method: Four-wheel Drive (equipped with a silent hybrid stepper motor, advancing 0.1mm per step)
