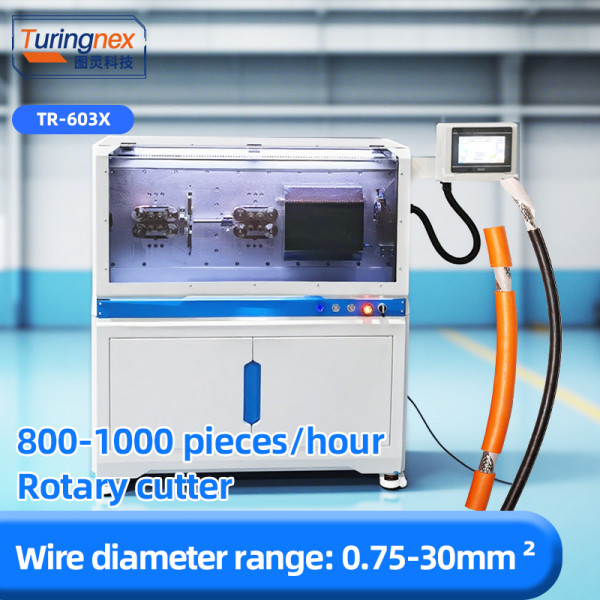

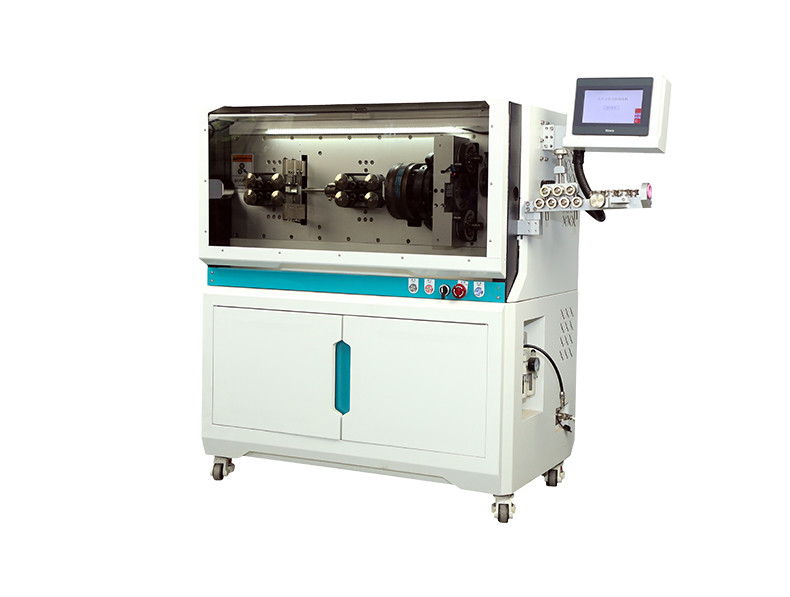

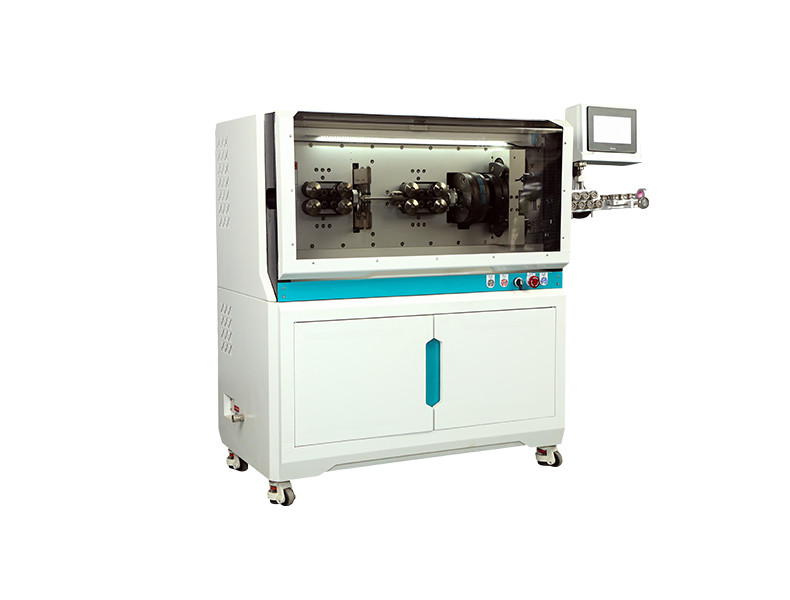

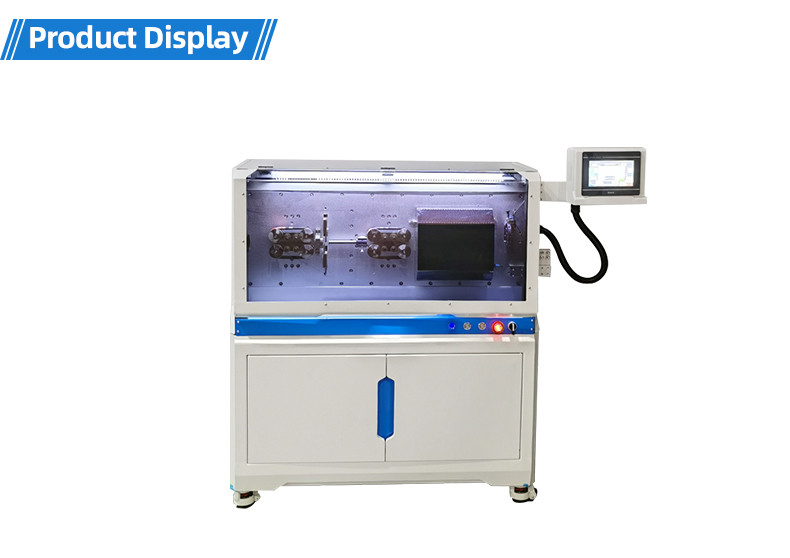

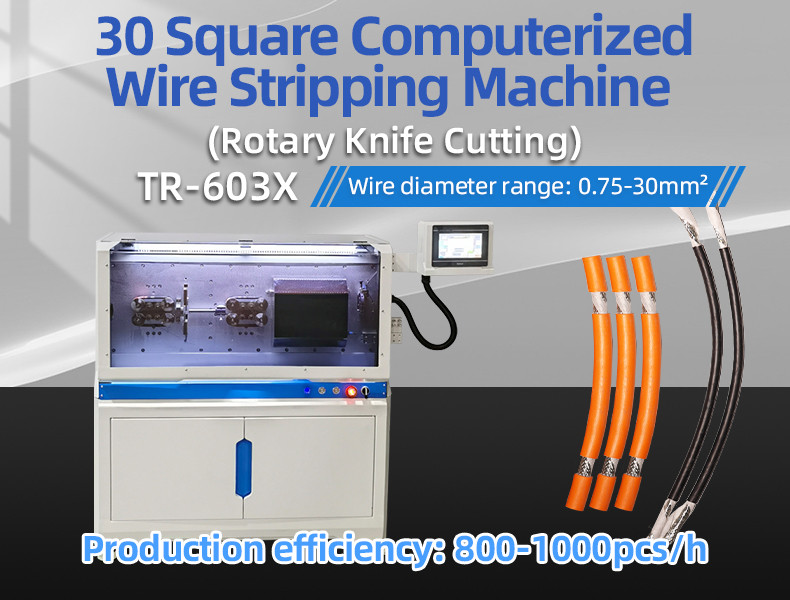

TR-603X 30 square rotary knife computerized wire stripping machine

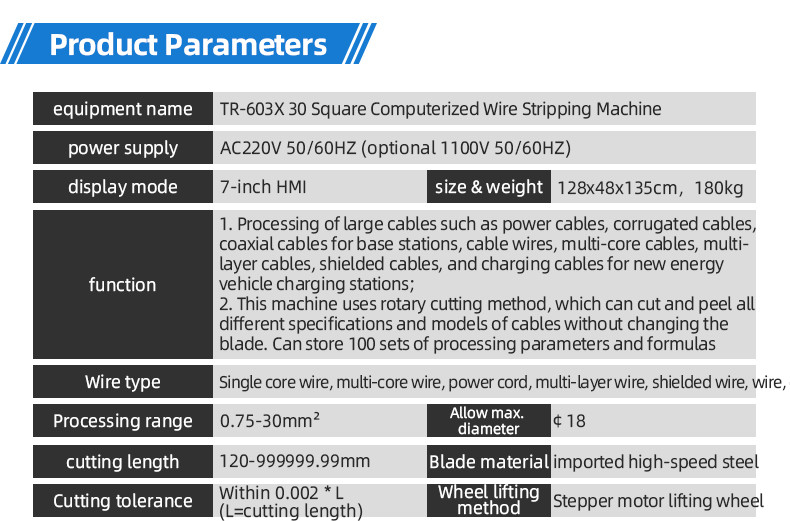

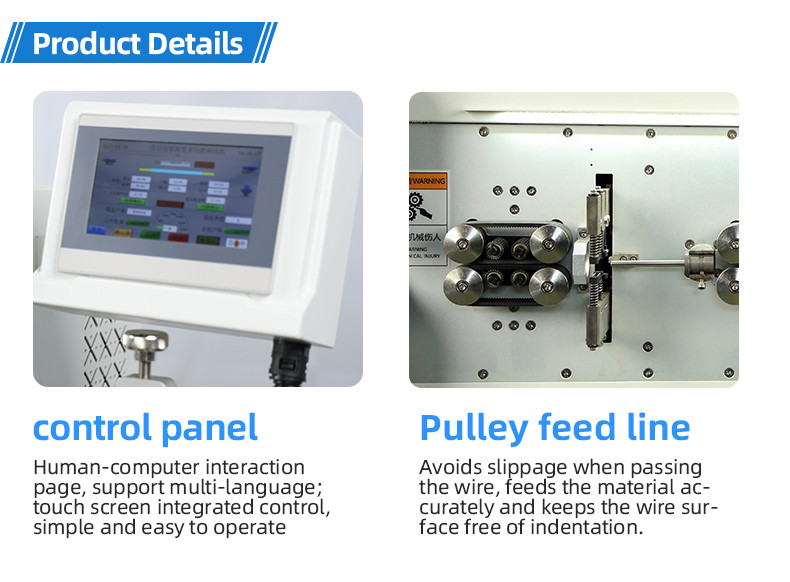

Display mode: 7-inch human-machine interface

Function: 1. Processing of large cables such as power lines, corrugated lines, coaxial lines for base stations, cable lines, multi-core lines, multi-layer lines, shielded lines, and charging lines for new energy vehicle charging stations;

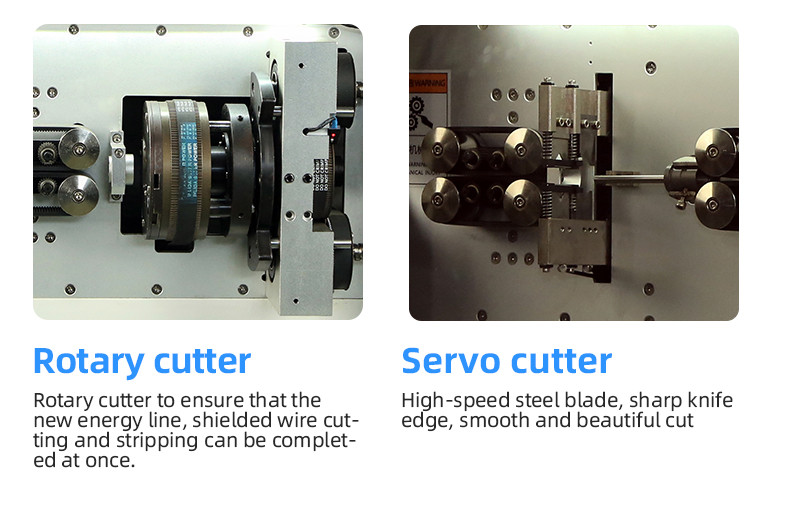

2. This machine uses rotary cutting method, which can cut and peel all different specifications and models of cables without changing the blade. Can store 100 sets of processing parameters and formulas

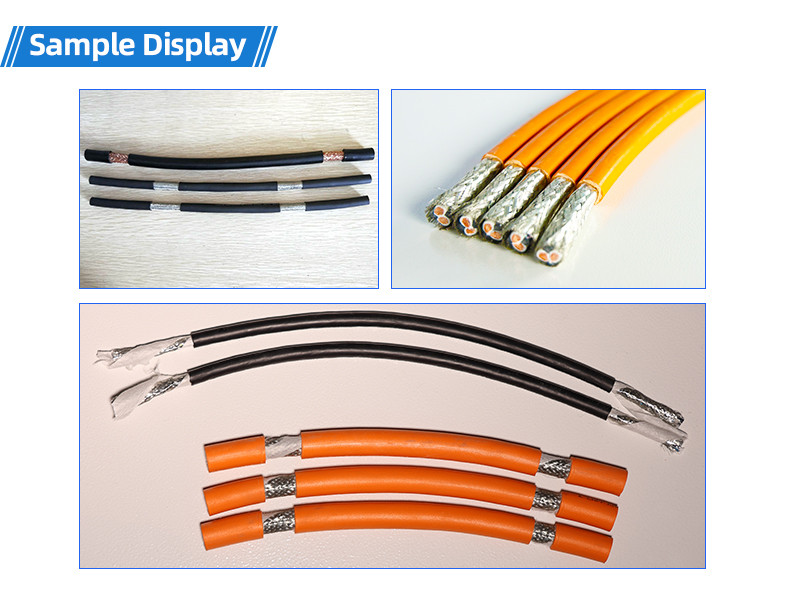

Wire types: single core wire, multi-core wire, power wire, multi-layer wire, shielded wire, wire, etc

Processing range: 0.75-30mm ²

Cutting length: 120mm-999999.99mm

Cutting tolerance: within 0.002 * L (L=cutting length)

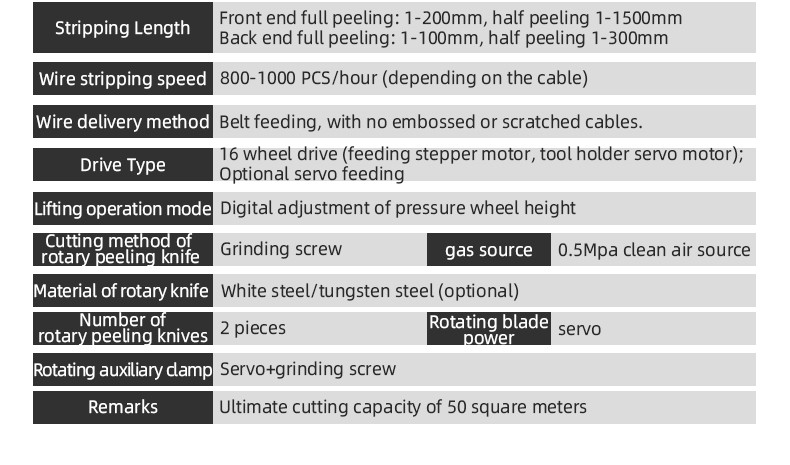

Stripping length: Front stripping: outer sheath fully stripped 20-250mm, inner core wire 1-50mm

Back stripping: The outer sheath is completely removed by 20-200mm, and the inner core wire is 1-50mm

Wire stripping speed: 800-1000 PCS/hour (depending on the length and size of the wire)

Wire feeding method: Belt feeding, cable without embossing or scratches. (with peeling and pressure function)

Drive mode: 16 wheel drive (feeding stepper motor, tool holder/rotating tool servo motor); Optional full servo

Lifting operation mode: digital adjustment of pressure wheel height

Maximum allowable diameter: ￠ 18

Gas source: 0.5Mpa clean gas source

Wheel lifting method: stepper motor lifting wheel

Way of swinging guide pipe: cylinder swinging guide pipe

Spinning knife feeding method: grinding screw

Material of rotary peeling knife: white steel/tungsten steel (optional)

Number of peeling knives: 2 pieces

Rotary peeling knife power: servo

Spin stripping auxiliary clamp: servo+grinding screw

Note: Maximum cutting capacity of 50 square meters
