TR-16 16mm²Tubular Terminal Crimping Machine
| Categories | Wire Stripping and Terminal Crimping Machine |
|---|---|
| Brand | Turing |
| Model | TR-16 |
| Power | AC220V/50HZ, |
| Strip length | 1-12mm |
| Feature | Stable Performance |
| Warranty | 1year |
| Contact | Coco 0086-18666170785 |
| FOB port | shenzhen ,guangzhou ,zhongshan |
| Terms of Payment | Western Union, MoneyGram, T/T |
| Download |  |
| Update Time | Aug 30,2025 |
Detail Information

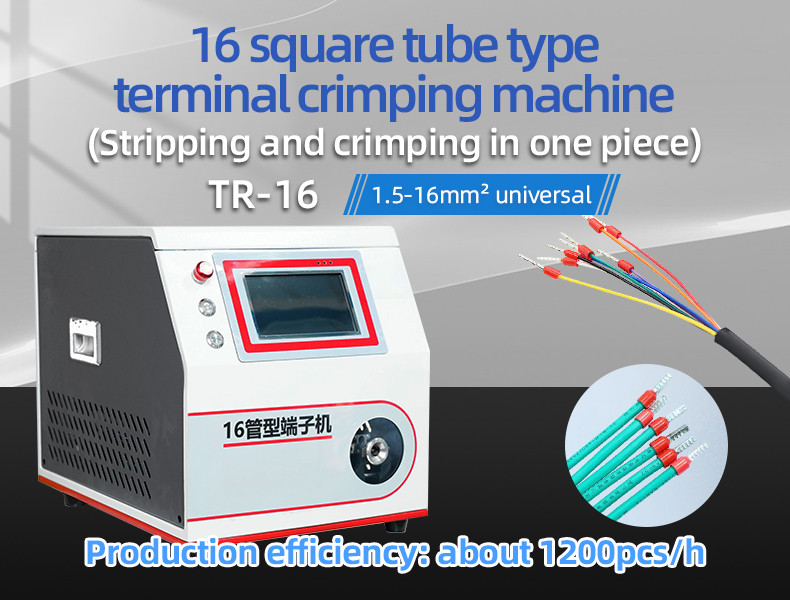

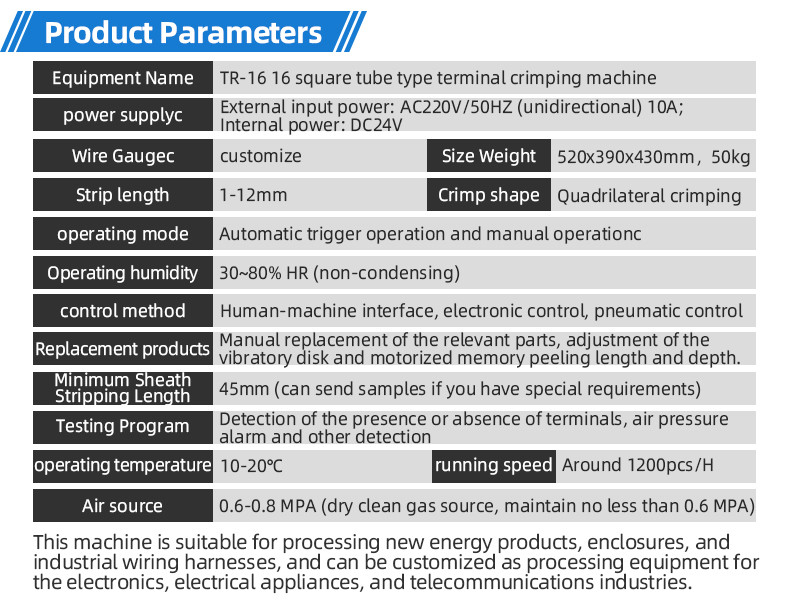

TR-16 16mm² Tube Terminal Crimping Machine
Power Supply: External Input: AC220V/50Hz (Single-Phase) 10A; Internal Power: DC24V
Wire Gauge Specifications: Customized per sample
Dimensions & Weight: 520x390x430mm, 50kg
Stripping Length: 1-12mm
Crimping Shape: Quadrilateral crimping
Operation Mode: Auto-triggered operation and manual operation
Operating Speed: Approx. 1200 pcs/H
Cutting Error: Within 0.05mm at 100mm
Control Method: HMI, electronic control, pneumatic control
Product Changeover: Manual replacement of relevant fixtures, adjustment of vibratory feeder and electric memory for stripping length and depth
Minimum Jacket Stripping Length: 45mm (Special requirements may be accommodated upon sample submission)
Inspection Items: Terminal presence detection, pneumatic pressure alarm, etc.
Operating Temperature: 10-20°C
Operating Humidity: 30~80% RH (non-condensing)
Air Supply: 0.6-0.8 MPa (dry, clean air source maintained at ≥0.6 MPa)
