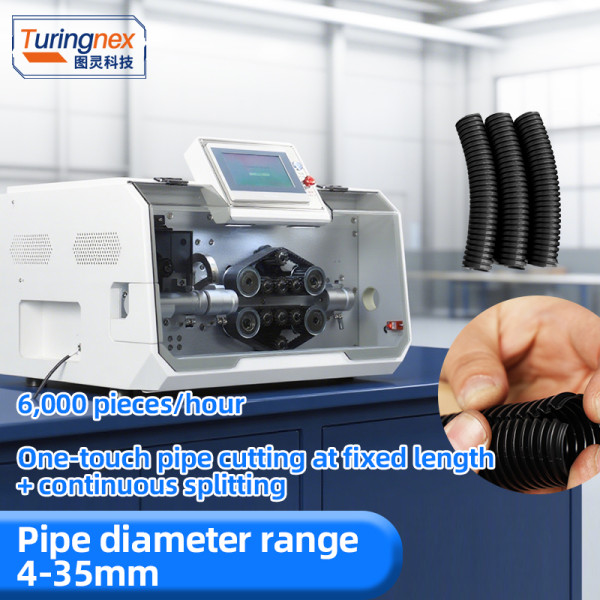

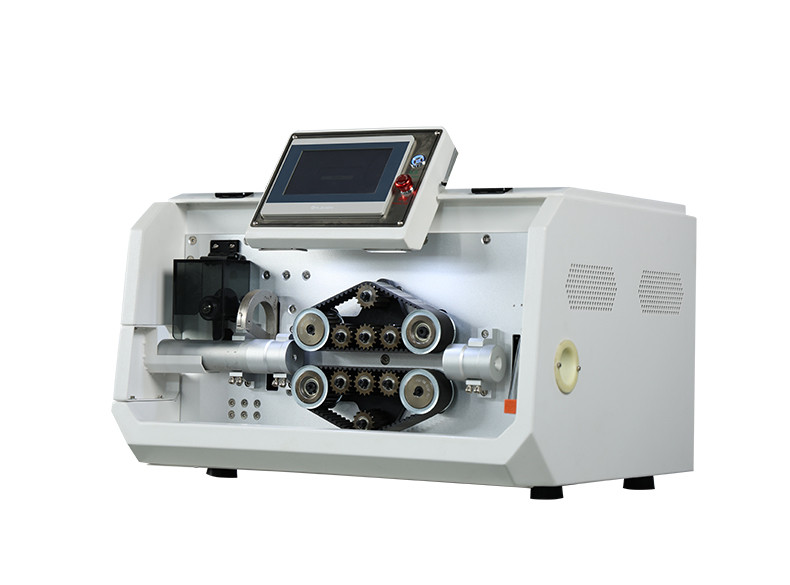

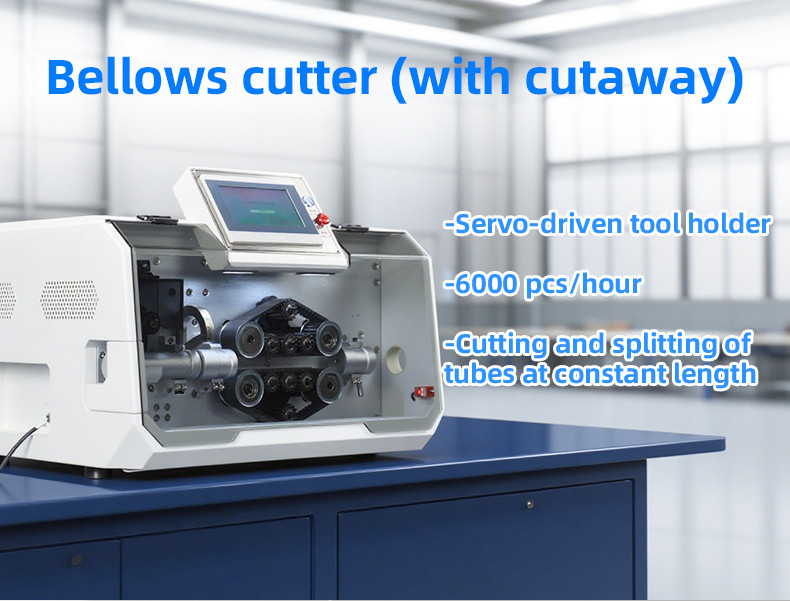

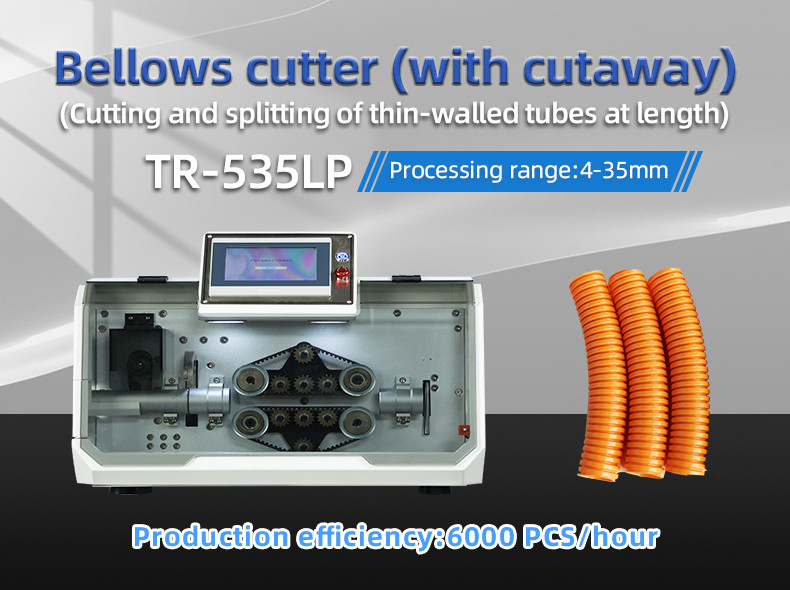

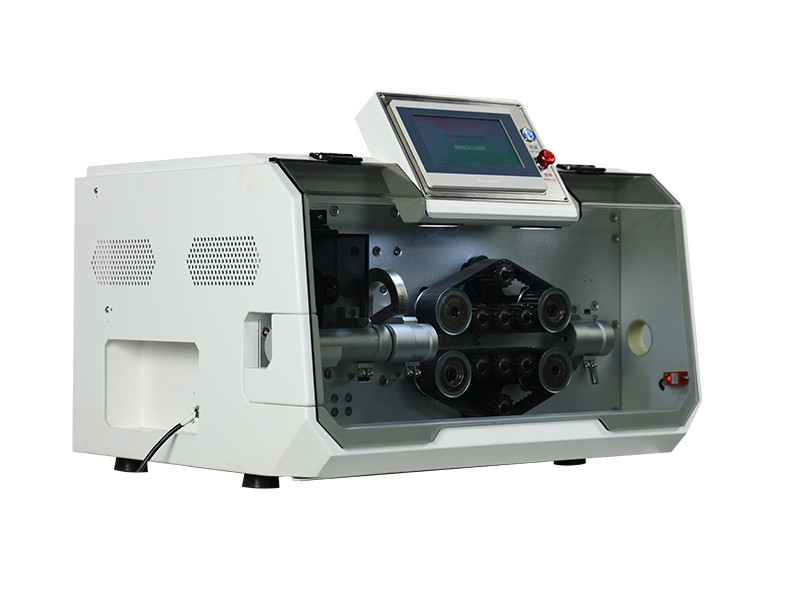

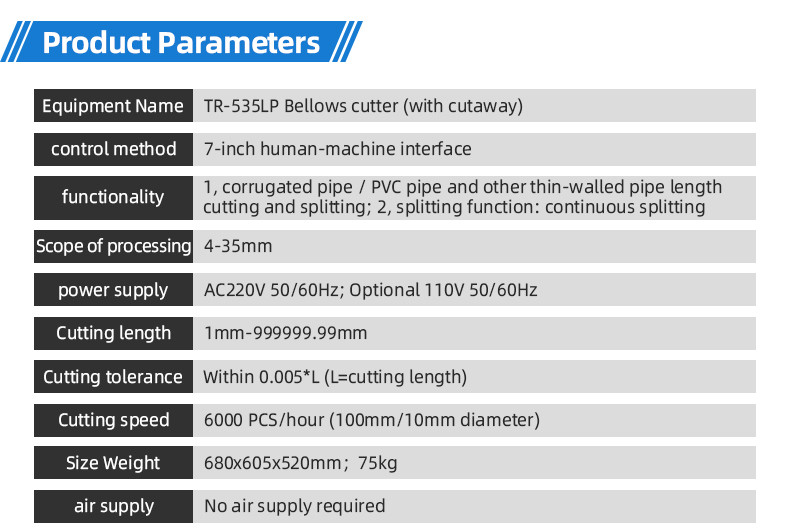

TR-535LP Bellows cutter (with cutaway)

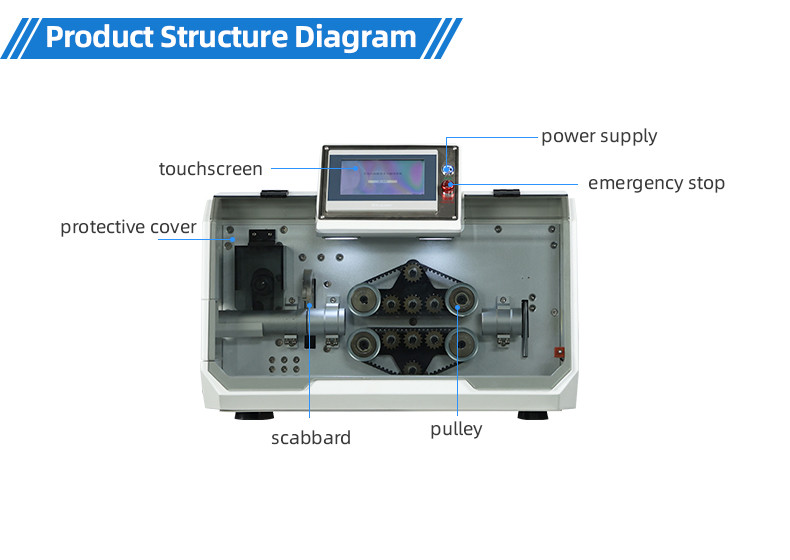

Display: 7-inch man-machine interface

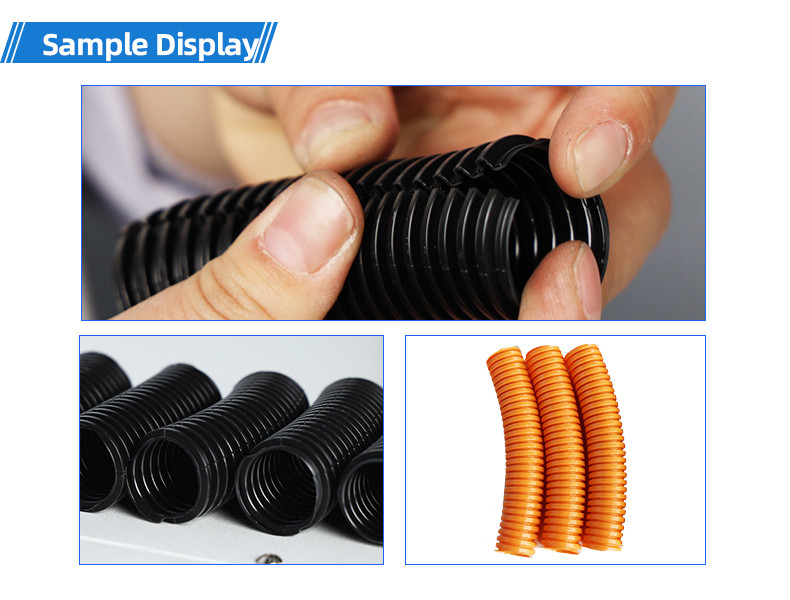

Functions: 1, corrugated pipe / PVC pipe and other thin-walled pipe fixed-length cutting and splitting;

2, splitting function: continuous splitting

Processing range: 4-35mm

Cutting length: 1mm-999999.99mm

Cutting tolerance: within 0.005 * L (L = cutting length)

Efficiency: 6,000 / hour (according to the length of the pipe, the size of the decision)

Driving mode : 10-wheel drive; optional servo motor

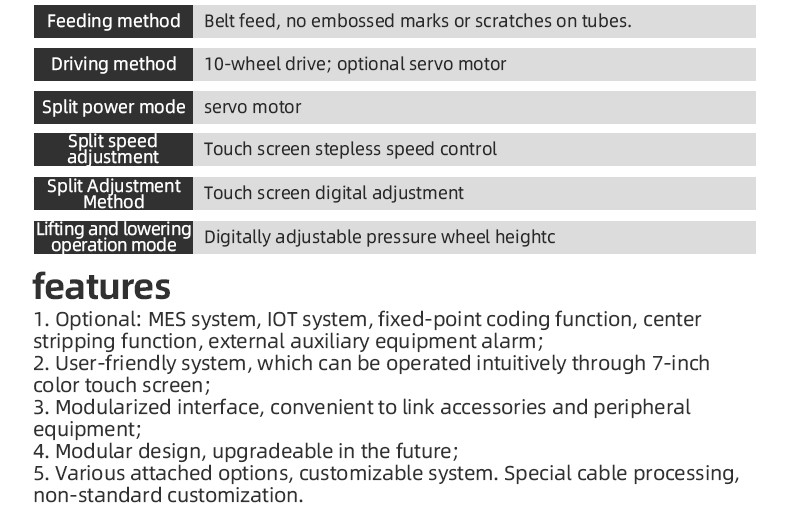

Feeding method: belt feeding, no embossing and scratching of the pipe.

Lifting operation mode: digital adjustment of press wheel height

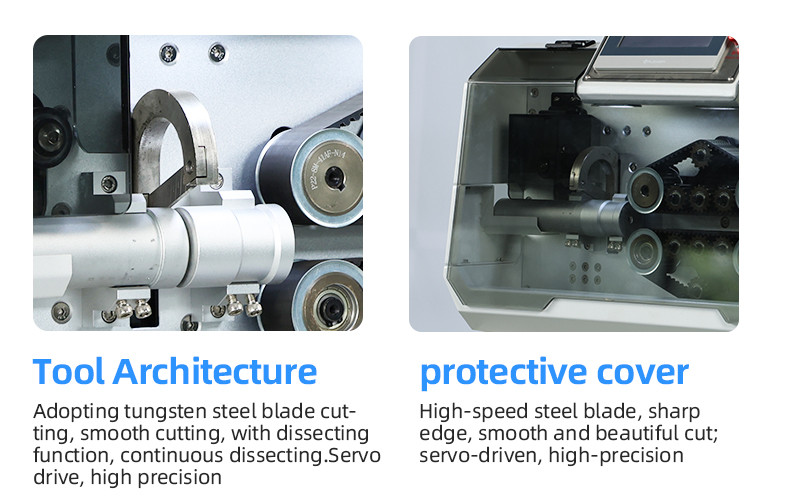

Slitting power mode: servo motor

Slitting speed adjustment: touch screen stepless speed regulation

Slitting adjustment mode: touch screen digital adjustment

Lifting operation mode: digital adjustment of press wheel height

Power supply: AC220V 50/60Hz; optional 110V 50/60Hz

Air supply: no air supply needed

Dimensions (L*W*H): 680*605*520mm

Net weight: 75kg
