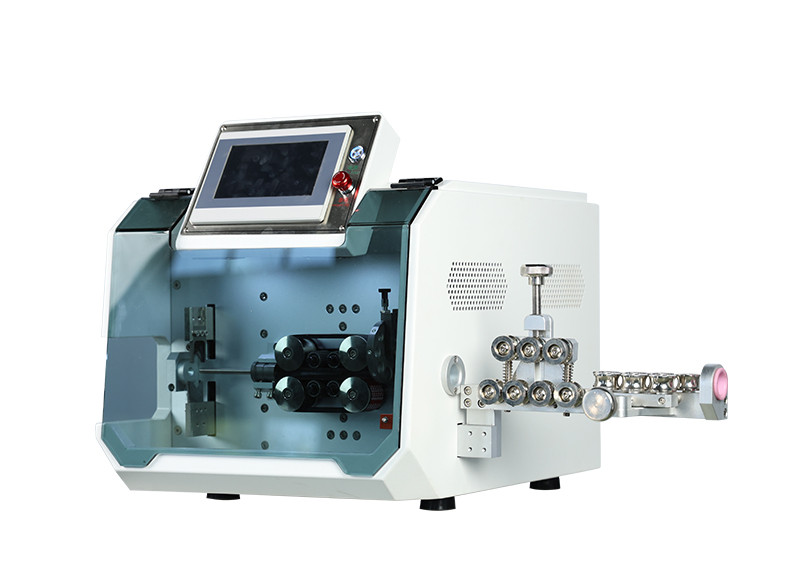

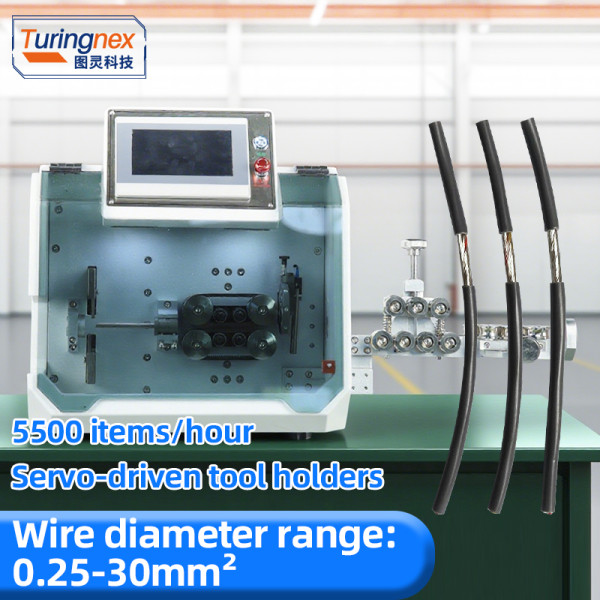

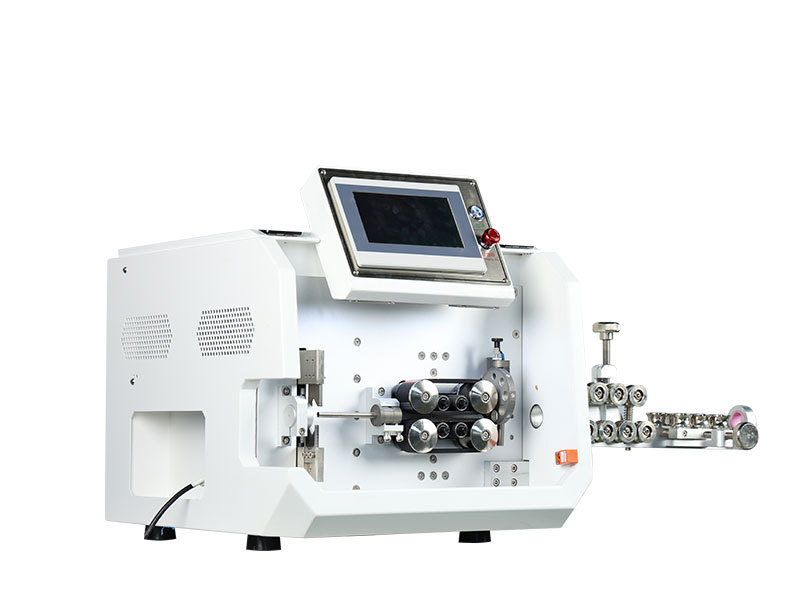

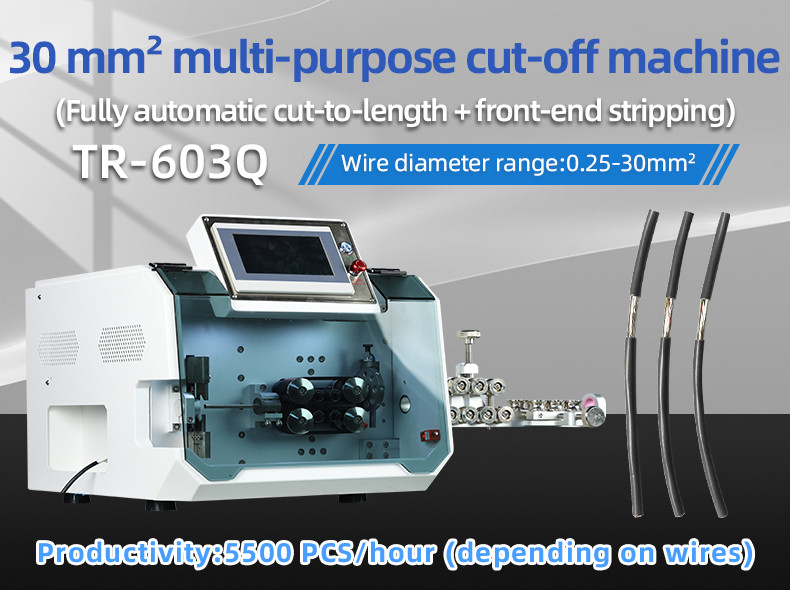

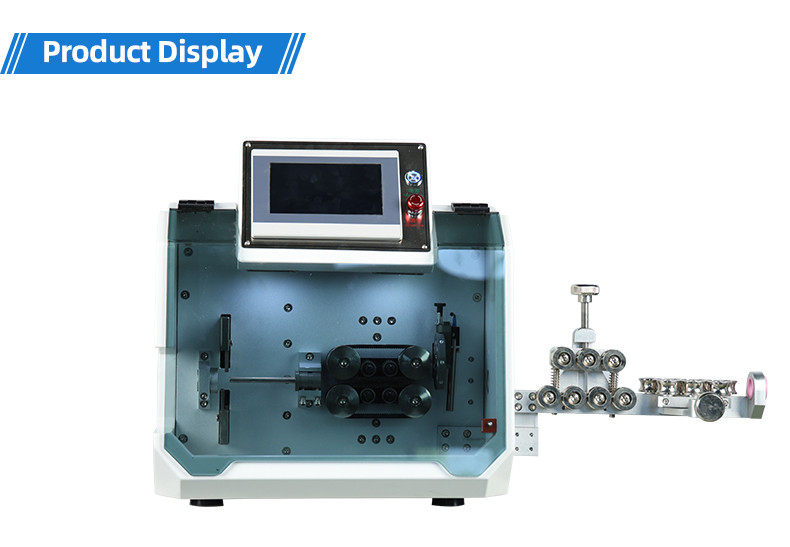

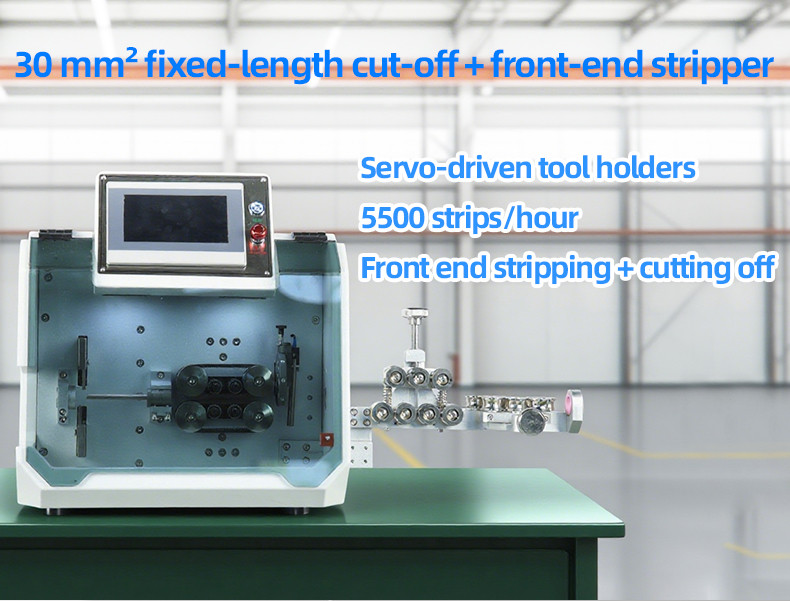

TR-603Q 30 mm² fixed-length cut-off + front-end stripper (Wire diameter range:0.25-30mm²)

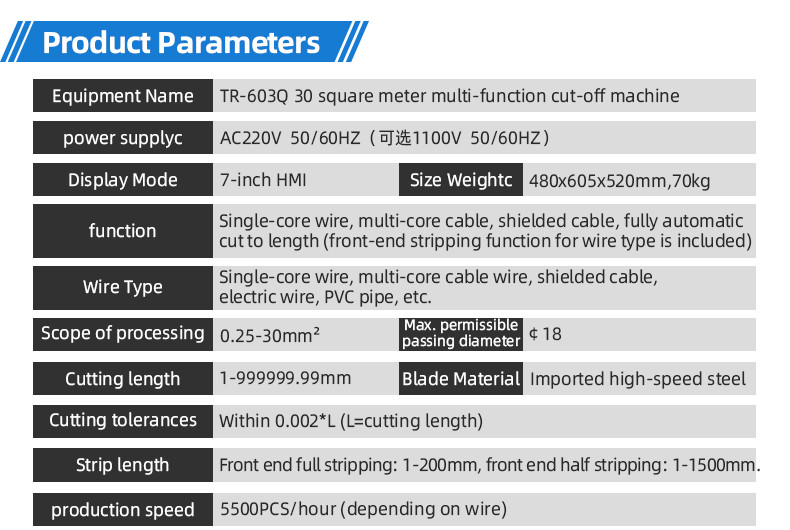

Model: TR-603Q

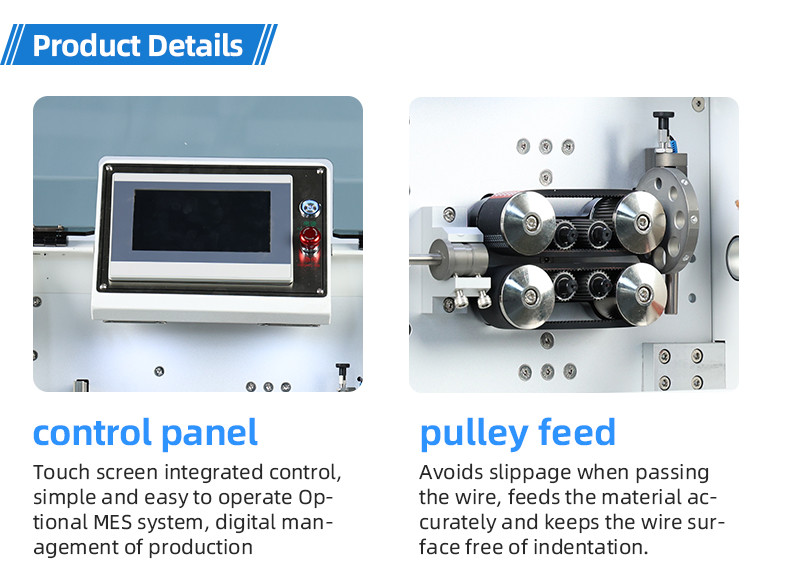

Display: 7-inch human-machine interface

Function: single-core wire, multi-core cable, shielded cable, fully automatic fixed-length cut-off (attached to the front-end stripping function of the wire class)

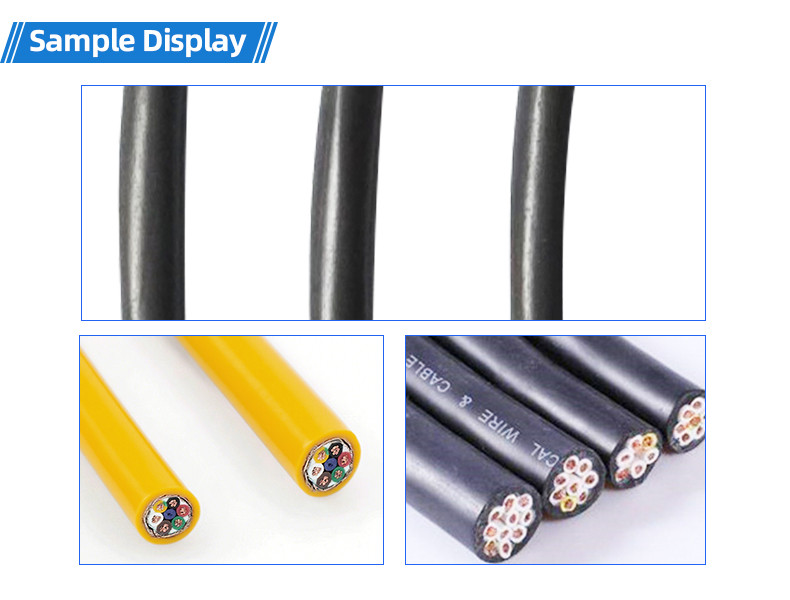

Type of conductor: single-core wire, multi-core cable, shielded cable, wires, PVC pipes, etc.

Processing range: 0.25 -- 30 sq. ft.

Cutting length: 1mm-999999.99mm

Cutting tolerance: Within 0.002*L (L=cutting length)

Stripping length: front full off: 1-200mm, front half off 1-1500mm

Allowed to pass through the largest diameter: Φ18

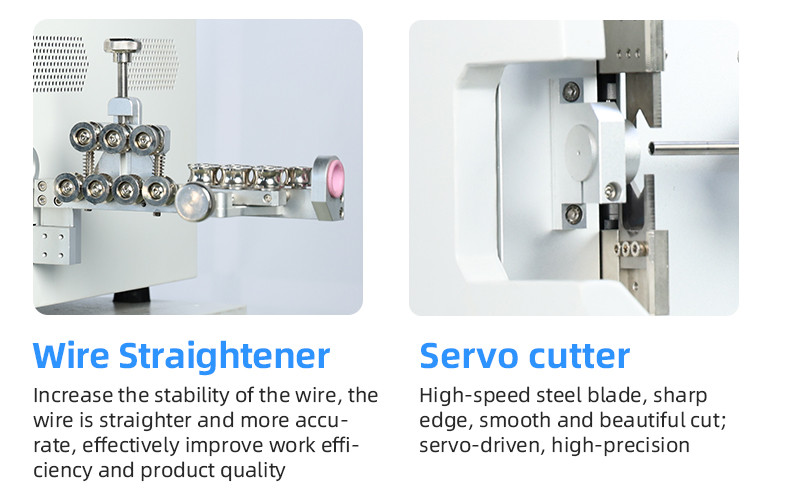

Knife material: high quality imported high-speed steel

Productivity: 5500 PCS/hour (according to the length of the line, the size of the depending on the)

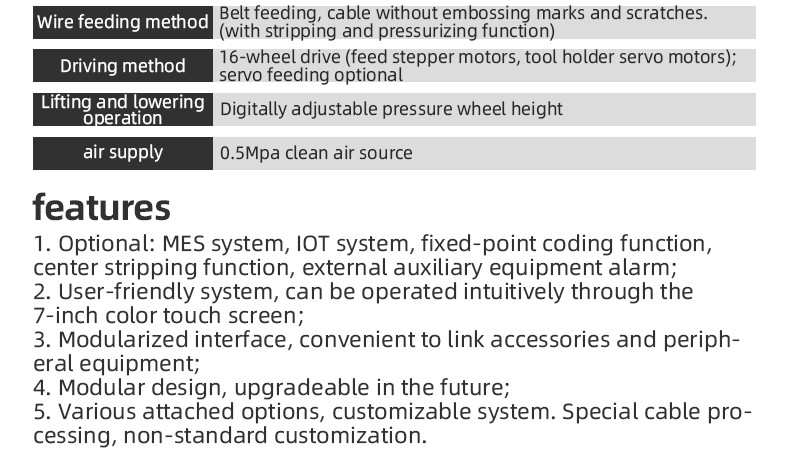

Driving mode: 16-wheel drive (feeding stepping motors, knife frame servo motors); can be equipped with optional servo Feeding

Feeding line Mode: Belt feeding, no embossing and scratching on the cable. (with stripping and pressurizing function)

Lifting and lowering operation mode Digital adjustment of the height of the pressure wheel

Power supply: AC220V 50/60Hz; optional 110V 50/60Hz

Air source: 0.5Mpa clean air source

Dimensions: 480*605*520mm

Net weight: 70kg
