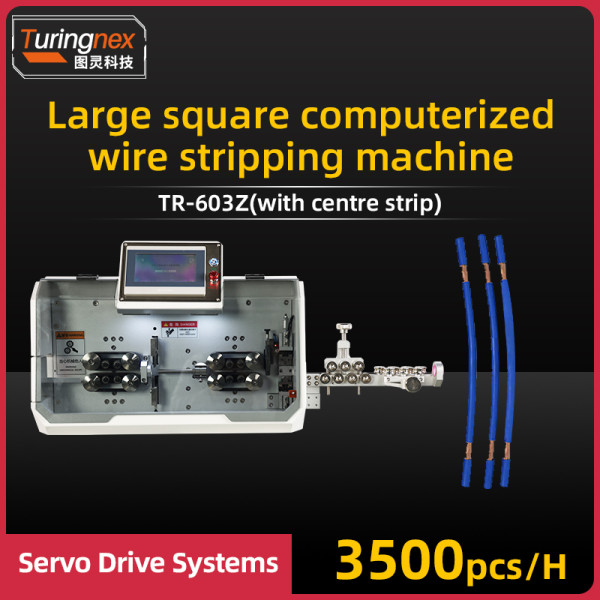

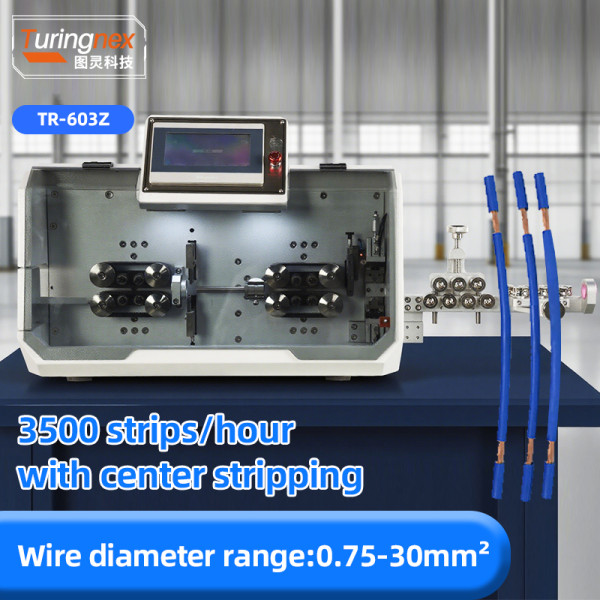

TR-603Z Large Square Computerized Wire Stripping Machine

Power supply: AC220V 50/60HZ (optional 1100V 50/60HZ)

Display: 7-inch man-machine interface

Functions: ① single-core wire, multi-core cable, shielded cable, fully automatic fixed-length cutting, stripping

 ② with the middle of the cut open stripping function, the two ends of the cut open stripping function

Type of conductor: single-core wire, multi-core cable, shielded cables, wires, PVC, etc.

Processing range: 0.75- 30mm² Cutting length: 1-999999.99mm Cutting tolerance: 0.002*L or less (L=cutting length) 30mm²

Cutting length: 1-999999.99mm

Cutting tolerance: 0.002*L or less (L=cutting length)

Stripping length: front end fully stripped: 1-200mm, front end half stripped 1-1500mm

 Rear end fully stripped: 1-100mm, rear end half stripped 1-300mm

Stripping speed: 3500PCS/hour (according to the length of the wire, the size of the wire to be determined)

Feed wire Method: Belt feeding, no embossed marks and scratches on the cables. (with stripping and pressurising function)

Driving method: 24 wheels drive (feeding stepping motor, knife holder servo motor)

Lifting operation method: digital adjustment of the height of the pressure wheel

Dimensions and weight: 680x605x520mm, 90kg

Allowable through the maximum diameter: 18mm

Blade material: imported high-speed steel

Air source: 0.5Mpa clean air source
