Tape Wrapping and Bundling Machines
Taping and bundling is the stage that turns a set of terminated wires into a harness: tape fixes the branches along their length, and a tie closes the bundle so it holds its shape. It is the operation most often still done by hand, and the one where labour cost concentrates on a harness line. This page opens the family and covers taping and bundling heads from handheld units through bench-top machines to in-line stations. The first specification to fix is the wrap pattern, because full wrap, point wrap and spiral are different heads and the pattern is set by the harness drawing rather than by preference. Pitch consistency is the quality figure worth asking for.
First-time BuyersNew to wire processing? Start with our selection guide and free sample test.
DistributorsPartner with us — OEM/ODM, private label and regional distribution.
Existing CustomersSpare parts, service and upgrades for machines already on your line.

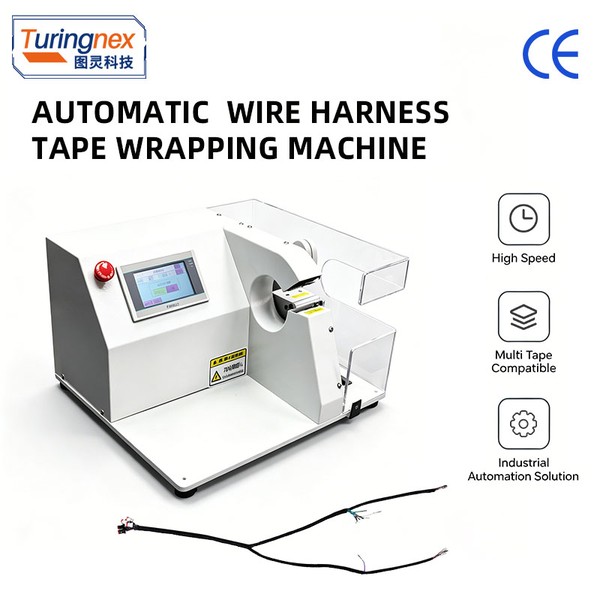

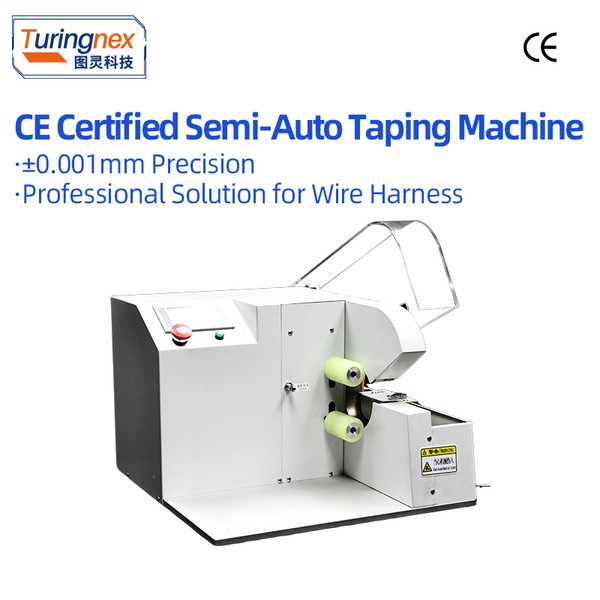

Full tape wrapping machine
Full wrap means tape applied continuously along the branch so the finished surface is taped end to end — no gaps, no exposed wire between wraps. It is specified where the drawing calls for complete coverage: branches that rub against a panel edge, runs that pass through a grommet, or harnesses where the tape is also the abrasion shield. The two variables are tape width and overlap percentage, and both change the tape consumption figure, which is often the real cost driver over a year of production. Machines are built in overhead and desktop forms. If the drawing marks tape only at intervals, the single-point machines use less tape and run faster for the same job.
14 models
Copper Strip Tape Wrapping Machine
Here the wrapping material is conductive. Copper strip or copper foil is wound onto a conductor, a shield or a joint to create a continuous conductive path over a length, which is how shielding terminations and busbar wraps are made. Because the material is metal, the machine behaves differently from a tape wrapper: tension has to be controlled so the strip does not deform the substrate or spring back, and the wrap must overlap consistently or the connection resistance varies along its length. Specify the strip width and thickness, the substrate, the overlap and the required wrap length. This page also absorbs the copper foil wrapping line, which was the same operation under a different name.
6 models

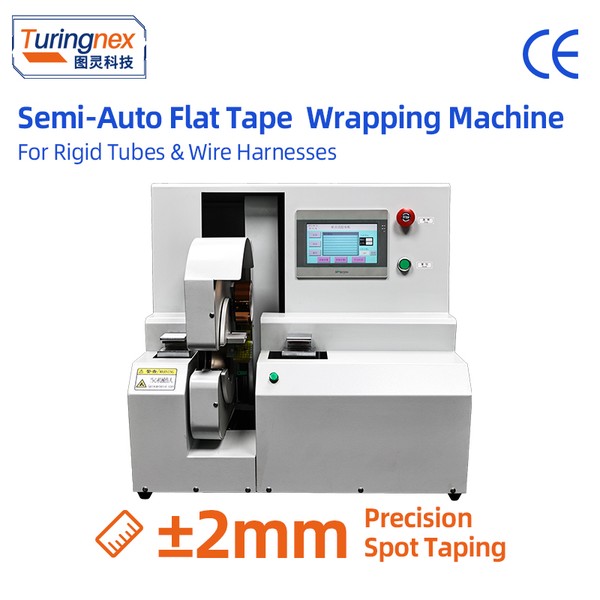

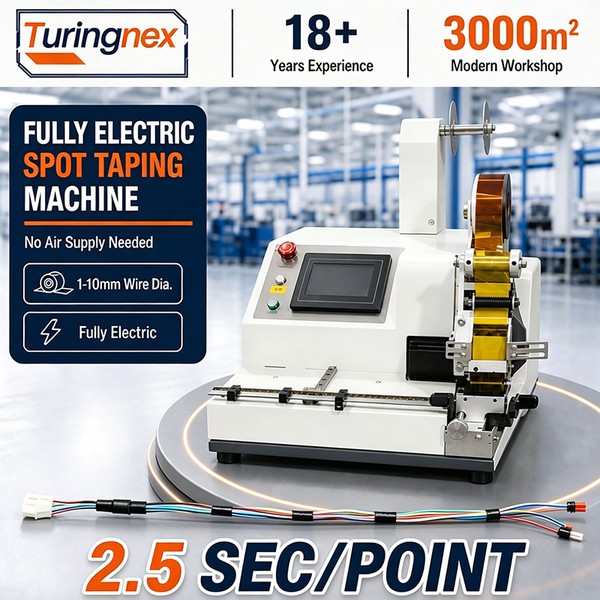

Single Point Tape Wrapping Machine
Single-point and point wrapping apply tape at defined positions rather than continuously: the branch is fixed where the drawing marks it, and the stretches in between stay uncovered. It uses less tape and completes faster than full wrap, and it is the correct choice whenever the requirement is to hold wires together at intervals rather than to protect them along their length — which is most of the time, if the harness drawing is read literally. The specification inputs are the number and spacing of tape points, the tape width and the branch diameter. Desktop, coil and transfer-type versions exist; the branch geometry usually decides which.
17 models

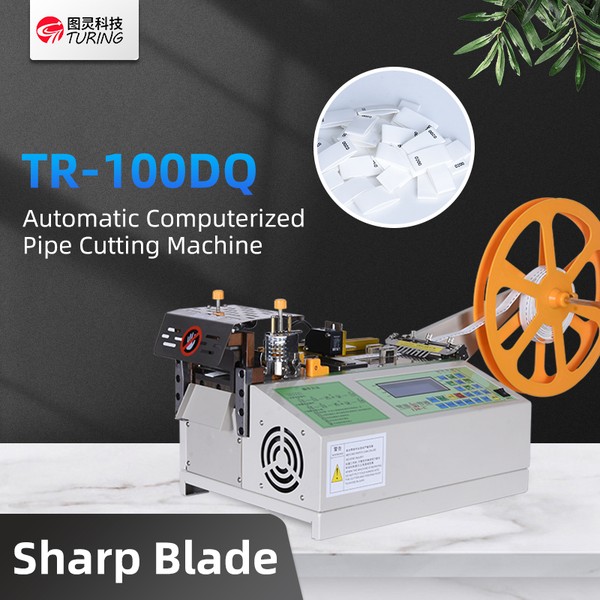

Tape Cutting Machine
Tape cutting sits upstream of every wrapping operation, and it is a cutting problem rather than a wrapping one: the material is adhesive, it stretches, and it must be cut square without the adhesive smearing onto the blade. Machines on this page cover cold, hot and rotary knife methods, and handle paper, cloth, PVC, vinyl and hook-and-loop tape as well as shaped and die-cut pieces. The sizing inputs are tape width and thickness, cut length, and whether the tape is single- or double-sided. Hot cutting is used where the cut edge must be sealed so the tape does not fray — a requirement that appears on hook-and-loop and cloth tape far more often than on PVC.
26 modelsAutomatic Machinery
Models in This Range
Semi-Automatic
Automatic
Why Choose Turingnex for Tape Wrapping and Bundling Machine
Tape Wrapping and Bundling Machine is a real purchasing decision. Here is what you get when you order from the factory directly — verified capabilities, stated plainly.
Factory-Direct, No Middleman
Buy straight from the Dongguan factory at manufacturer pricing — no trading-company markup.
CE-Certified & ISO9001 Workshop
CE-certified machines built in an ISO9001 workshop, with Alibaba Trade Assurance available on request.
100% Run-In Before Shipment
Every machine passes a full run-in test and a shipment video is recorded before it leaves the workshop.
QC: Raw material check → Machining → Assembly → 100% run-in test → Shipment video
12-Month Warranty & Spare Parts
Guarantee coverage on every build, genuine spare parts shipped worldwide, remote support included.
Free Test on Your Material
Send your wire and terminals — we run a crimp/strip test and share the video before you decide.
Custom Dies to Your Drawing
Dies and tooling made to your terminal drawing, so the machine runs your parts from day one.
Model Comparison
| Model | process | control | Motor Power | application | MOQ | Price (FOB) | Action |
|---|---|---|---|---|---|---|---|
TR-J1 Automatic Spot Taping Machine | Automatic Spot Taping Machine | PLC / touch-screen control | — | — | 1 set | Quote on request | View → |

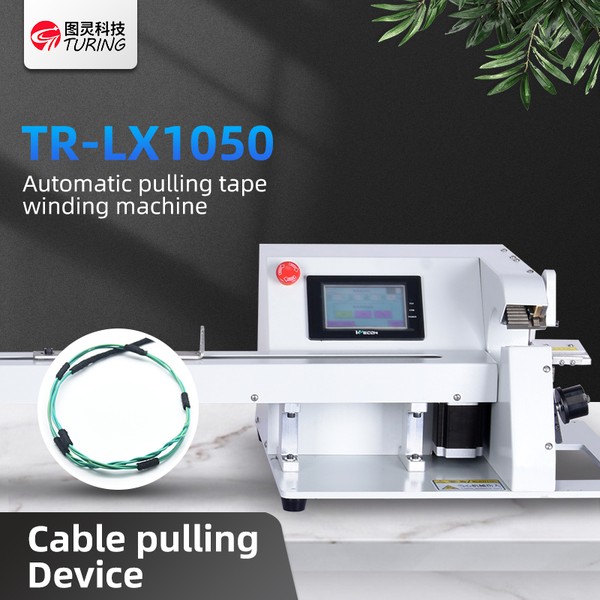

TR-LX1050 Semi-auto Long Wire Point Tape Winding Machine | Semi-auto Long Wire Point Tape Winding Machine | PLC / touch-screen control | — | — | 1 set | Quote on request | View → |

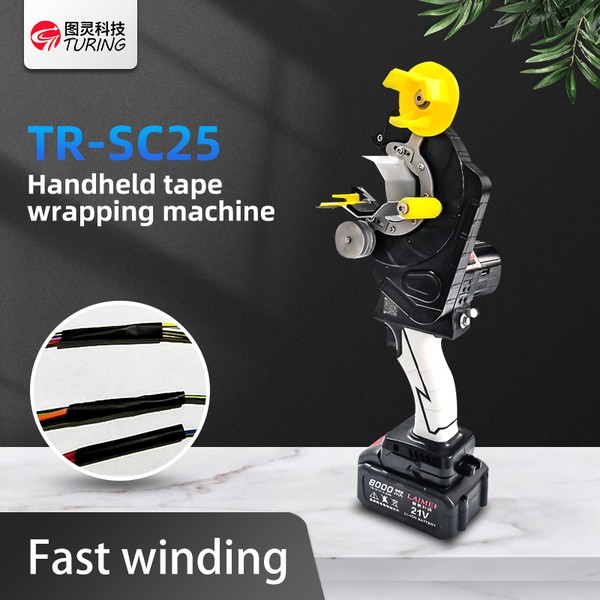

TR-SC25 Semi-auto Wire Handheld Tape Winding Machine | Semi-auto Wire Handheld Tape Winding Machine | PLC / touch-screen control | — | — | 1 set | Quote on request | View → |

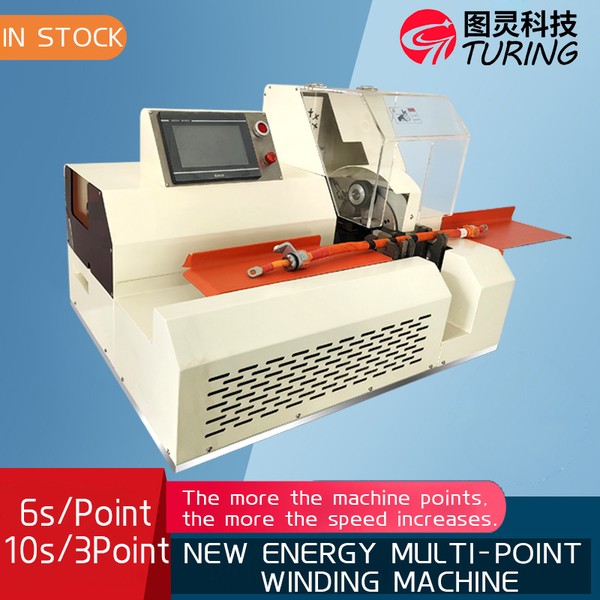

TR-M01 New Energy Car Cable Multi-points Wide Tape Winding Machine | — | Servo and Step motor | AC220V/50HZ, 300W | Cable Making Industry | 1 set | Quote on request | View → |

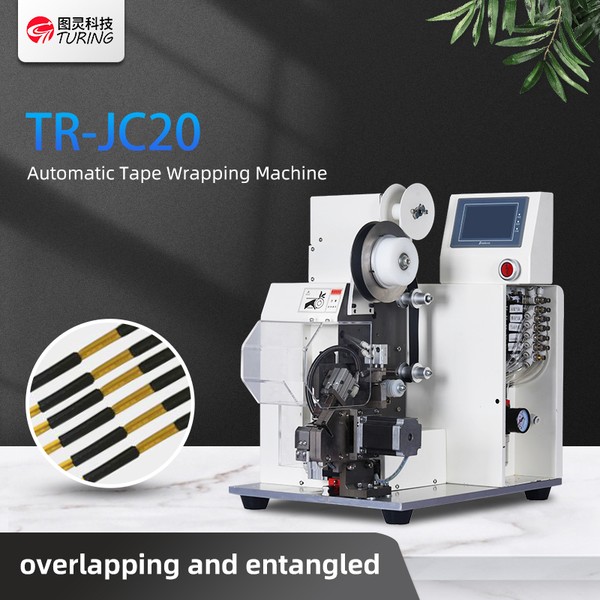

TR-JC20 TR-JC20 Semi-Automatic Wire Tape Points Winding Machine | — | — | AC220V/50HZ, 300W | Cable Making Industry | 1 set | Quote on request | View → |

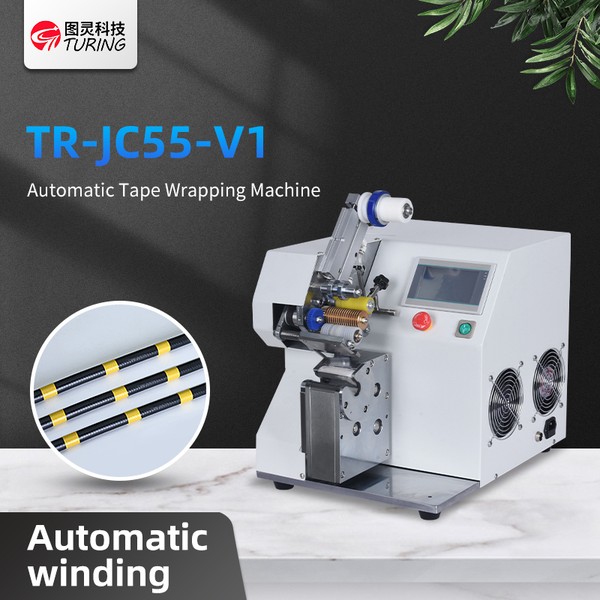

TR-JC55-V1 TR-JC55-V1 Automatic Tape Winding Machine | — | — | AC220V/50HZ, 300W | Cable Making Industry | 1 set | Quote on request | View → |
Indicative FOB prices. Final specifications and lead time are confirmed at quotation.
Not Sure Which Model?
Built and Tested in Our Workshop
Every machine is assembled in our Dongguan workshop and run in before shipment. QC sequence: Raw material check → Machining → Assembly → 100% run-in test → Shipment video. A test video on your own material is available on request.
Tape Wrapping and Bundling Machine in production
