Coaxial and RF Cable Processing Machines
coaxial cable stripping machine, RF cable processing machine, coaxial wire stripping equipment — equipment configurations for coaxial & rf cable production lines.
What limits coaxial & rf cable production?
- ● Shield and dielectric layers must come off without nicking the conductor
- ● Layer counts differ from one cable family to the next
- ● Long cable runs make hand preparation the bottleneck
Recommended Equipment
- ■ TR-9800S TR-9800S Fully Automatic Coaxial Wire Stripping Machine — coaxial layer stripping
- ■ TR-9600S TR-9600S Fully Automatic Coaxial Wire Stripping Machine — coaxial layer stripping
- ■ TR-9018 TR-9018 Semi-Auto 9 Layers 3-18mm Diameter Coaxial Wire Stripping Machine — coaxial layer stripping
- ■ TR-8023 TR-8023 10 Layers 2-23mm Semi-Auto Coaxial Wire Stripping Machine — coaxial layer stripping

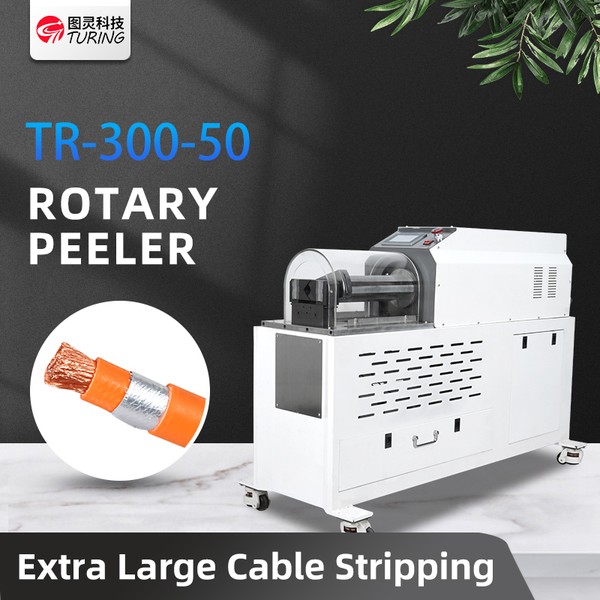

- ■ TR-300-50 TR-300-50 Multi-core Charging Cable Power Transmission Coaxial Wire Stripping Rotary Peeling Machine — coaxial layer stripping
- ■ TR-035D TR-035D Shielded Mesh Brushing, Turning & Cutting Machine — shield brushing, turning and cutting
- ■ TR-PB02 TR-PB02 Semi-Automatic Shielding Layer Brushing Machine — shield brushing, turning and cutting
- ■ TR-302S TR-302S Inner & Outer Sheath And Braid Processing Machine — shield brushing, turning and cutting
Line Planning
Specifying This Line
Tell us what the coaxial & rf cable line has to produce and we return the machine list, dies, cycle-time assumptions and spare parts for it.
What this configuration covers
8 machines across 2 process categories
To size the line we need three things from you:
- The terminal, seal and connector families you run, with wire ranges
- Target output per shift, and which operation currently limits it
- Which operations stay manual and which should move to a machine
Equipment
Machines for This Application
