TR‑WK02 Fully Automatic Thermal Protector Welding Machine

Name: TR‑WK02 Fully Automatic Thermal Protector Welding Machine
Brand: Turingnex
SKU: TR‑WK02
Availability: InStock

TR‑WK02 Fully Automatic Thermal Protector Welding Machine: Power Main machine 220V, Inverter power supply 380V; applicable-wire-diameter AWG16#‑AWG26#, 0.8mm, 1mm bare copper wire; dimensions L2400mm × W850mm × H1600mm.

Request Quotation Watch Video Downloads

Quote on requestFOB · MOQ 1 set · final price confirmed at quotation

Power: Main machine 220V, Inverter power supply 380VApplicable-wire-diameter: AWG16#‑AWG26#, 0.8mm, 1mm bare copper wireDimensions: L2400mm × W850mm × H1600mmProduction-capacity: Non‑tinning: 850 pcs/hour; Tin‑dipping: 700 pcs/hourEquipment-name: TR‑WK02 Fully‑Automatic Protector Welding MachineSize: L2400mm × W850mm × H1600mm

The protector is automatically sorted and fed by a vibrating plate.
Multi‑inspection functions: protector presence detection, double‑wire pre‑inspection before welding, and protector welding quality inspection. It identifies and rejects defects such as material shortage, circuit abnormalities and poor welding, effectively reducing defective output.
Independent resistance welding for dual pins of the protector. Welding parameters for both pins can be adjusted separately. The welding quality of each pin is controllable to ensure firm and consistent weld joints. Suitable for thermal protector and thermistor wire welding.

CE CertifiedFactory Direct Price12-Month Warranty24h Quote ResponseTested Before ShipmentFree Sample Test Video

10,000+ Machines installed worldwide50+ Export countries

Highlights

01

Automatic Feeding

The protector is automatically sorted and fed by a vibrating tray for high‑level automation. Works with thermal protector, NTC protector, thermostat and thermal cutoff types.

02

Multi‑level Inspection Protection

Equipped with protector presence detection, double‑wire pre‑inspection and welding quality inspection. It rejects defective products caused by material shortage, circuit faults and poor welding to reduce defect rates.

03

Independent Welding for Dual Pins

Dual‑pin independent resistance welding allows separate adjustment of welding parameters for each pin, delivering firm and consistent welding joints.

04

Precise Positioning & Tin Coating

Servo translation mechanism ensures accurate welding positioning. Rotating‑workpiece tin‑dipping achieves uniform tin coating and consistent tin‑dipping performance.

05

Wide Processing Compatibility

Compatible with AGW16#‑AGW26# wires and 0.8 mm / 1 mm bare copper wires. Cutting length ranges from 20 mm to 1200 mm. It completes multiple processes including cutting, stripping, welding, wire twisting and tin‑dipping.

06

High Cutting Accuracy

Segmented high‑precision cutting control. For lengths under 500mm: accuracy of 0.5mm + 0.2% of set length; for lengths over 1000mm: accuracy of 1mm + 0.2% of set length for reliable dimensional processing.

Machine Video

TR‑WK02 in Operation

TR‑WK02 Fully Automatic Thermal Protector Welding Machine in operation

Full Specifications

Technical Data

Model	TR‑WK02
Power	Main machine 220V, Inverter power supply 380V
Applicable-wire-diameter	AWG16#‑AWG26#, 0.8mm, 1mm bare copper wire
Dimensions	L2400mm × W850mm × H1600mm
Production-capacity	Non‑tinning: 850 pcs/hour; Tin‑dipping: 700 pcs/hour
Equipment-name	TR‑WK02 Fully‑Automatic Protector Welding Machine
Size	L2400mm × W850mm × H1600mm
Processing-range	AWG16#‑AWG26#, 0.8mm, 1mm bare copper wire
Cutting-accuracy	0.5mm + 0.2% of set length for length below 500mm; 1mm + 0.2% of set length for length above 1000mm
Cutting-length	20‑1200mm
Stripping-length	Wire head: 0‑12mm; Wire tail: 0‑13mm
Control-mode	Motion control card
Functions	Fixed‑length cutting, single‑end / double‑end stripping, protector double‑wire welding, single‑end wire‑twisting & tin‑dipping, wire pulling
Detection-functions	Air pressure detection, wire presence detection, double‑wire detection, protector presence detection, welding quality detection
Compressed-air	0.5‑0.8MPa
Terminal compatibility

Ordering Information

Certification	CE — ISO9001 factory — certificates on request
MOQ	1 set
Price (FOB, indicative)	Quote on request
Lead time	Standard models in stock; customised 7–15 days
Payment	T/T 30% deposit + 70% before shipment
Warranty	Standard warranty — terms confirmed in sales contract
Free trial	Free crimp test with your wire & terminals

Specifications are indicative and confirmed with your order. Custom configurations available.

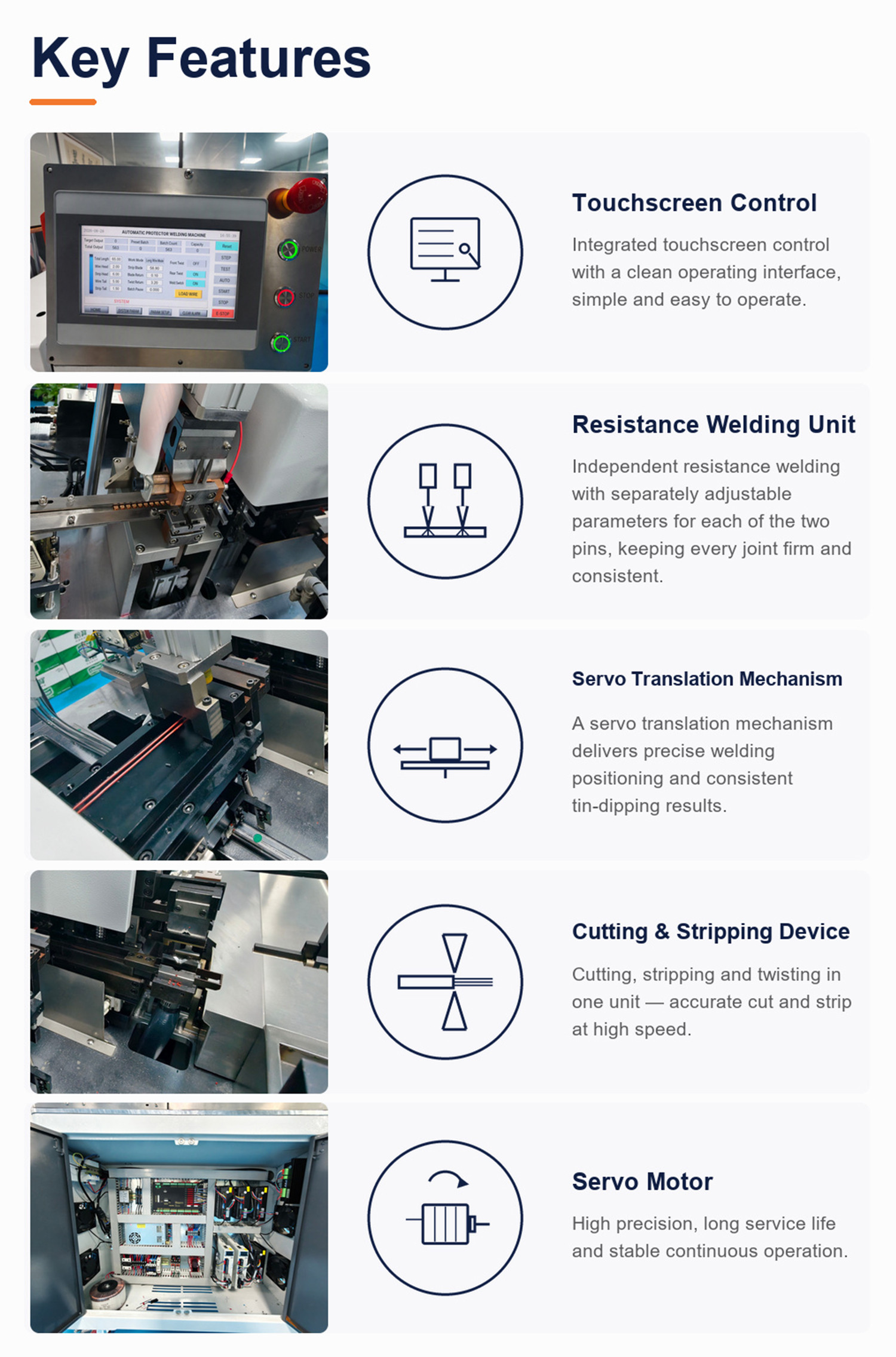

Features & Details
