Highlights
01
Machine function

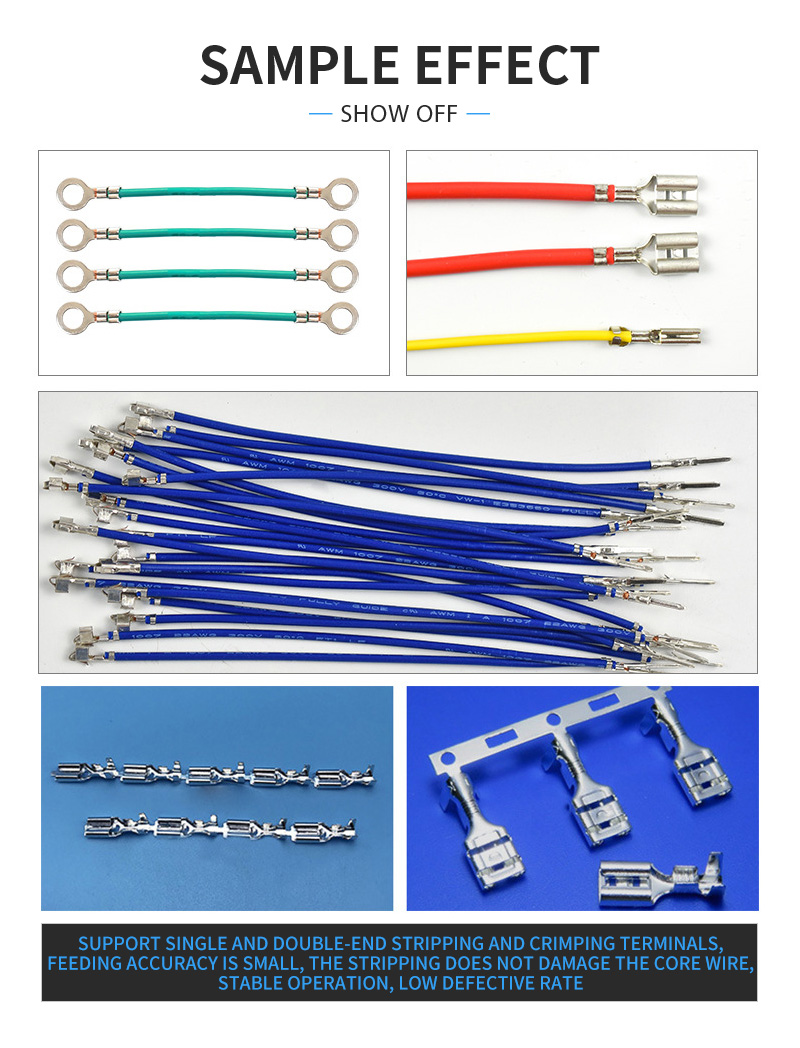

Cut the wire, peel both ends, half-strip the single end, press the single end of the single wire, and press the double ends of the single wire.
02
Cutting line length
26mm~9999mm
03
Cutting line tolerance
≥1m,±0.02% or less
04
Peeling length
0.5mm~35mm (over 12mm, half peeling is required)
Machine Video

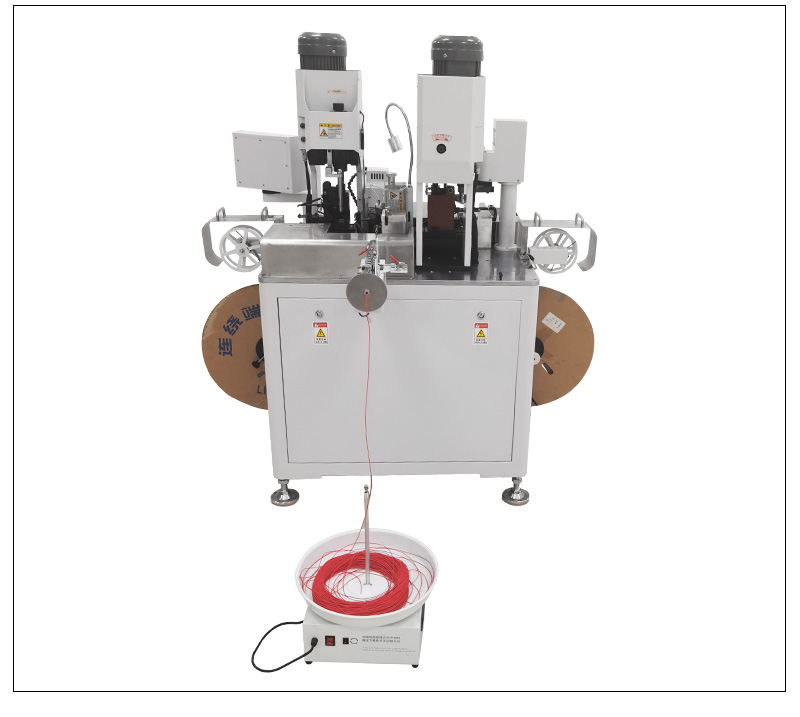

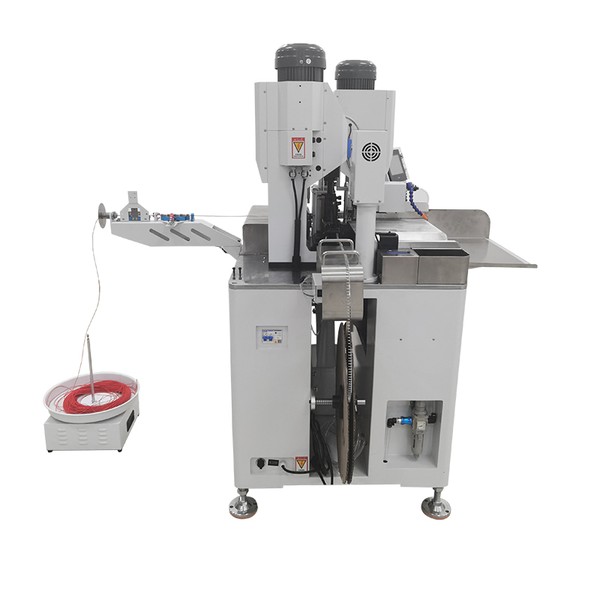

TR-T01 in Operation

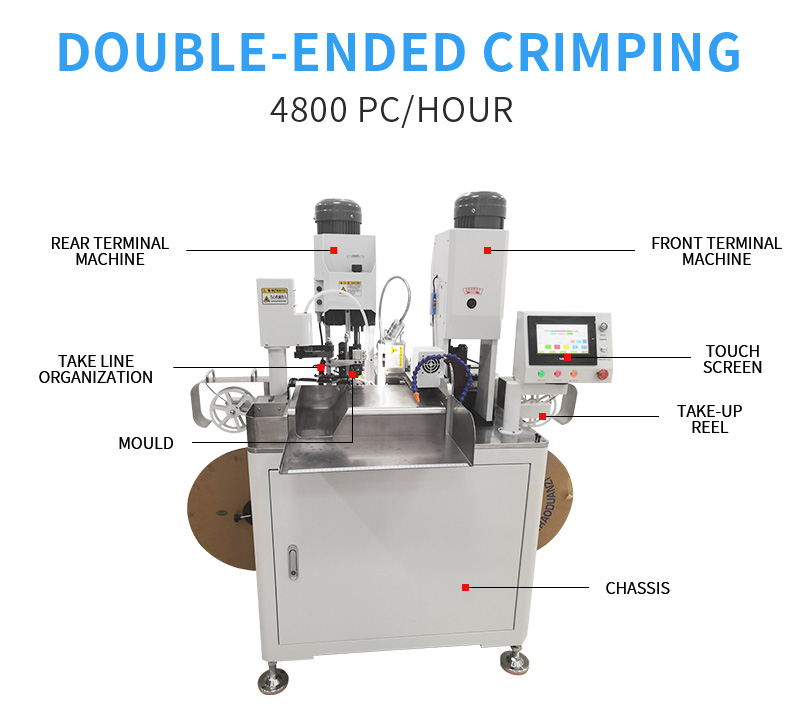

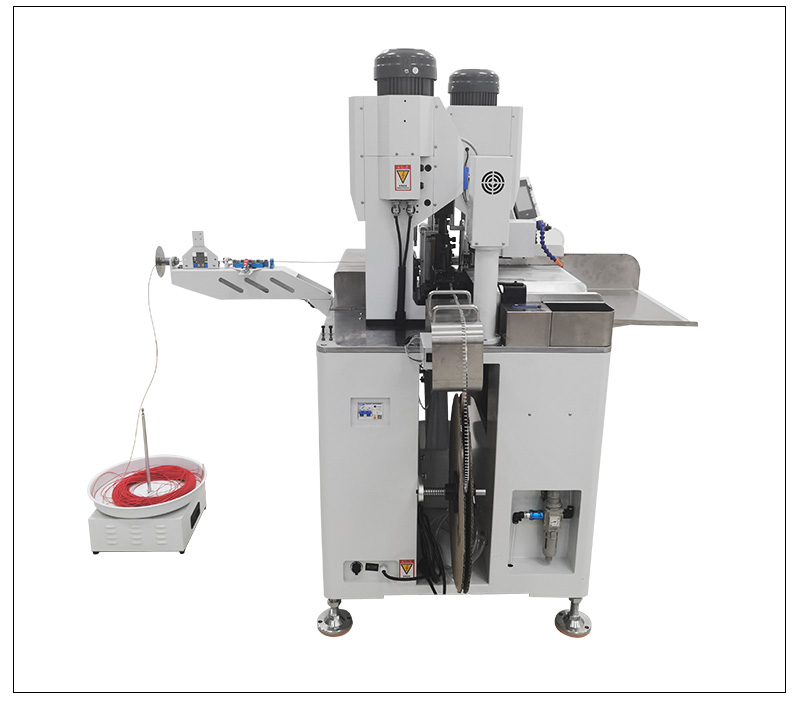

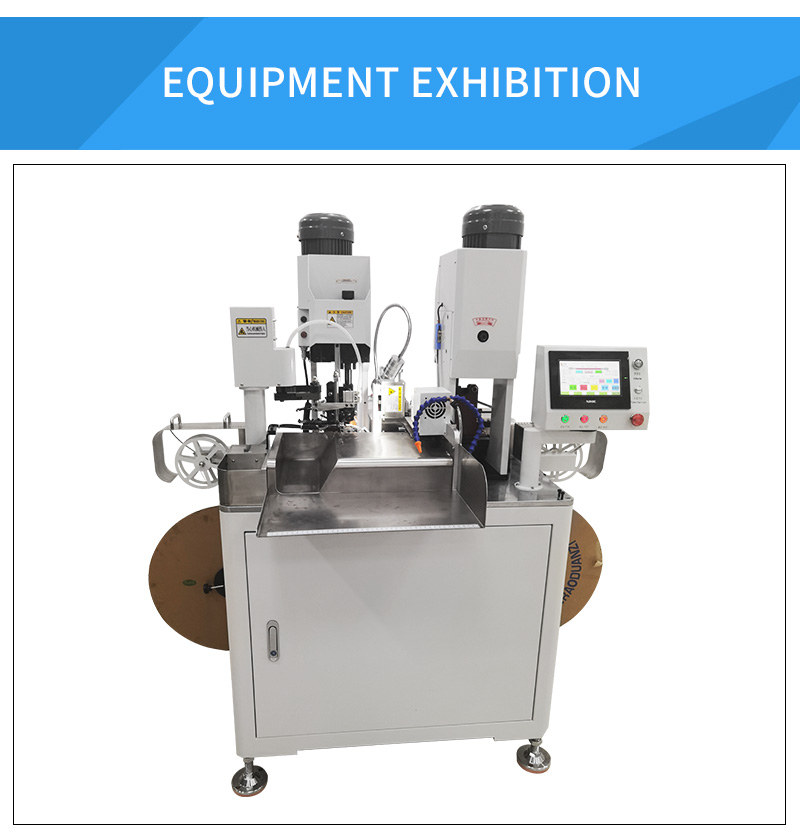

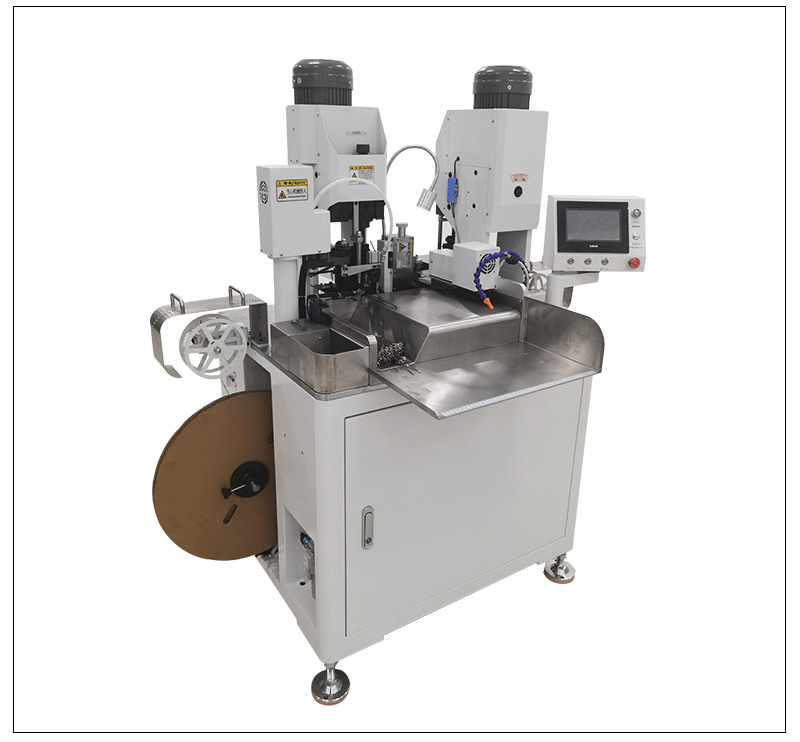

TR-T01 Fully Automatic Mitsubishi Servo Motor Double-head Terminal Crimping Machine in operation

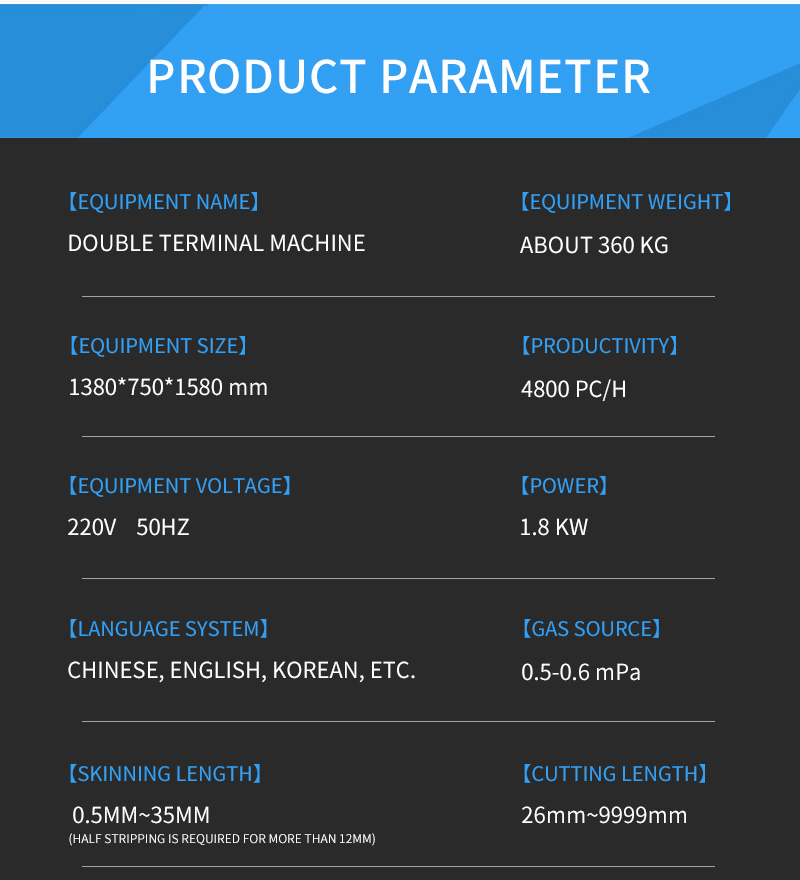

Full Specifications
Technical Data
| Model | TR-T01 |
| Power | AC220V/50HZ, |
| Application | Mitsubishi servo motor double-head terminal |
| Feature | Stable Performance |
| Warranty | 1year |
| Control | Servo and Step motor |
| Contact | Lily 0086-13715588365 |
| Machine-function | Cut the wire, peel both ends, half-strip the single end, press the single end of the single wire, and press the double ends of the single wire. |
| Cutting-line-length | 26mm~9999mm |
| Cutting-line-tolerance | ≥1m,±0.02% or less |
| Peeling-length | 0.5mm~35mm (over 12mm, half peeling is required) |
| Cutting-speed | 5200 pieces/h (within 100mm) |
| Processing-efficiency | 4000~4800/h (within 30~200mm) |
| End-pressure | Standard 2.0T, other pressures can be customized |
| Applicable-wire | AWG30#~14# |

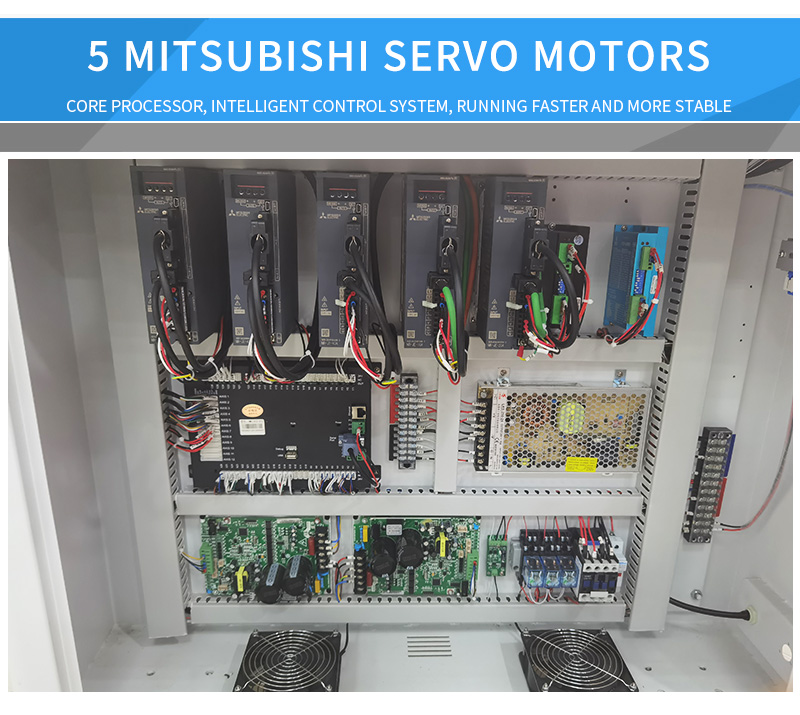

| Motor | 5 sets of Japanese Mitsubishi servo motors + 2 sets of stepper motors |
| Applicable-mold | OTP transverse mold, straight mold (European mold can be customized) |
| Slide-rail | 7 sets of silver rails |
| Lead-screw | 4 sets of TBI screws |
| Bearing | Swedish SKF |
| Terminal-crimping-ability | 2T/3T European precision frequency conversion terminal machine |
| Terminal compatibility |
Ordering Information
| Certification | CE — ISO9001 factory — certificates on request |
| MOQ | 1 set |
| Price (FOB, indicative) | Quote on request |
| Lead time | Standard models in stock; customised 7–15 days |
| Payment | T/T 30% deposit + 70% before shipment |
| Warranty | Standard warranty — terms confirmed in sales contract |
| Free trial | Free crimp test with your wire & terminals |
Specifications are indicative and confirmed with your order. Custom configurations available.
Features & Details

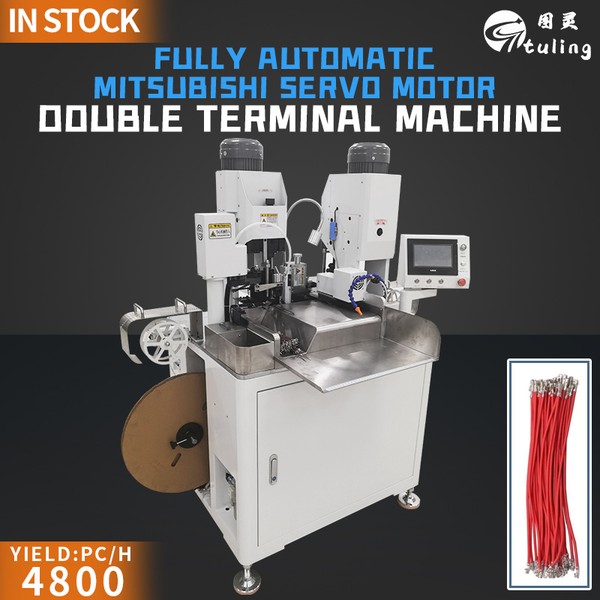

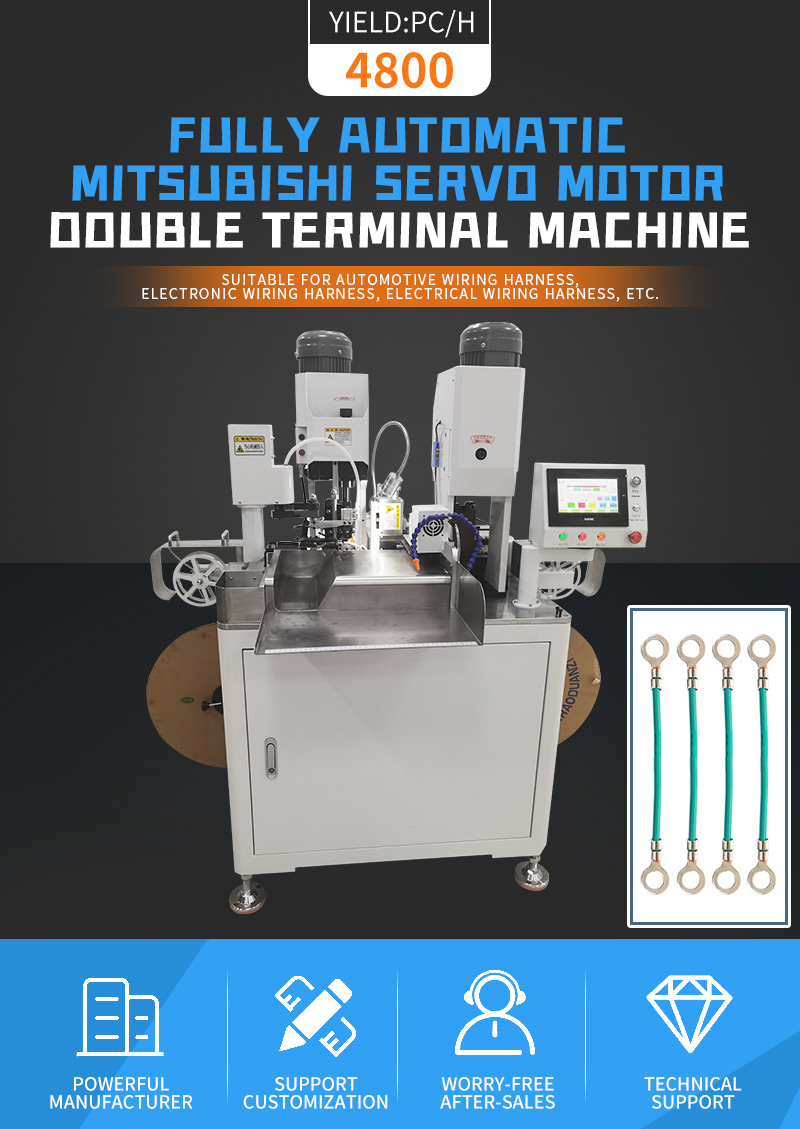

- TR-T01 Fully Automatic Mitsubishi servo motor double-head terminal crimping machine
- Automatic wire cutting stripping machine, Wire Stripping Machine, Cable Stripping Machine, Wire Cutting and Stripping Machine, Cable Cutting and Stripping Machine, automatic wire cutting stripping machine, fully automatic wire cutting stripping machine manual, vevor full automatic wire cutting stripping machine, automatic cable wire cutting stripping machine, full automatic wire cutting stripping machine, coaxial cable wire cutting stripping machine, automatic wire cutting stripping and crimping machine, used automatic wire cutting and stripping machine, automatic wire cutting stripping and crimping machine price, wire cutting and stripping machine usa,
Services Around the Machine
Free sample testYour wire, our machine — video proof before you pay.
Setup guidanceRemote commissioning support included with every order.
12-month warrantyPlus spare-parts support and calibration advice.
Options & toolingCustom dies and accessories made to your terminal.
Custom Machine Program
From Your Wire to a Working Machine
Machines are configured around your wire range and terminals — this is how we de-risk it before you pay.
01Send SamplesYour wire and terminals — free evaluation, no commitment.
02Free Test + VideoWe run your sample on the machine and send the video proof.
03Config & QuoteConfiguration, options and FOB quote confirmed within 24 h.
04Build & Run-in TestEvery machine is built and run-in tested 100% before packing.
05QC Video & ShipFinal QC video before packing — sea, air or express dispatch.
Application Note
Which materials it handles, which lines it fits — in the context of your application.
View Application SolutionFree Sample Test
Send your wire and terminals — we run the test on our machine and return the video.
Indicative lead time: On request
Request a TestWhy Buy Direct From Turingnex
Applied Industries

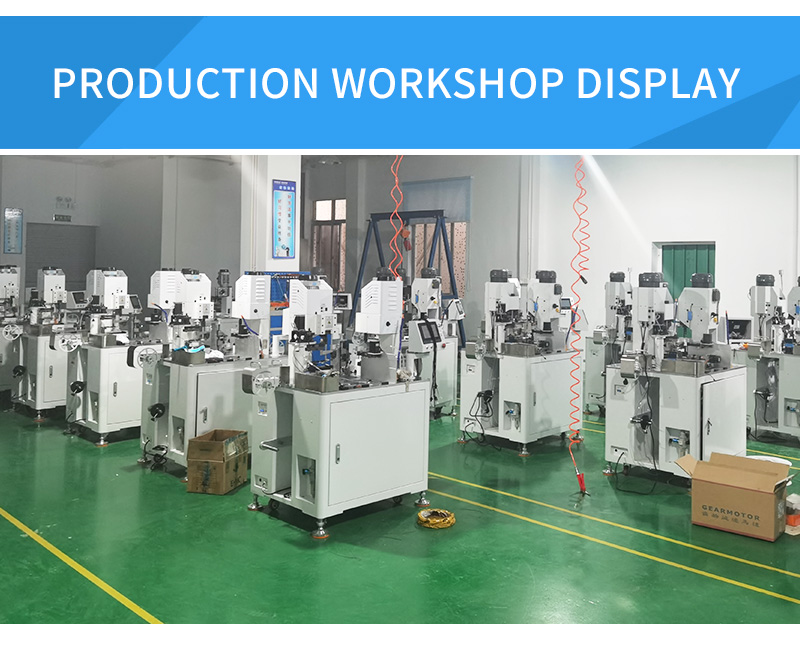

20,000㎡Factory area, Dongguan
10,000+Machines installed worldwide
50+Export countries
98%On-time delivery
Factory Direct
One factory in Dongguan, one engineer per inquiry — 24h quotes, no middlemen.
Certified & Protected
CE certification, ISO9001 quality system, Alibaba Trade Assurance available.
Test Before You Buy
Free crimp test on your wire and terminals — quality verified before you commit.
Packing & Delivery
- Export-grade packing: wooden case / carton with foam protection
- Sea, air or express shipping — tracking provided
- QC photos & videos sent before packing
- Spare dies and consumables available for reorder
Sea / air / express options Tracking after dispatch
TR-T01 — Purchasing FAQ
MOQ is 1 machine for standard models — you can trial a single unit on one line before scaling. Custom dies are ordered by piece.
Common standard models are in stock and can ship right away; customised (non-standard) machines are built to order in 7–15 days. Dies and lead time are confirmed in the quotation.
Standard terms are T/T — 30% deposit to start production and 70% balance before shipment. L/C and Alibaba Trade Assurance are also accepted.
Our factory holds CE certification and ISO9001 quality management, and orders can be protected by Alibaba Trade Assurance. Certificates are available on request.
