Highlights
01
Model No.
TR-PX1
02
Power Supply
AC220V 50/60HZ
03
Funtion
Wire cutting, single end peeling.double end peeling, single endpressing, double end pressing.single end threading, double end threading
04
Capacity
800 pcs/hour for cable 12P (depending on wire)
Machine Video
TR-PX1 in Operation

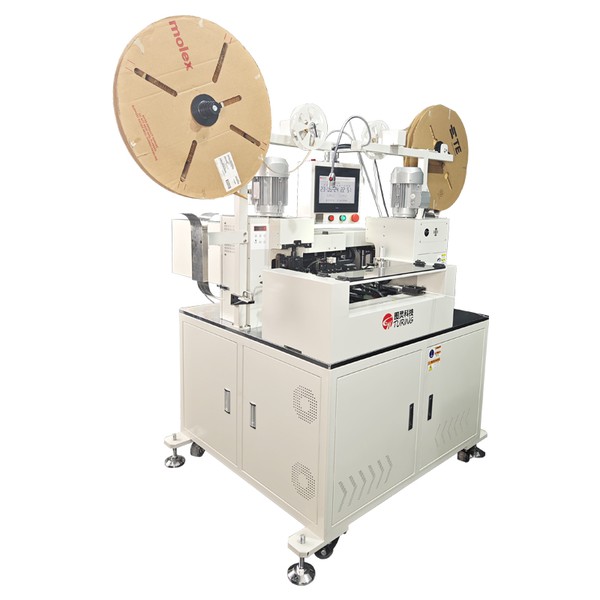

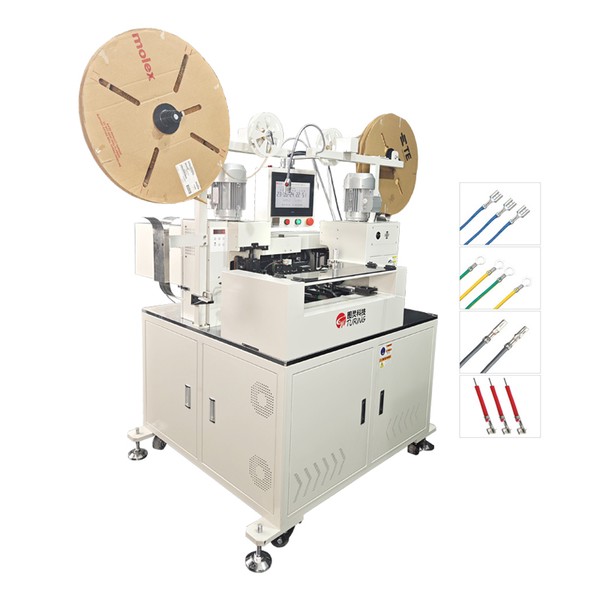

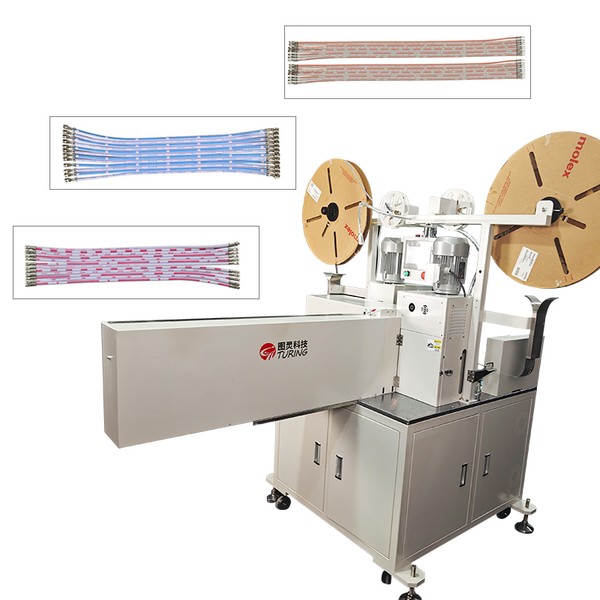

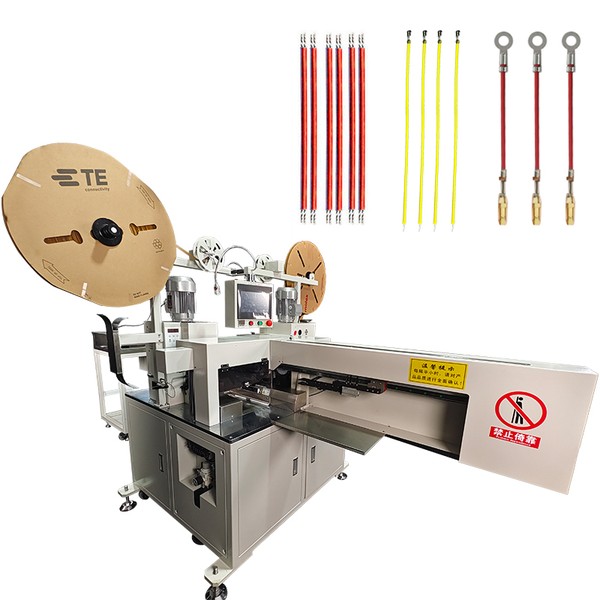

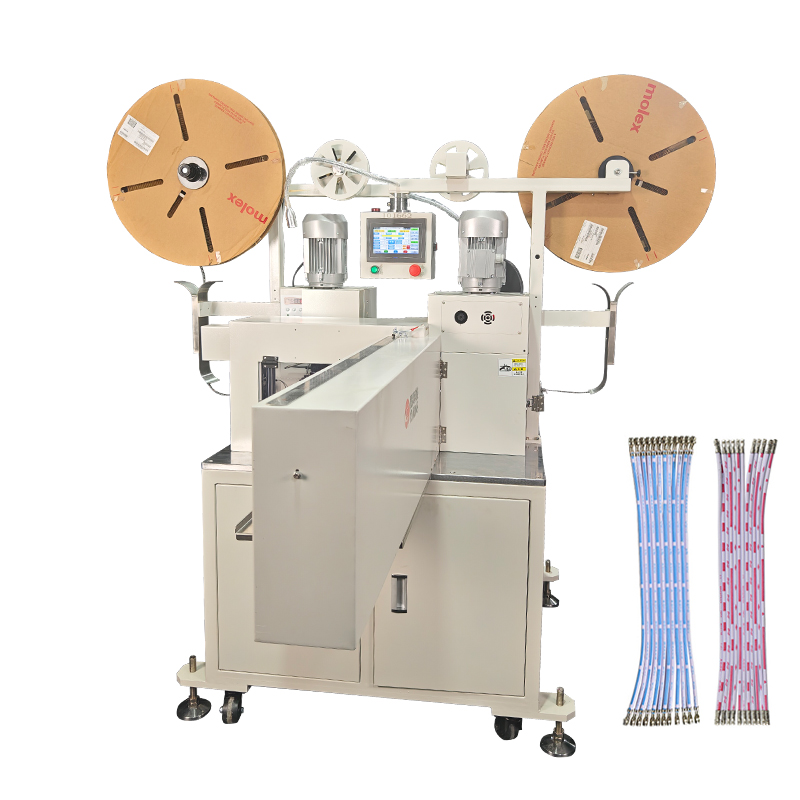

TR-PX1 Fully Automatic High-speed Cable Double-head Terminal Crimping Machine in operation
Full Specifications
Technical Data
| Model | TR-PX1 |
| Power | AC220V/50HZ, |
| Application | Double end Terminal Machine |
| Feature | Stable Performance |
| Warranty | 1year |

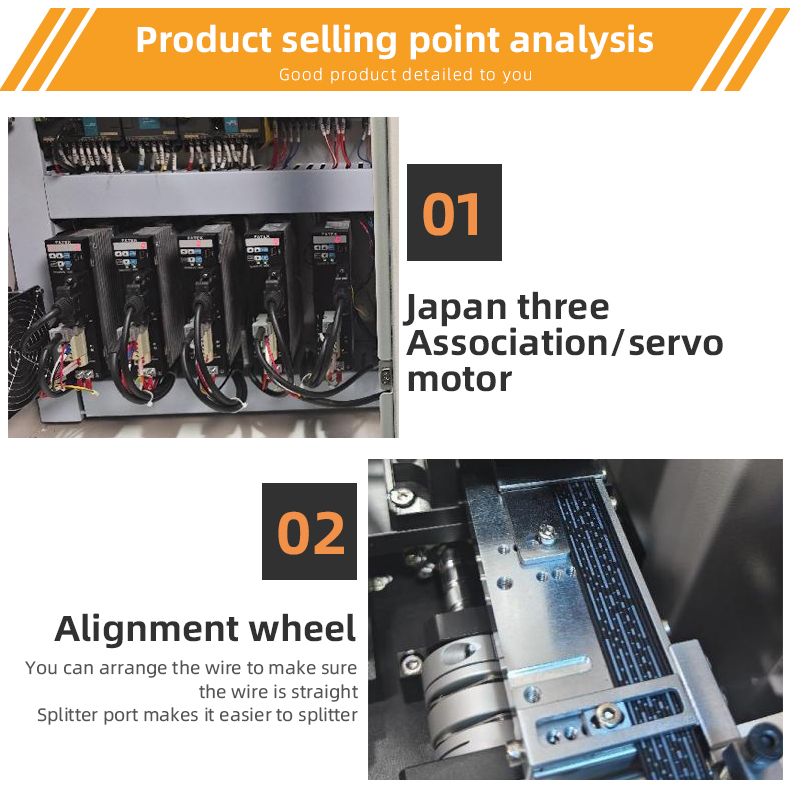

| Control | Servo and Step motor |
| Contact | Coco 0086-18666170785 |
| Model-no. | TR-PX1 |
| Power-supply | AC220V 50/60HZ |
| Funtion | Wire cutting, single end peeling.double end peeling, single endpressing, double end pressing.single end threading, double end threading |
| Capacity | 800 pcs/hour for cable 12P (depending on wire) |
| Processing-model | AWG#30-AWg #18 for cable type , 26#-18# for electric wire |
| Cutting-length | 45mm-1000mm(change the minimum cutting length according to the peeling size) |
| Cutting-tolerance | Variation range: 1mm+ cut length lessthan 0.1% |
| Front-and-end-stripping-length | 0mm-8mm |
| Max-wire-width | 28mm |

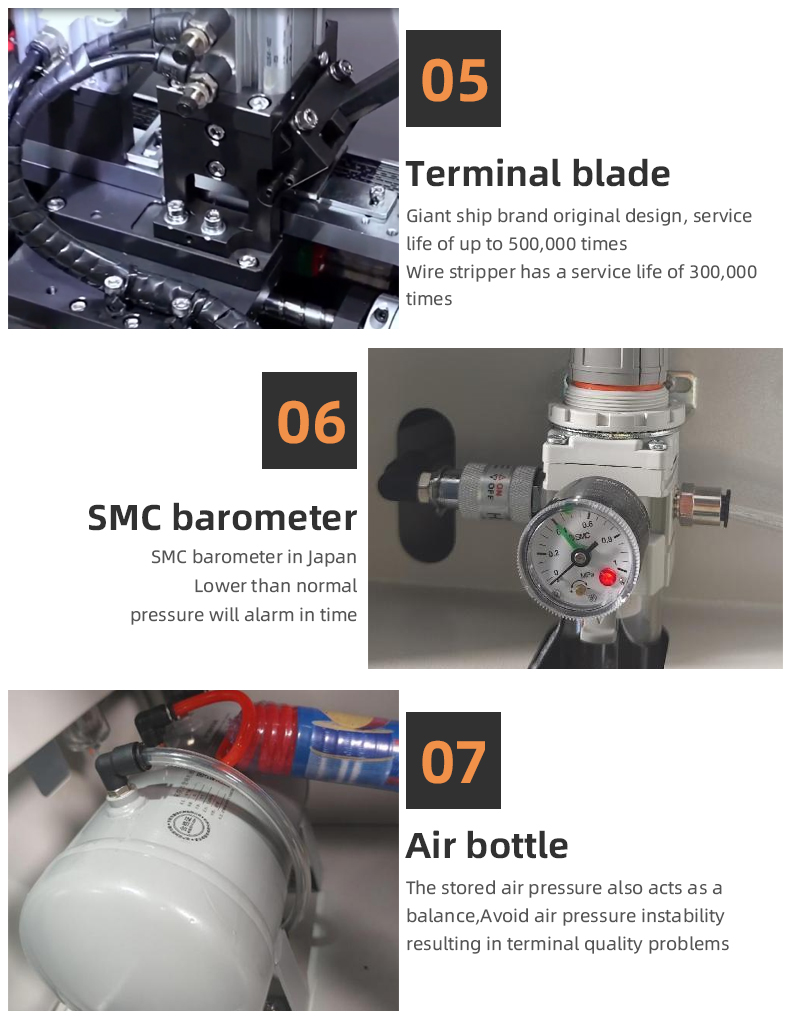

| Air-pressure | 0.4-0.6 MPa clean and dry air |
| Machine-size | 1920*1520*1750mm |
| Weight | 600kg |
| Special-function | Two or more lines can be processed at the same time (including two Electronic wires can simultaneously process 12 (maximum) crimping at both ends, crimping at one end, crimping at intervals, and crimping with phase rotation. The middle segm |
| Terminal compatibility |
Ordering Information
| Certification | CE — ISO9001 factory — certificates on request |
| MOQ | 1 set |
| Price (FOB, indicative) | Quote on request |
| Lead time | Standard models in stock; customised 7–15 days |
| Payment | T/T 30% deposit + 70% before shipment |
| Warranty | Standard warranty — terms confirmed in sales contract |
| Free trial | Free crimp test with your wire & terminals |
Specifications are indicative and confirmed with your order. Custom configurations available.
Features & Details
Services Around the Machine
Free sample testYour wire, our machine — video proof before you pay.
Setup guidanceRemote commissioning support included with every order.
12-month warrantyPlus spare-parts support and calibration advice.
Options & toolingCustom dies and accessories made to your terminal.
Custom Machine Program
From Your Wire to a Working Machine
Machines are configured around your wire range and terminals — this is how we de-risk it before you pay.
01Send SamplesYour wire and terminals — free evaluation, no commitment.
02Free Test + VideoWe run your sample on the machine and send the video proof.
03Config & QuoteConfiguration, options and FOB quote confirmed within 24 h.
04Build & Run-in TestEvery machine is built and run-in tested 100% before packing.
05QC Video & ShipFinal QC video before packing — sea, air or express dispatch.
Application Note
Which materials it handles, which lines it fits — in the context of your application.
View Application SolutionFree Sample Test
Send your wire and terminals — we run the test on our machine and return the video.
Indicative lead time: On request
Request a TestWhy Buy Direct From Turingnex
Applied Industries
20,000㎡Factory area, Dongguan
10,000+Machines installed worldwide
50+Export countries
98%On-time delivery
Factory Direct
One factory in Dongguan, one engineer per inquiry — 24h quotes, no middlemen.
Certified & Protected
CE certification, ISO9001 quality system, Alibaba Trade Assurance available.
Test Before You Buy
Free crimp test on your wire and terminals — quality verified before you commit.
Packing & Delivery
- Export-grade packing: wooden case / carton with foam protection
- Sea, air or express shipping — tracking provided
- QC photos & videos sent before packing
- Spare dies and consumables available for reorder
Sea / air / express options Tracking after dispatch
TR-PX1 — Purchasing FAQ
MOQ is 1 machine for standard models — you can trial a single unit on one line before scaling. Custom dies are ordered by piece.
Common standard models are in stock and can ship right away; customised (non-standard) machines are built to order in 7–15 days. Dies and lead time are confirmed in the quotation.
Standard terms are T/T — 30% deposit to start production and 70% balance before shipment. L/C and Alibaba Trade Assurance are also accepted.
Our factory holds CE certification and ISO9001 quality management, and orders can be protected by Alibaba Trade Assurance. Certificates are available on request.
