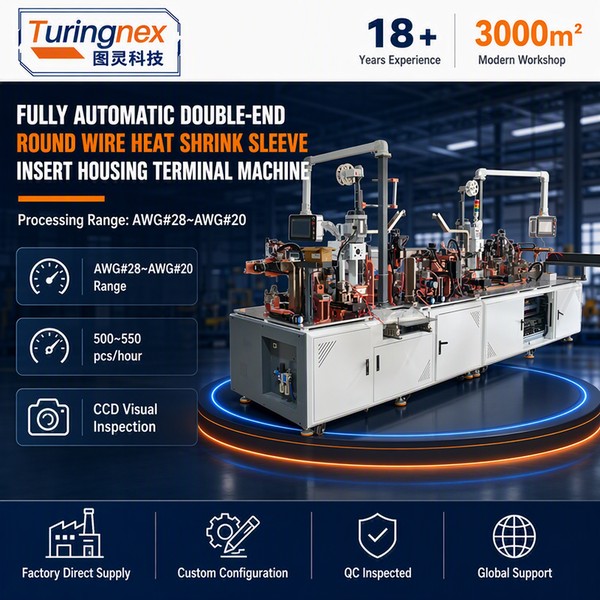

Highlights
Multi-dimensional full CCD visual inspection with automatic defective sorting
Equipped with dual-channel Hikvision CCD vision system, it detects core color errors, stripping defects, terminal appearance flaws, housing seating position, missing terminals/tubes/housings, combined with air pressure and crimp force monitoring systems. Defective products are automatically separated, with qualified yield controlled at 3‰.
Wide compatibility for diversified wire harness orders
Compatible with AWG28#~AWG20# wires, 2P–10P universal connector housings, heat shrink tubes with outer diameter 4–12mm. Wire cutting length ranges from 130mm to 1500mm with adjustable stripping dimensions; custom non-standard machines available based on customer samples.
High stable output & outstanding cutting precision
Production capacity reaches 500–550 finished sets per hour for wires under 1000mm. Cutting tolerance: ±(0.2%*L+1)mm. Fitted with Huizhong crimp force monitor and 2-ton crimping main unit for stable crimp quality.

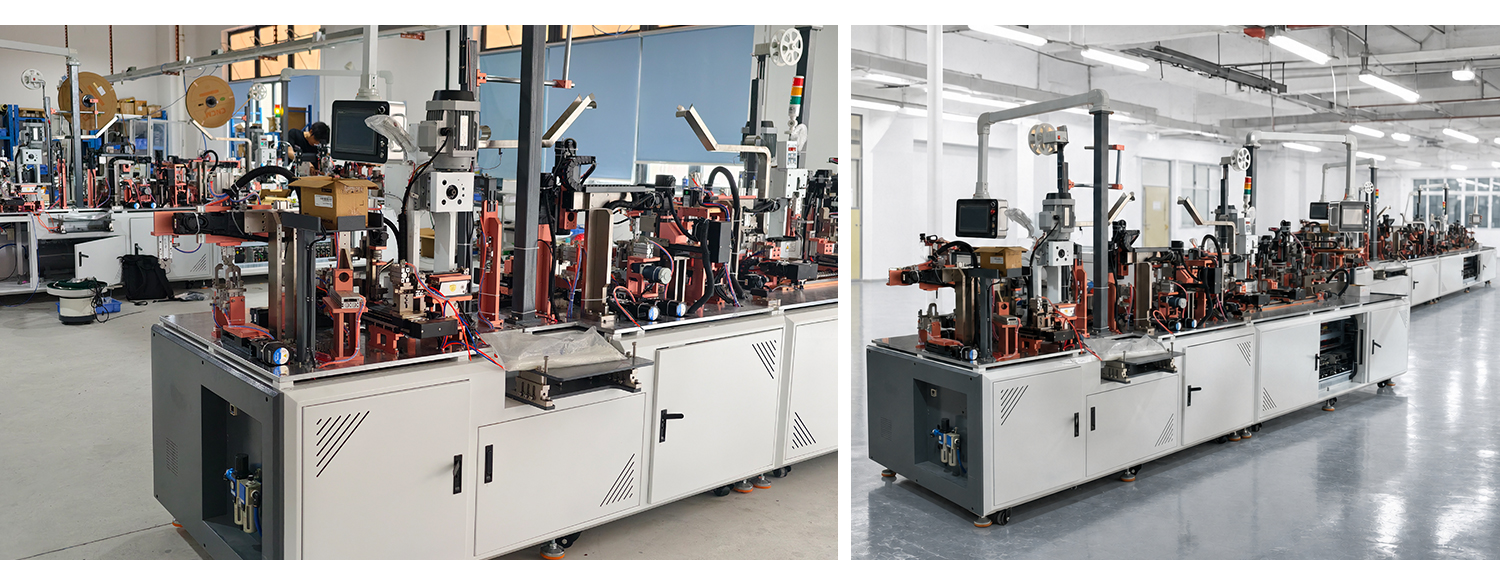

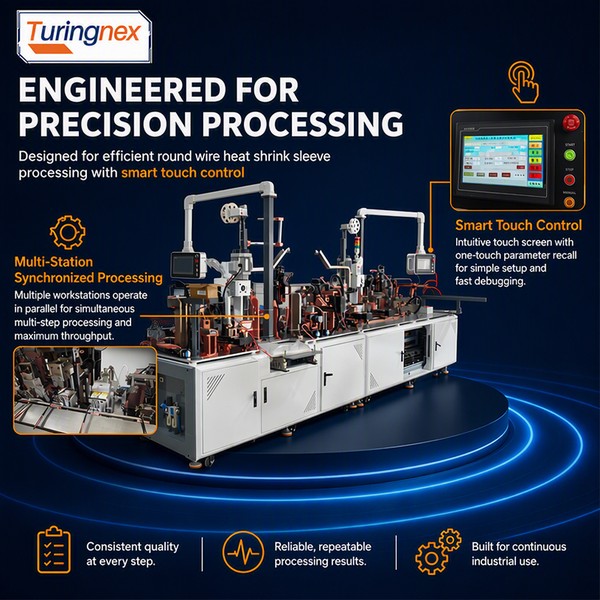

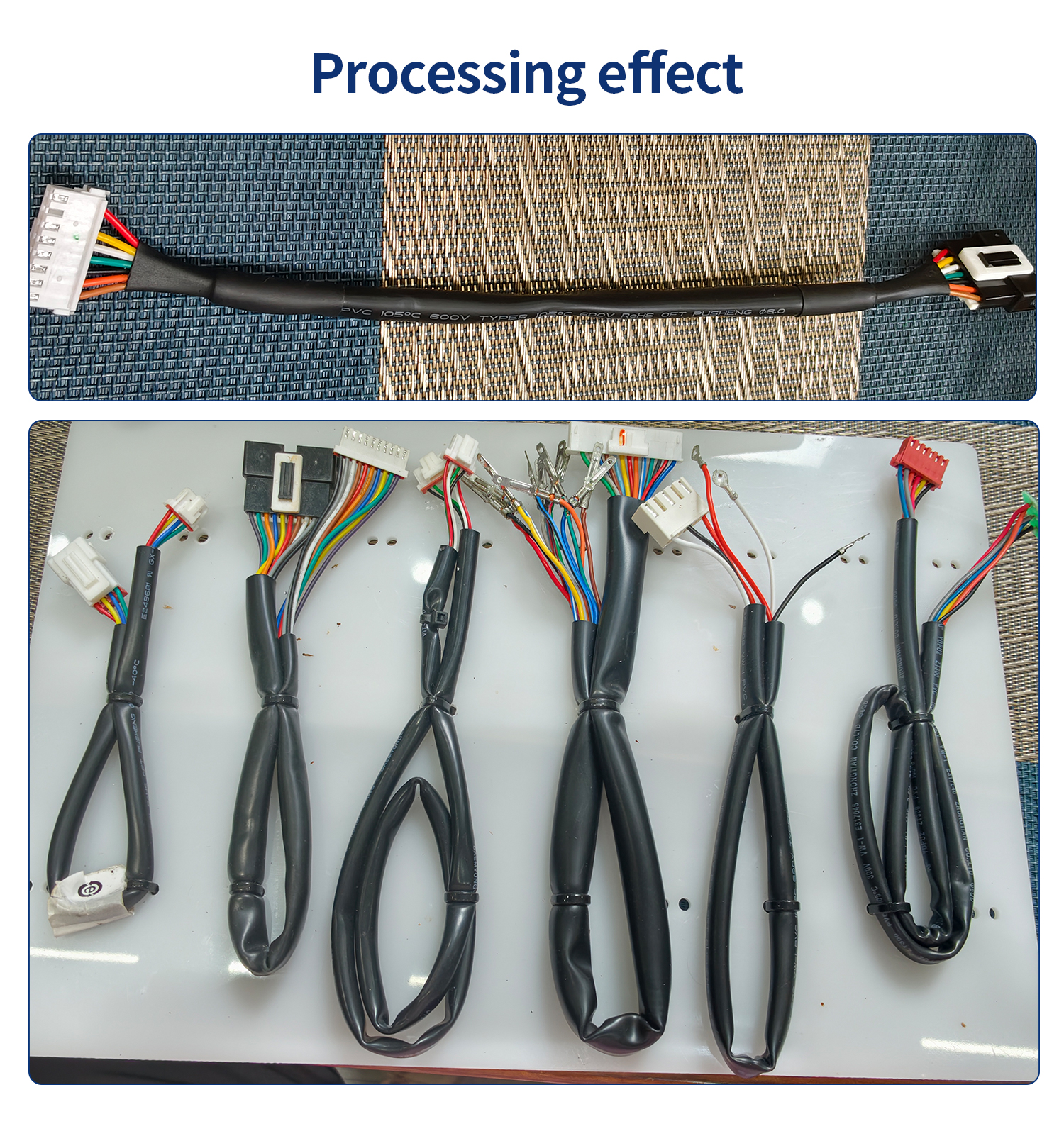

TR-M9 in Operation
Full Specifications
Technical Data
| Model | TR-M9 |
| Power | 50/60HZ 220V Single-phase |
| Scope-of-processing | AWG#28-AWG#20 |
| Connector-housing-range | 2P-10P Universal |
| Air-pressure | 0.6-0.75Mpa (6-7KG/Cubic) |

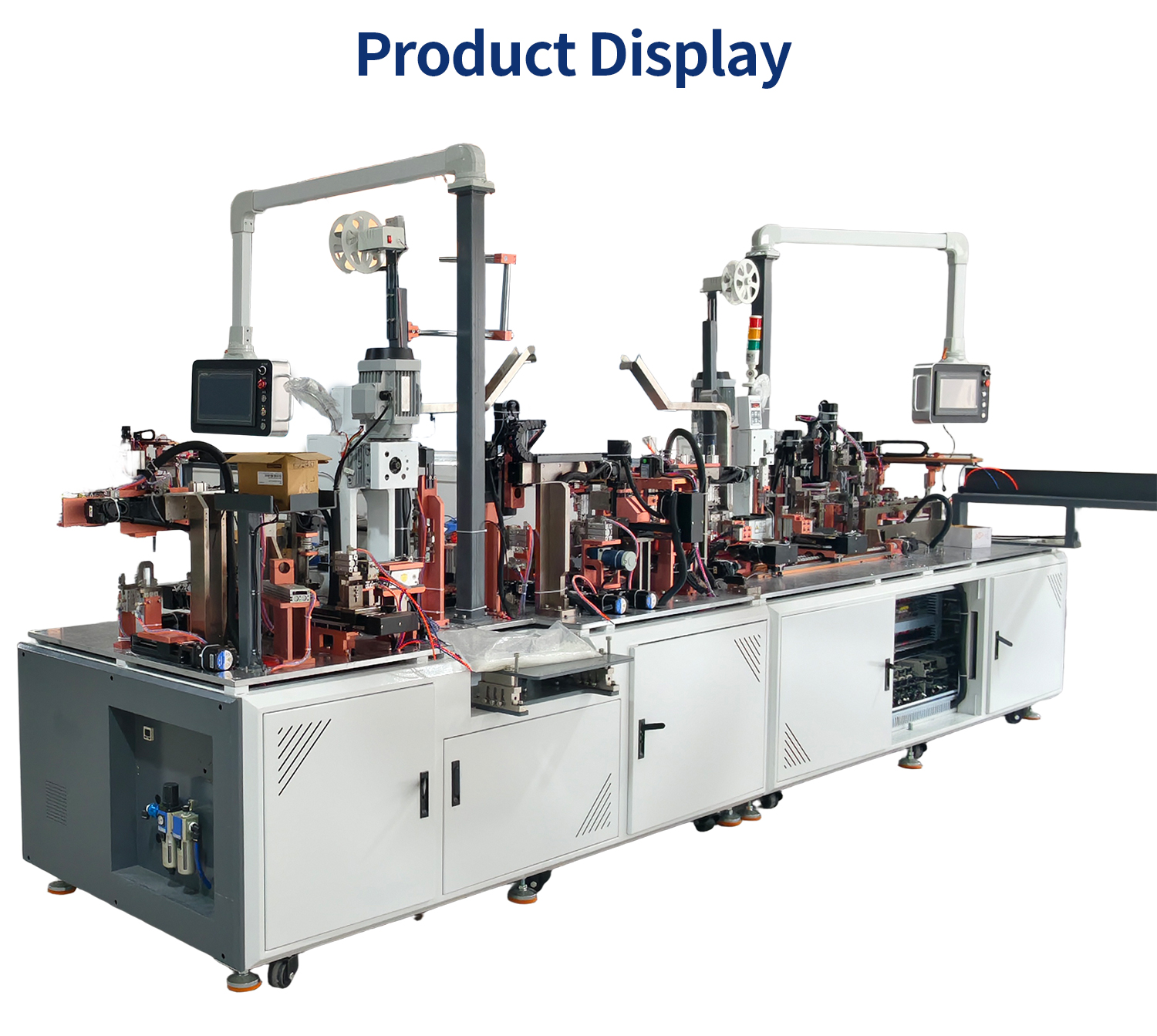

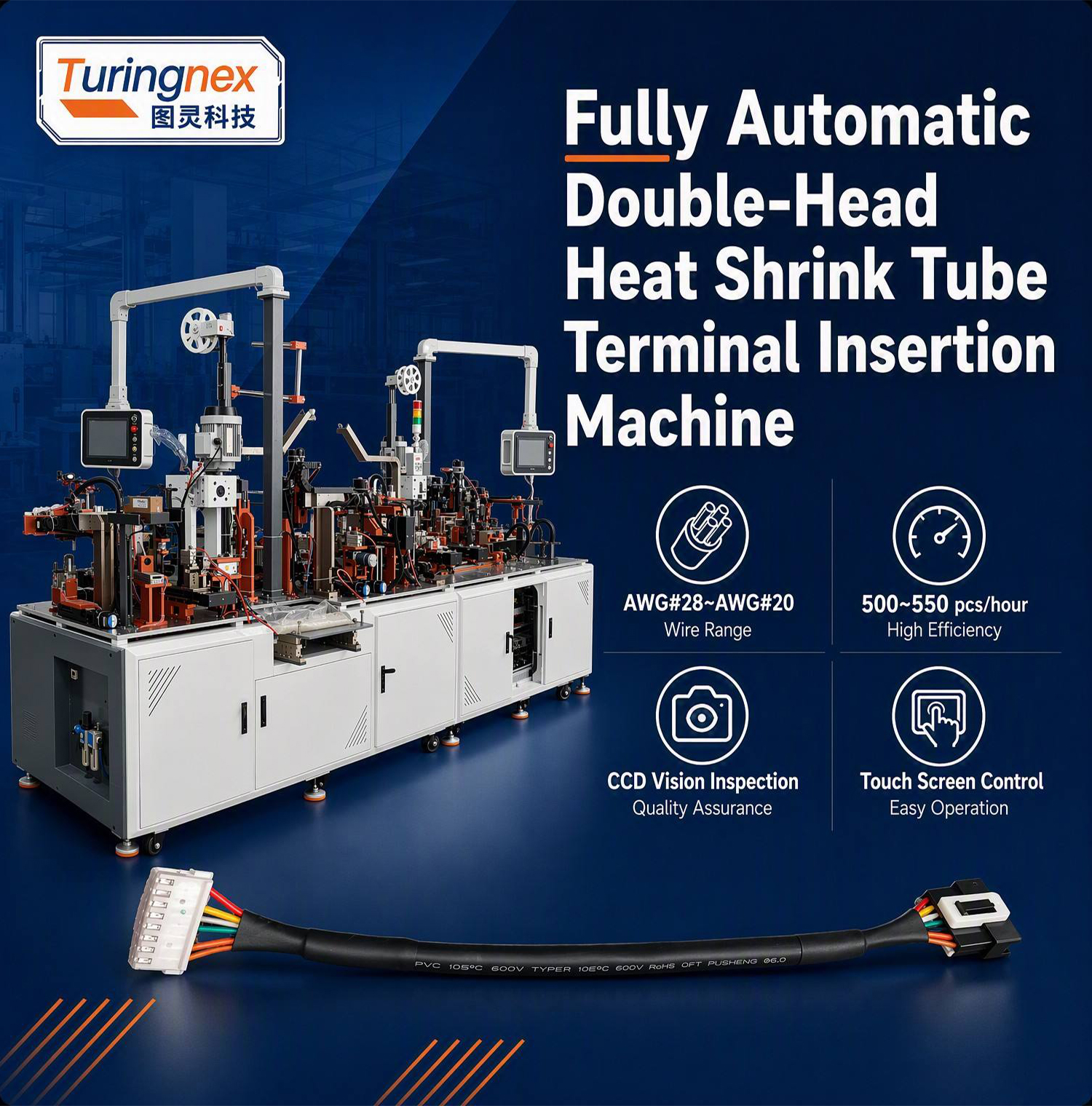

| Equipment-name | TR-M9 Auto Double-End Crimping Machine for Round Sheathed Wire with Heat Shrink Tube & Housing Insertion |
| Applicable-wire-gauge | AWG28# – AWG20# (subject to actual wire dimensions) |
| Production-capacity | 500–550 finished sets per hour for wires ≤1000mm long |
| Cutting-accuracy | ±(0.2%*L + 1) mm |
| Working-air-pressure | 0.6–0.75MPa (6–7 kg/cm²) |
| Cutting-length | 130mm–1500mm (extended length customizable). |
| Inner-core-insulation-stripping-length | 0.5mm–8mm |
| Outer-sheath-stripping-length | 25mm–60mm |
| Heat-shrink-tube-outer-diameter-range | 4mm–12mm |

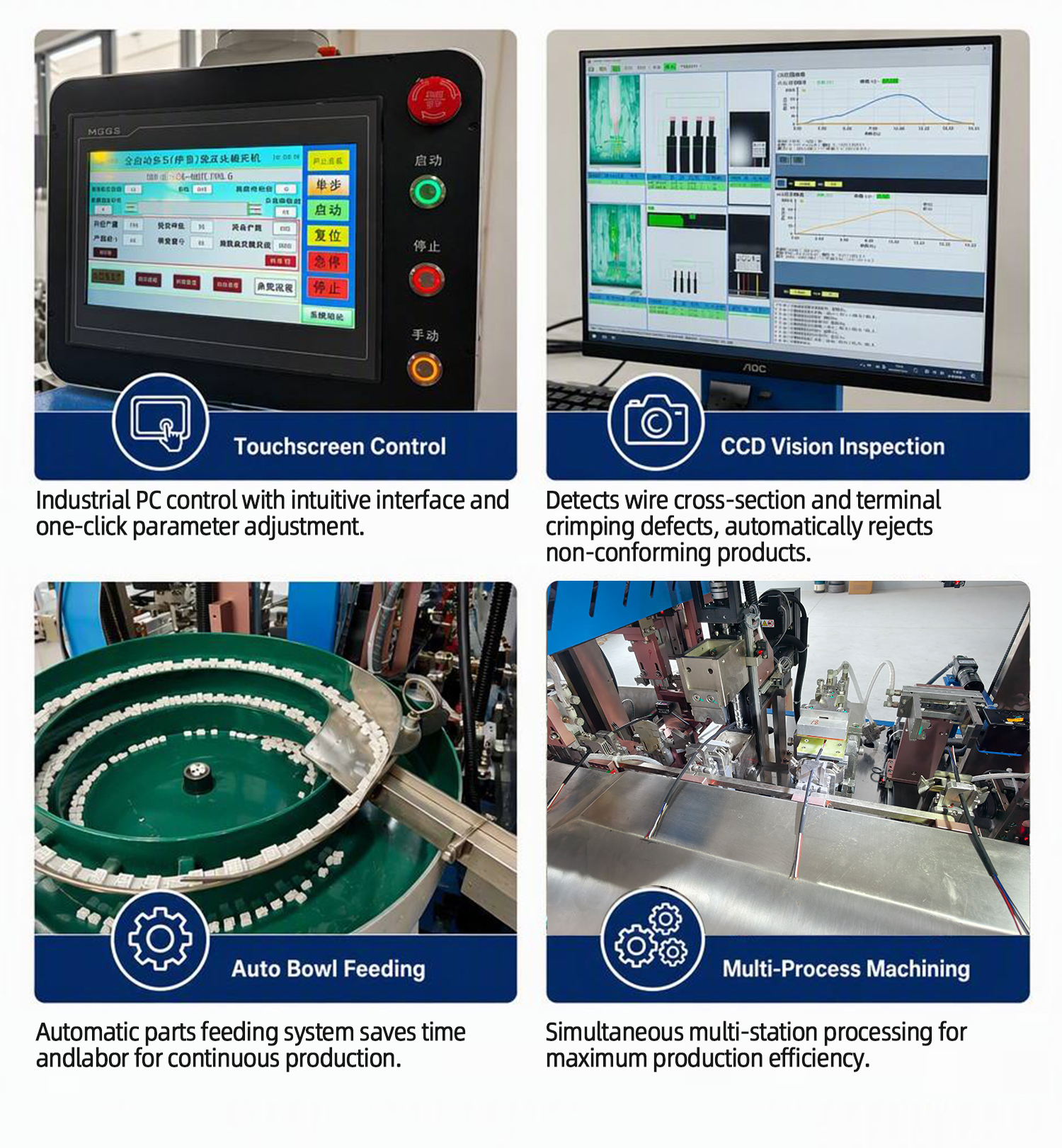

| Control-mode | Industrial PC control with touchscreen operation |
| Compatible-connector-housings | Universal for 2P–10P |
| Mis-system | Optional upgrade (reserved MIS interface) |
| Terminal-crimping-capacity | 2 tons |
| Heat-shrink-tube-cutting-length | 20mm–55mm |
| Color-recognition | Automatic arbitrary wire core color identification via computer CCD vision |
| Inspection-devices | CCD visual inspection, air pressure detection, wire presence detection, stripping quality inspection, terminal inspection, crimp force monitoring, connector housing & terminal seating check; also detects missing terminals, missing tubes and |

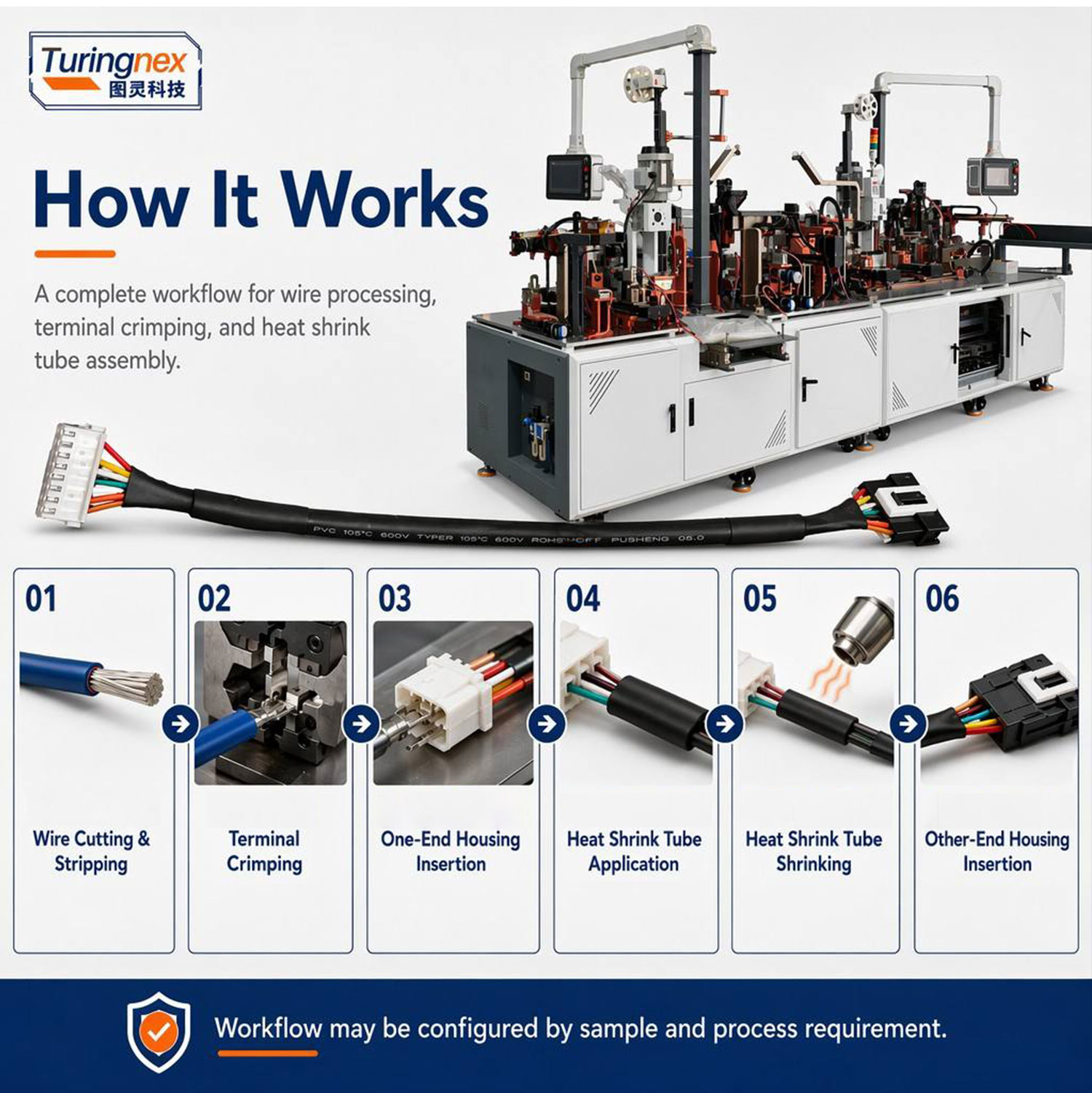

| Main-functions | End A: Wire cutting, outer sheath stripping, inner core insulation stripping, wire straightening, automatic core color sorting, terminal crimping, terminal visual inspection, connector housing insertion, housing seating detection. End B: Wi |
| Terminal compatibility |
Ordering Information
| Certification | CE — ISO9001 factory — certificates on request |
| MOQ | 1 set |
| Price (FOB, indicative) | Quote on request |
| Lead time | Standard models in stock; customised 7–15 days |
| Payment | T/T 30% deposit + 70% before shipment |
| Warranty | Standard warranty — terms confirmed in sales contract |
| Free trial | Free crimp test with your wire & terminals |
Specifications are indicative and confirmed with your order. Custom configurations available.
Features & Details
- Equipped with dual-channel Hikvision CCD vision system, it detects core color errors, stripping defects, terminal appearance flaws, housing seating position, missing terminals/tubes/housings, combined with air pressure and crimp force monitoring systems. Defective products are automatically separated, with qualified yield controlled at 3‰.
- Compatible with AWG28#~AWG20# wires, 2P–10P universal connector housings, heat shrink tubes with outer diameter 4–12mm. Wire cutting length ranges from 130mm to 1500mm with adjustable stripping dimensions; custom non-standard machines available based on customer samples.
- Production capacity reaches 500–550 finished sets per hour for wires under 1000mm. Cutting tolerance: ±(0.2%*L+1)mm. Fitted with Huizhong crimp force monitor and 2-ton crimping main unit for stable crimp quality.

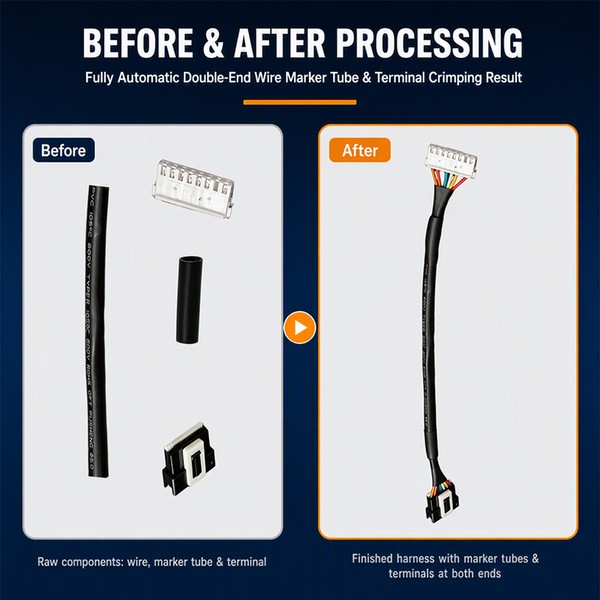

- TR-M9 Auto Double-End Crimping Machine for Round Sheathed Wire with Heat Shrink Tube & Housing Insertion
- AWG28# – AWG20# (subject to actual wire dimensions)
- 500–550 finished sets per hour for wires ≤1000mm long
