Highlights
Integrated multi‑function design

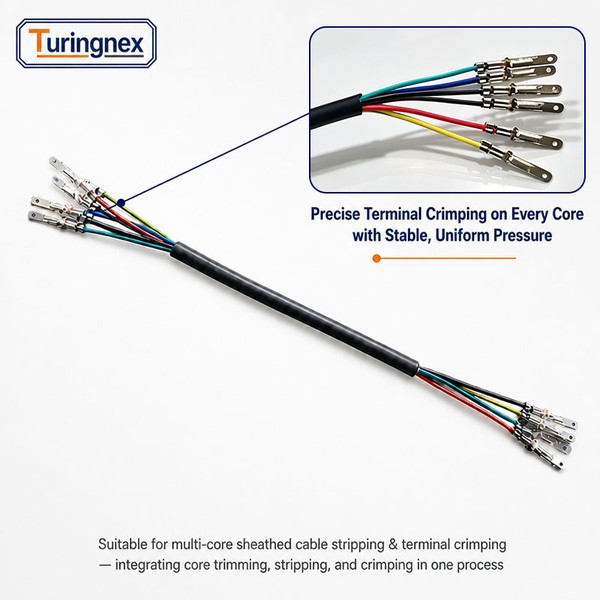

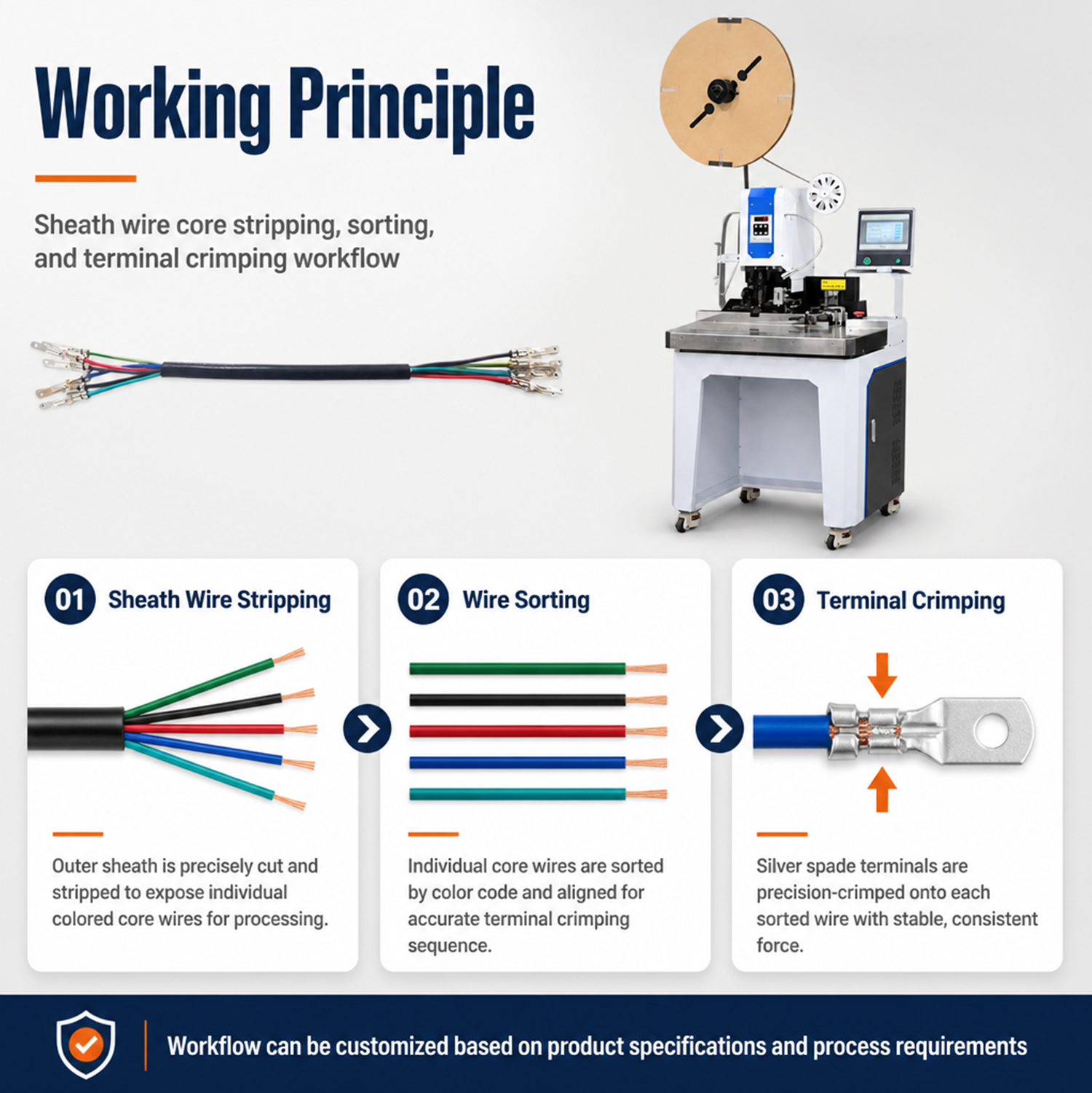

Specially designed for multi‑core sheathed wires, it integrates wire trimming, stripping and terminal crimping. Wire stripping and terminal crimping can be finished in one single operation.
Easy‑to‑replace mold
The cassette mold and stripping unit are independent of each other, making cassette mold replacement quick and convenient.
Strong production adaptability
Adjustable stripping depth to satisfy diverse processing requirements; capable of processing wires with up to 12 cores.
Silent terminal crimping unit
Equipped with self‑developed 1.5T steel‑plate silent terminal machine for low‑noise operation, with 1.5T crimping capacity.
User‑friendly operation
Wecon bilingual Chinese‑English touch‑screen for fool‑proof operation, low learning threshold for operators.
High‑quality core components
Adopts well‑known brand accessories including HIWIN linear guides & lead screws, Airtac solenoid valves and Xingchen cylinders for high equipment stability.
TR-HT03 in Operation
Full Specifications

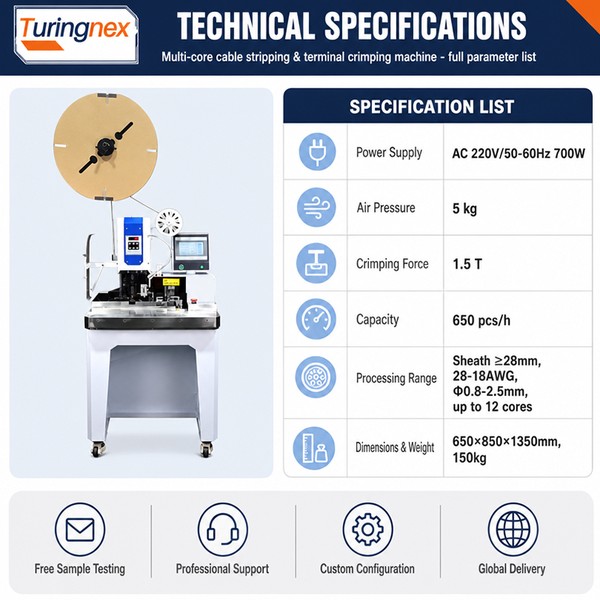

Technical Data
| Model | TR-HT03 |
| Power | AC220V/50HZ, |
| Application | Double end Terminal Machine |
| Feature | Stable Performance |
| Warranty | 1year |
| Control | Servo and Step motor |
| Contact | Lily 0086-13715588365 |

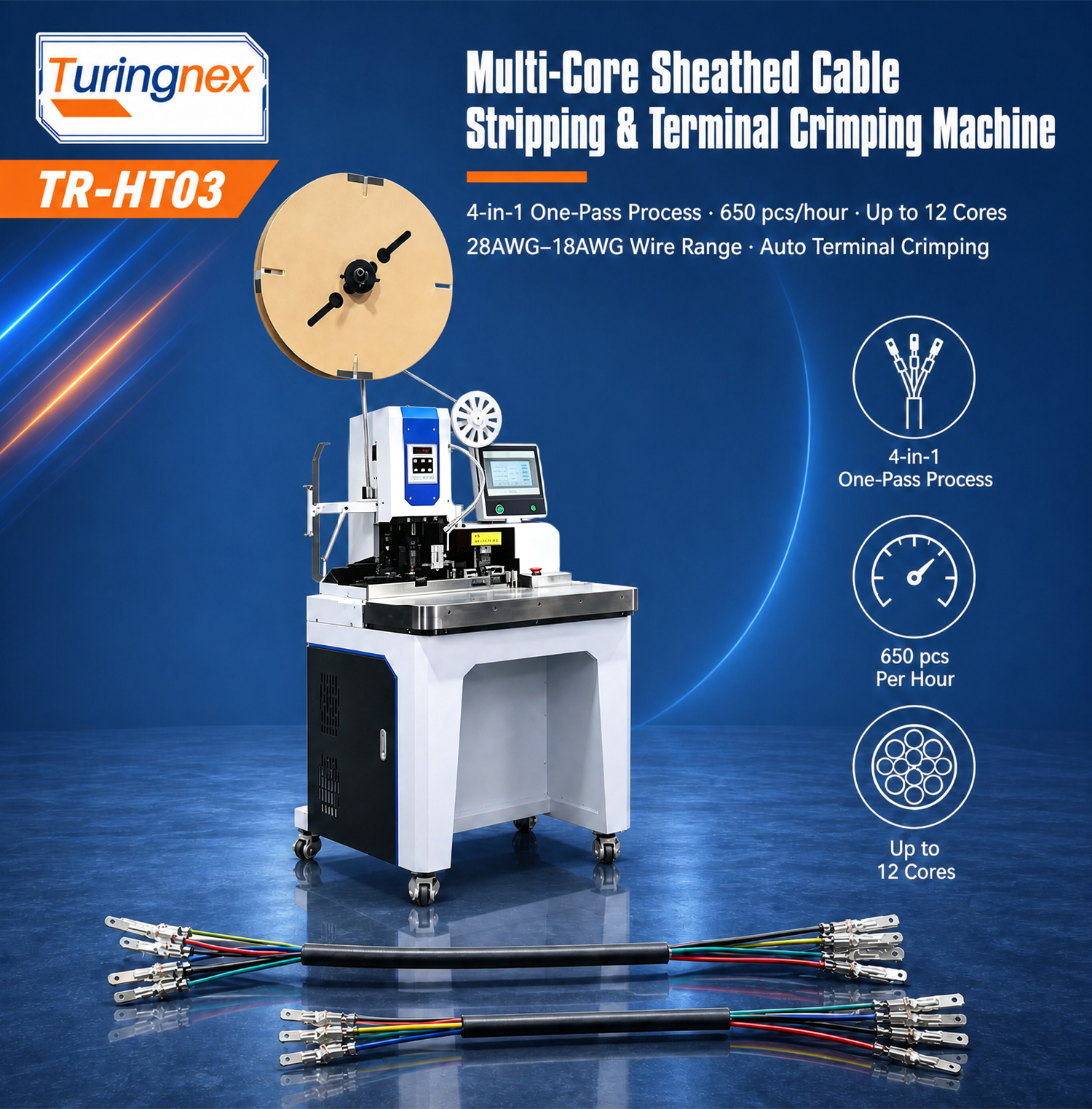

| Equipment-name | TR-HT03 Multi-core Wire Automatic Wire Stripping Terminal Crimping Machine |
| Power-supply | AC220V 50/60Hz single phase,700W |
| Operation-mode | Manual, single cycle, fully automatic |
| Size-&-weight | 650x850x1350mm,150kg |
| Working-efficiency | 650 pcs/H |
| Wire-specification | Min. outer sheath stripping length: 28mm, Wire gauge: 28AWG‑18AWG, Wire diameter: Φ0.8‑2.5mm, Max. 12 cores. |
| Air-pressure | 5kg |
| Pressure | Conventional 1.5T stamping machine |
| Detection-device | With or without wire, wire knots, abnormal stripping. Poor stamping die, terminal with or without, terminal overload, abnormal air pressure |
| Tool-material | Tungsten steel / high speed steel |
| Terminal compatibility |
Ordering Information
| Certification | CE — ISO9001 factory — certificates on request |
| MOQ | 1 set |
| Price (FOB, indicative) | Quote on request |
| Lead time | Standard models in stock; customised 7–15 days |
| Payment | T/T 30% deposit + 70% before shipment |
| Warranty | Standard warranty — terms confirmed in sales contract |
| Free trial | Free crimp test with your wire & terminals |
Specifications are indicative and confirmed with your order. Custom configurations available.

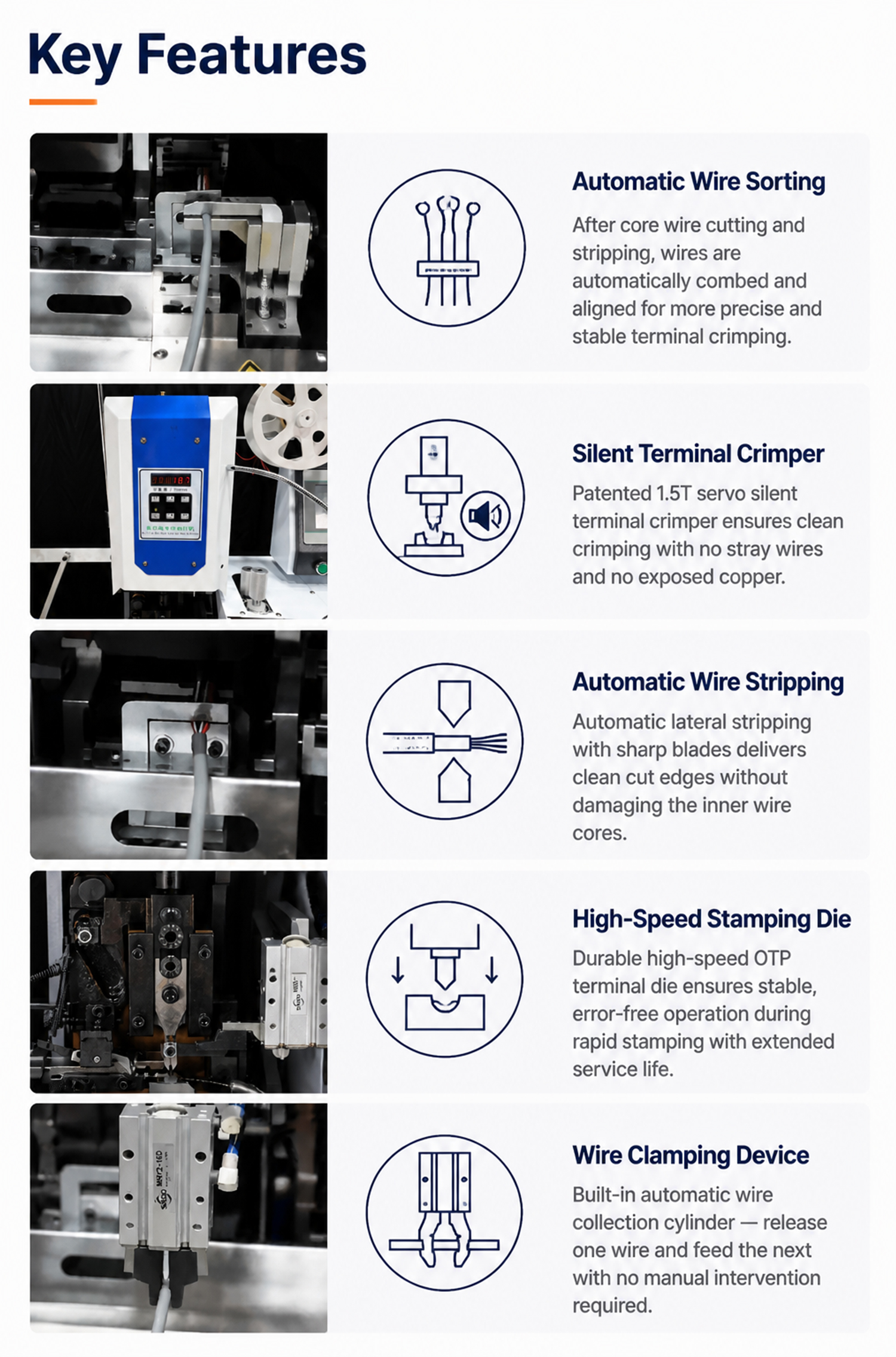

Features & Details
- Specially designed for multi‑core sheathed wires, it integrates wire trimming, stripping and terminal crimping. Wire stripping and terminal crimping can be finished in one single operation.
- The cassette mold and stripping unit are independent of each other, making cassette mold replacement quick and convenient.
- Adjustable stripping depth to satisfy diverse processing requirements; capable of processing wires with up to 12 cores.
- Equipped with self‑developed 1.5T steel‑plate silent terminal machine for low‑noise operation, with 1.5T crimping capacity.
- Wecon bilingual Chinese‑English touch‑screen for fool‑proof operation, low learning threshold for operators.
- Adopts well‑known brand accessories including HIWIN linear guides & lead screws, Airtac solenoid valves and Xingchen cylinders for high equipment stability.
Services Around the Machine

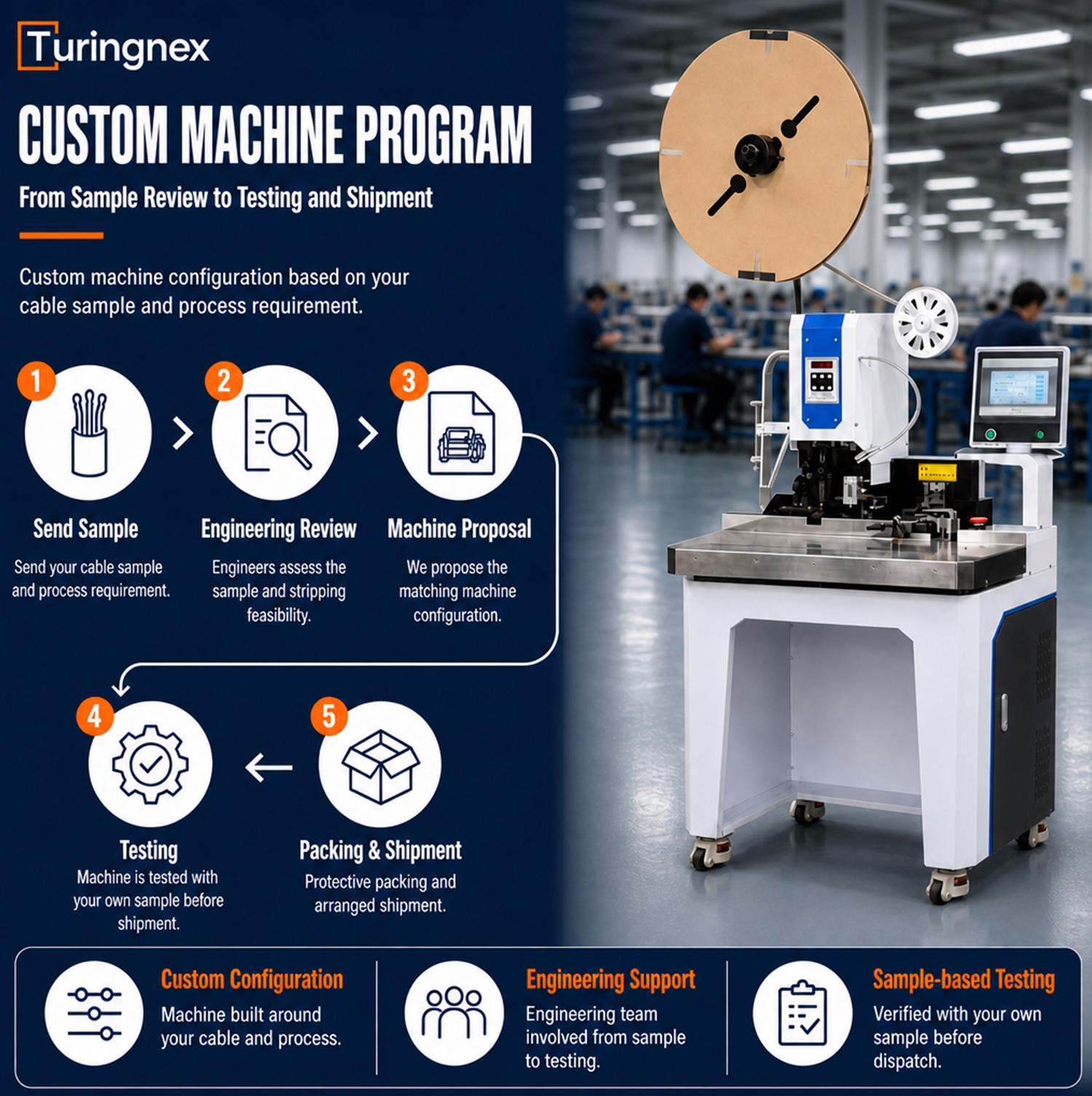

From Your Wire to a Working Machine
Machines are configured around your wire range and terminals — this is how we de-risk it before you pay.
Application Note
Which materials it handles, which lines it fits — in the context of your application.
View Application SolutionFree Sample Test
Send your wire and terminals — we run the test on our machine and return the video.
Indicative lead time: On request
Request a TestWhy Buy Direct From Turingnex
Factory Direct
One factory in Dongguan, one engineer per inquiry — 24h quotes, no middlemen.
Certified & Protected
CE certification, ISO9001 quality system, Alibaba Trade Assurance available.
Test Before You Buy
Free crimp test on your wire and terminals — quality verified before you commit.
Packing & Delivery
- Export-grade packing: wooden case / carton with foam protection
- Sea, air or express shipping — tracking provided
- QC photos & videos sent before packing
- Spare dies and consumables available for reorder
