TR-GF01

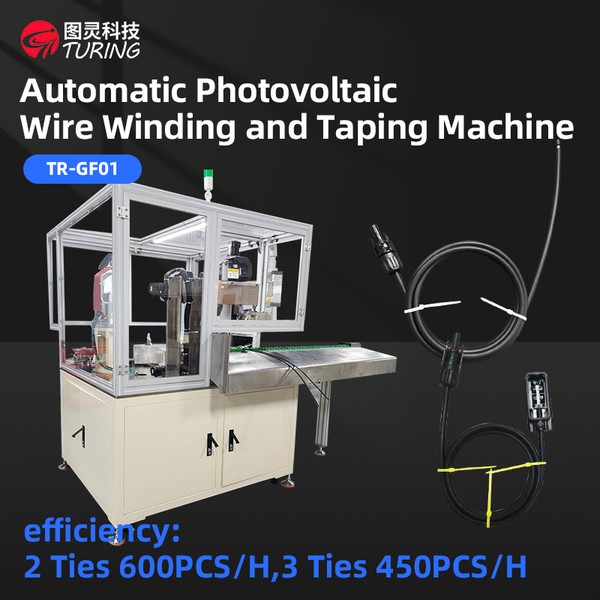

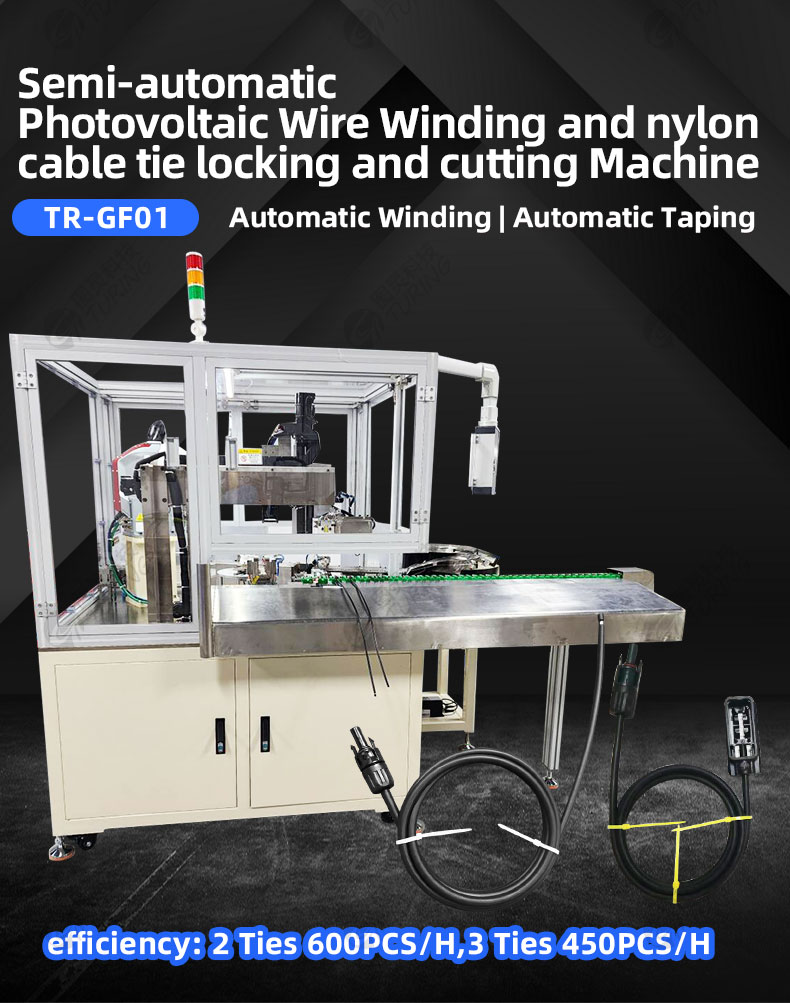

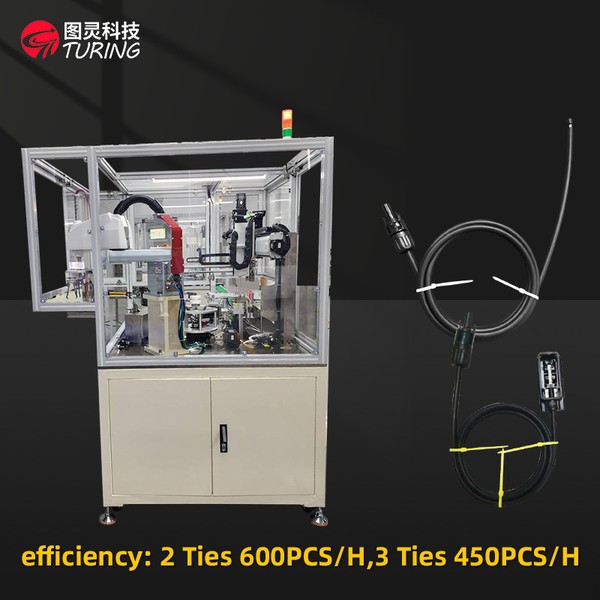

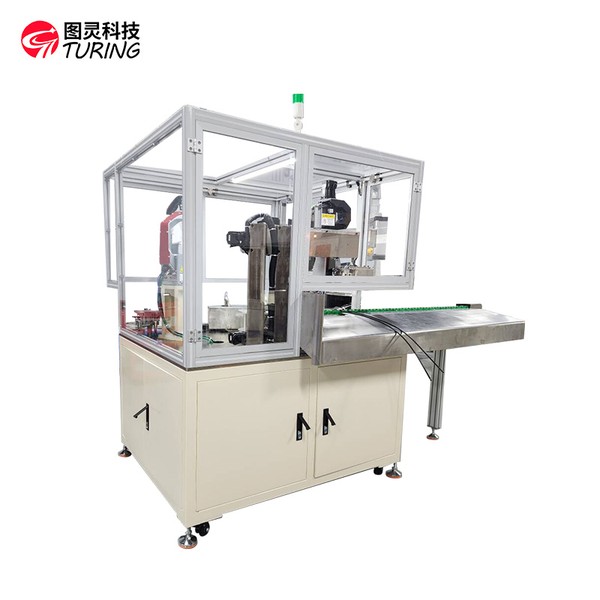

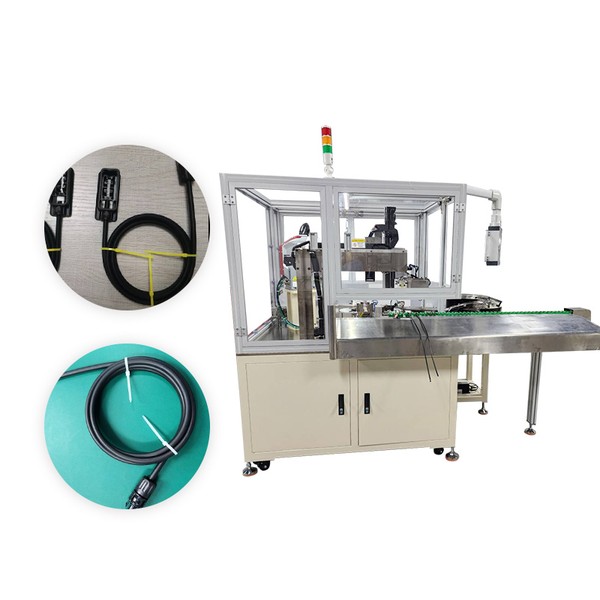

TR-GF01 Semi-automatic Photovoltaic Wire Winding And Nylon Cable Tie Locking And Cutting Machine

TR-GF01 Semi-automatic Photovoltaic Wire Winding And Nylon Cable Tie Locking And Cutting Machine: Power Single-phase 220V; air-supply 0.5-0.6Mpa without oil and water; control-method PLC control.

Request QuotationWatch VideoDownloads
Quote on requestFOB · MOQ 1 set · final price confirmed at quotation
Power: Single-phase 220VAir-supply: 0.5-0.6Mpa without oil and waterControl-method: PLC controlSingle-efficiency: 2 Ties 600PCS/H,3 Ties 450PCS/HContact: Coco 0086-18666170785Power-supply: Single-phase 220V | air supply | 0.5-0.6Mpa without oil and water
  • TR-GF01 Semi-automatic Photovoltaic Wire Winding and nylon cable tie locking and cutting Machine

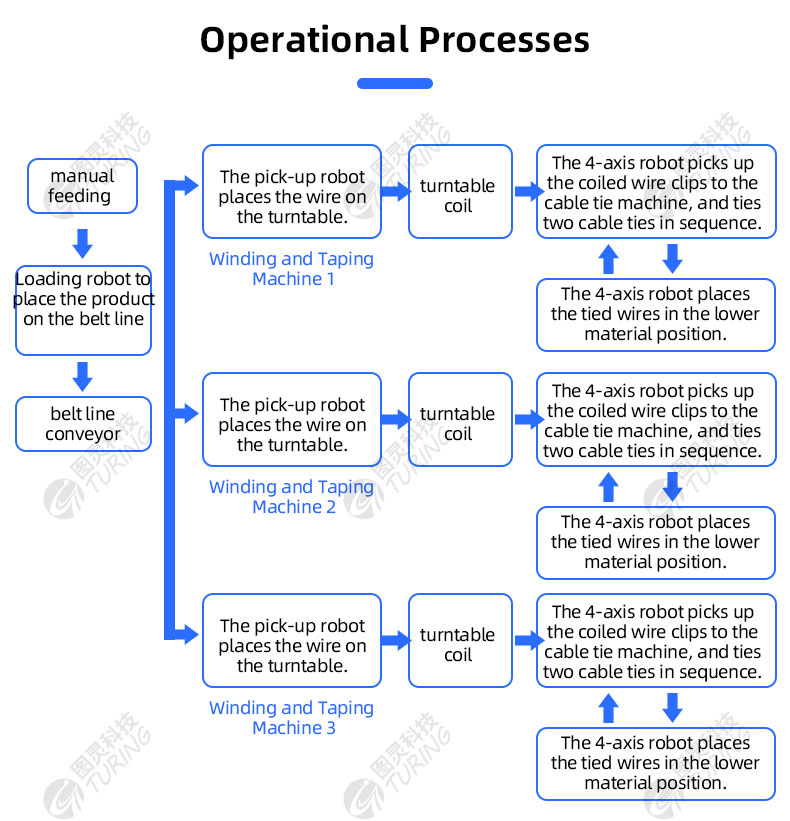

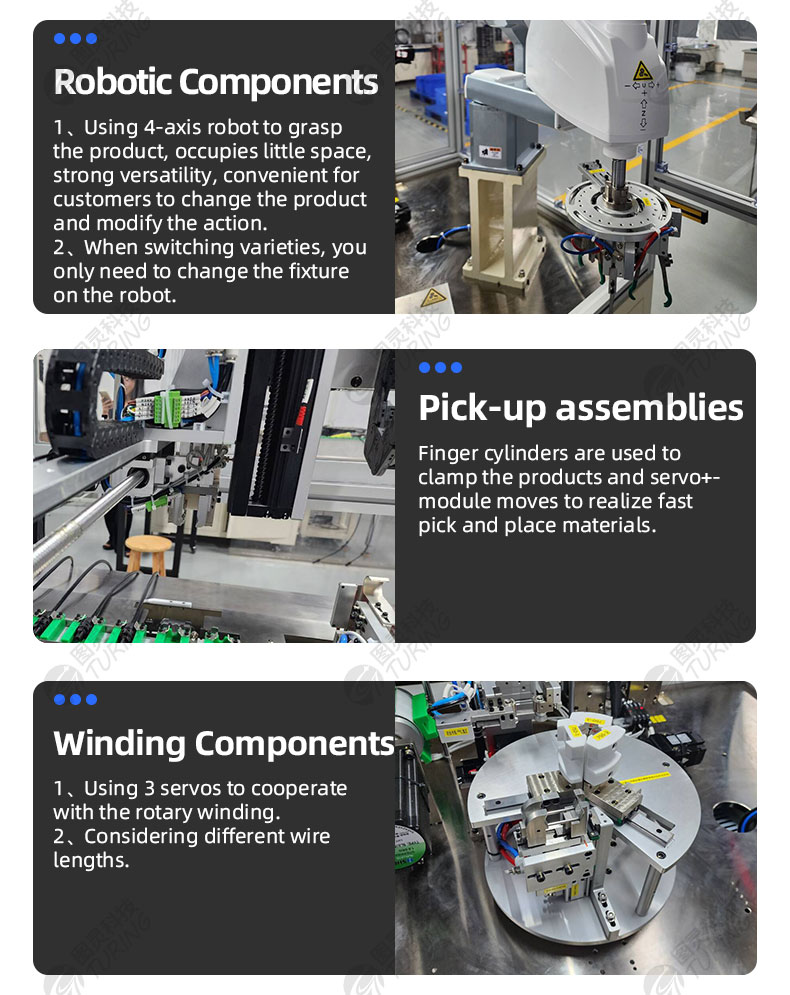

  • Easy variety switching, directly replace the 4-axis robot above the fixture can be, machine program 1 key to switch.
CE CertifiedFactory Direct Price12-Month Warranty24h Quote ResponseTested Before ShipmentFree Sample Test Video
10,000+ Machines installed worldwide50+ Export countries

Highlights

01

power supply

Single-phase 220V | air supply | 0.5-0.6Mpa without oil and water

02

control method

PLC control | Operators | 1 person

03

Single efficiency

2 Ties 600PCS/H, 3 Ties 450PCS/H | Ties specifications | 2.5X100 (tie wrap bulk incoming)

04

Common product specifications

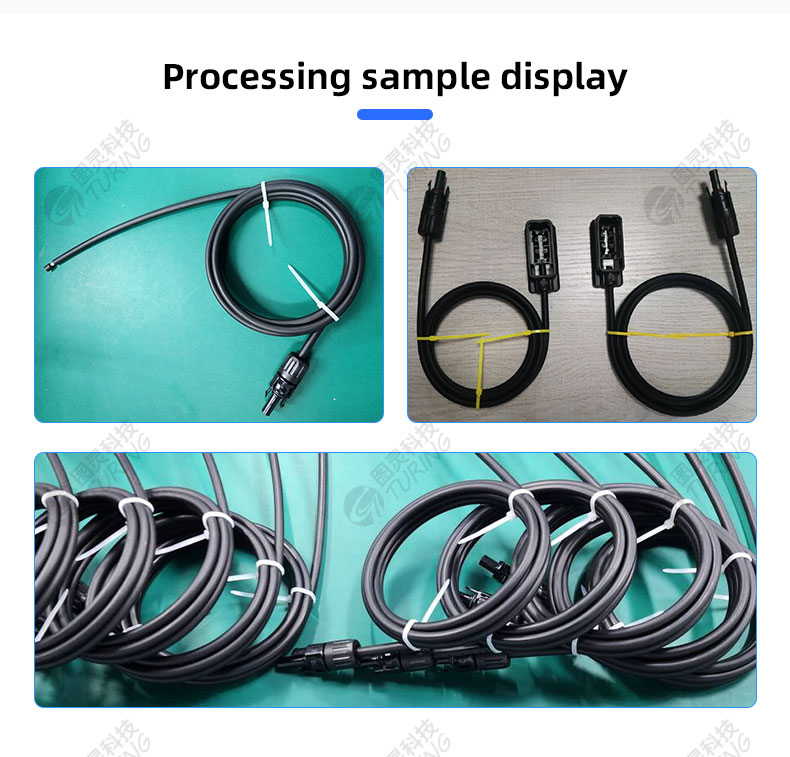

1.1M、1.2M、1.3M、1.4M、1.5M

Machine Video

TR-GF01 in Operation

TR-GF01 Semi-automatic Photovoltaic Wire Winding And Nylon Cable Tie Locking And Cutting Machine in operation

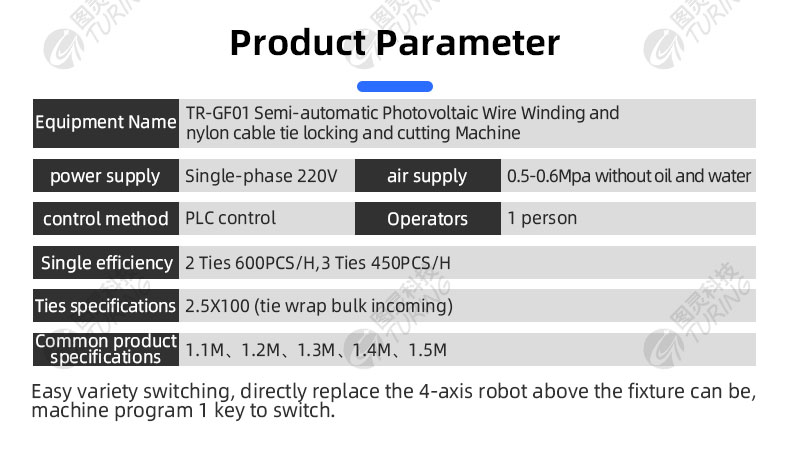

Full Specifications

Technical Data

ModelTR-GF01
PowerSingle-phase 220V
Air-supply0.5-0.6Mpa without oil and water
Control-methodPLC control
Single-efficiency2 Ties 600PCS/H,3 Ties 450PCS/H
ContactCoco 0086-18666170785
Power-supplySingle-phase 220V | air supply | 0.5-0.6Mpa without oil and water
Common-product-specifications1.1M、1.2M、1.3M、1.4M、1.5M
Terminal compatibility

Ordering Information

CertificationCE — ISO9001 factory — certificates on request
MOQ1 set
Price (FOB, indicative)Quote on request
Lead timeStandard models in stock; customised 7–15 days
PaymentT/T 30% deposit + 70% before shipment
WarrantyStandard warranty — terms confirmed in sales contract
Free trialFree crimp test with your wire & terminals

Specifications are indicative and confirmed with your order. Custom configurations available.
