Click to zoomTR-FX102

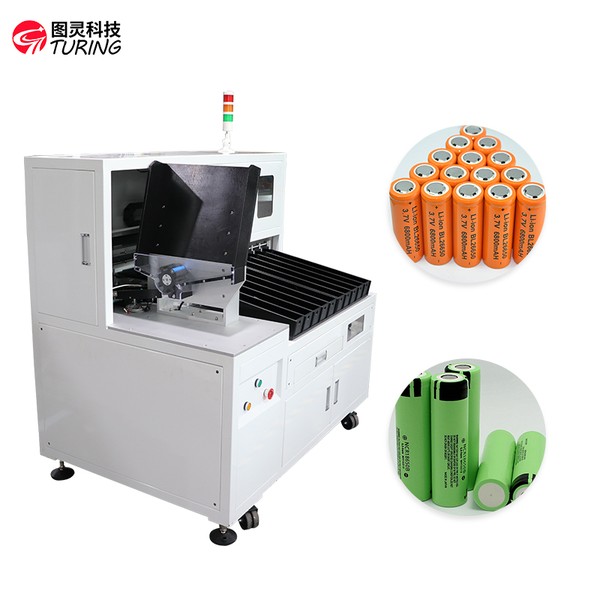

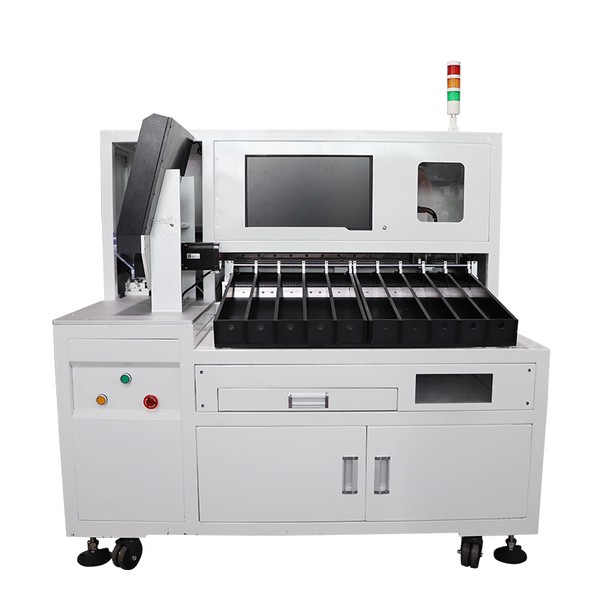

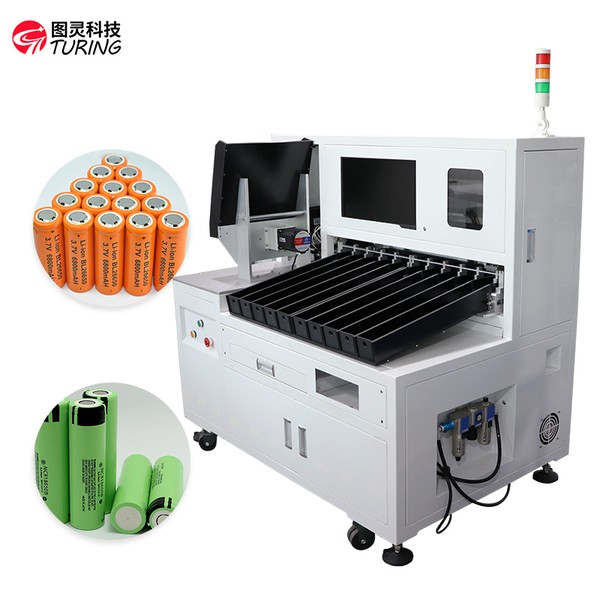

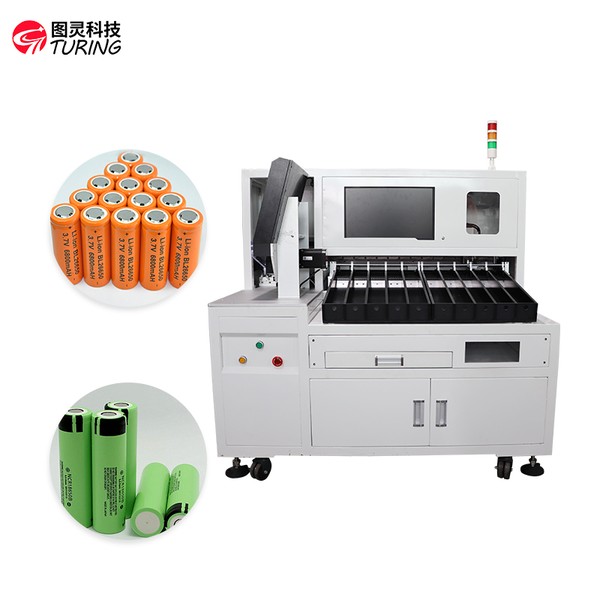

TR-FX102 Ten-channel 18650, 21700, 32700 Lithium Battery Sorter
TR-FX102 Ten-channel 18650, 21700, 32700 Lithium Battery Sorter: Keyword 18650,21700,32700 Lithium Battery Sorter; warranty 1year; voltage-measurement-accuracy +-0.015%rdg,resolution 0.1mv.
Quote on requestFOB · MOQ 1 set · final price confirmed at quotation
Keyword: 18650,21700,32700 Lithium Battery SorterWarranty: 1yearVoltage-measurement-accuracy: +-0.015%rdg,resolution 0.1mvInternal-resistance-detection-accuracy: +-0.5%rdg,resolution 0.1mCommunicationmethod: RS485
- TR-FX102 Ten-channel 18650, 21700, 32700 Lithium Battery Sorter
- Ten-channel 18650,21700,32700 Lithium Battery Sorter
- The ten-channel sorting machine (universal version) is an automatic sorting equipment suitable for cylindrical lithium batteries such as 18650, 21700, 32700 (customized according to customer requirements). The equipment tests the voltage and internal resistance of the battery cells through a voltage internal resistance tester, tests the parameters of each battery cell according to the PLC software settings, and moves batteries of different grades to different channels according to the judgment results, thereby realizing automatic sorting of battery products. . The equipment consists of a loading mechanism, a testing mechanism, automatic sorting, a collecting chute, etc. According to user requirements, PLC software is designed and developed to automatically sort and collect the cells into their corresponding collectors according to the group information. Operation Simple, accurate sorting and high efficiency.
10,000+ Machines installed worldwide50+ Export countries
Highlights
01
Categories
New Energy Battery Pack Assembly Line
02
Brand
Turing
03
Model
TR-FX102
04
Keyword
18650,21700,32700 Lithium Battery Sorter
Machine Video
Watch TR-FX102 on Your Wire Type
We will send you a short run-test video of this model — real machine, real production. Most videos within 24 h.

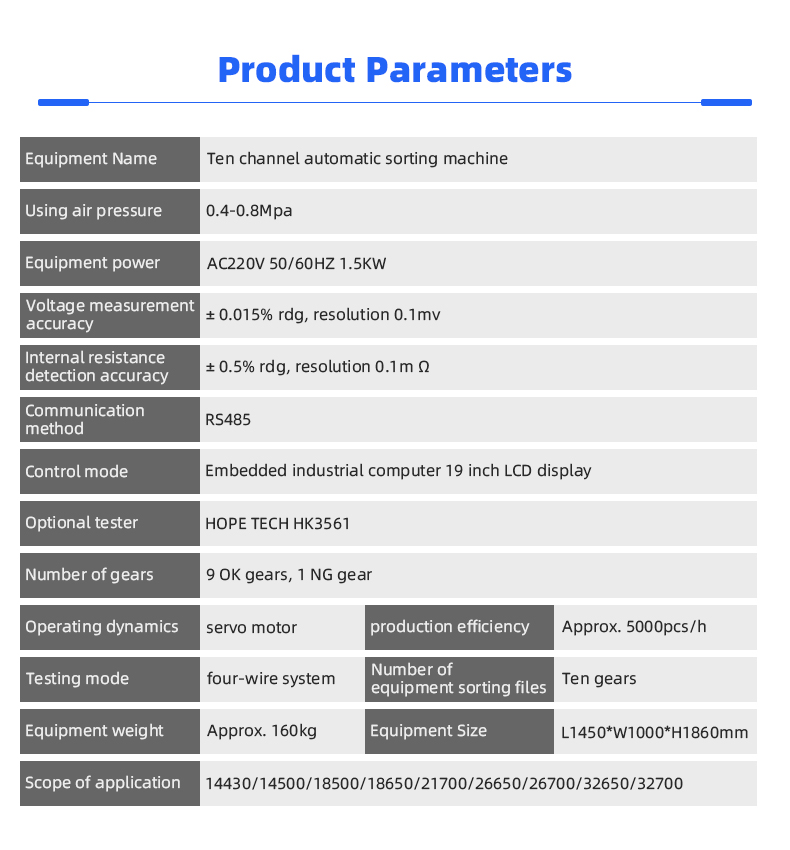

Full Specifications
Technical Data
| Model | TR-FX102 |
| Keyword | 18650,21700,32700 Lithium Battery Sorter |
| Warranty | 1year |
| Voltage-measurement-accuracy | +-0.015%rdg,resolution 0.1mv |
| Internal-resistance-detection-accuracy | +-0.5%rdg,resolution 0.1m |
| Communicationmethod | RS485 |
| Terminal compatibility |
Ordering Information
| Certification | CE — ISO9001 factory — certificates on request |
| MOQ | 1 set |
| Price (FOB, indicative) | Quote on request |
| Lead time | Standard models in stock; customised 7–15 days |
| Payment | T/T 30% deposit + 70% before shipment |
| Warranty | Standard warranty — terms confirmed in sales contract |
| Free trial | Free crimp test with your wire & terminals |
Specifications are indicative and confirmed with your order. Custom configurations available.
Features & Details
- TR-FX102 Ten-channel 18650, 21700, 32700 Lithium Battery Sorter
- Ten-channel 18650,21700,32700 Lithium Battery Sorter

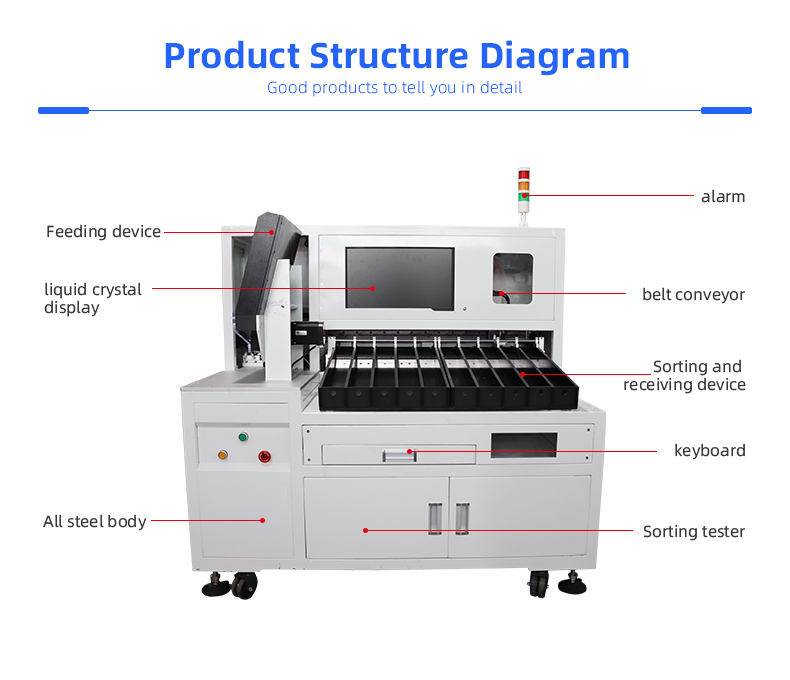

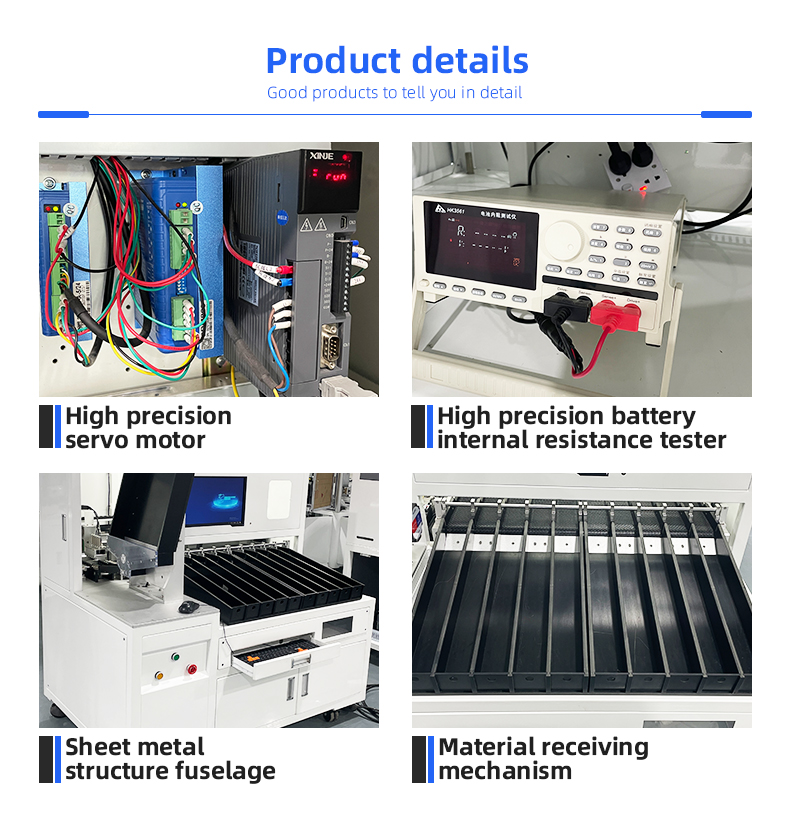

- The ten-channel sorting machine (universal version) is an automatic sorting equipment suitable for cylindrical lithium batteries such as 18650, 21700, 32700 (customized according to customer requirements). The equipment tests the voltage and internal resistance of the battery cells through a voltage internal resistance tester, tests the parameters of each battery cell according to the PLC software settings, and moves batteries of different grades to different channels according to the judgment results, thereby realizing automatic sorting of battery products. . The equipment consists of a loading mechanism, a testing mechanism, automatic sorting, a collecting chute, etc. According to user requirements, PLC software is designed and developed to automatically sort and collect the cells into their corresponding collectors according to the group information. Operation Simple, accurate sorting and high efficiency.
- power supplyforcommunication base station
