TR-DX01 Fully Automatic Single Head Hot Stripping And Plugging Plastic Shell Terminal Crimping Machine

Name: TR-DX01 Fully Automatic Single Head Hot Stripping And Plugging Plastic Shell Terminal Crimping Machine
Brand: Turingnex
SKU: TR-DX01
Availability: InStock

TR-DX01 Fully Automatic Single Head Hot Stripping And Plugging Plastic Shell Terminal Crimping Machine: Power AC220V/50HZ,; application Wire Sheath Insertion and Rubber Shell Terminal; feature Stable Performance.

Request Quotation Watch Video Downloads

Quote on requestFOB · MOQ 1 set · final price confirmed at quotation

Power: AC220V/50HZ,Application: Wire Sheath Insertion and Rubber Shell TerminalFeature: Stable PerformanceWarranty: 1yearControl: Servo and Step motorContact: Coco 0086-18666170785

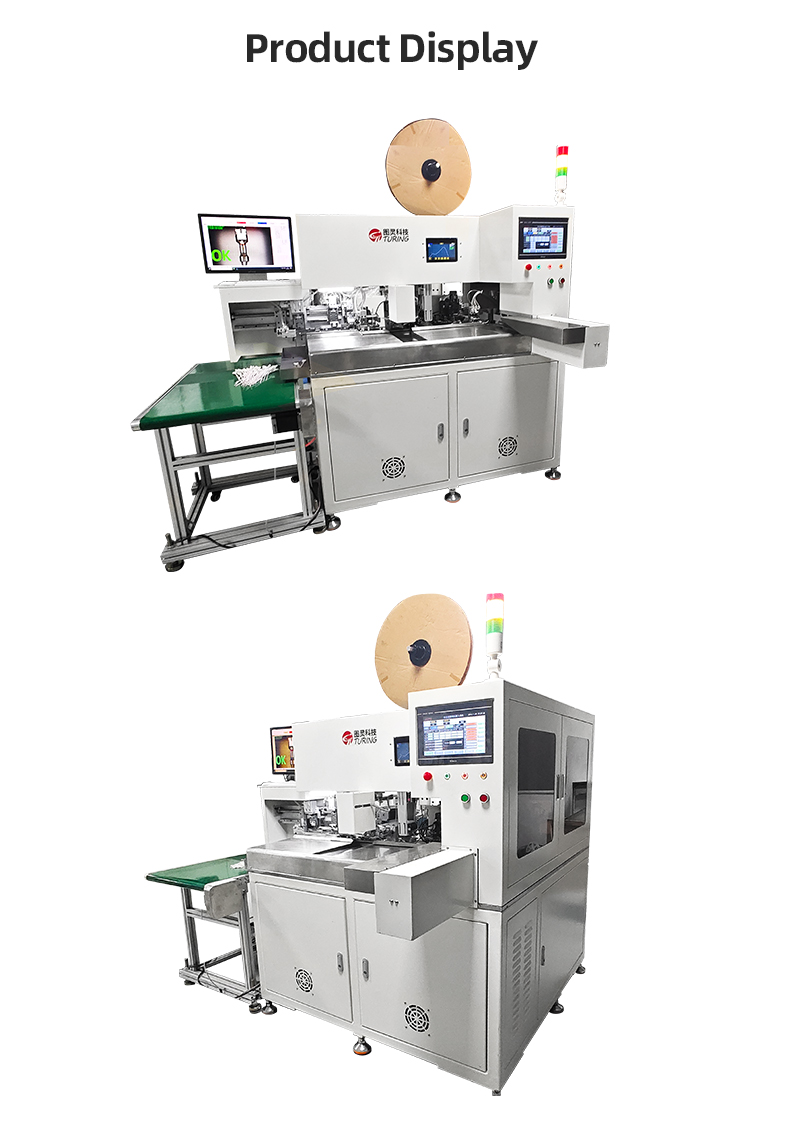

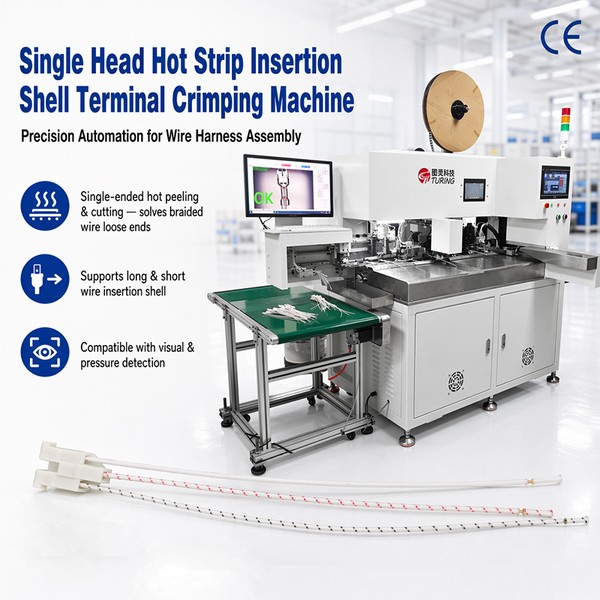

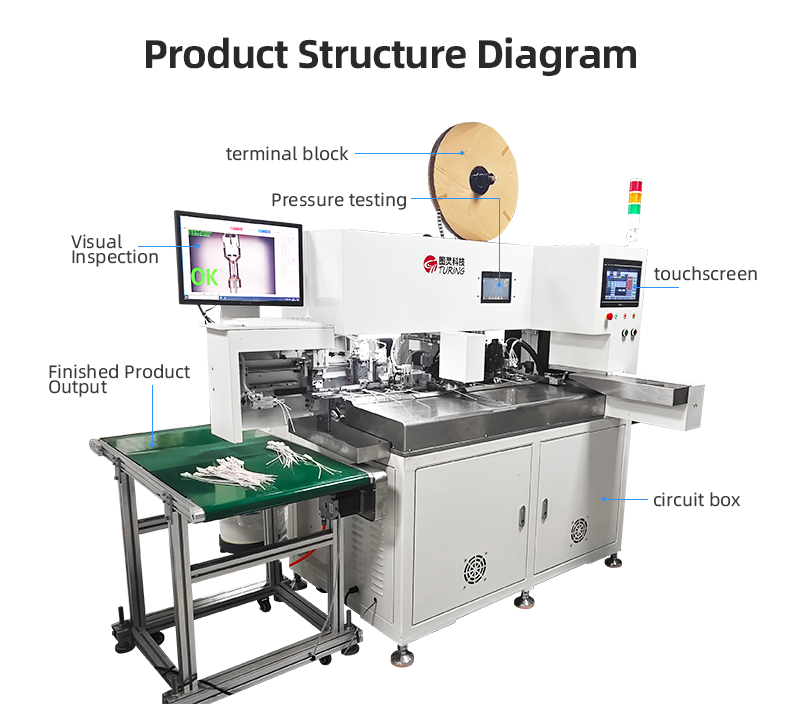

TR-DX01 Single Head Hot Strip InsertionShell Terminal Crimping Machine

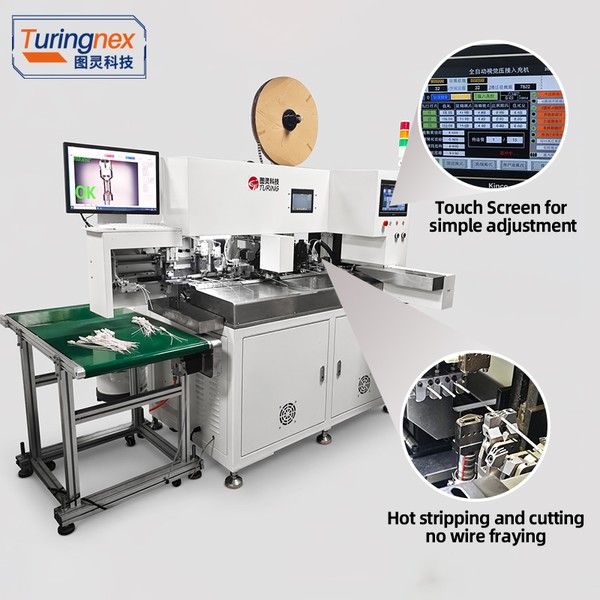

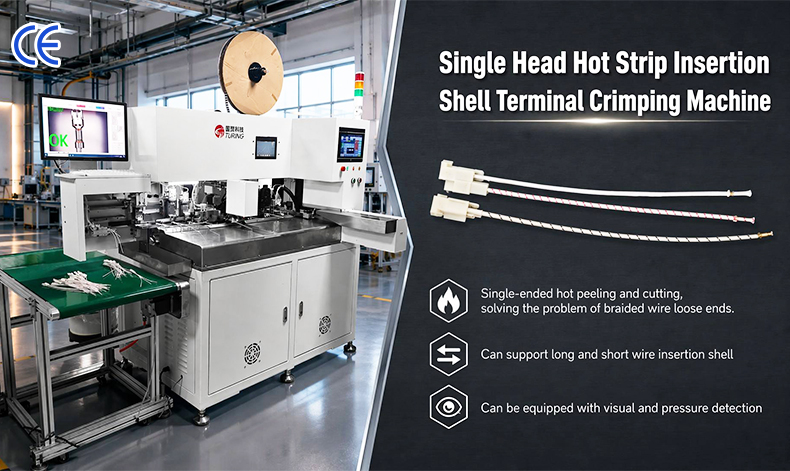

Adopts single-end hot stripping & hot cutting technology to effectively prevent braided wire ends from fraying; compatible with both long and short wires for housing insertion.
Integrates wire cutting, end stripping, terminal crimping, high-temperature hot marking, single-side housing insertion and good/bad product sorting. Output reaches 500 pieces per hour.

CE CertifiedFactory Direct Price12-Month Warranty24h Quote ResponseTested Before ShipmentFree Sample Test Video

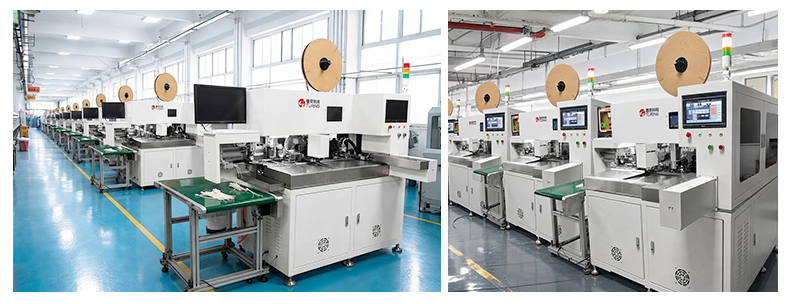

10,000+ Machines installed worldwide50+ Export countries

Highlights

01

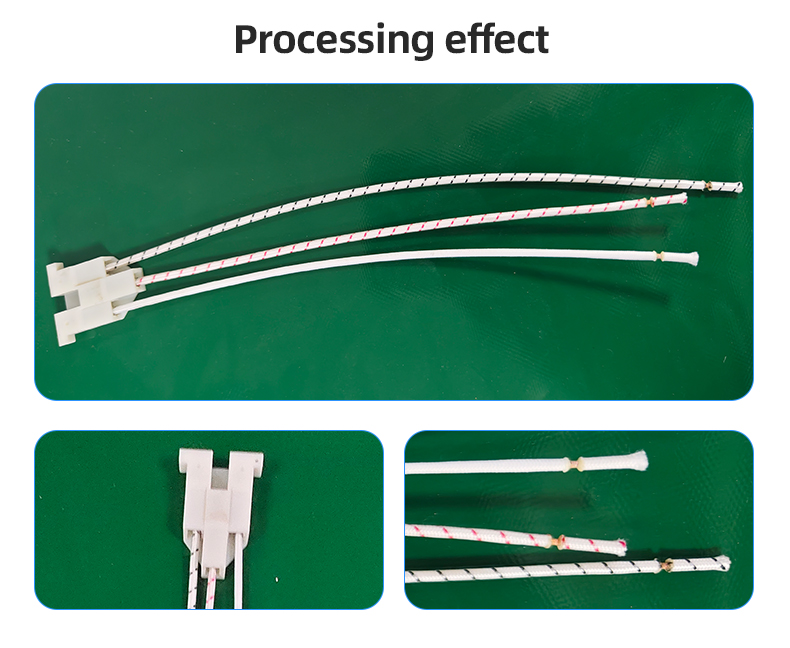

Hot Stripping Process Solves Braided Wire Fraying Issue

Adopts single-end hot stripping & hot cutting technology to effectively prevent braided wire ends from fraying; compatible with both long and short wires for housing insertion.

02

All-in-One Automatic Process with High Productivity

Integrates wire cutting, end stripping, terminal crimping, high-temperature hot marking, single-side housing insertion and good/bad product sorting. Output reaches 500 pieces per hour.

03

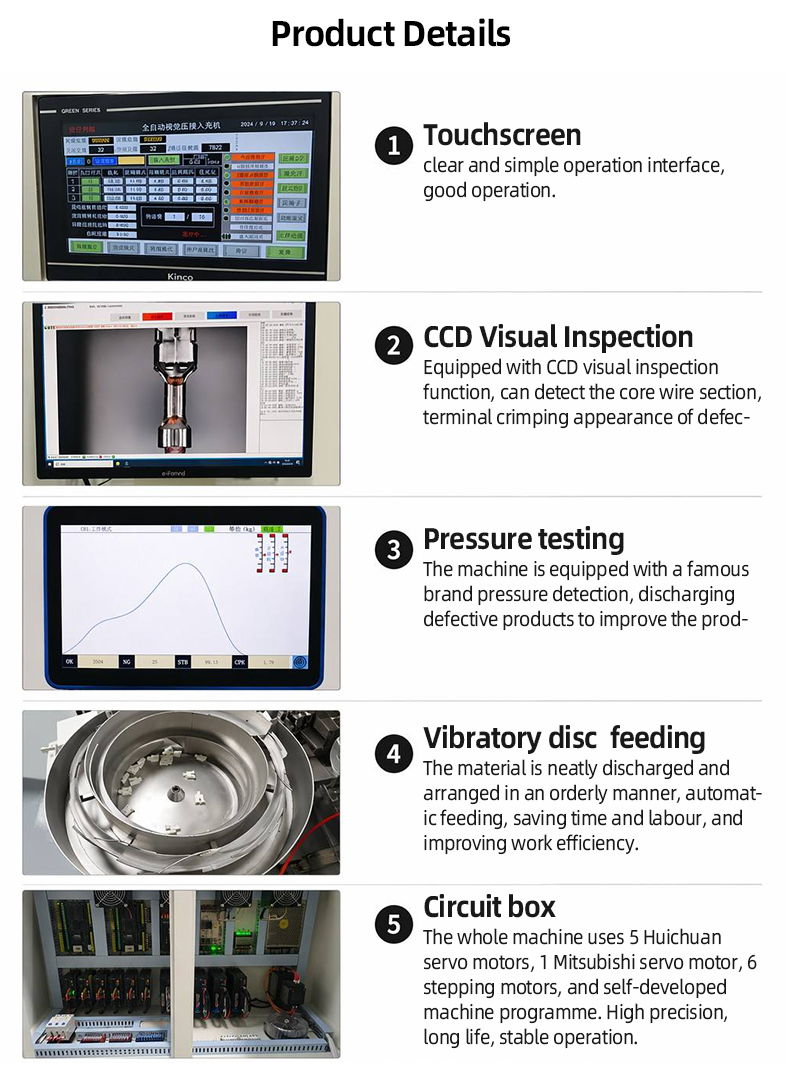

Dual Inspection System Ensures High Yield Rate

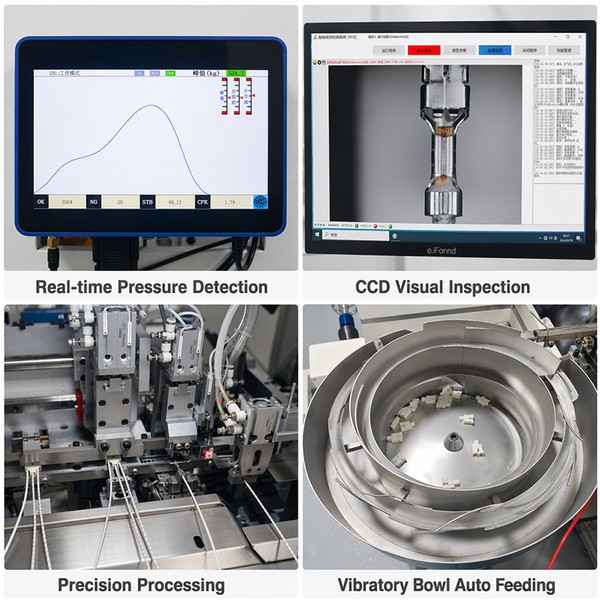

Equipped with CCD visual inspection + crimping force monitoring system, automatically rejects defective products such as poor crimping, missing terminals and exposed conductors.

04

High Precision & Stable Performance with Imported Key Components

Configured with Mitsubishi and Inovance servo motors, achieving ultra-tight tolerance for cutting and stripping. Durable structure ensures stable long-term operation.

05

Wide Compatibility & Customizable Solution

Covers wire gauge AWG#20~#28. Widely applied in automotive, home appliance, aerospace, new energy and communication wiring harness industries; non-standard customization available.

Machine Video

TR-DX01 in Operation

TR-DX01 Fully Automatic Single Head Hot Stripping And Plugging Plastic Shell Terminal Crimping Machine in operation

Full Specifications

Technical Data

Model	TR-DX01
Power	AC220V/50HZ,
Application	Wire Sheath Insertion and Rubber Shell Terminal
Feature	Stable Performance
Warranty	1year
Control	Servo and Step motor
Contact	Coco 0086-18666170785
Equipment-name	TR-DX01Single Head Hot Strip Insertion Shell Terminal Crimping Machine
Power-supply	Single phase AC200V/220V 50HZ 10A
Size-&-weight	W1600×D1700×H1600mm / approx. 750kg
Efficiency	500PCS/H
Wire-size	AWG#20~#28 (wire OD#2.5mm or less)
Wire-colour	1-3 colours
Wire-cut-length	55mm~300mm (Setting 0.1mm unit) (Expandable)
Cutting-length-accuracy	Tolerance ±0.5mm
Peel	1.0mm — 10.0mm
Peeling-length-accuracy	Tolerance ±0.1mm
Press-machine	19000N (2T equivalent)
Universal-mould	Universal OTP Terminal Mould
Compressed-air	0.5MPa, approx. 170N/min
Temperature	15℃ ~ 30℃
Humidity-range	30%-80%RH No condensation
Control-method	electronic control
Warranty-period	2000h or 1 year (except consumables)
Function	Wire cutting, one-end peeling, single-end pressing, high-temperature ironing, one-side insertion, good/bad product selection and discharging

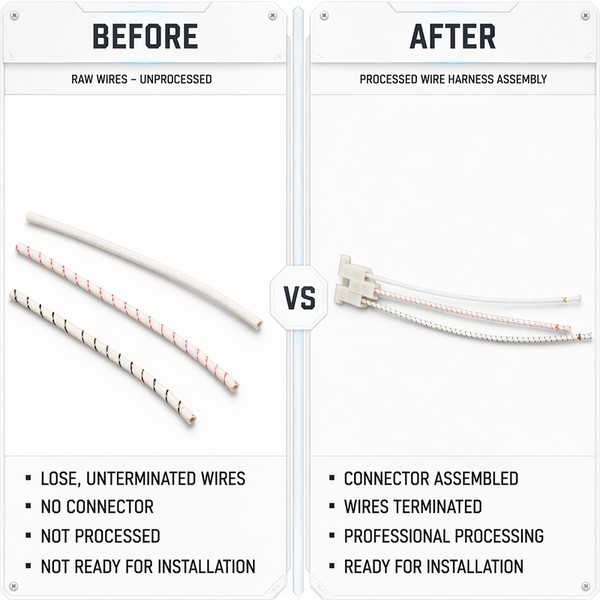

Terminal compatibility

Ordering Information

Certification	CE — ISO9001 factory — certificates on request
MOQ	1 set
Price (FOB, indicative)	Quote on request
Lead time	Standard models in stock; customised 7–15 days
Payment	T/T 30% deposit + 70% before shipment
Warranty	Standard warranty — terms confirmed in sales contract
Free trial	Free crimp test with your wire & terminals

Specifications are indicative and confirmed with your order. Custom configurations available.
