Highlights
01
Equipment Name

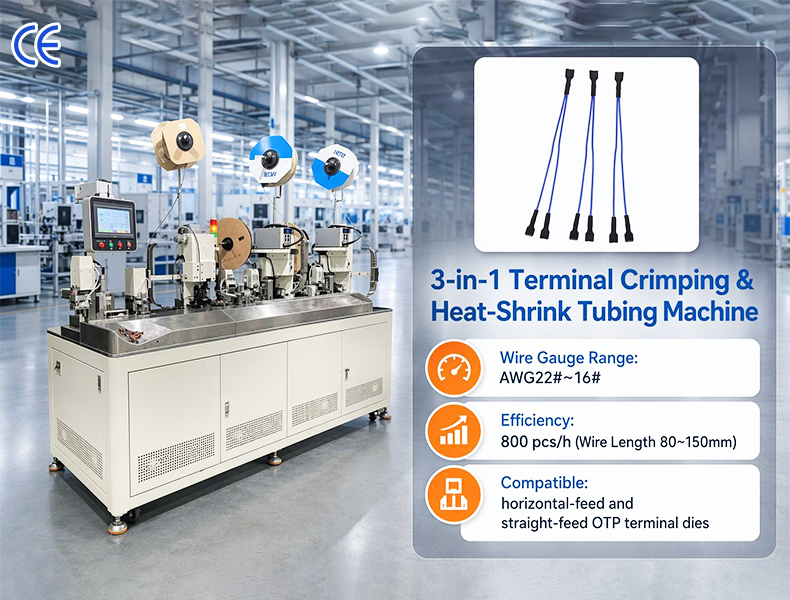

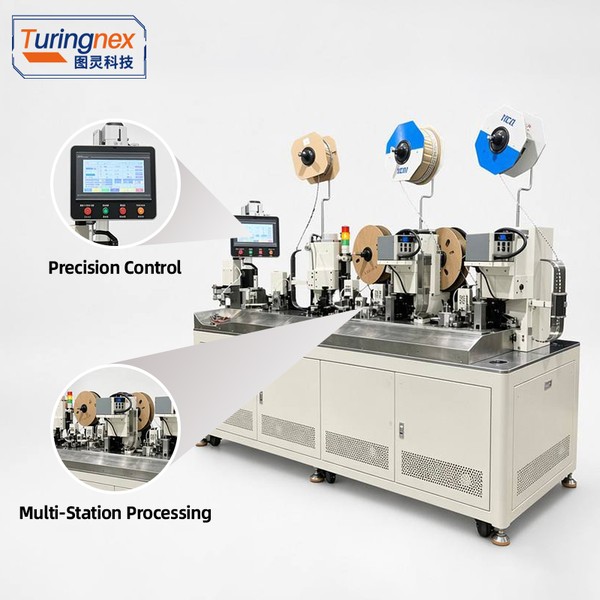

TR-DW301 3-in-1 Terminal Crimping & Heat-Shrink Tubing Machine
02
Power Supply
Single-phase AC200V~242V 50/60Hz 10A
03
Efficiency
Approx. 800 pieces/hour for wire length 80-150mm
04
Processing Length
Intermediate insulation retention: 76mm~99999mm
Machine Video
TR-DW301 in Operation
TR-DW301 Three-in-One Terminal Crimping & Heat-Shrink Tubing Machine in operation
Full Specifications
Technical Data
| Model | TR-DW301 |
| Power | AC220V 50/60Hz 20A |
| Application | wire cutting, stripping, terminal crimping |
| Compressed-air | 0.5 MPa |
| Contact | Coco : +86 18666170785 |
| Equipment-name | TR-DW301 3-in-1 Terminal Crimping & Heat-Shrink Tubing Machine |
| Power-supply | Single-phase AC200V~242V 50/60Hz 10A |
| Efficiency | Approx. 800 pieces/hour for wire length 80-150mm |
| Processing-length | Intermediate insulation retention: 76mm~99999mm |
| Stripping-length | Front end: 0.5~8.0mm; Rear end: 0.1~10.0mm |
| Cutter-depth | Max adjustment: 5.50mm, Resolution: 0.01mm |
| Size-&-weight | W 800 *D2600*H1800 mm，approx. 900KG |
| Detection-devices | Low air pressure, wire presence/absence, crimping abnormality, wire feeding abnormality |
| Wire-gauge-range | AWG22#~16# |
| Terminal compatibility |
Ordering Information
| Certification | CE — ISO9001 factory — certificates on request |
| MOQ | 1 set |
| Price (FOB, indicative) | Quote on request |
| Lead time | Standard models in stock; customised 7–15 days |
| Payment | T/T 30% deposit + 70% before shipment |
| Warranty | Standard warranty — terms confirmed in sales contract |
| Free trial | Free crimp test with your wire & terminals |
Specifications are indicative and confirmed with your order. Custom configurations available.
Features & Details

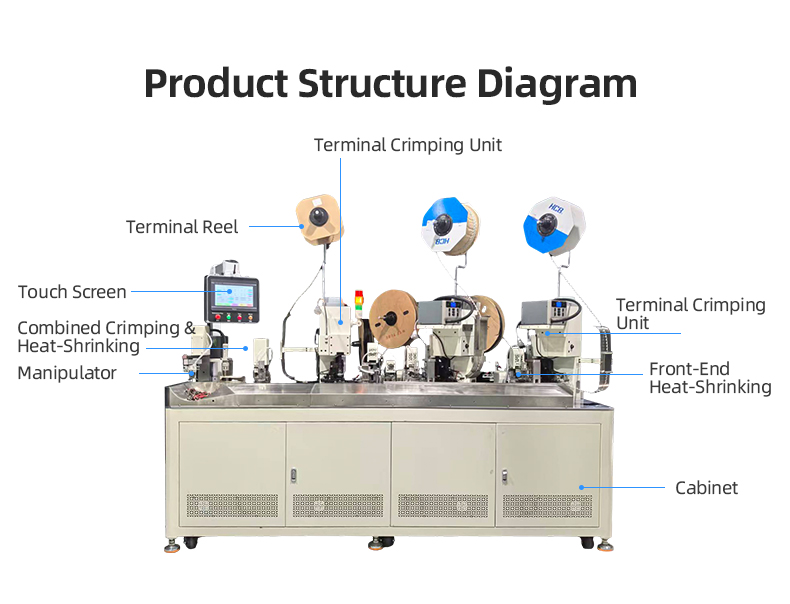

- 2.The main unit is equipped with a built-in 4-wheel synchronous wire feeder to maintain constant wire tension, and comes with an automatic terminal tape cutting device.

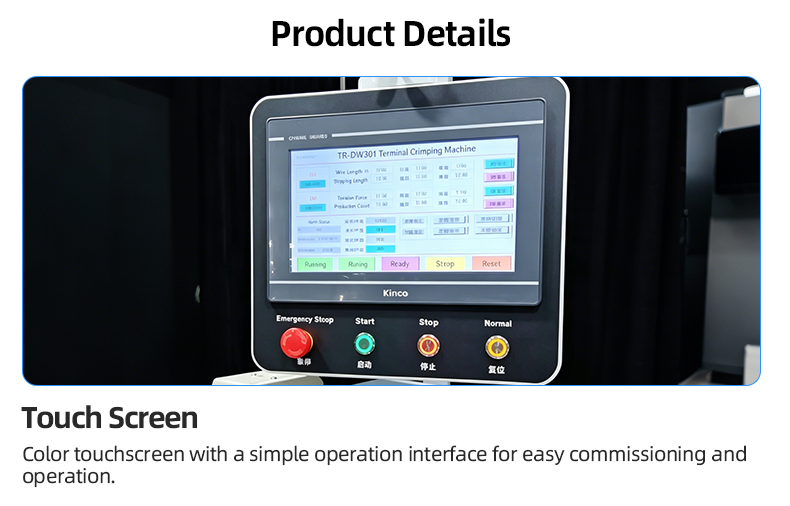

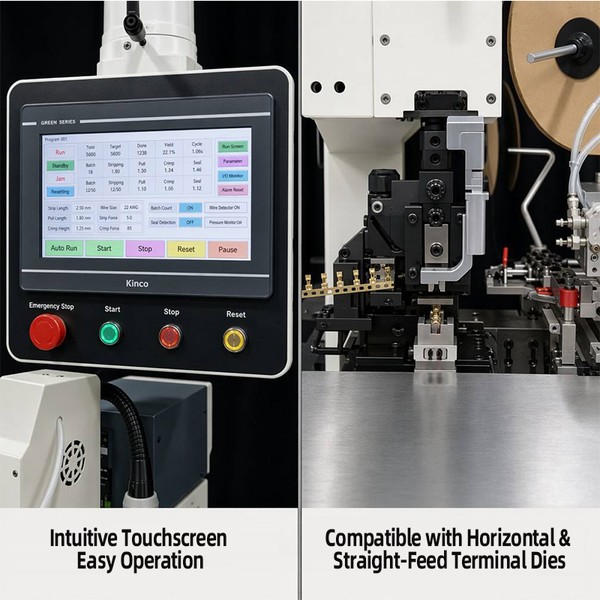

- 3.Controlled by the main unit's motion control card, with Chinese/English touchscreen for parameter setting, featuring short adjustment time and easy operation.

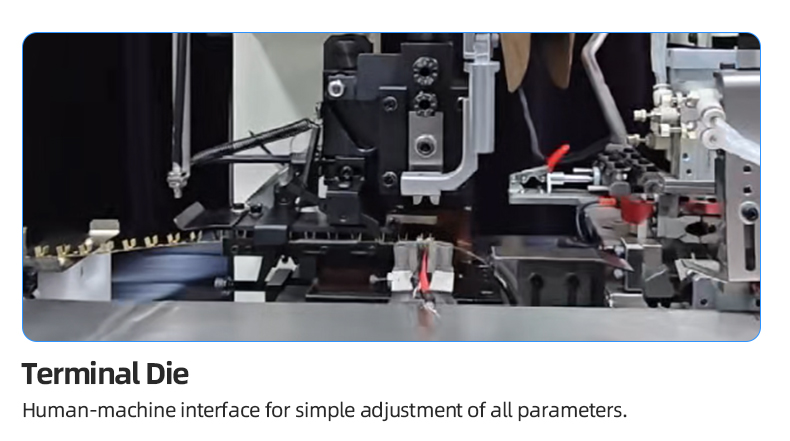

- 4.Compatible with horizontal-feed and straight-feed OTP terminal dies.
- 5.Energy-saving, space-saving, and environmentally friendly equipment.

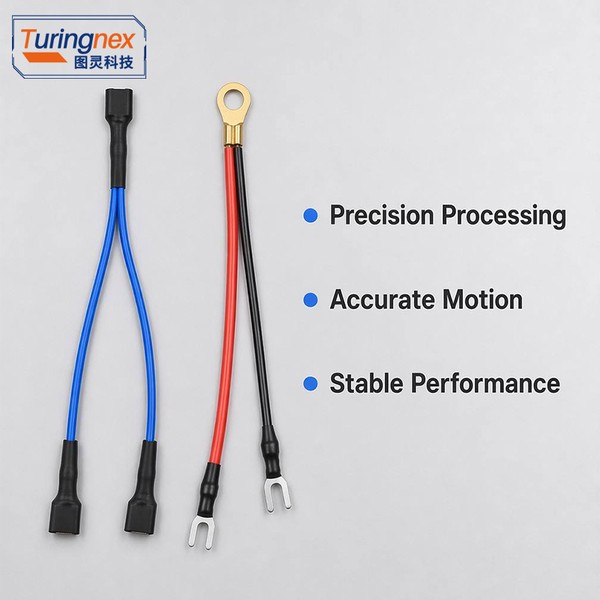

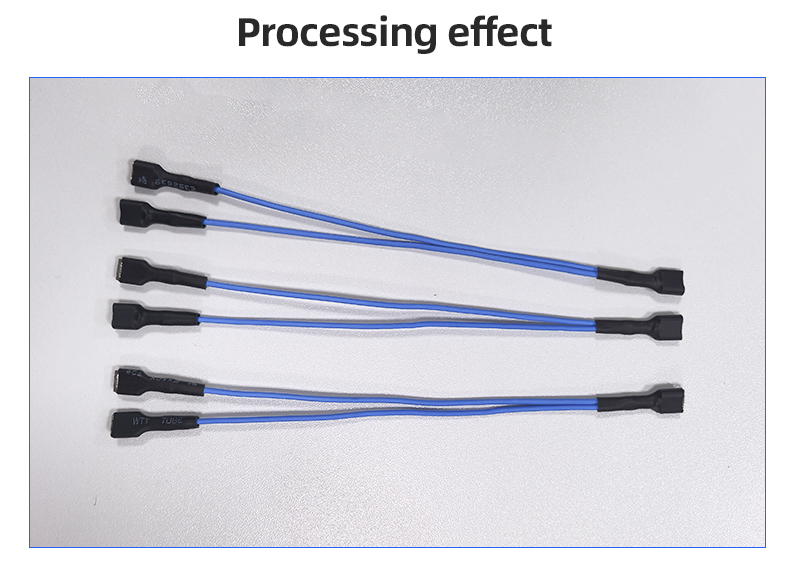

- Mode 1: One wire is heat-shrunk with tubing, the other is not, then combined crimping, followed by heat-shrinking tubing on the crimped end.
- Mode 2: Two wires are individually heat-shrunk with tubing, then combined crimping and heat-shrinking with an additional layer of tubing.
Services Around the Machine
Free sample testYour wire, our machine — video proof before you pay.
Setup guidanceRemote commissioning support included with every order.
12-month warrantyPlus spare-parts support and calibration advice.
Options & toolingCustom dies and accessories made to your terminal.

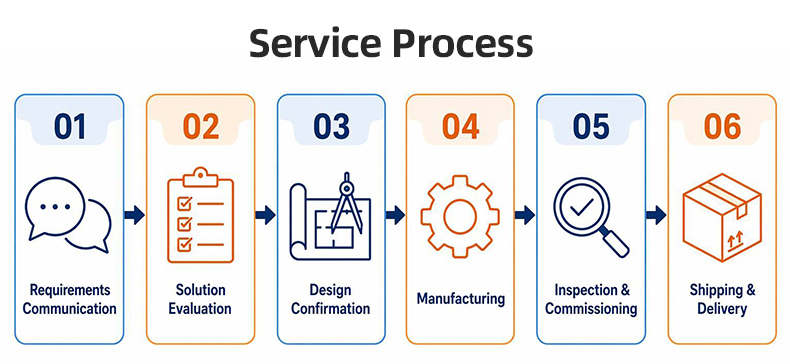

Custom Machine Program
From Your Wire to a Working Machine
Machines are configured around your wire range and terminals — this is how we de-risk it before you pay.
01Send SamplesYour wire and terminals — free evaluation, no commitment.
02Free Test + VideoWe run your sample on the machine and send the video proof.
03Config & QuoteConfiguration, options and FOB quote confirmed within 24 h.
04Build & Run-in TestEvery machine is built and run-in tested 100% before packing.
05QC Video & ShipFinal QC video before packing — sea, air or express dispatch.
Application Note
Which materials it handles, which lines it fits — in the context of your application.
View Application SolutionFree Sample Test
Send your wire and terminals — we run the test on our machine and return the video.
Indicative lead time: On request
Request a TestWhy Buy Direct From Turingnex
Applied Industries

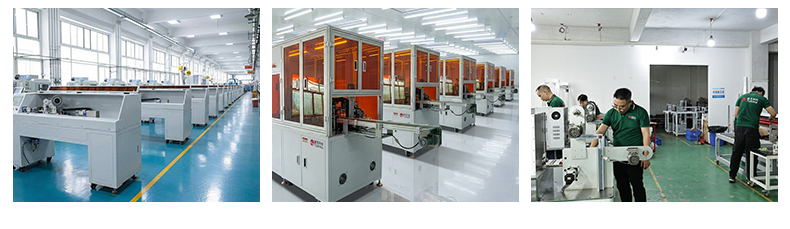

20,000㎡Factory area, Dongguan
10,000+Machines installed worldwide
50+Export countries
98%On-time delivery

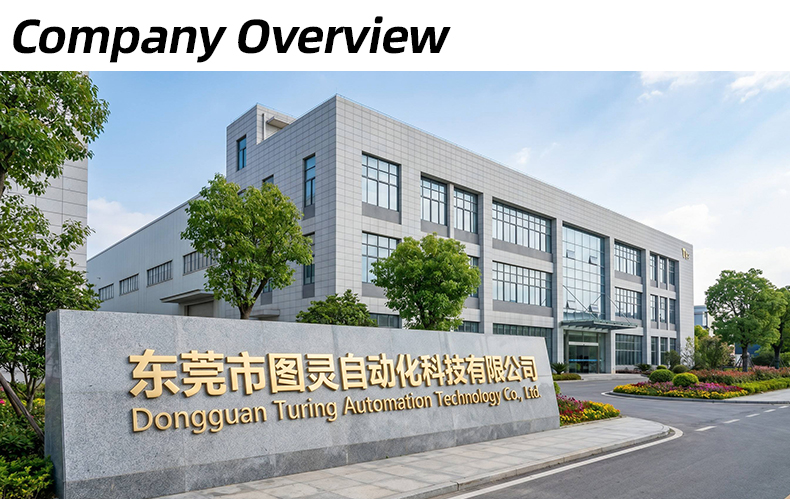

Factory Direct
One factory in Dongguan, one engineer per inquiry — 24h quotes, no middlemen.
Certified & Protected
CE certification, ISO9001 quality system, Alibaba Trade Assurance available.
Test Before You Buy
Free crimp test on your wire and terminals — quality verified before you commit.
Packing & Delivery
- Export-grade packing: wooden case / carton with foam protection
- Sea, air or express shipping — tracking provided
- QC photos & videos sent before packing
- Spare dies and consumables available for reorder
Sea / air / express options Tracking after dispatch
TR-DW301 — Purchasing FAQ
MOQ is 1 machine for standard models — you can trial a single unit on one line before scaling. Custom dies are ordered by piece.
Common standard models are in stock and can ship right away; customised (non-standard) machines are built to order in 7–15 days. Dies and lead time are confirmed in the quotation.
Standard terms are T/T — 30% deposit to start production and 70% balance before shipment. L/C and Alibaba Trade Assurance are also accepted.
Our factory holds CE certification and ISO9001 quality management, and orders can be protected by Alibaba Trade Assurance. Certificates are available on request.
