Highlights
01
Processing wire:
#22~#14 AWG
02
Processing capacity:
wire length 99-150mm about 500 pieces/hour, special wire about 400 pieces/hour.
03
Cutting accuracy:
line length below 100mm error 0.2+ (line length x0.002) The line length is more than 100mm, the error is 0.5+ (line length x0.002)
04
Processing length:
leave rubber in the middle 66mm~99999mm
Machine Video
TR-DM05 in Operation

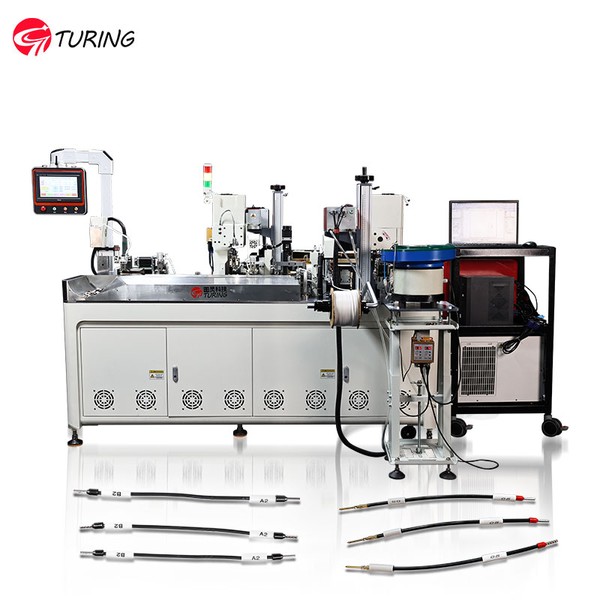

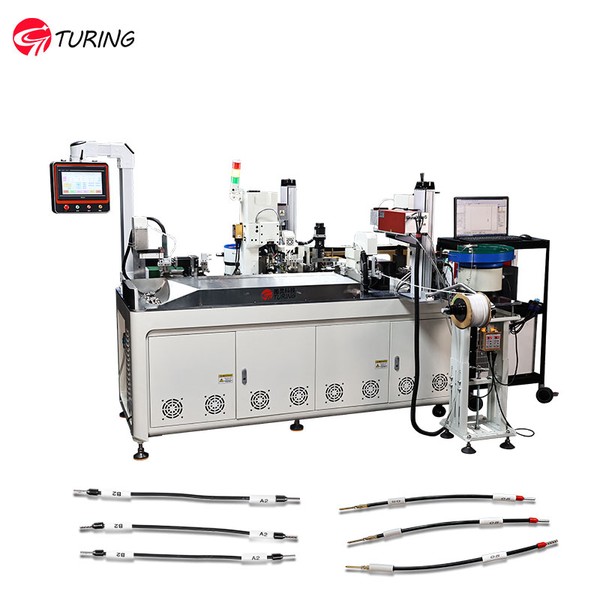

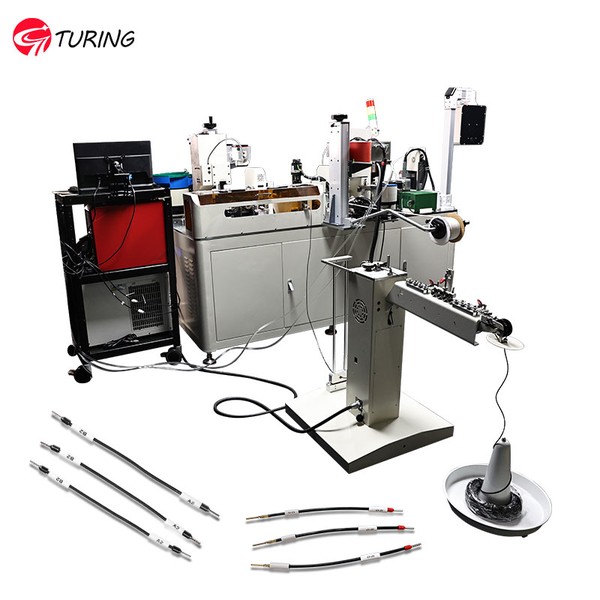

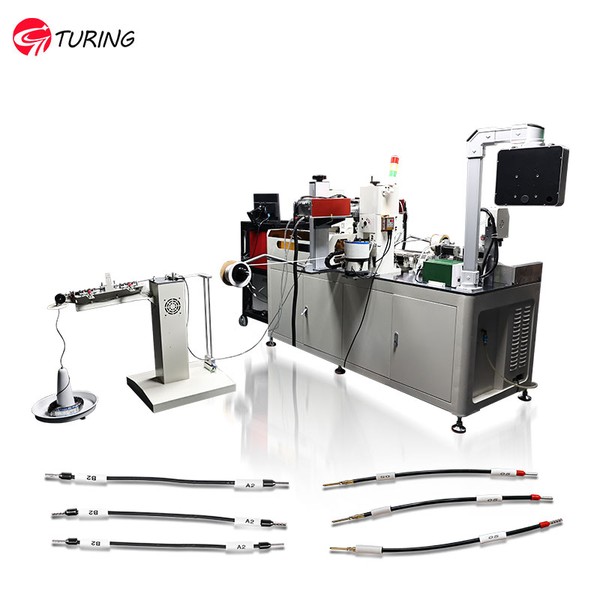

TR-DM05 Double-head Bulk Cold-pressed Number Tube Terminal Crimping Machine in operation
Full Specifications

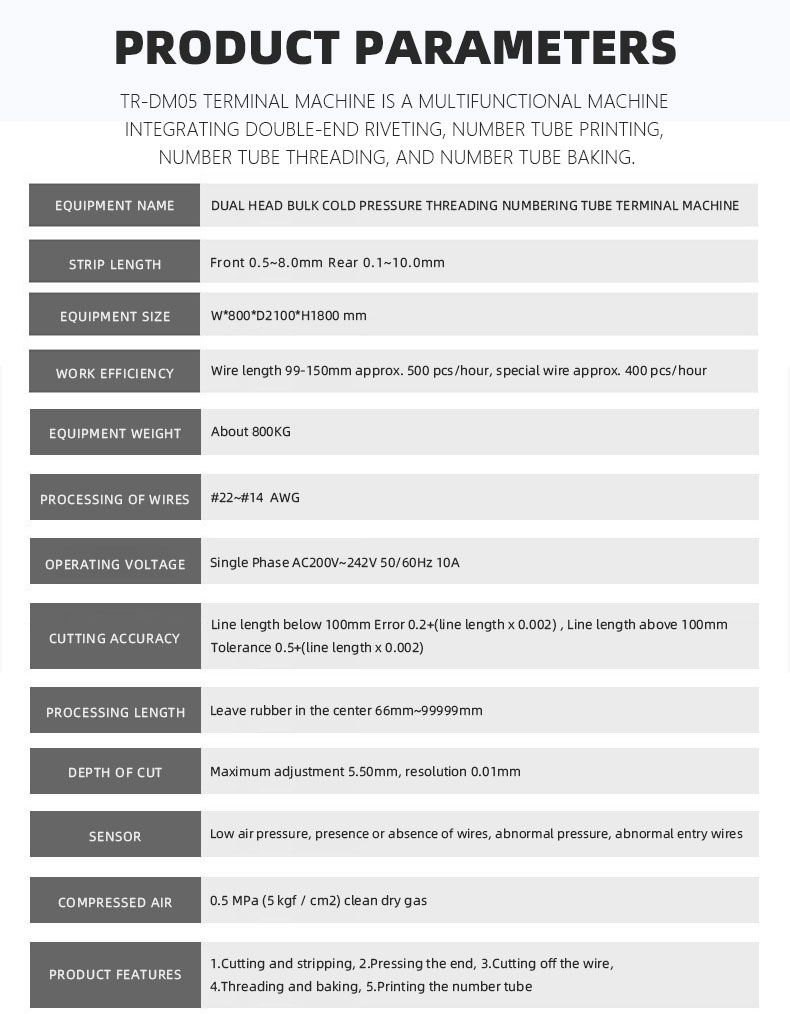

Technical Data
| Model | TR-DM05 |
| Power | AC220V/50HZ, |
| Application | Double-head Terminal Machine |
| Feature | Stable Performance |
| Warranty | 1year |

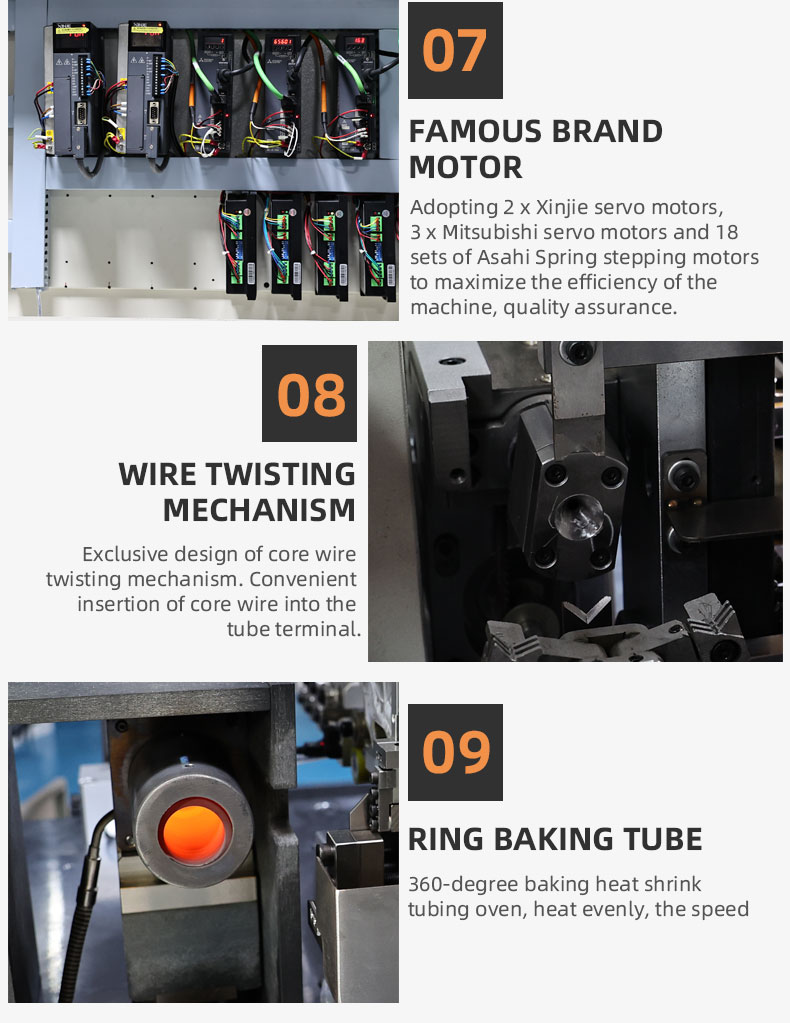

| Control | Servo and Step motor |
| Contact | Lily 0086-13715588365 |
| Processing-wire: | #22~#14 AWG |
| Processing-capacity: | wire length 99-150mm about 500 pieces/hour, special wire about 400 pieces/hour. |
| Cutting-accuracy: | line length below 100mm error 0.2+ (line length x0.002) The line length is more than 100mm, the error is 0.5+ (line length x0.002) |
| Processing-length: | leave rubber in the middle 66mm~99999mm |
| Stripping-length: | front end 0.5~8.0mm rear end 0.1~10.0mm |
| Cutter-depth: | maximum adjustment 5.50mm, resolution 0.01mm |
| Detection-device: | low air pressure, presence or absence of wires, abnormal crimping, abnormal wire entry |
| Power-supply: | Single phase AC200V~242V 50/60Hz 10A |
| Compressed-air: | 0.5 MPa(5kgf / cm2) clean dry gas |
| Mechanical-size: | W800 *D2100*H1800mm |
| Mechanical-weight: | about 800KG |
| Terminal compatibility |
Ordering Information
| Certification | CE — ISO9001 factory — certificates on request |
| MOQ | 1 set |
| Price (FOB, indicative) | Quote on request |
| Lead time | Standard models in stock; customised 7–15 days |
| Payment | T/T 30% deposit + 70% before shipment |
| Warranty | Standard warranty — terms confirmed in sales contract |
| Free trial | Free crimp test with your wire & terminals |
Specifications are indicative and confirmed with your order. Custom configurations available.
Features & Details

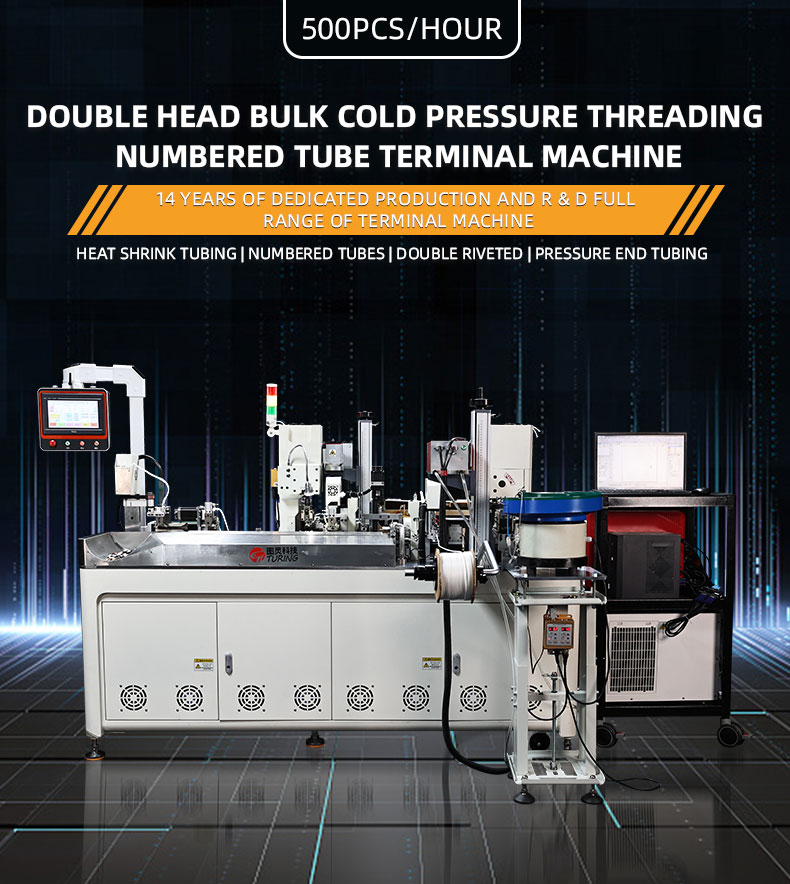

- TR-DM05 Double-head bulk Cold-pressed Number Tube Terminal Crimping Machine

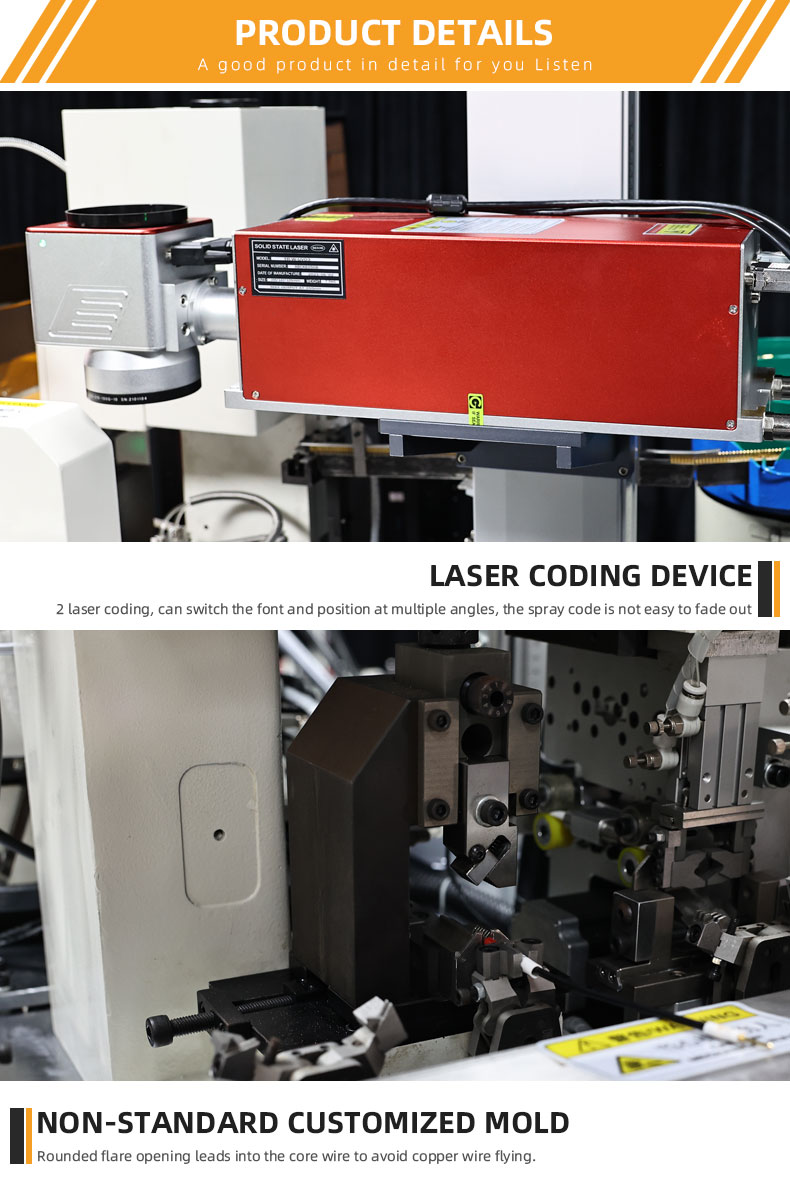

- cutting and stripping the wires and crimping at both ends, printing the number tube (laser typing or thermal transfer printing is optional), inserting the number tube, and baking the number tube
- wire cutting, single-end stripping, two-end stripping, two-end crimping, double-end crimping and baking number tube
- line length below 100mm error 0.2+ (line length x0.002)
- The line length is more than 100mm, the error is 0.5+ (line length x0.002)
Services Around the Machine
Free sample testYour wire, our machine — video proof before you pay.
Setup guidanceRemote commissioning support included with every order.
12-month warrantyPlus spare-parts support and calibration advice.
Options & toolingCustom dies and accessories made to your terminal.
Custom Machine Program
From Your Wire to a Working Machine
Machines are configured around your wire range and terminals — this is how we de-risk it before you pay.
01Send SamplesYour wire and terminals — free evaluation, no commitment.
02Free Test + VideoWe run your sample on the machine and send the video proof.
03Config & QuoteConfiguration, options and FOB quote confirmed within 24 h.
04Build & Run-in TestEvery machine is built and run-in tested 100% before packing.
05QC Video & ShipFinal QC video before packing — sea, air or express dispatch.
Application Note
Which materials it handles, which lines it fits — in the context of your application.
View Application SolutionFree Sample Test
Send your wire and terminals — we run the test on our machine and return the video.
Indicative lead time: On request
Request a TestWhy Buy Direct From Turingnex
Applied Industries
20,000㎡Factory area, Dongguan
10,000+Machines installed worldwide
50+Export countries
98%On-time delivery
Factory Direct
One factory in Dongguan, one engineer per inquiry — 24h quotes, no middlemen.
Certified & Protected
CE certification, ISO9001 quality system, Alibaba Trade Assurance available.
Test Before You Buy
Free crimp test on your wire and terminals — quality verified before you commit.
Packing & Delivery
- Export-grade packing: wooden case / carton with foam protection
- Sea, air or express shipping — tracking provided
- QC photos & videos sent before packing
- Spare dies and consumables available for reorder
Sea / air / express options Tracking after dispatch
TR-DM05 — Purchasing FAQ
MOQ is 1 machine for standard models — you can trial a single unit on one line before scaling. Custom dies are ordered by piece.
Common standard models are in stock and can ship right away; customised (non-standard) machines are built to order in 7–15 days. Dies and lead time are confirmed in the quotation.
Standard terms are T/T — 30% deposit to start production and 70% balance before shipment. L/C and Alibaba Trade Assurance are also accepted.
Our factory holds CE certification and ISO9001 quality management, and orders can be protected by Alibaba Trade Assurance. Certificates are available on request.
