Highlights
01
EQUIPMENT NAME

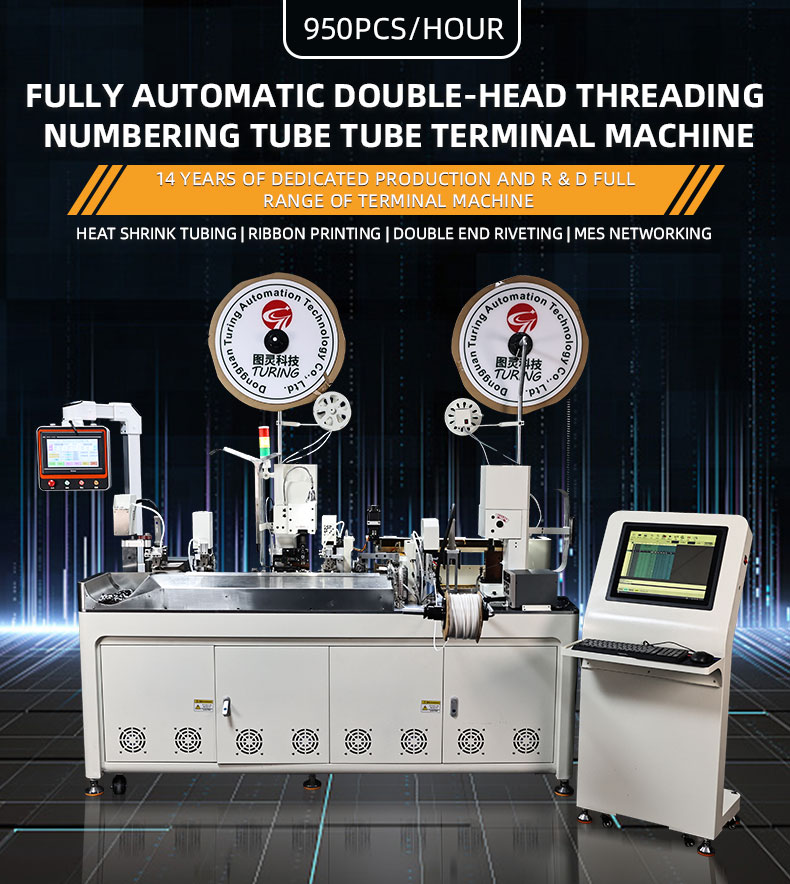

AUTOMATIC DOUBLE-HEAD THREADING NUMBER TUBE TUBE TERMINAL MACHINE
02
STRIP LENGTH
Front0.5~80mm Rear 0.1~10.0mm
03
EQUIPMENT SIZE
W*800D1800*H1800mm
04
WORK EFFICIENCY
Wire length 80-150mm approx.950pcs/hour, specialwire
Machine Video
TR-DM04 in Operation

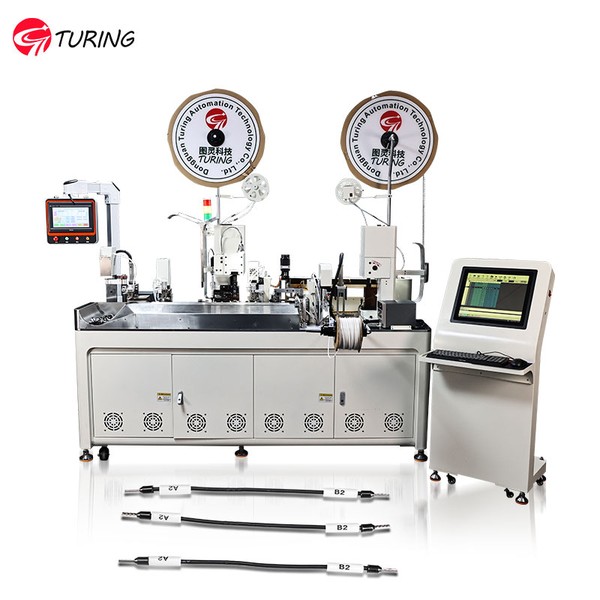

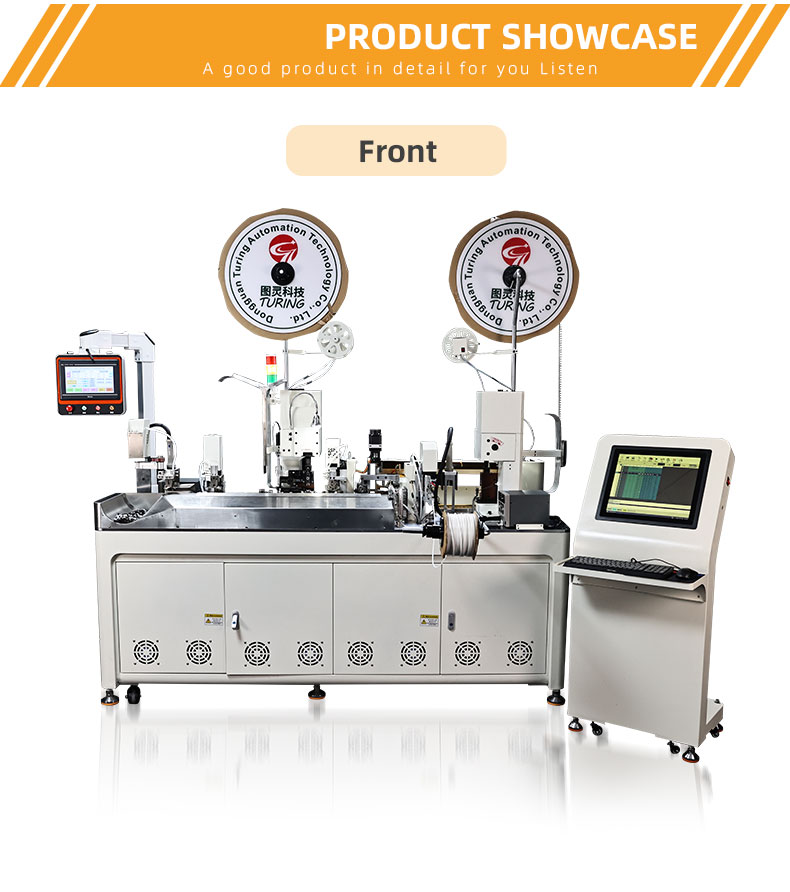

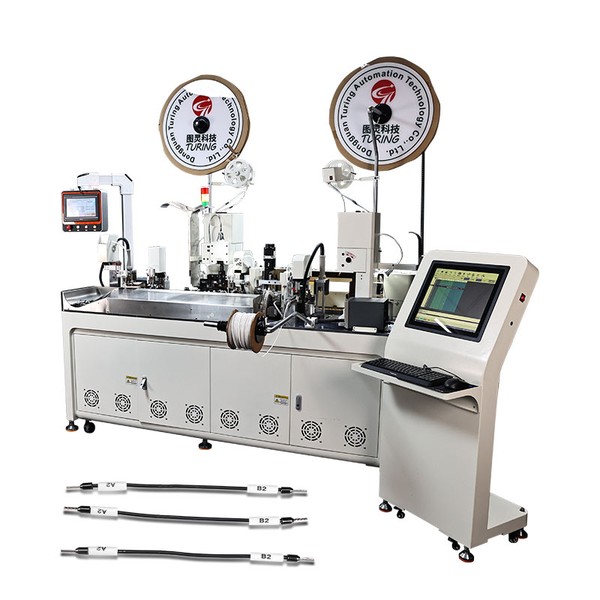

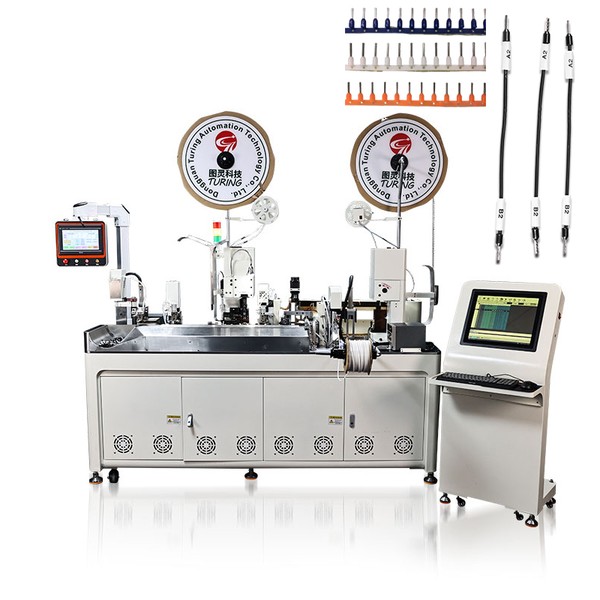

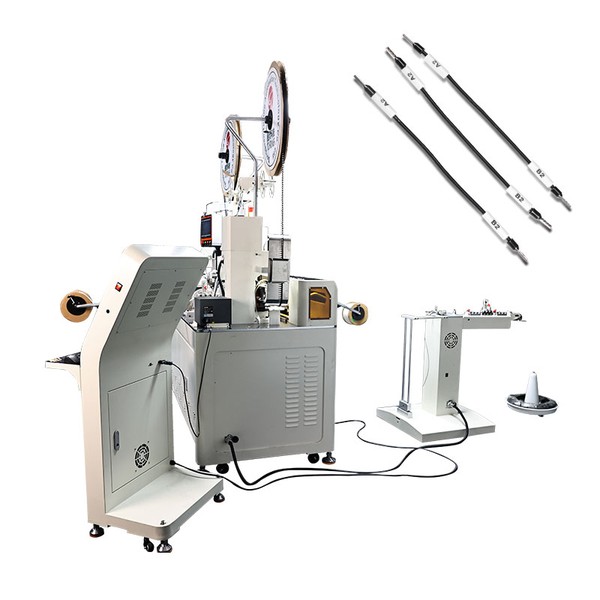

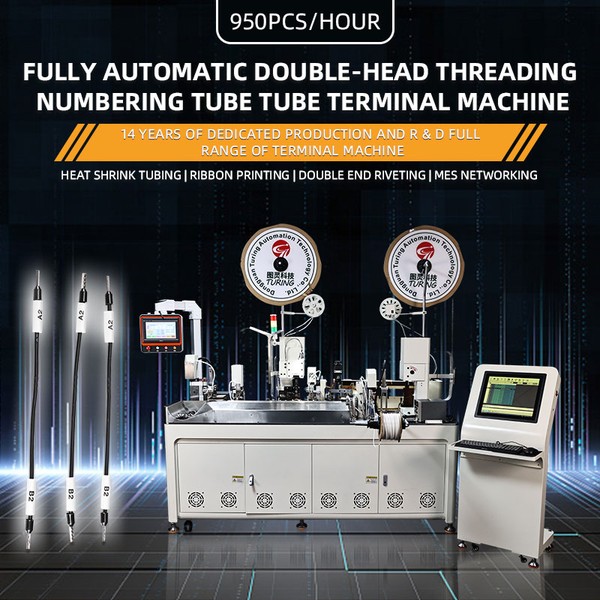

TR-DM04 Automatic Double-head Wire Stripping Cutting Wear Number Tube Type Terminal Crimping Machine in operation
Full Specifications

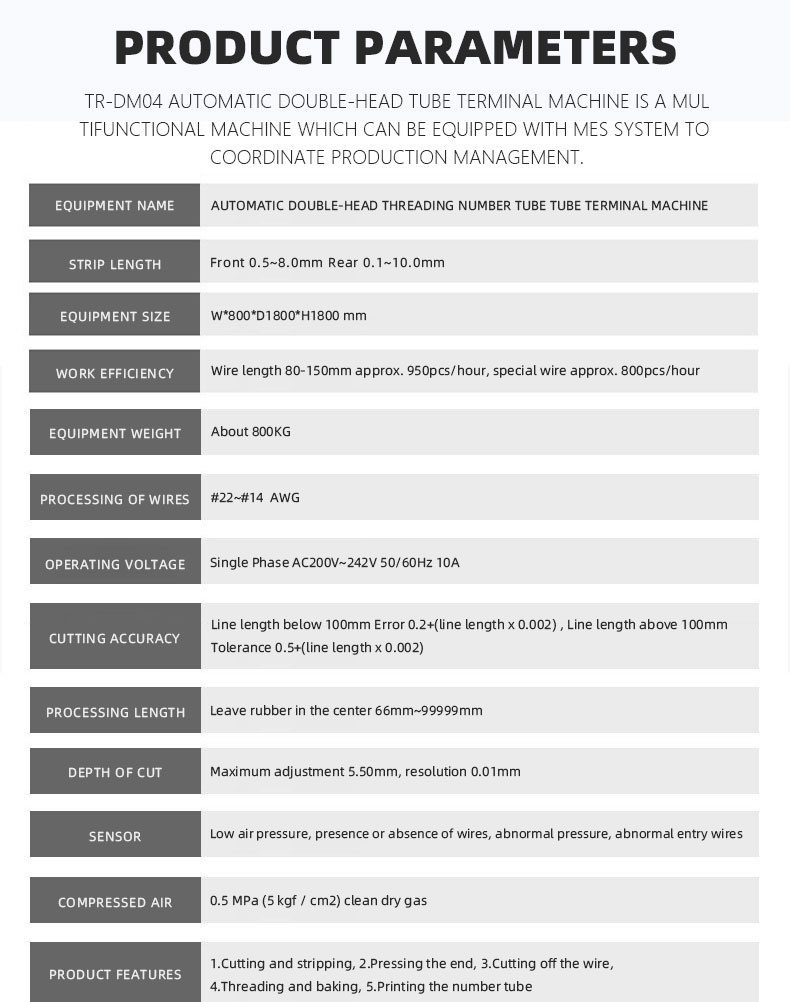

Technical Data
| Model | TR-DM04 |
| Power | AC220V/50HZ, |
| Application | Double-head Terminal Machine |
| Feature | Stable Performance |
| Warranty | 1year |

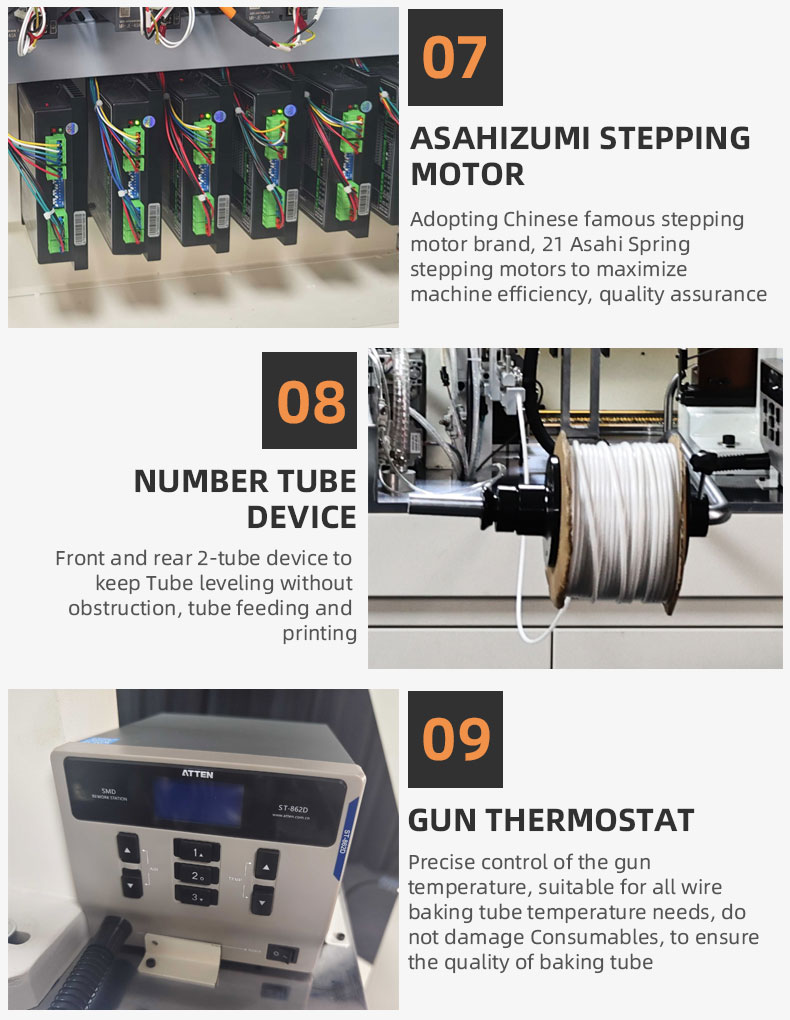

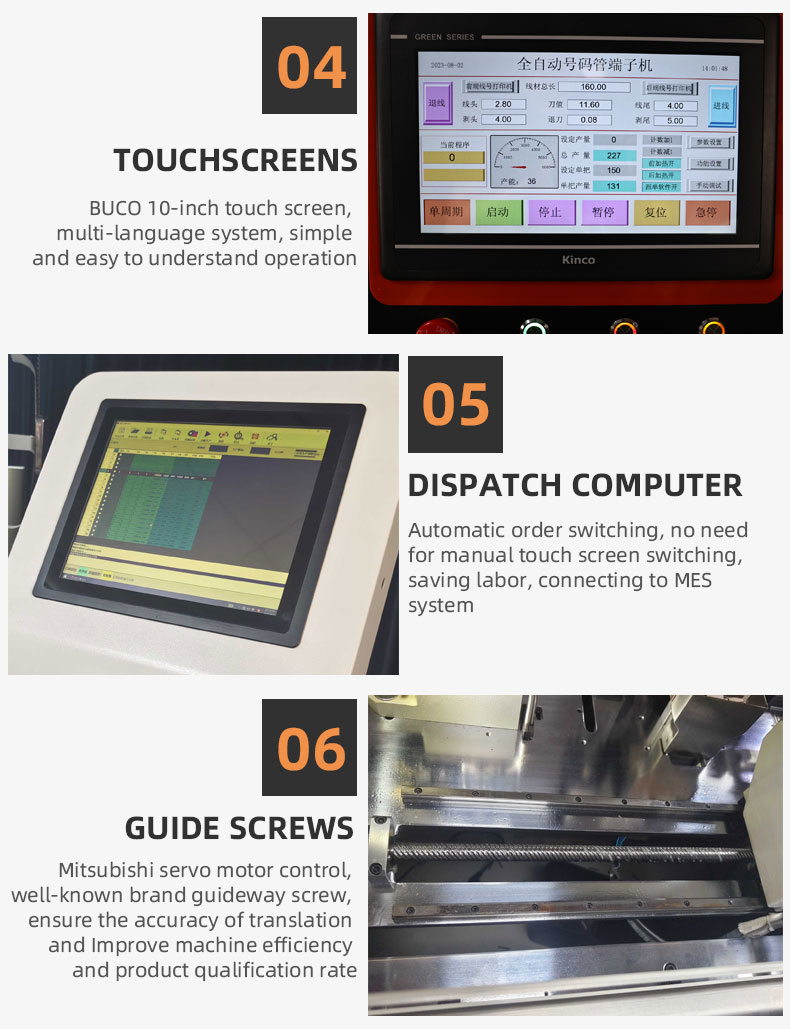

| Control | Servo and Step motor |
| Contact | Lily 0086-13715588365 |
| Function | Wire Stripping Cutting Wear Number Tube terminal |
| Equipment-name | AUTOMATIC DOUBLE-HEAD THREADING NUMBER TUBE TUBE TERMINAL MACHINE |
| Strip-length | Front0.5~80mm Rear 0.1~10.0mm |
| Equipment-size | W*800D1800*H1800mm |
| Work-efficiency | Wire length 80-150mm approx.950pcs/hour, specialwire |
| Equipment-weight | About 800KG |
| Processing-of-wires | #22~#14AWG |
| Operating-voltage | SinglePhaseAC200V~242V50/60Hz10A |
| Cutting-accuracy | Line length below 100mm Error 0.2+(line length x 0.002), Line length above 100mmTolerance 0.5+(line length x 0002) |
| Processing-length | Leave rubber in the center 66mm~99999mm |
| Depth-of-cut | Maximum adjustment 5.50mm, resolution 0.01mm |
| Sensor | Low air pressure, presence or absence of wires, abnormal pressure, abnormal entry wires |
| Compressed-air | 0.5 MPa(5 kgf / cm2) clean dry gas |
| Product-features | 1.Cutting and stripping, 2.Pressing the end, 3.Cutting off the wire4.Threading and baking,5.Printing the number tube |
| Terminal compatibility |
Ordering Information
| Certification | CE — ISO9001 factory — certificates on request |
| MOQ | 1 set |
| Price (FOB, indicative) | Quote on request |
| Lead time | Standard models in stock; customised 7–15 days |
| Payment | T/T 30% deposit + 70% before shipment |
| Warranty | Standard warranty — terms confirmed in sales contract |
| Free trial | Free crimp test with your wire & terminals |
Specifications are indicative and confirmed with your order. Custom configurations available.
Features & Details
- TR-DM04 Automatic Double-head Wire Stripping Cutting Wear Number Tube Type Terminal Crimping Machine

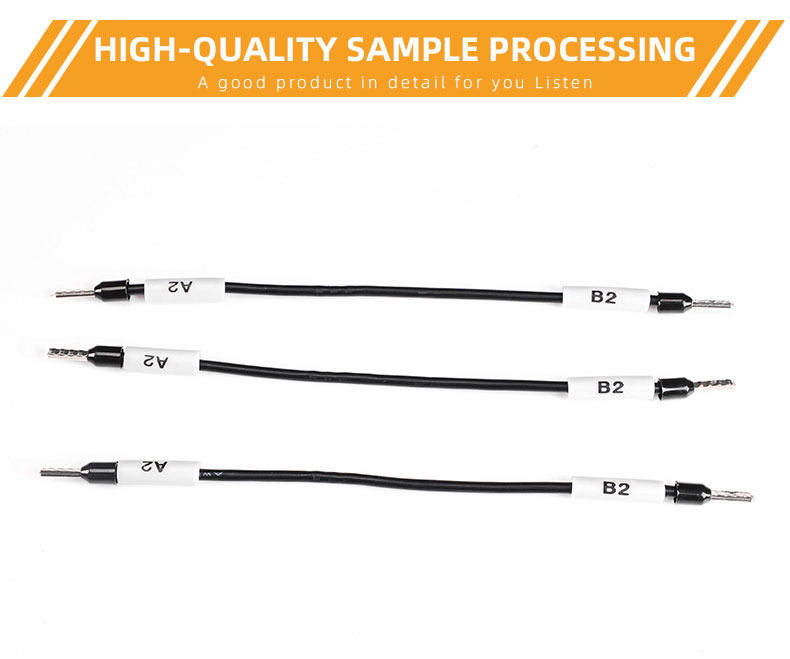

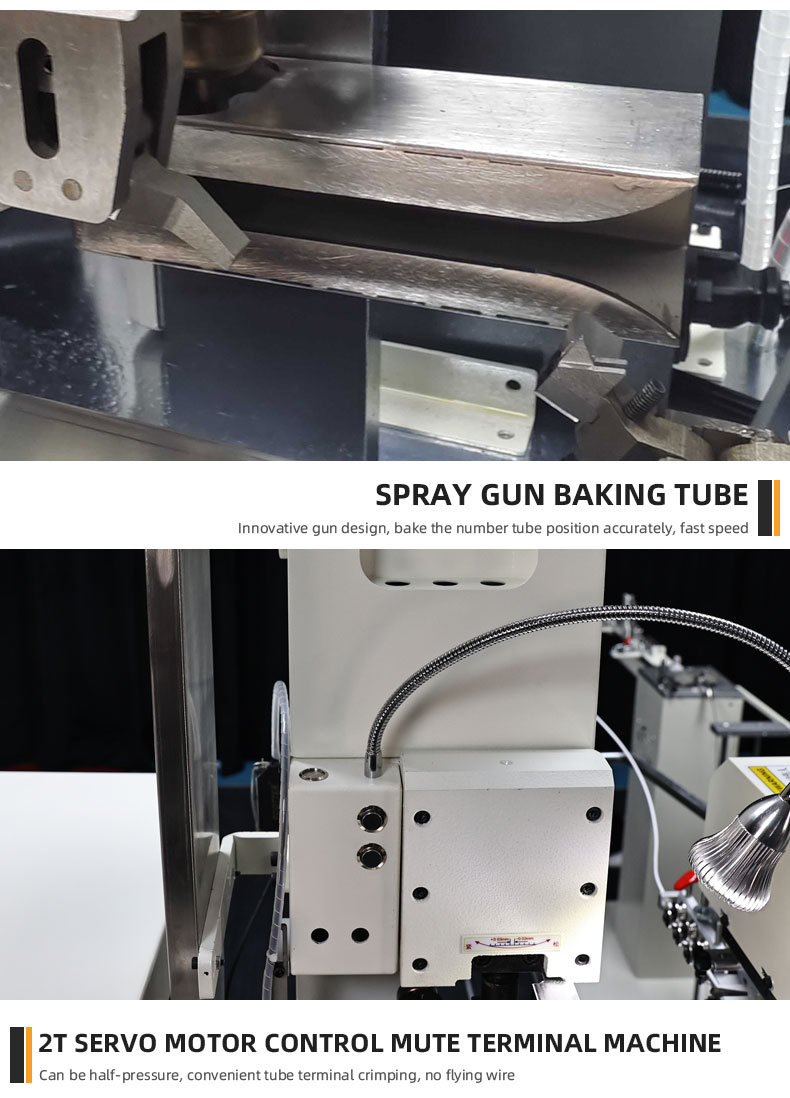

- Cutting and stripping the wires, crimping at both ends, printing the number tube, threading the number tube, and baking the number tube
- Wire cutting, single-end stripping, both-end stripping, both-end crimping, double-end crimping and baking number tube
