Highlights
01
Name
Full automatic 5 Wire cutting and striping twisting tinning terminal crimping machine
02
Conductor Cross-section
AWG32 - AWG16
03
Stripping Length
0.1-11mm at both sides
04
Twisting Length
2-10.5mm
Machine Video
TR-DD02 in Operation

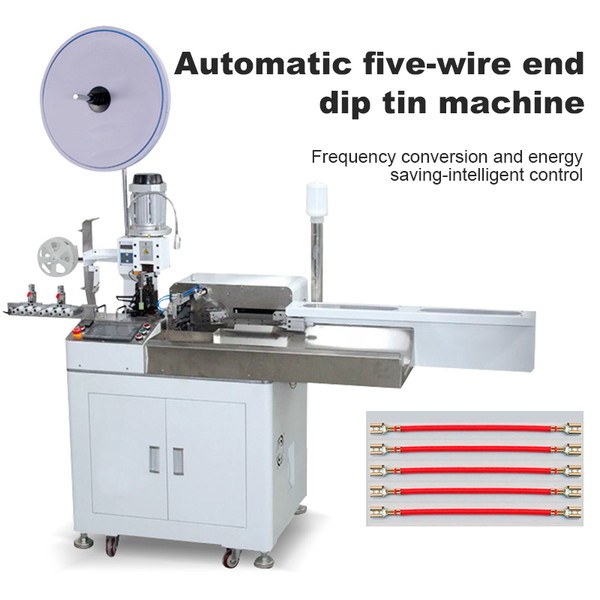

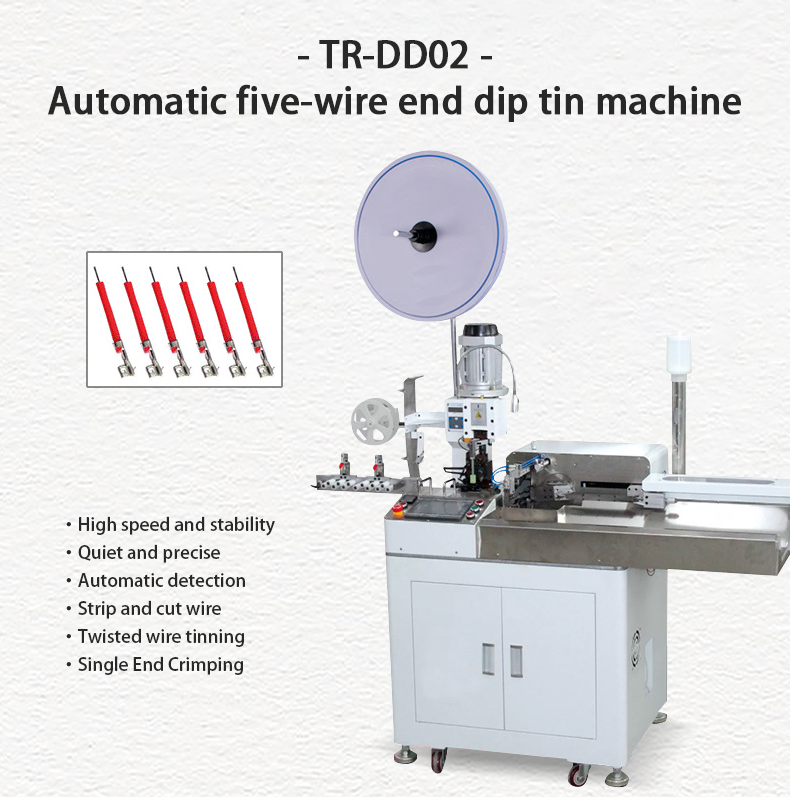

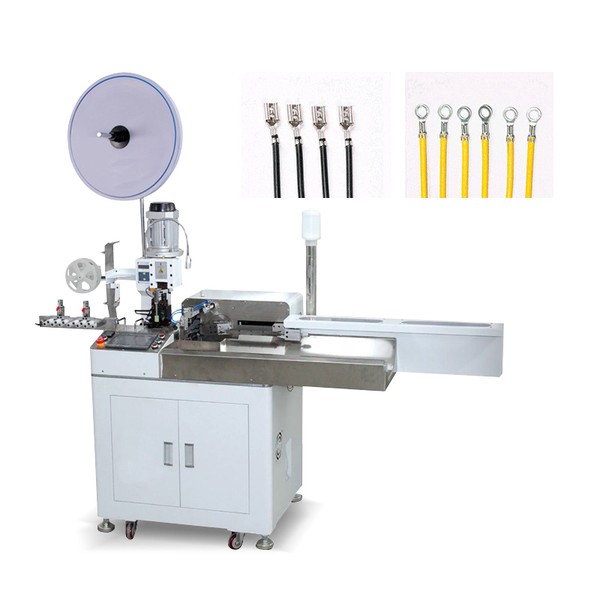

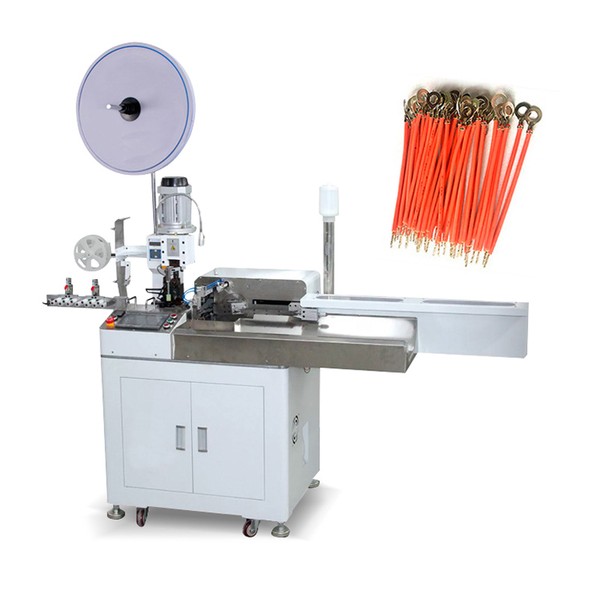

TR-DD02 Fully Automatic Five Wire End Terminal Crimping Tin Dipping Machine in operation
Full Specifications

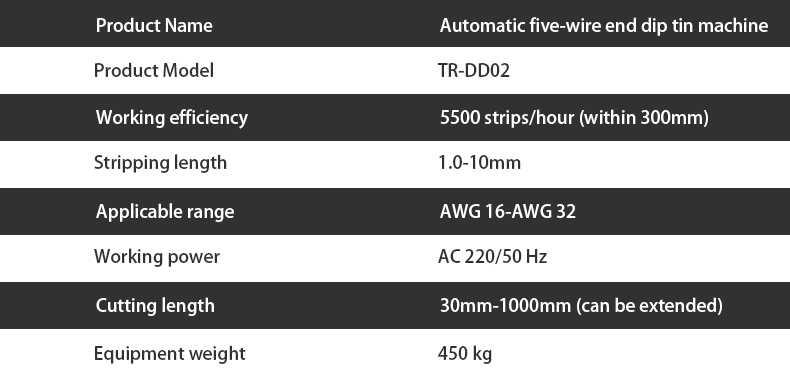

Technical Data
| Model | TR-DD02 |
| Power | AC220V/50HZ, |
| Application | Single end Terminal Machine |
| Feature | Stable Performance |
| Warranty | 1year |
| Control | Servo and Step motor |
| Contact | Lily 0086-13715588365 |
| Conductor-cross-section | AWG32 - AWG16 |
| Stripping-length | 0.1-11mm at both sides |
| Twisting-length | 2-10.5mm |
| Tinning-length | 0.5-10.5mm |
| Wire-crimping-length | 1.5-10mm |
| Cutting-length | Max 850mm (other sizes are customizable) |
| Crimp-force | standard 2.0T(customized available) |
| Production-rate | 6600pcs/hr |
| Power-supply | A/C 220V, 50/60HZ (110V on request) |
| Compressed-air-supply | 0.5-0.7MPa (Clean and dry air) |
| Weight | 500KG |
| Dimensions-(l-x-w-x-h) | 2200 x 750 x 2100mm |
| Terminal compatibility |
Ordering Information
| Certification | CE — ISO9001 factory — certificates on request |
| MOQ | 1 set |
| Price (FOB, indicative) | Quote on request |
| Lead time | Standard models in stock; customised 7–15 days |
| Payment | T/T 30% deposit + 70% before shipment |
| Warranty | Standard warranty — terms confirmed in sales contract |
| Free trial | Free crimp test with your wire & terminals |
Specifications are indicative and confirmed with your order. Custom configurations available.

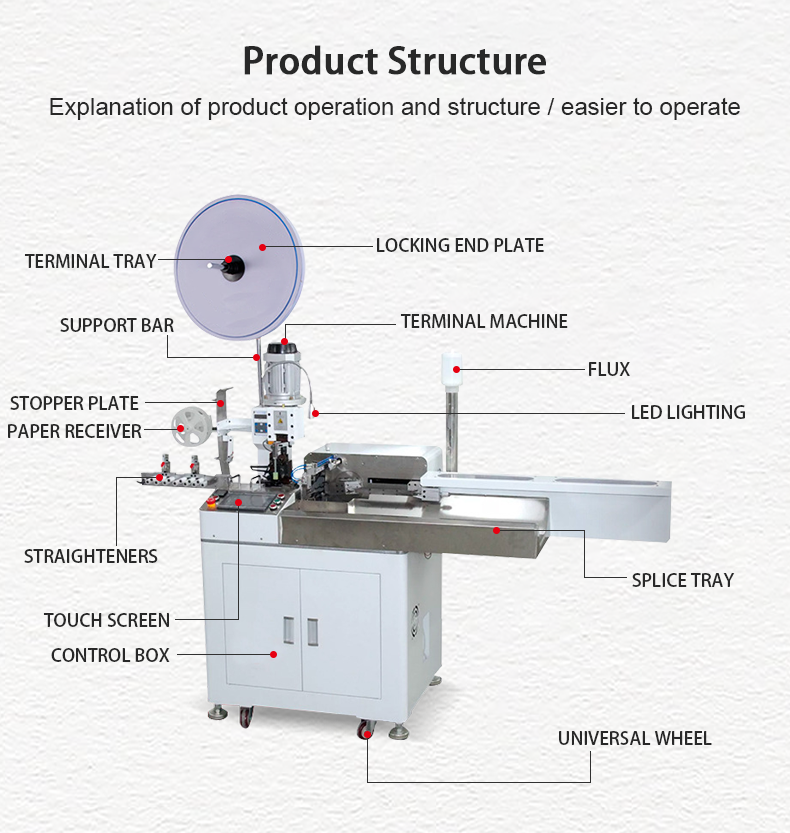

Features & Details
- TR-DD02 Fully automatic five wire end terminal crimping tin dipping machine
- Full automatic 5 Wire cutting and striping twisting tinning terminal crimping machine, it uses stuck-type applicator, and it is easy and convenient to disassemble , Different terminal different crimping applicator,Process 5 wires at same time ，High productivity achieve 6600 pcs per hour,It’s Greatly Improved stripping speed and save labor cost.
- 1.Not need replace the back end stripping clamp change Long / short cutting, realizing second change, which is the first in China 2. The motor type twisted wire is realized, There are two kindly of twisting type , like positive and negative. You can directly setting twisting speed on machine ;
- 3. The cutting blades holder is Mitsubishi servo with precision screw rod double guide, front and rear stripping screw double guide and Japanese three servo motor;

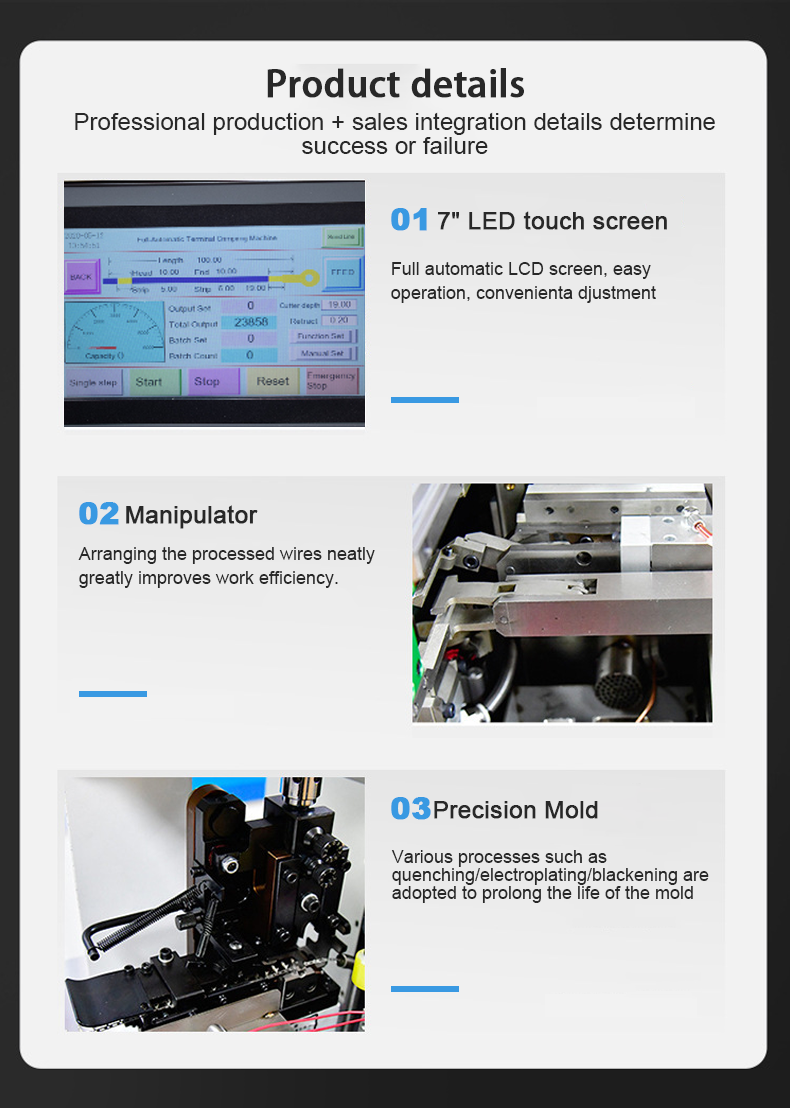

- 4. Full color English touch display with full digital operation. It's very easy to operate
- 5. Two kinds of terminal material cutting ，It can be equipped with horizontal Applicator, vertical applicator and flag applicator
Services Around the Machine
Free sample testYour wire, our machine — video proof before you pay.
Setup guidanceRemote commissioning support included with every order.
12-month warrantyPlus spare-parts support and calibration advice.
Options & toolingCustom dies and accessories made to your terminal.
Custom Machine Program
From Your Wire to a Working Machine
Machines are configured around your wire range and terminals — this is how we de-risk it before you pay.
01Send SamplesYour wire and terminals — free evaluation, no commitment.
02Free Test + VideoWe run your sample on the machine and send the video proof.
03Config & QuoteConfiguration, options and FOB quote confirmed within 24 h.
04Build & Run-in TestEvery machine is built and run-in tested 100% before packing.
05QC Video & ShipFinal QC video before packing — sea, air or express dispatch.
Application Note
Which materials it handles, which lines it fits — in the context of your application.
View Application SolutionFree Sample Test
Send your wire and terminals — we run the test on our machine and return the video.
Indicative lead time: On request
Request a TestWhy Buy Direct From Turingnex
Applied Industries
20,000㎡Factory area, Dongguan
10,000+Machines installed worldwide
50+Export countries
98%On-time delivery
Factory Direct
One factory in Dongguan, one engineer per inquiry — 24h quotes, no middlemen.
Certified & Protected
CE certification, ISO9001 quality system, Alibaba Trade Assurance available.
Test Before You Buy
Free crimp test on your wire and terminals — quality verified before you commit.
Packing & Delivery
- Export-grade packing: wooden case / carton with foam protection
- Sea, air or express shipping — tracking provided
- QC photos & videos sent before packing
- Spare dies and consumables available for reorder
Sea / air / express options Tracking after dispatch
TR-DD02 — Purchasing FAQ
MOQ is 1 machine for standard models — you can trial a single unit on one line before scaling. Custom dies are ordered by piece.
Common standard models are in stock and can ship right away; customised (non-standard) machines are built to order in 7–15 days. Dies and lead time are confirmed in the quotation.
Standard terms are T/T — 30% deposit to start production and 70% balance before shipment. L/C and Alibaba Trade Assurance are also accepted.
Our factory holds CE certification and ISO9001 quality management, and orders can be protected by Alibaba Trade Assurance. Certificates are available on request.
