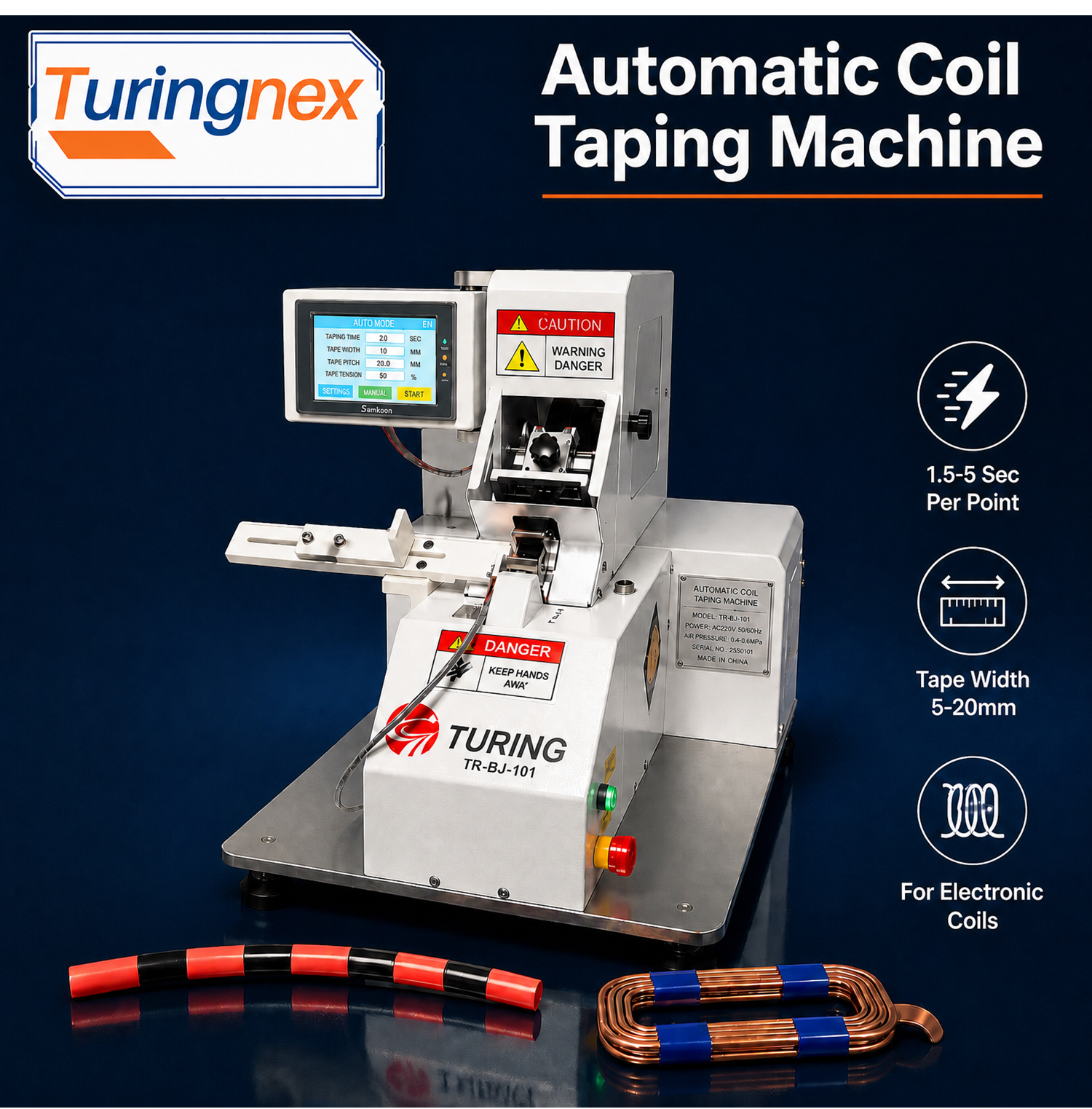

TR-BJ1015 Automatic Coil Tape Wrapping Machine

Name: TR-BJ1015 Automatic Coil Tape Wrapping Machine
Brand: Turingnex
SKU: TR-BJ1015
Availability: InStock

TR-BJ1015 Automatic Coil Tape Wrapping Machine: Power 220V 50Hz; application Single Point Tape Wrapping Machine; feature Stable Performance.

Request Quotation Watch Video Downloads

Quote on requestFOB · MOQ 1 set · final price confirmed at quotation

Power: 220V 50HzApplication: Single Point Tape Wrapping MachineFeature: Stable PerformanceFunction: Automatic Tape Winding MachineEquipment-name: TR-BJ1015 Automatic Coil Tape Wrapping MachineSize-&-weight: 670x390x480mm，30kg

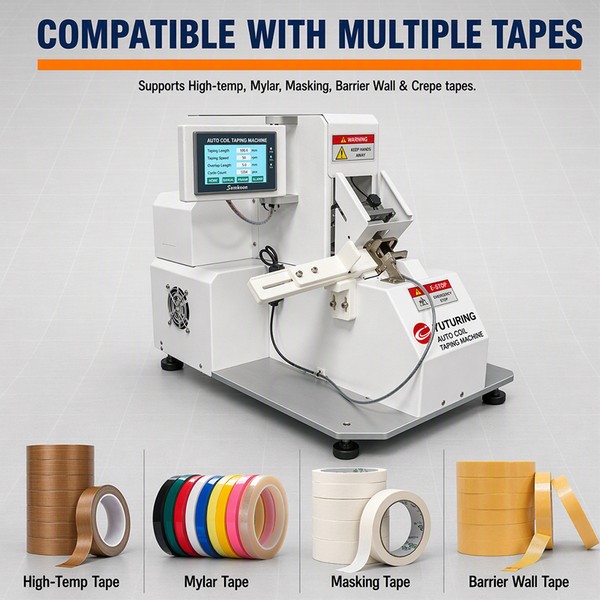

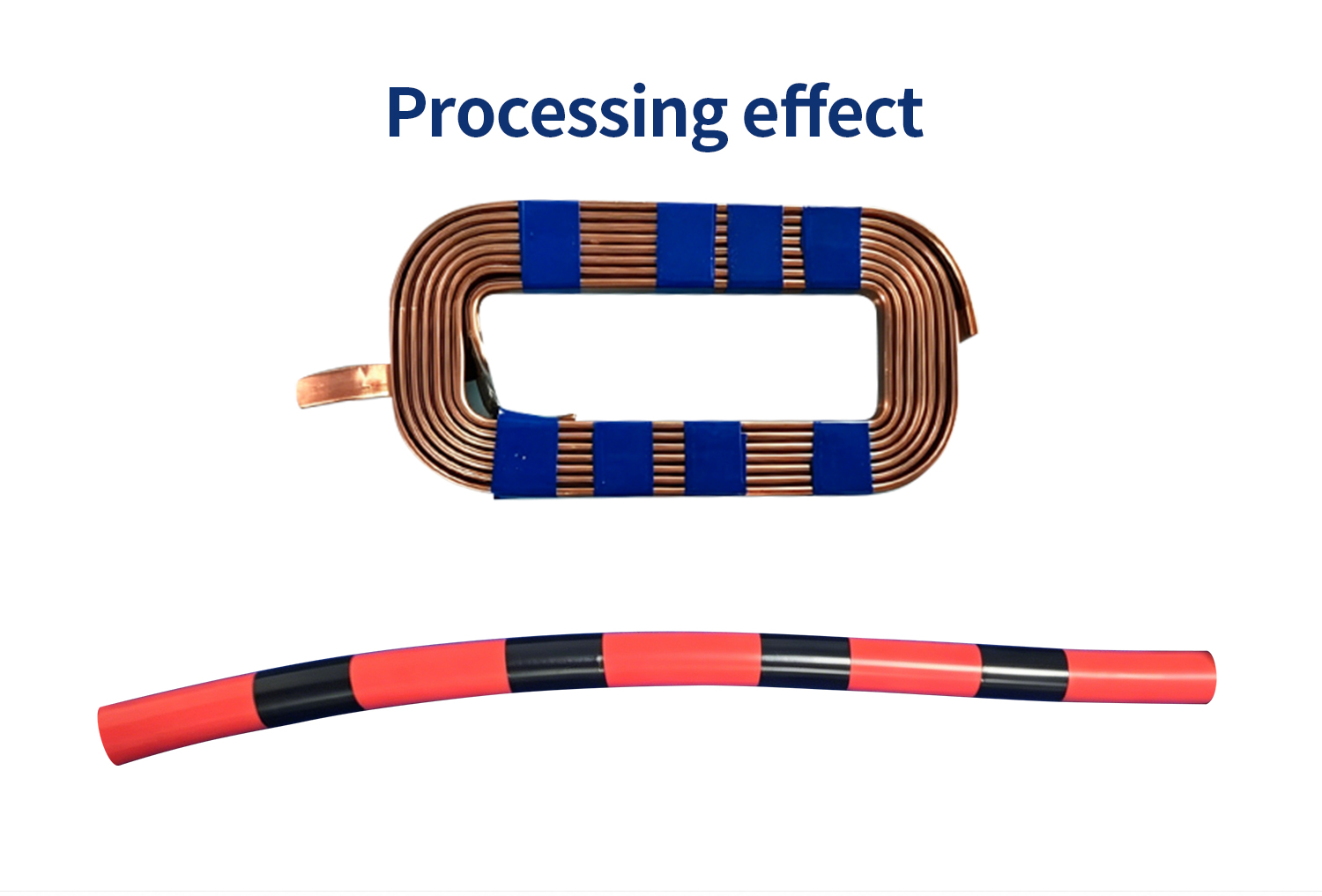

Designed for taping toroidal coils, it works with inductance coils, stator wire packs and other electronic coils. Compatible with masking tape, Mylar tape, barrier tape, high-temperature tape and more.
The taping cycle for one workpiece only takes 1.5–5 seconds. All parameters including taping turns, rotating speed, tape length and tape feeding speed can be set independently on the touchscreen.
Equipped with a photoelectric sensor to trigger an alarm when tape runs out. A fiber sensor stops tape feeding if the finished part is not removed, effectively avoiding mechanical collision damage.

CE CertifiedFactory Direct Price12-Month Warranty24h Quote ResponseTested Before ShipmentFree Sample Test Video

10,000+ Machines installed worldwide50+ Export countries

Highlights

01

Wide compatibility for various adhesive tapes

Designed for taping toroidal coils, it works with inductance coils, stator wire packs and other electronic coils. Compatible with masking tape, Mylar tape, barrier tape, high-temperature tape and more.

02

High processing efficiency with freely adjustable process parameters

The taping cycle for one workpiece only takes 1.5–5 seconds. All parameters including taping turns, rotating speed, tape length and tape feeding speed can be set independently on the touchscreen.

03

Multiple smart sensors with collision prevention & tape-out alert

Equipped with a photoelectric sensor to trigger an alarm when tape runs out. A fiber sensor stops tape feeding if the finished part is not removed, effectively avoiding mechanical collision damage.

04

PLC touch intelligent control, easy to operate

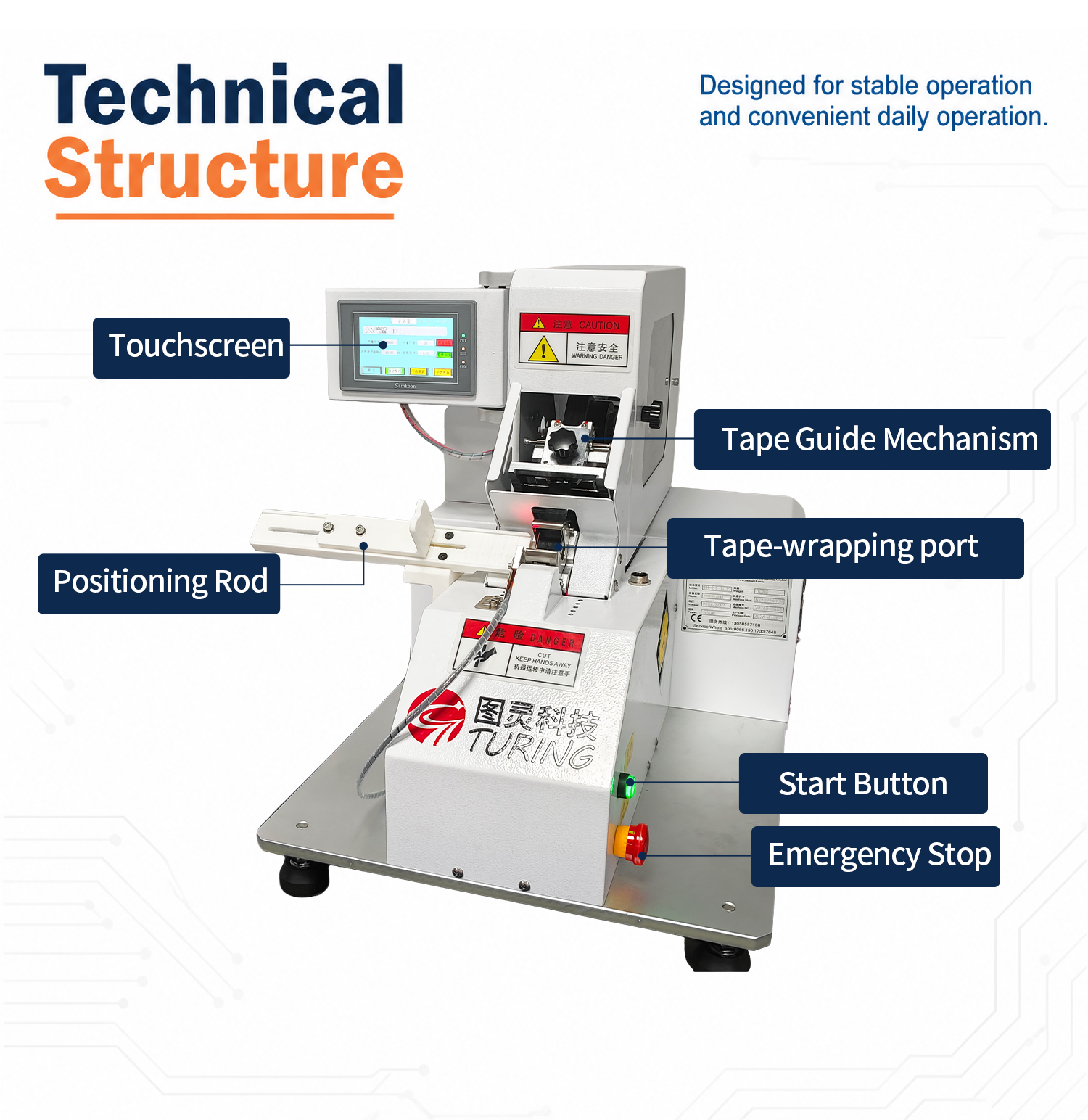

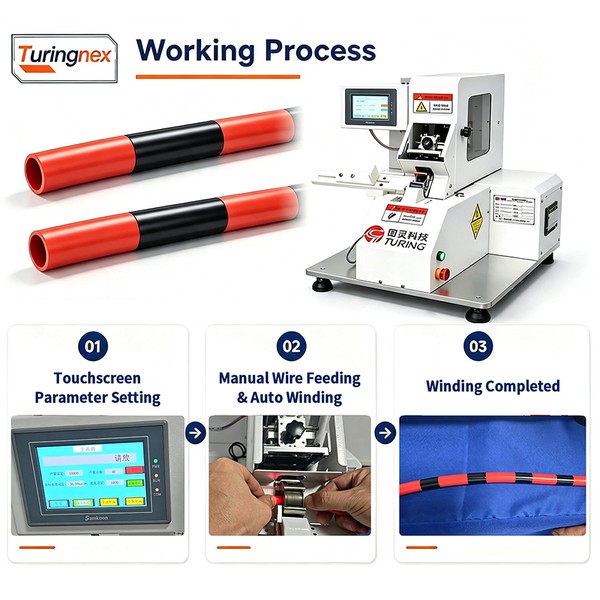

Adopts PLC with HMI touchscreen, including main production page, manual debugging page and parameter setting page. One-click switch between auto/manual modes. Intuitive functions for yield counting & reset, pause and reset, friendly for new operators.

05

Modular mechanical structure, time-saving tape replacement & maintenance

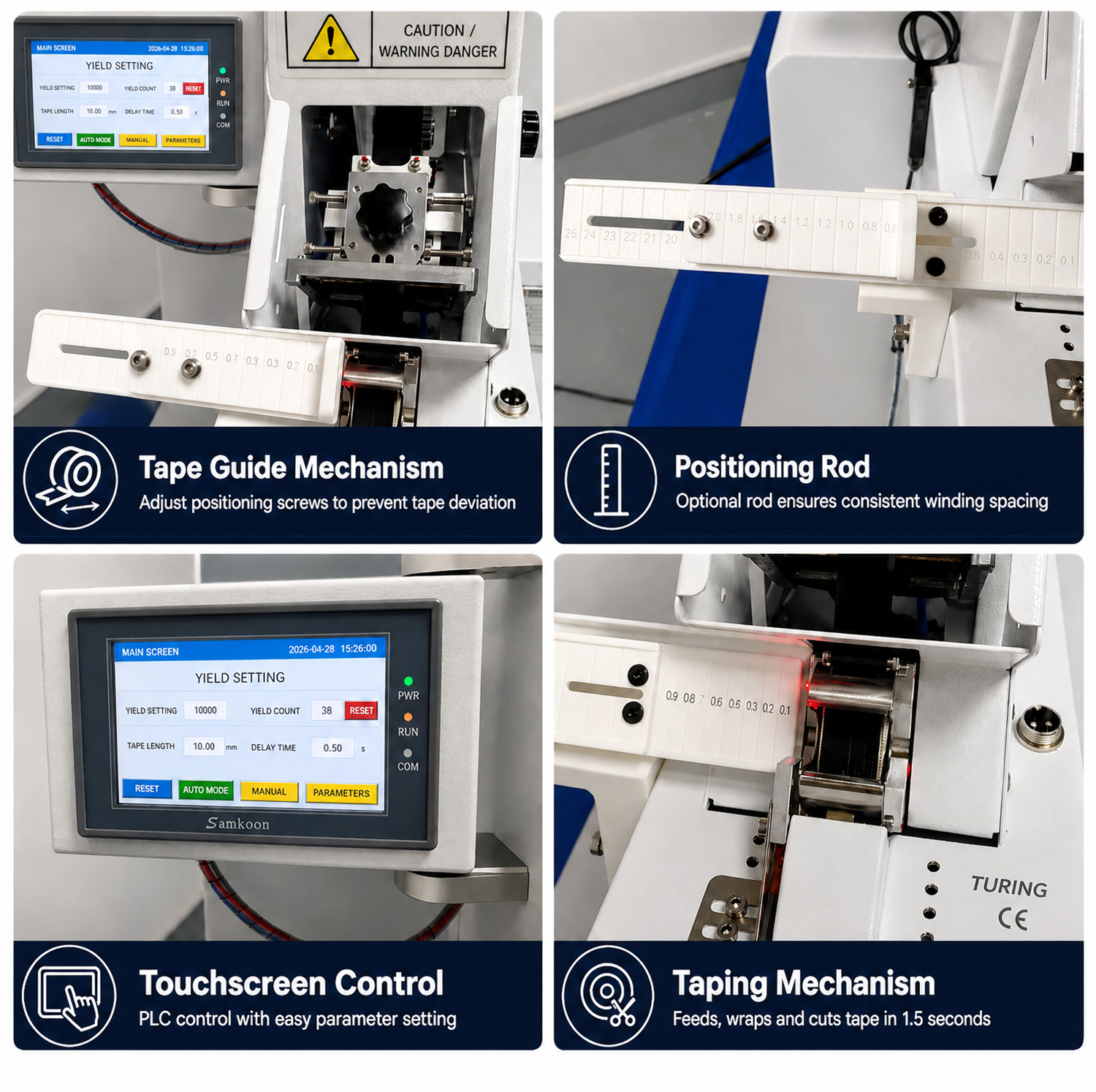

Tape replacement takes only 10 seconds. The tape guide mechanism adjusts via limit screws to prevent tape deviation. Standard split components for cutting blade box and taping gear enable easy disassembly, replacement and maintenance.

Machine Video

TR-BJ1015 in Operation

TR-BJ1015 Automatic Coil Tape Wrapping Machine in operation

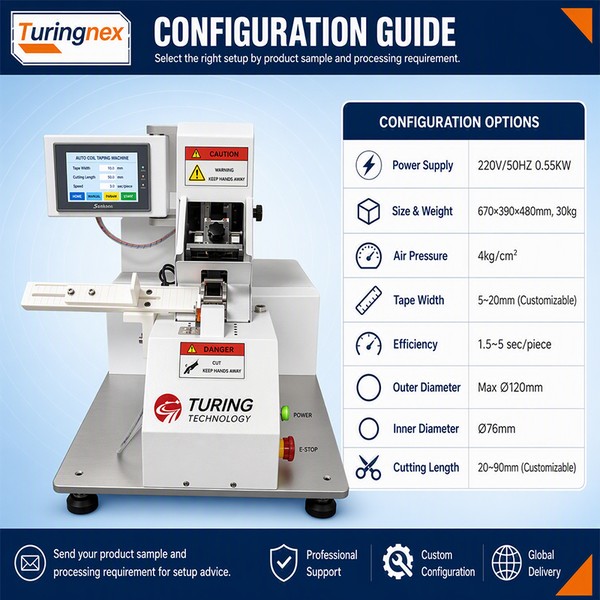

Full Specifications

Technical Data

Model	TR-BJ1015
Power	220V 50Hz
Application	Single Point Tape Wrapping Machine
Feature	Stable Performance
Function	Automatic Tape Winding Machine
Equipment-name	TR-BJ1015 Automatic Coil Tape Wrapping Machine
Size-&-weight	670x390x480mm，30kg
Air-pressure	4kg/cm²
Tape-width	5~20mm (Customizable)
Efficiency	1.5~5 seconds per piece
Outer-diameter-of-tape-roll	Max ￠120mm
Inner-diameter-of-tape-roll	￠76mm
Cutting-length	20~90mm (Customizable)
Apply-tapes	Masking tape, Mylar tape, Dam tape, high-temperature tape, etc.
Terminal compatibility

Ordering Information

Certification	CE — ISO9001 factory — certificates on request
MOQ	1 set
Price (FOB, indicative)	Quote on request
Lead time	Standard models in stock; customised 7–15 days
Payment	T/T 30% deposit + 70% before shipment
Warranty	Standard warranty — terms confirmed in sales contract
Free trial	Free crimp test with your wire & terminals

Specifications are indicative and confirmed with your order. Custom configurations available.

Features & Details

Designed for taping toroidal coils, it works with inductance coils, stator wire packs and other electronic coils. Compatible with masking tape, Mylar tape, barrier tape, high-temperature tape and more.
The taping cycle for one workpiece only takes 1.5–5 seconds. All parameters including taping turns, rotating speed, tape length and tape feeding speed can be set independently on the touchscreen.
Equipped with a photoelectric sensor to trigger an alarm when tape runs out. A fiber sensor stops tape feeding if the finished part is not removed, effectively avoiding mechanical collision damage.
Adopts PLC with HMI touchscreen, including main production page, manual debugging page and parameter setting page. One-click switch between auto/manual modes. Intuitive functions for yield counting & reset, pause and reset, friendly for new operators.
Tape replacement takes only 10 seconds. The tape guide mechanism adjusts via limit screws to prevent tape deviation. Standard split components for cutting blade box and taping gear enable easy disassembly, replacement and maintenance.

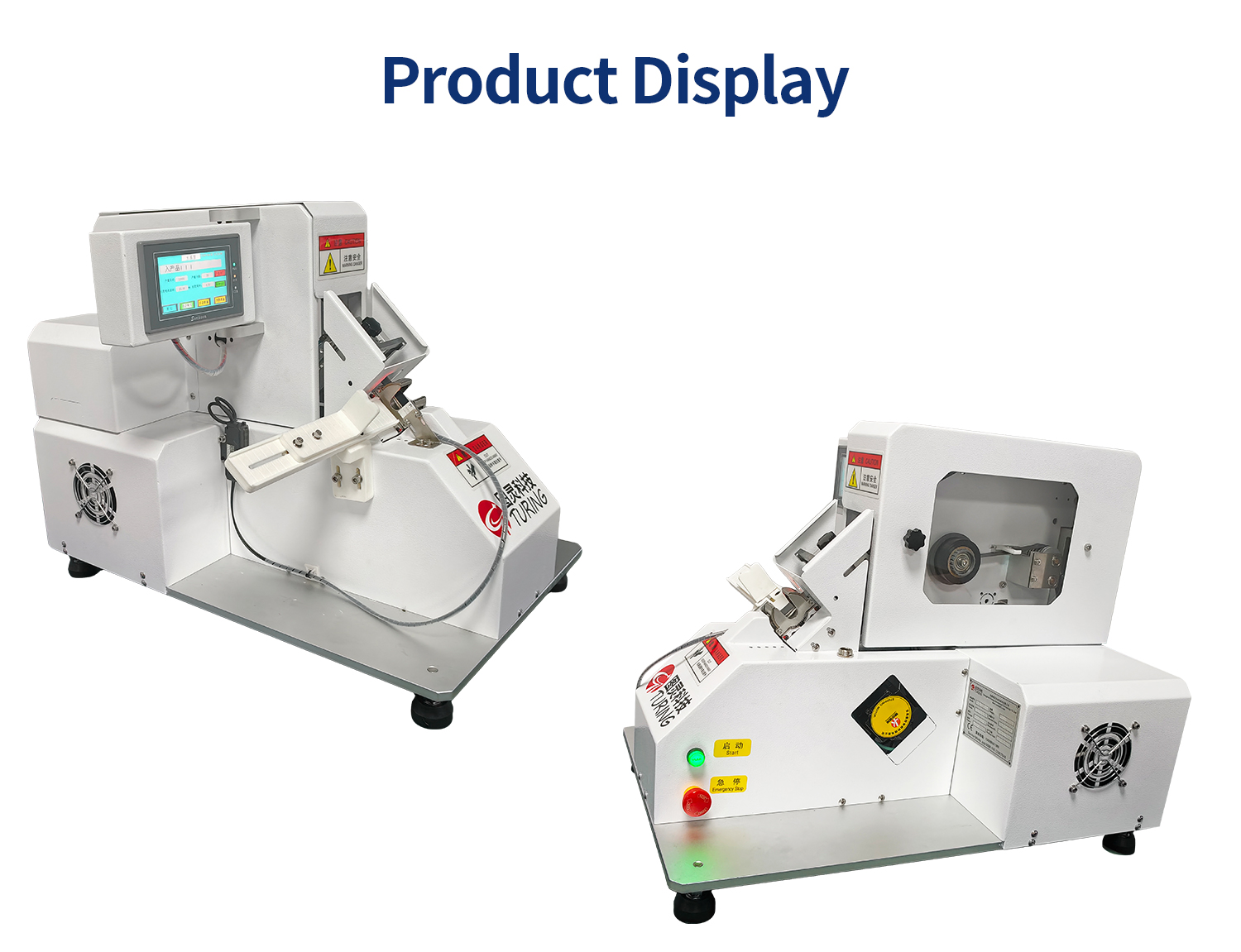

TR-BJ1015 Automatic Coil Tape Wrapping Machine

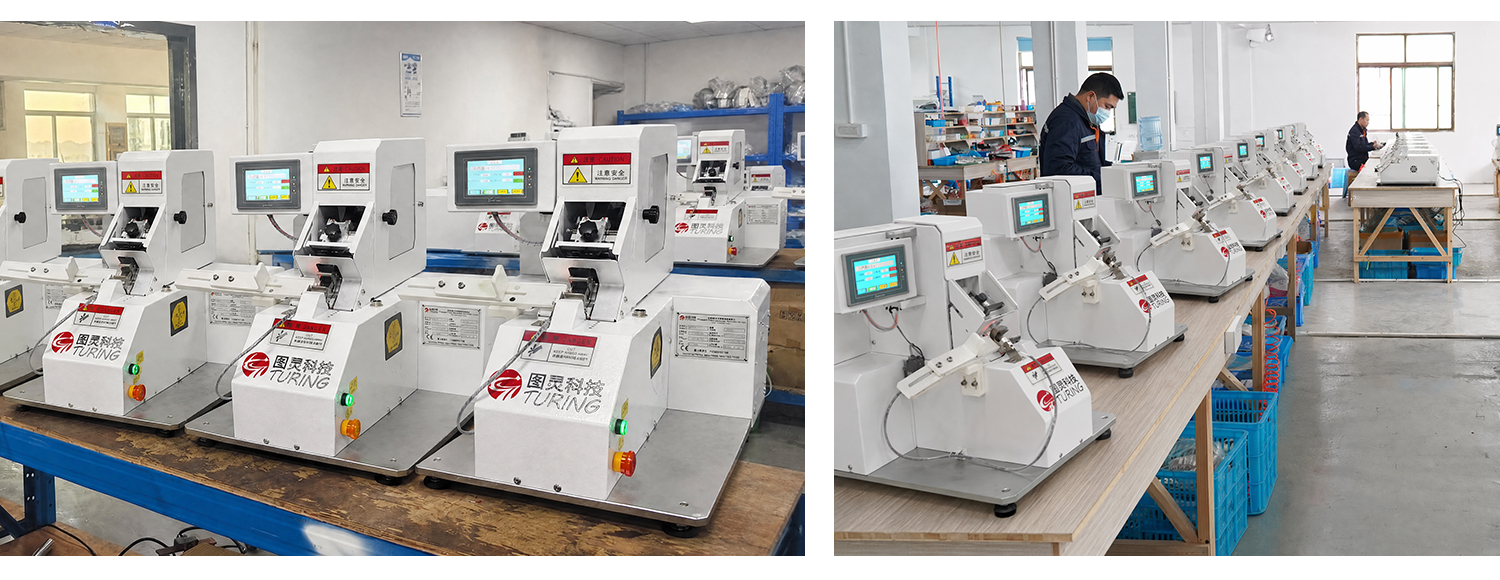

TR-BJ1015 Automatic Coil Tape Wrapping Machine — detail 1

TR-BJ1015 Automatic Coil Tape Wrapping Machine — detail 2

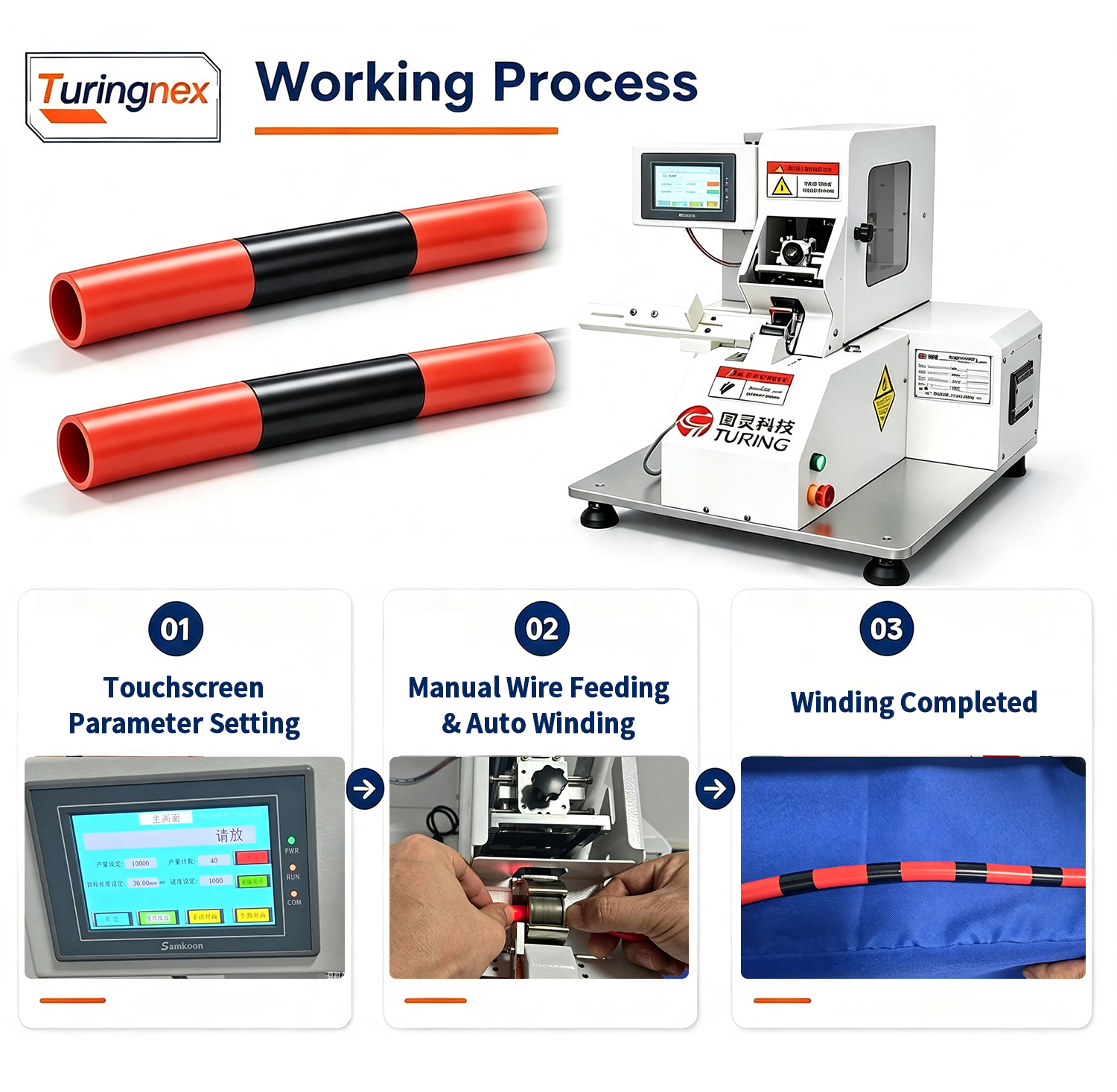

TR-BJ1015 Automatic Coil Tape Wrapping Machine — detail 3

TR-BJ1015 Automatic Coil Tape Wrapping Machine — detail 4

TR-BJ1015 Automatic Coil Tape Wrapping Machine — detail 5

TR-BJ1015 Automatic Coil Tape Wrapping Machine — detail 6

TR-BJ1015 Automatic Coil Tape Wrapping Machine — detail 7

TR-BJ1015 Automatic Coil Tape Wrapping Machine — detail 8

TR-BJ1015 Automatic Coil Tape Wrapping Machine — detail 9

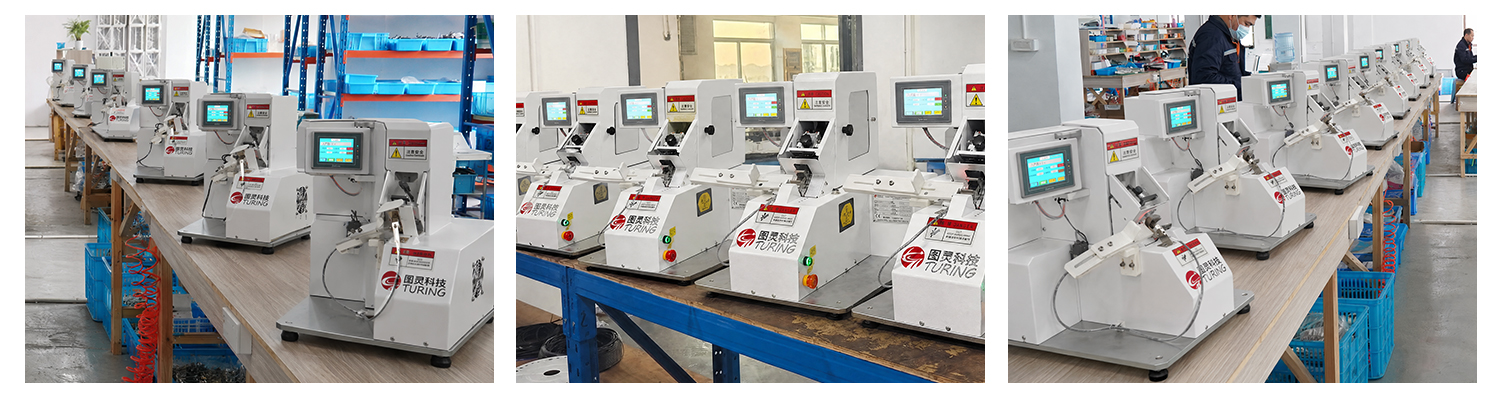

TR-BJ1015 Automatic Coil Tape Wrapping Machine — detail 10
