Highlights
01
Categories

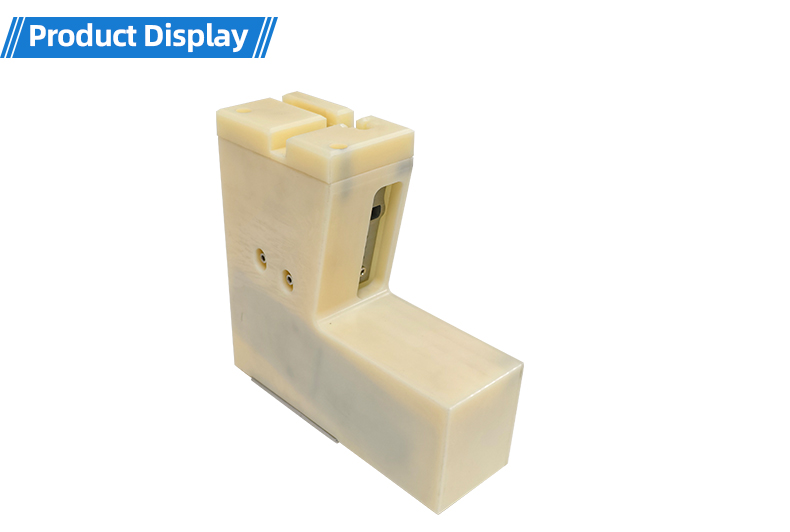

Nylon cable tie bunding machine
02
Brand
Turing
03
Model
TR-A1
04
Power
220V
Machine Video
TR-A1 in Operation
TR-A1 Fixed Cable Tie Automatic Tensioning And Tail-Cutting Machine in operation
Full Specifications

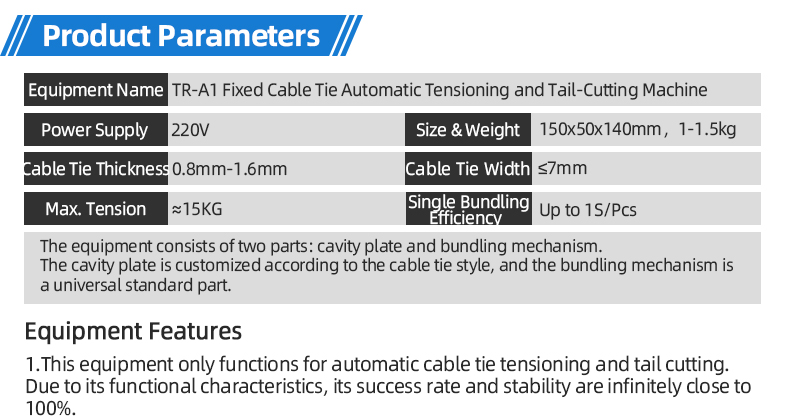

Technical Data
| Model | TR-A1 |
| Power | 220V |
| Application | automatic cable tie tensioning and tail cutting |
| Feature | Stable Performance |
| Warranty | 1year |
| Contact | Coco 0086-18666170785 |
| Terminal compatibility |
Ordering Information
| Certification | CE — ISO9001 factory — certificates on request |
| MOQ | 1 set |
| Price (FOB, indicative) | Quote on request |
| Lead time | Standard models in stock; customised 7–15 days |
| Payment | T/T 30% deposit + 70% before shipment |
| Warranty | Standard warranty — terms confirmed in sales contract |
| Free trial | Free crimp test with your wire & terminals |
Specifications are indicative and confirmed with your order. Custom configurations available.
Features & Details
- Dimension & Weight：150x50x140mm, 1-1.5kg

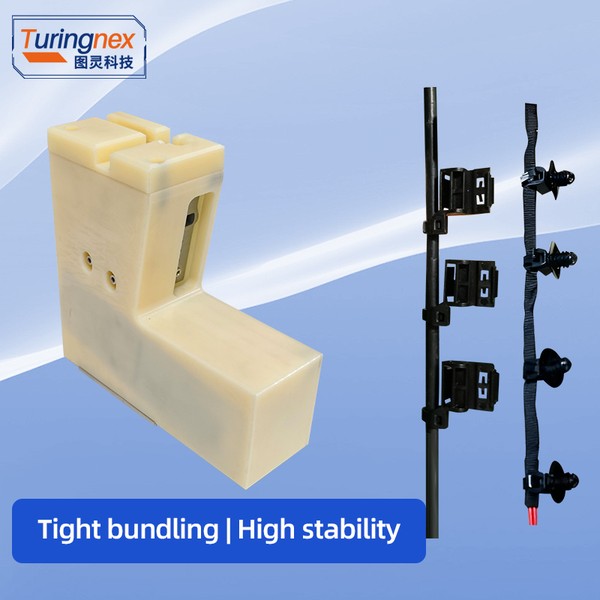

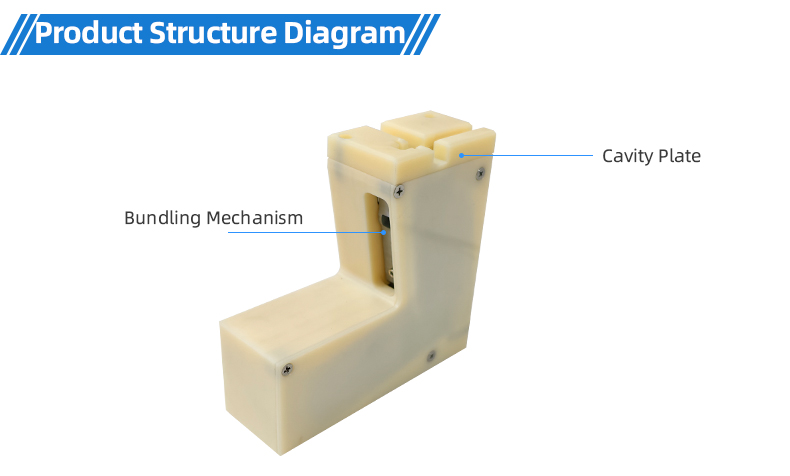

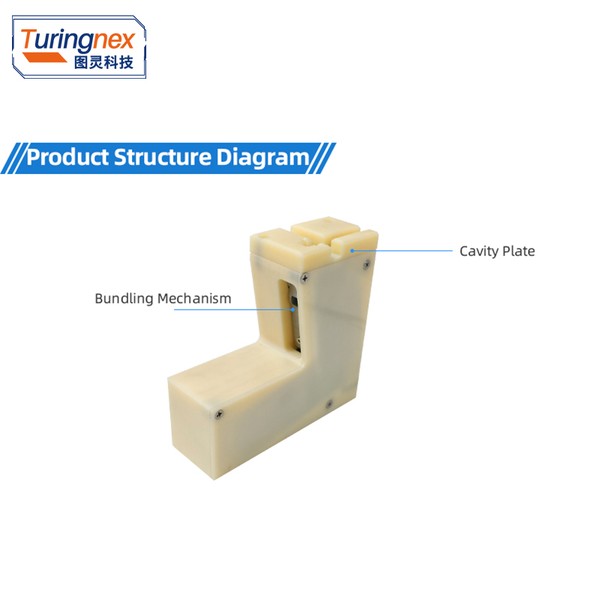

- The equipment consists of two parts: cavity plate and bundling mechanism. The cavity plate is customized according to the cable tie style, and the bundling mechanism is a universal standard part.

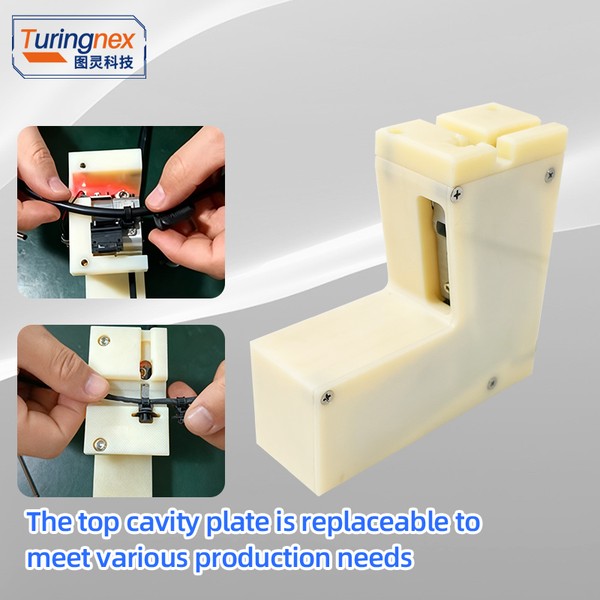

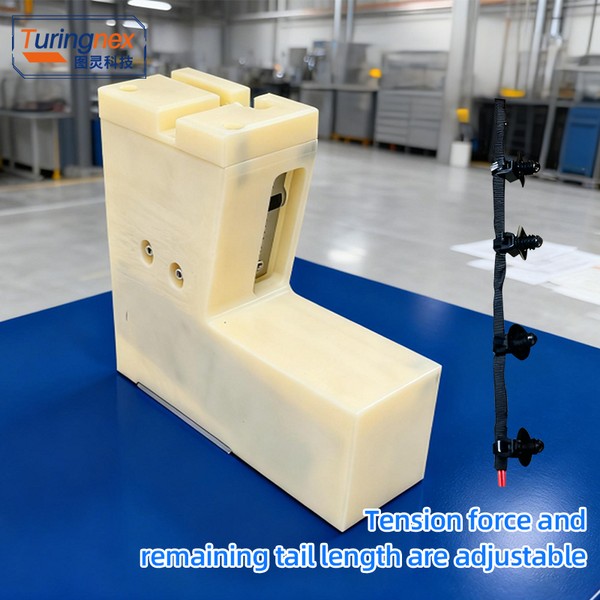

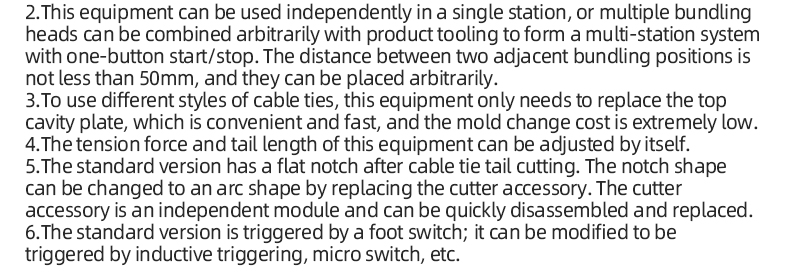

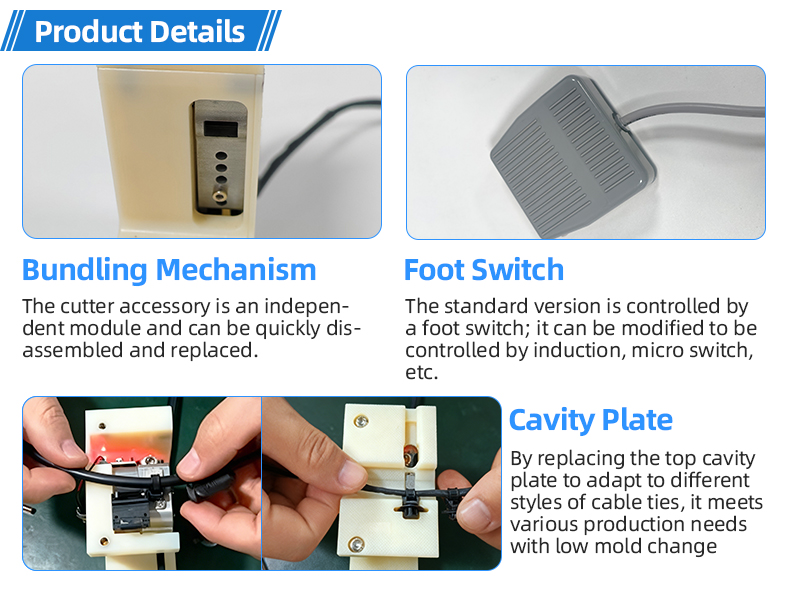

- 1.This equipment only functions for automatic cable tie tensioning and tail cutting. Due to its functional characteristics, its success rate and stability are infinitely close to 100%. 2.This equipment can be used independently in a single station, or multiple bundling heads can be combined arbitrarily with product tooling to form a multi-station system with one-button start/stop. The distance between two adjacent bundling positions is not less than 50mm, and they can be placed arbitrarily. 3.To use different styles of cable ties, this equipment only needs to replace the top cavity plate, which is convenient and fast, and the mold change cost is extremely low. 4.The tension force and tail length of this equipment can be adjusted by itself. 5.The standard version has a flat notch after cable tie tail cutting. The notch shape can be changed to an arc shape by replacing the cutter accessory. The cutter accessory is an independent module and can be quickly disassembled and replaced. 6.The standard version is triggered by a foot switch; it can be modified to be triggered by inductive triggering, micro switch, etc.
Services Around the Machine
Free sample testYour wire, our machine — video proof before you pay.
Setup guidanceRemote commissioning support included with every order.
12-month warrantyPlus spare-parts support and calibration advice.
Options & toolingCustom dies and accessories made to your terminal.
Custom Machine Program
From Your Wire to a Working Machine
Machines are configured around your wire range and terminals — this is how we de-risk it before you pay.
01Send SamplesYour wire and terminals — free evaluation, no commitment.
02Free Test + VideoWe run your sample on the machine and send the video proof.
03Config & QuoteConfiguration, options and FOB quote confirmed within 24 h.
04Build & Run-in TestEvery machine is built and run-in tested 100% before packing.
05QC Video & ShipFinal QC video before packing — sea, air or express dispatch.
Application Note
Which materials it handles, which lines it fits — in the context of your application.
View Application SolutionFree Sample Test
Send your wire and terminals — we run the test on our machine and return the video.
Indicative lead time: On request
Request a TestWhy Buy Direct From Turingnex
Applied Industries

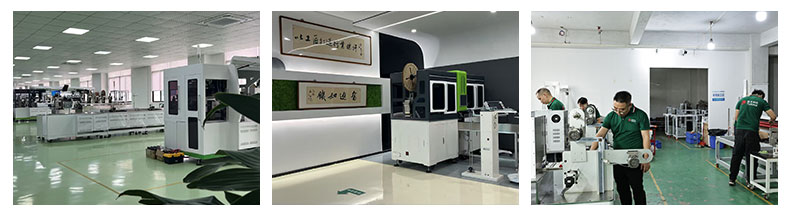

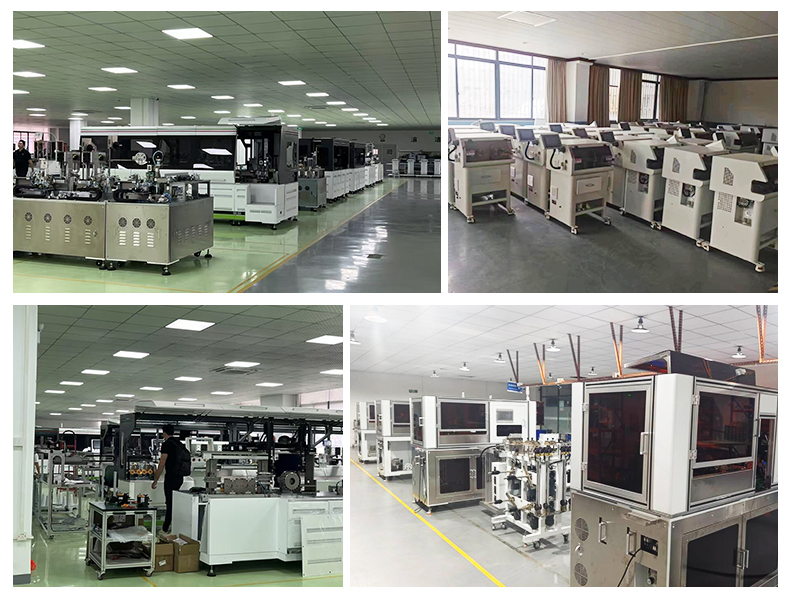

20,000㎡Factory area, Dongguan
10,000+Machines installed worldwide
50+Export countries
98%On-time delivery
Factory Direct
One factory in Dongguan, one engineer per inquiry — 24h quotes, no middlemen.
Certified & Protected
CE certification, ISO9001 quality system, Alibaba Trade Assurance available.
Test Before You Buy
Free crimp test on your wire and terminals — quality verified before you commit.
Packing & Delivery
- Export-grade packing: wooden case / carton with foam protection
- Sea, air or express shipping — tracking provided
- QC photos & videos sent before packing
- Spare dies and consumables available for reorder
Sea / air / express options Tracking after dispatch
TR-A1 — Purchasing FAQ
MOQ is 1 machine for standard models — you can trial a single unit on one line before scaling. Custom dies are ordered by piece.
Common standard models are in stock and can ship right away; customised (non-standard) machines are built to order in 7–15 days. Dies and lead time are confirmed in the quotation.
Standard terms are T/T — 30% deposit to start production and 70% balance before shipment. L/C and Alibaba Trade Assurance are also accepted.
Our factory holds CE certification and ISO9001 quality management, and orders can be protected by Alibaba Trade Assurance. Certificates are available on request.
